Introduction

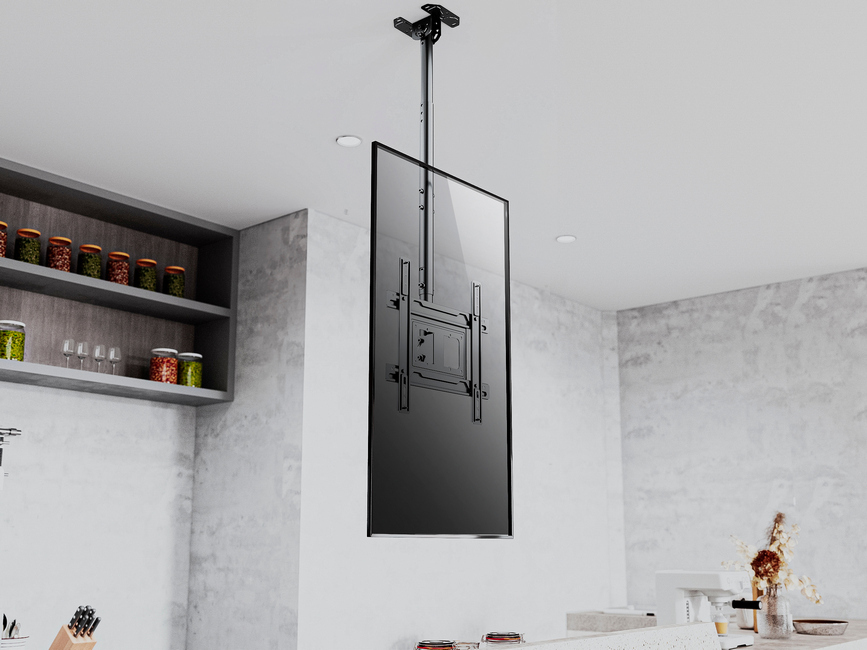

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens

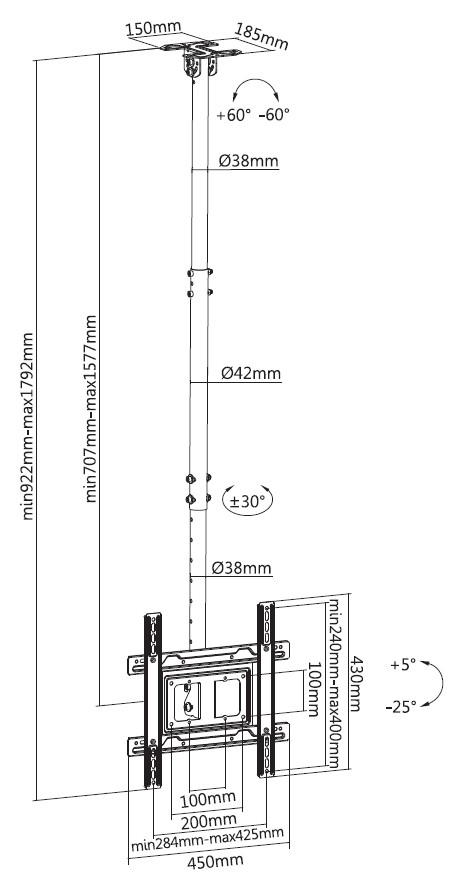

Specifications
| Mounting | |
|---|---|
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 50 kg |
| Panel mounting interface | 100 x 100,100 x 200,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300 |
| Mounting type | Ceiling |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Maximum screen size | 177.8 cm (70") |
| Ergonomics | |
| Swivel angle range | -30 - 30° |
| Tilt angle range | 5 - 25° |
| Distance to the wall (min) | 70.7 cm |
| Distance to the wall (max) | 157.7 cm |

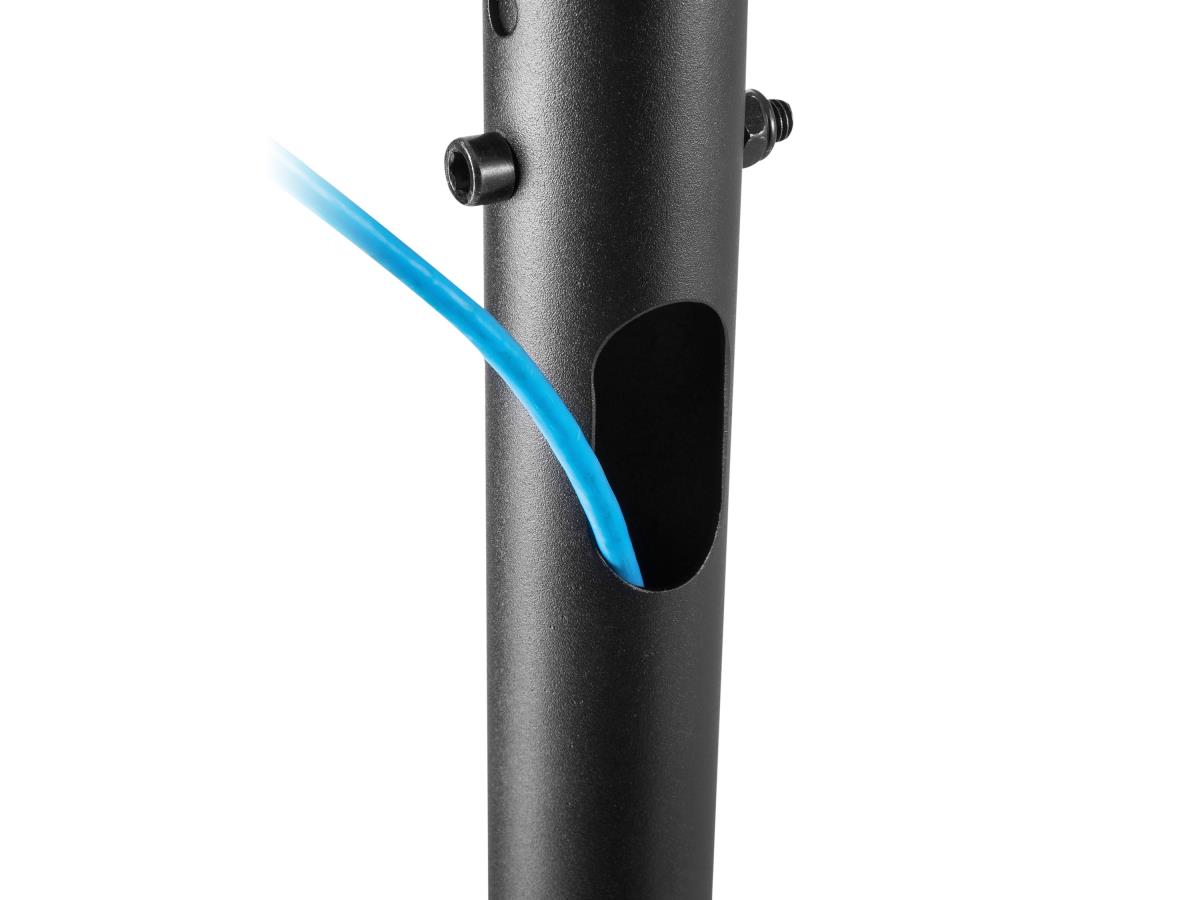

| Cable management | Yes |
| Design | |
| Housing material | Plastic, Steel |
| Certification | CE, RoHS |
| Product colour | Black |
| Weight & dimensions | |
| Width | 185 mm |
| Depth | 450 mm |
| Height | 1792 mm |
| Weight | 5.06 kg |
| Package dimensions (WxDxH) | 265 x 642 x 77 mm |
| Package width | 265 mm |
| Package depth | 642 mm |
| Package height | 77 mm |
| Package weight | 5.58 kg |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 642 mm |
| Package height | 77 mm |
| Package weight | 5.58 kg |
| Package dimensions (WxDxH) | 265 x 642 x 77 mm |
| Packaging content | |
| Screws included | Yes |
| User guide | Yes |
| Technical details | |
| Mounting type | Ceiling |
| Distance to the wall (min) | 70.7 cm |
| Distance to the wall (max) | 157.7 cm |
| Package dimensions (WxDxH) | 265 x 642 x 77 mm |
| Certificates | |
| Certification | CE, RoHS |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 660 mm |
| Master (outer) case height | 255 mm |
| Master (outer) case gross weight | 17.2 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 85299097 |
