Introduction

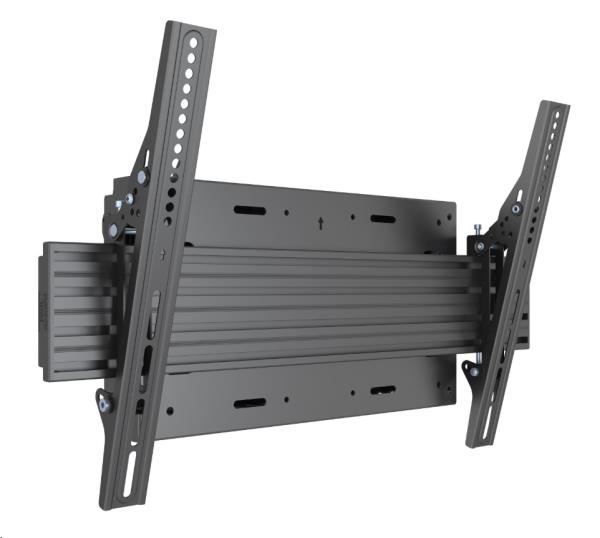

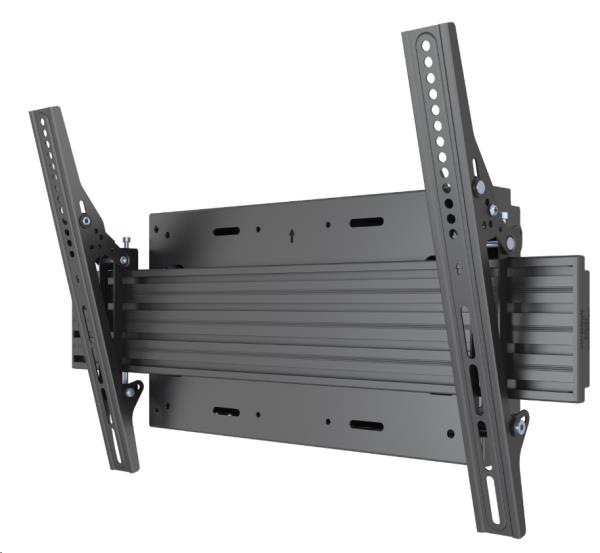

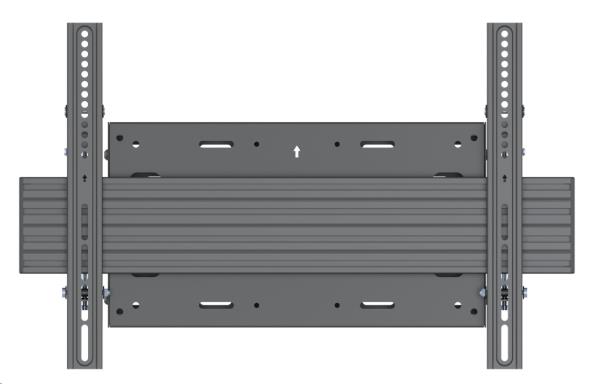

The Multibrackets M Wallmount Pro MBW1U Tilt Black with integrated wall box is a cutting-edge solution designed for single-display installations, combining a tilting wall mount with practical storage space for AV equipment behind the screen. This feature is especially beneficial for concealing devices such as AV boxes, network equipment, or TV boxes directly behind the screen, maintaining a clean and organized look while ensuring easy access to all connections.
The Pro Series from Multibrackets is crafted with installers in mind, offering a modular, easy-to-configure system that simplifies installation and maintenance. This tilt model offers enhanced versatility and flexibility, allowing for optimal screen positioning and adjustment. The robust aluminum rail system provides comprehensive cable management, streamlining installation and achieving a polished, professional appearance.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 101.6 cm (40") |
| Maximum weight capacity | 70 kg |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 190.5 cm (75") |
| Ergonomics | |
| Tilt angle range | -6 - 15° |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Design | |
| Housing material | Aluminium, Steel |
| Product colour | Black |
| Weight & dimensions | |
| Width | 700 mm |
| Depth | 180 mm |
| Height | 180 mm |
| Weight | 8.49 kg |
| Aluminium content weight | 1.4 kg |
| Steel content weight | 8.49 kg |
| Other metals content weight | 0 g |
| Package weight | 9 kg |
| Packaging data | |
| Package weight | 9 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting kit | Yes |
| Technical details | |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Compliance certificates | CE |
| Plastic packaging weight | 50 g |
| Paper/cardboard packaging weight | 460 g |
| Metal packaging weight | 0 g |
