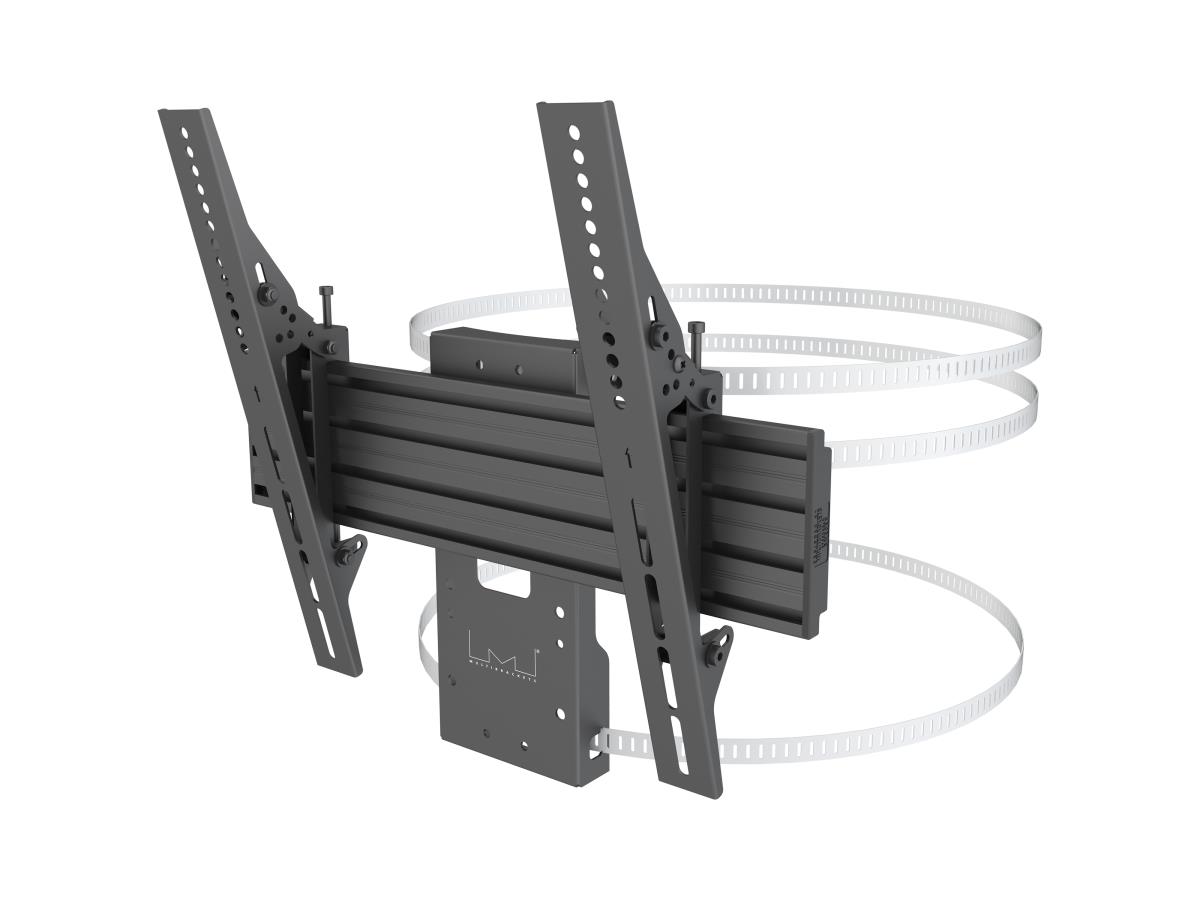

M Wallmount Pro Column
Introduction
Multibrackets M Pro Series – Wallmount Column is our innovative - ready to be installed Single-Display Wallmount on a column. A mounting system which enables you to mount displays on columns without drilling._x000D_
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Wallmount Pro MBW1U is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye._x000D_
With its modular construction installers have vast possibilities to change, create, update and reconfigure its design if ideas change over time, then Pro Series can follow._x000D_
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 35 kg |
| Panel mounting interface | 100 x 100,200 x 200,300 x 300,400 x 400 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Maximum screen size | 165.1 cm (65") |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 10 mm |
| Swivel angle | 360° |
| Tilt angle range | -6 - 15° |
| Angle of rotation | 8° |
| Height adjustment type | Manual |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Design | |
| Housing material | Aluminium, Steel |
| Certification | CE |
| Product colour | Black |
| Weight & dimensions | |
| Width | 750 mm |
| Height | 980 mm |
| Weight | 4.07 kg |
| Depth (max) | 16 cm |
| Aluminium content weight | 1 kg |
| Steel content weight | 4.07 kg |
| Other metals content weight | 0 g |
| Package width | 97 mm |
| Package depth | 747 mm |
| Package height | 156 mm |
| Package weight | 4.45 kg |
| Package type | Box |
| Packaging data | |
| Package width | 97 mm |
| Package depth | 747 mm |
| Package height | 156 mm |
| Package weight | 4.45 kg |
| Package type | Box |
| Technical details | |
| Angle of rotation | 8° |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Plastic packaging weight | 30 g |
| Paper/cardboard packaging weight | 350 g |
| Metal packaging weight | 0 g |
| Certificates | |
| Certification | CE |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
