Part No:K55470EU
Stock:26 In Stock
EAN Code:5028252597128

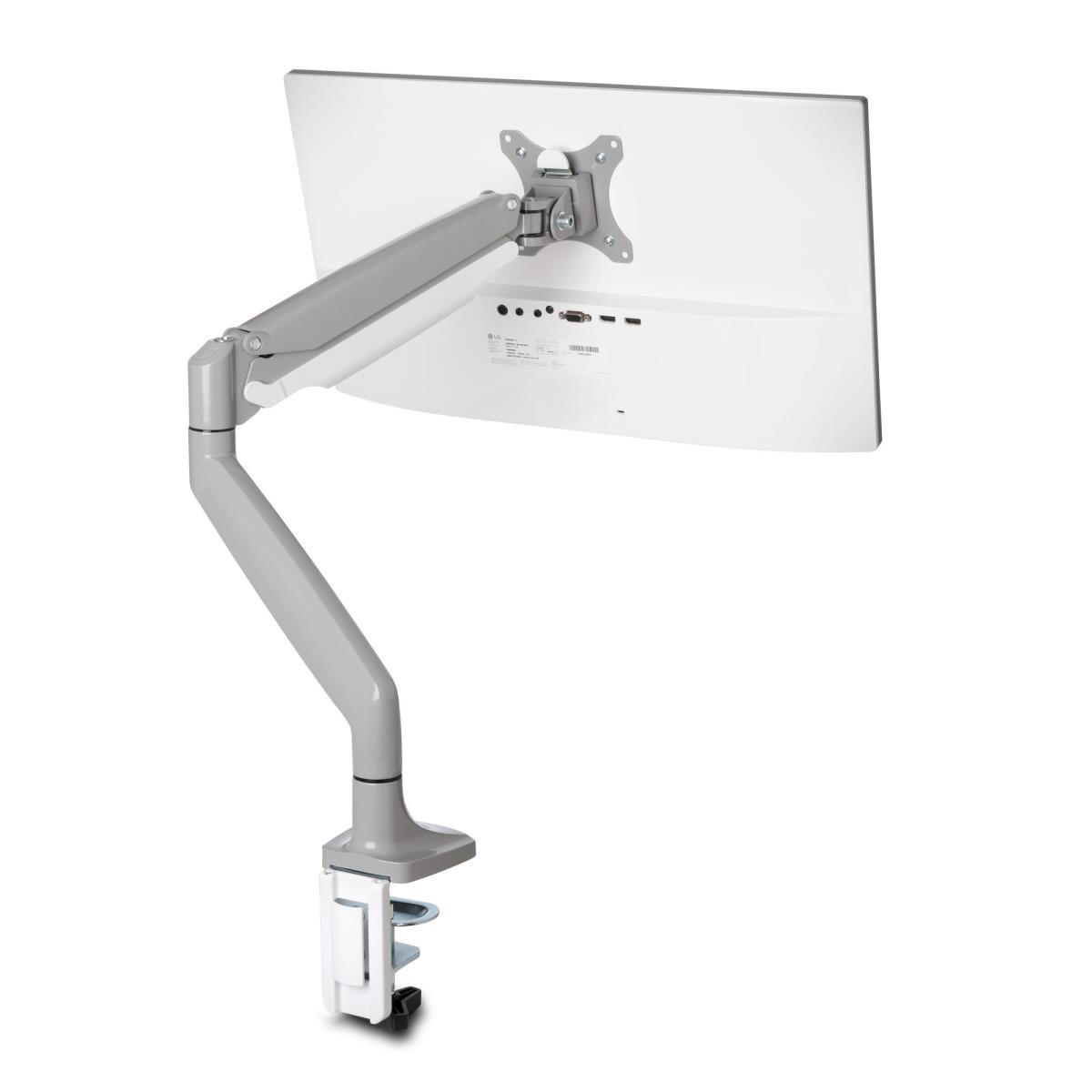

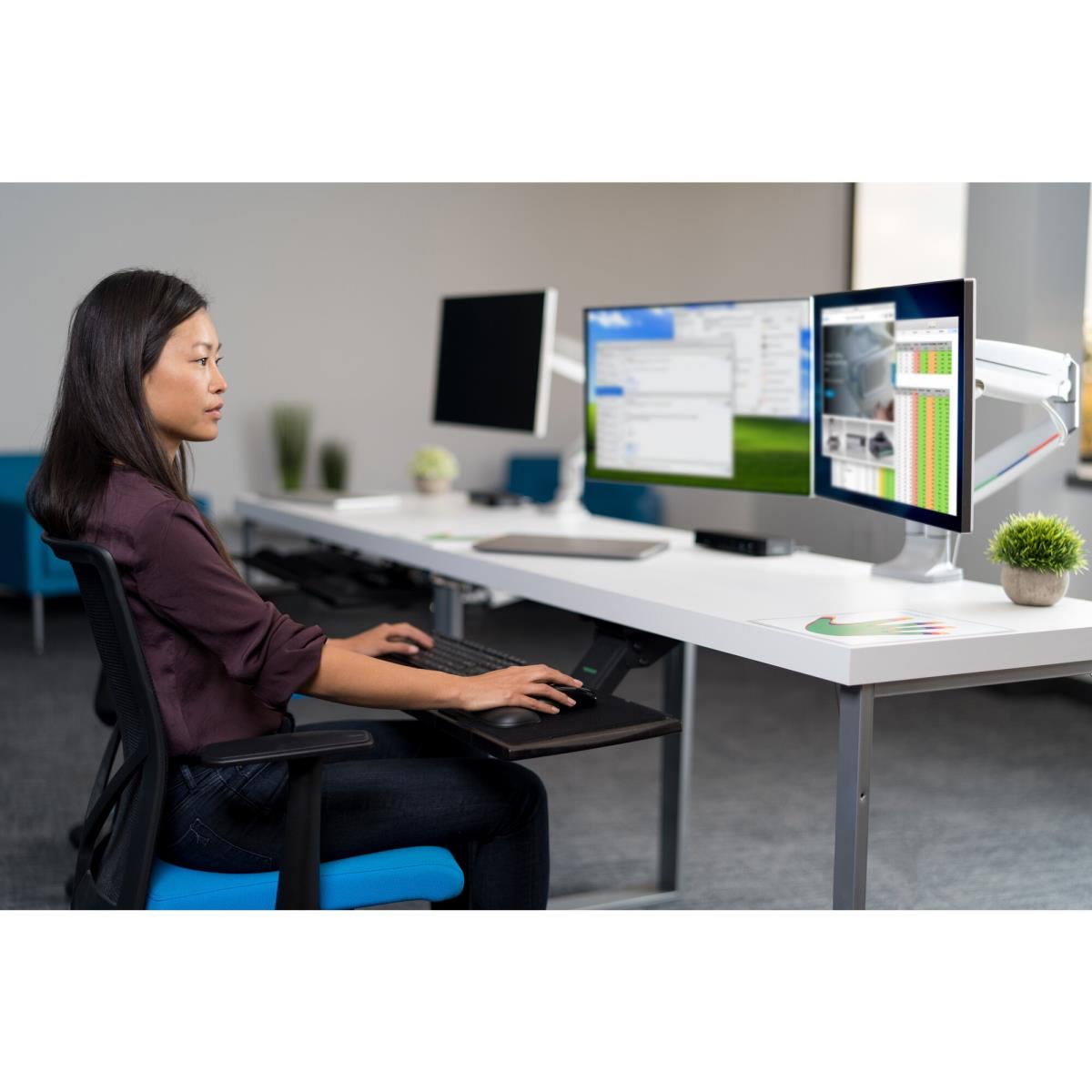

Improve posture, promote proper eye alignment and support neck and shoulder comfort with the Kensington SmartFit® One-Touch Height Adjustable Monitor Arm. Ergonomically designed to promote wellness and increase productivity, the SmartFit® One-Touch Height Adjustable Monitor Arm incorporates Kensington’s patented SmartFit® technology to simplify proper fit and allows users to adjust the height, depth and angle of their monitor for individualised comfort. Stable at any monitor position, users can easily switch from landscape to portrait mode. An ideal monitor arm for the modern office and a perfect complement to the SmartFit Sit/Stand Desk (K52804WW).
SmartFit® system simplifies ideal ergonomic height positioning using scientifically proven research to support proper fit.

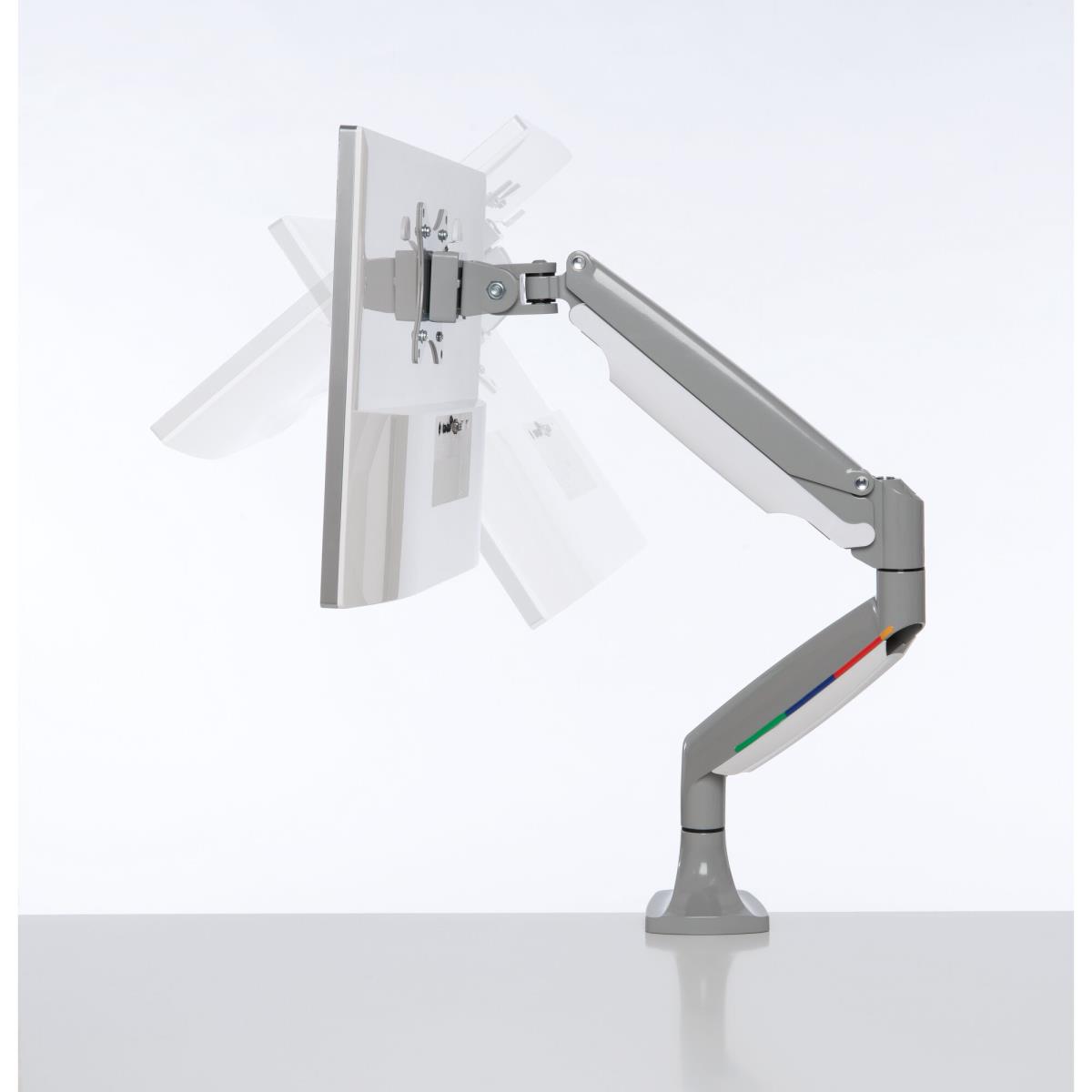

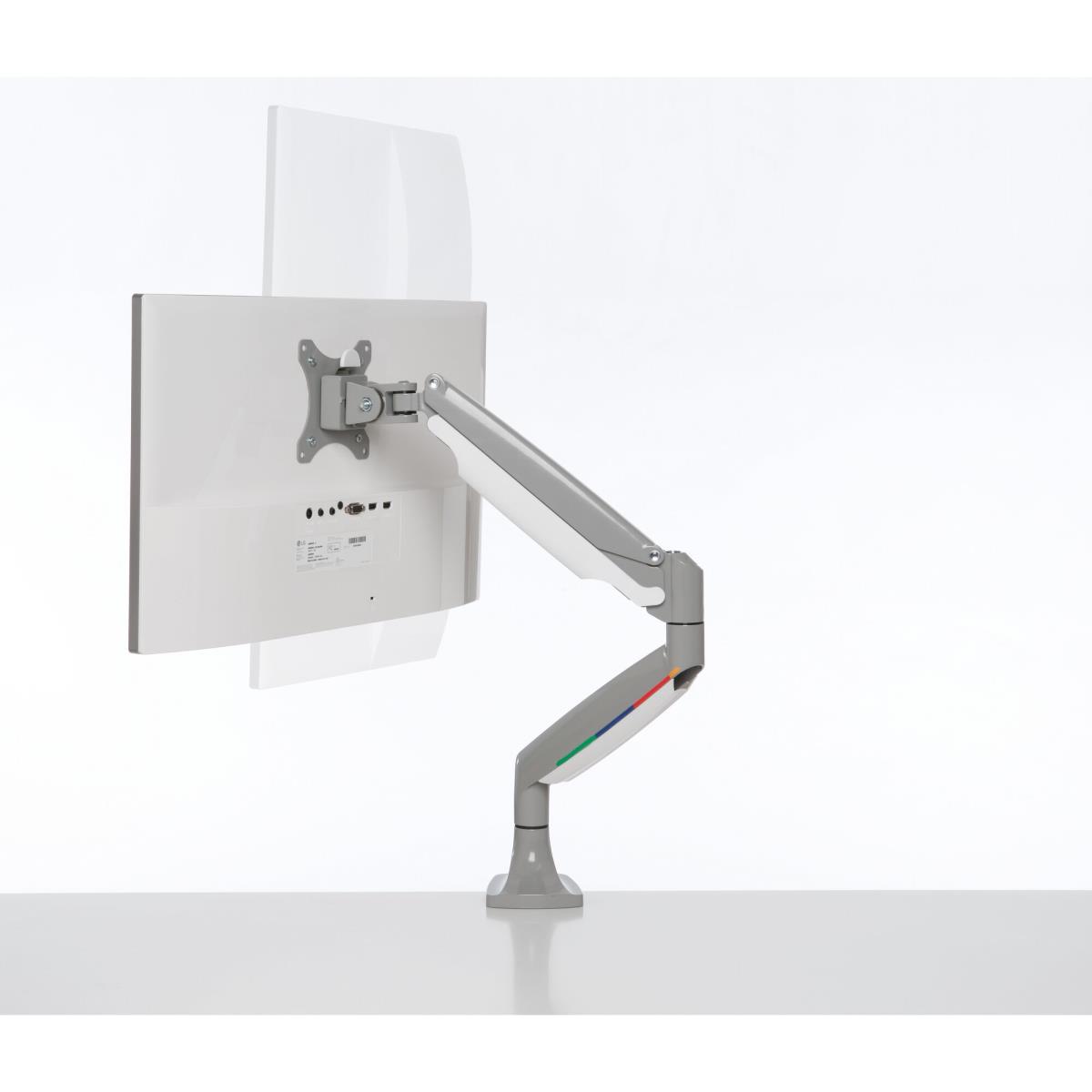

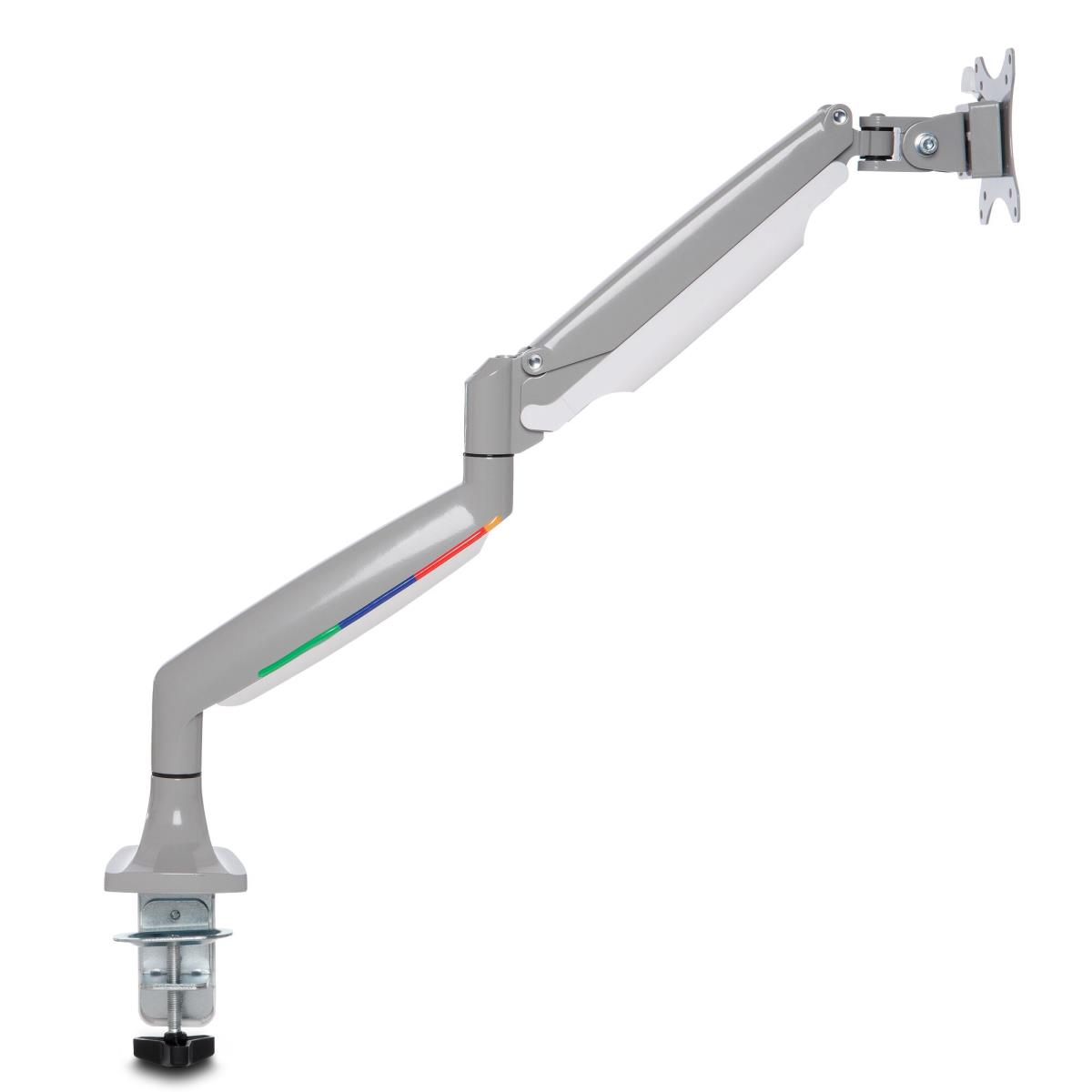

One-touch adjustable arm with built-in gas spring simplifies height adjustment (170-505mm), provides 180° swivel and monitor rotation, +/- 90° tilt adjustment, and allows monitor to smoothly move up, down, forward and back for full motion articulation
Stability focused design supports 13”-32” flat or curved monitors weighing up to 9kg (19.8lbs) and ensures monitor is stable and steady in any position

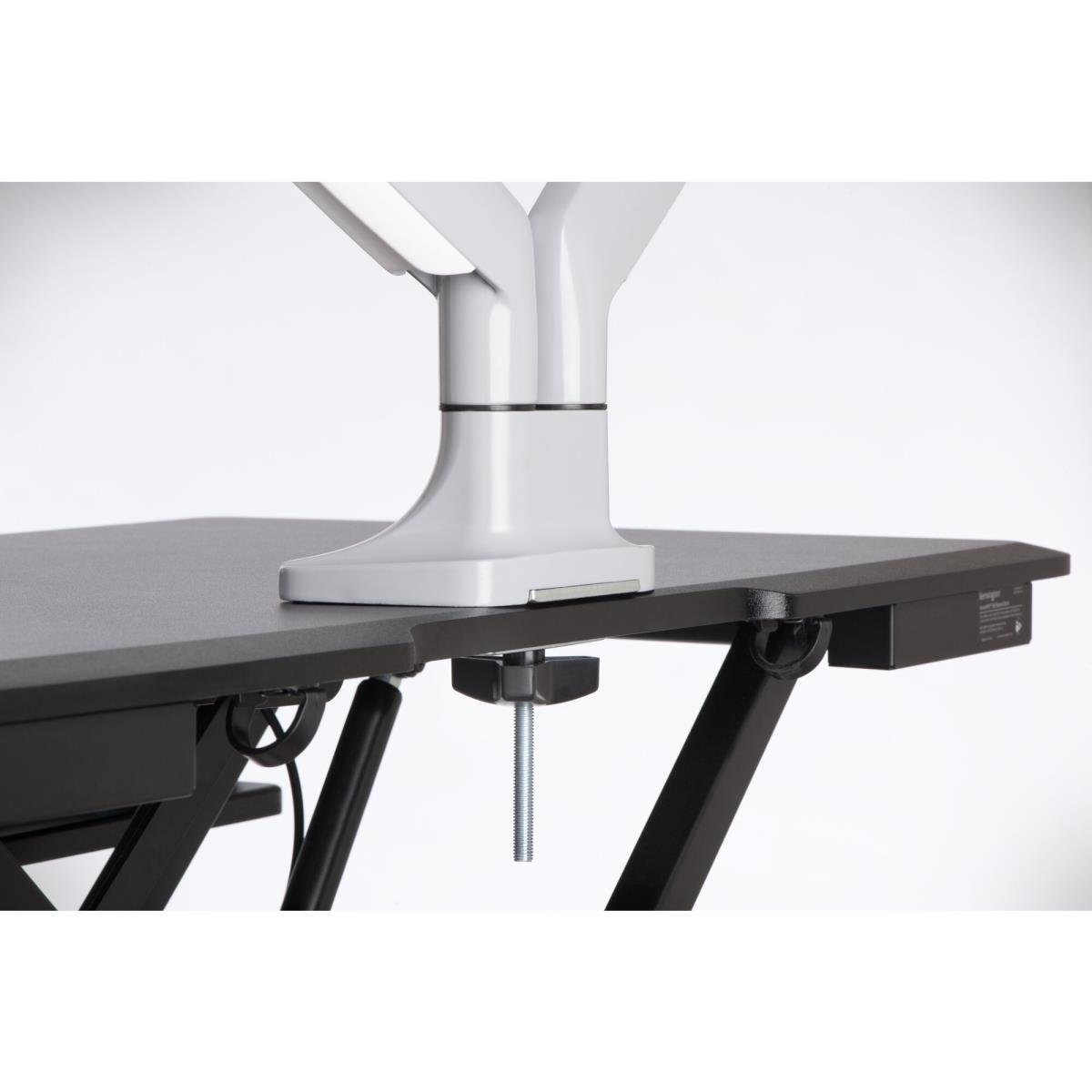

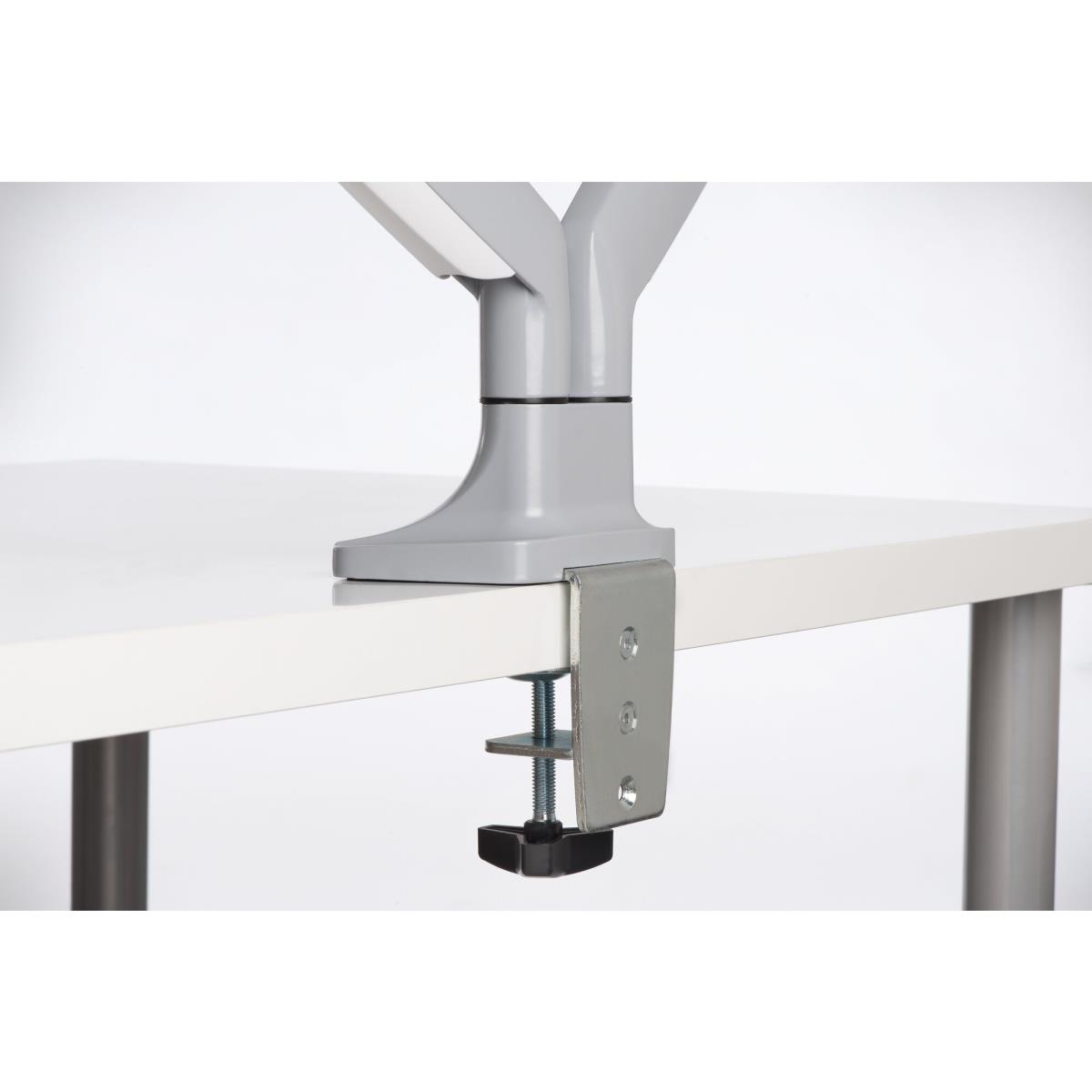

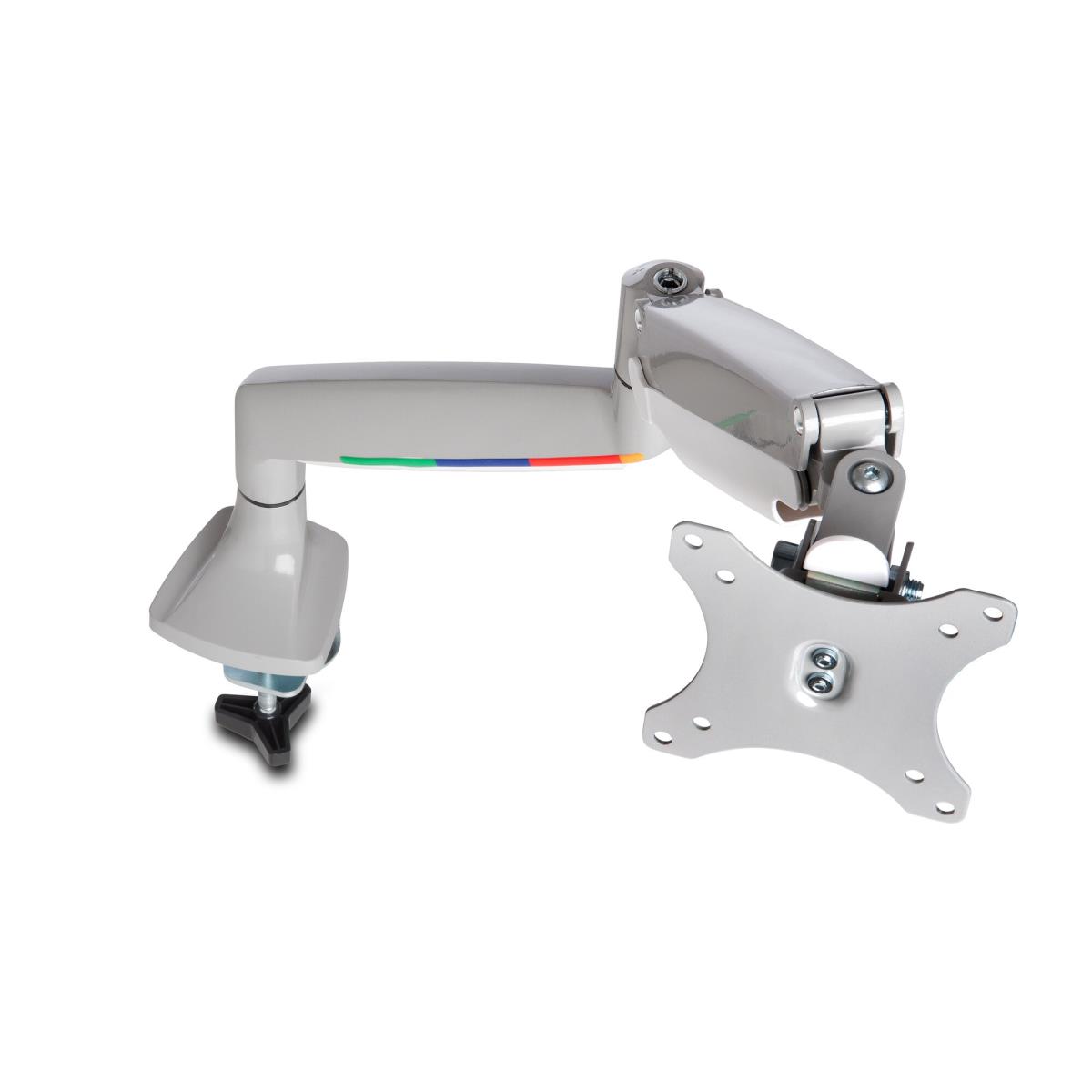

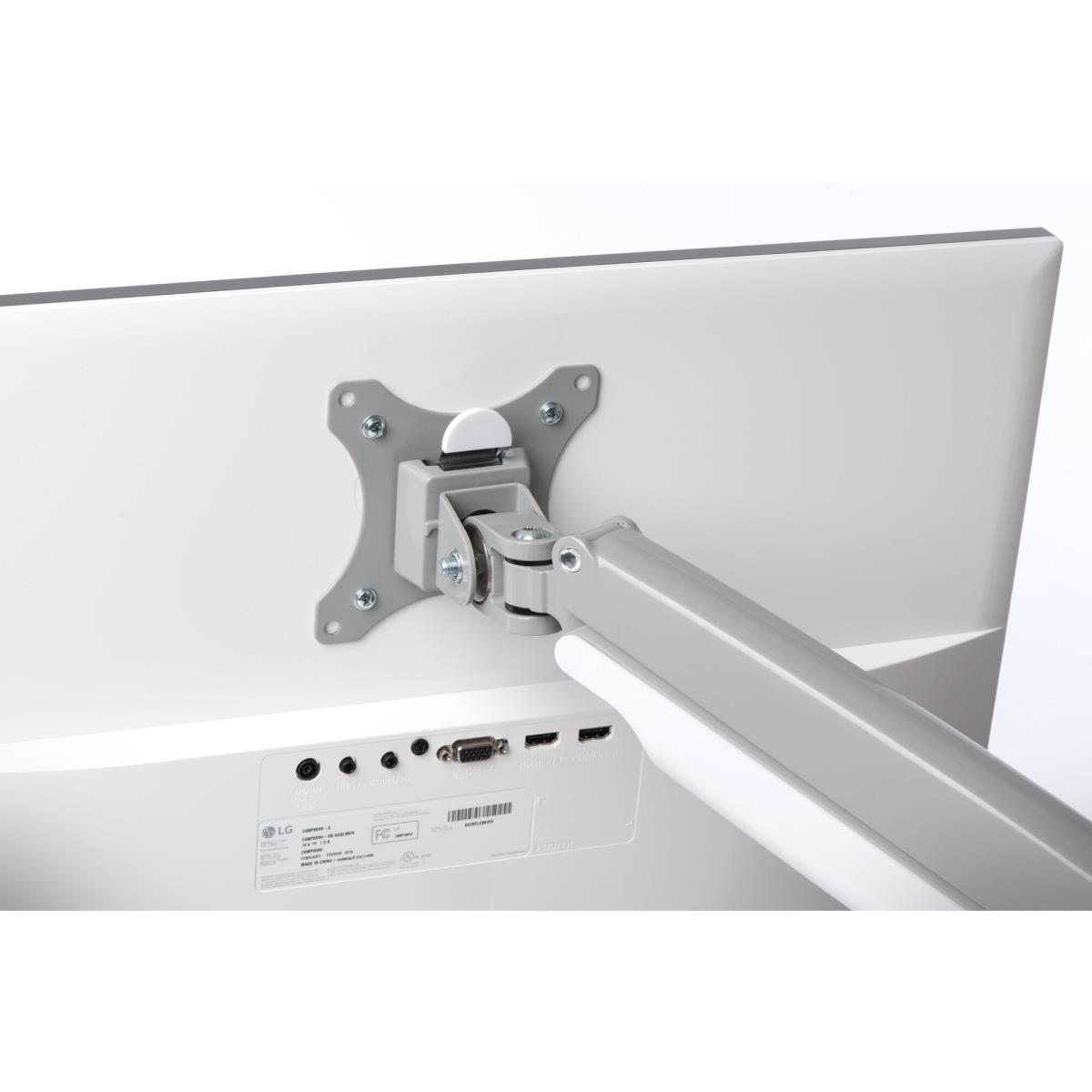

Easy to install with included quick release detachable VESA® plate (75mm or 100mm), c-clamp (desktop thickness range: 10-85mm and grommet (diameter range: 10.5-50mm) installation options and included tool kit to simplify removal

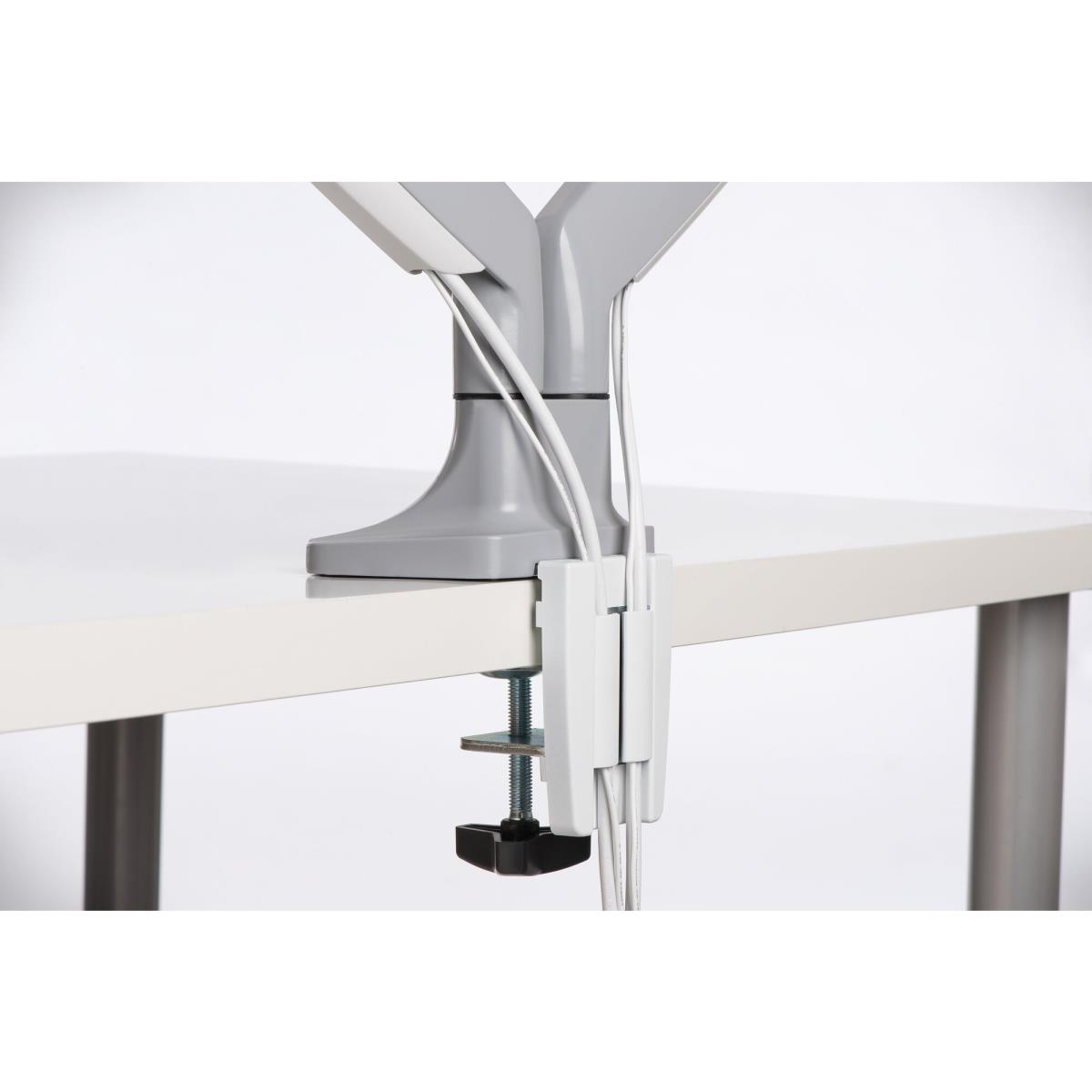

Cable management system keeps monitor cables organised for a tidier workspace
Kensington durability meets ANSI/BIFMA performance and safety standards
Mounting | |
---|---|
Desk thickness (min) | 1 cm |
Desk thickness (max) | 8.5 cm |
Minimum screen size | 33 cm (13") |
Number of displays supported | 1 |
Mounting type | Desk |
Minimum VESA mount | 75 x 75 mm |
Maximum VESA mount | 100 x 100 mm |
Mounting | Clamp/Bolt-through |
Maximum weight capacity | 9 kg |
Maximum screen size | 81.3 cm (32") |
Extension arm (max) | 52.5 cm |
Ergonomics | |
Cable management | Yes |
Height adjustment | Yes |
Height adjustment range | 170 - 505 mm |
Swivel angle range | -180 - 180° |
Tilt angle range | -90 - 90° |
Angle of rotation | 90° |
Pan range | -90 - 90° |
Design | |
Product colour | Grey, Silver |
Housing material | Aluminium, Plastic, Steel |
Certification | Prop 65, BIFMA |
Technical details | |
Mounting type | Desk |
Product colour | Grey, Silver |
Cable management | Yes |
Compliance certificates | RoHS |
Weight & dimensions | |
Width | 590 mm |
Depth | 115 mm |
Height | 665 mm |
Weight | 3.34 kg |
Package width | 485.9 mm |
Package depth | 315 mm |
Package height | 114.3 mm |
Package type | Box |
Package weight | 4.22 kg |
Packaging data | |
Package width | 485.9 mm |
Package depth | 315 mm |
Package height | 114.3 mm |
Package type | Box |
Package weight | 4.22 kg |
Certificates | |
Certification | Prop 65, BIFMA |
Other features | |
Certification | Prop 65, BIFMA |
Compliance certificates | RoHS |
Mounting type | Desk |
Mounting | Clamp/Bolt-through |
Logistics data | |
Master (outer) case width | 333.5 mm |
Master (outer) case length | 514.4 mm |
Master (outer) case height | 479.6 mm |
Master (outer) case gross weight | 17.8 kg |
Products per master (outer) case | 4 pc(s) |
Harmonized System (HS) code | 85299097 |
