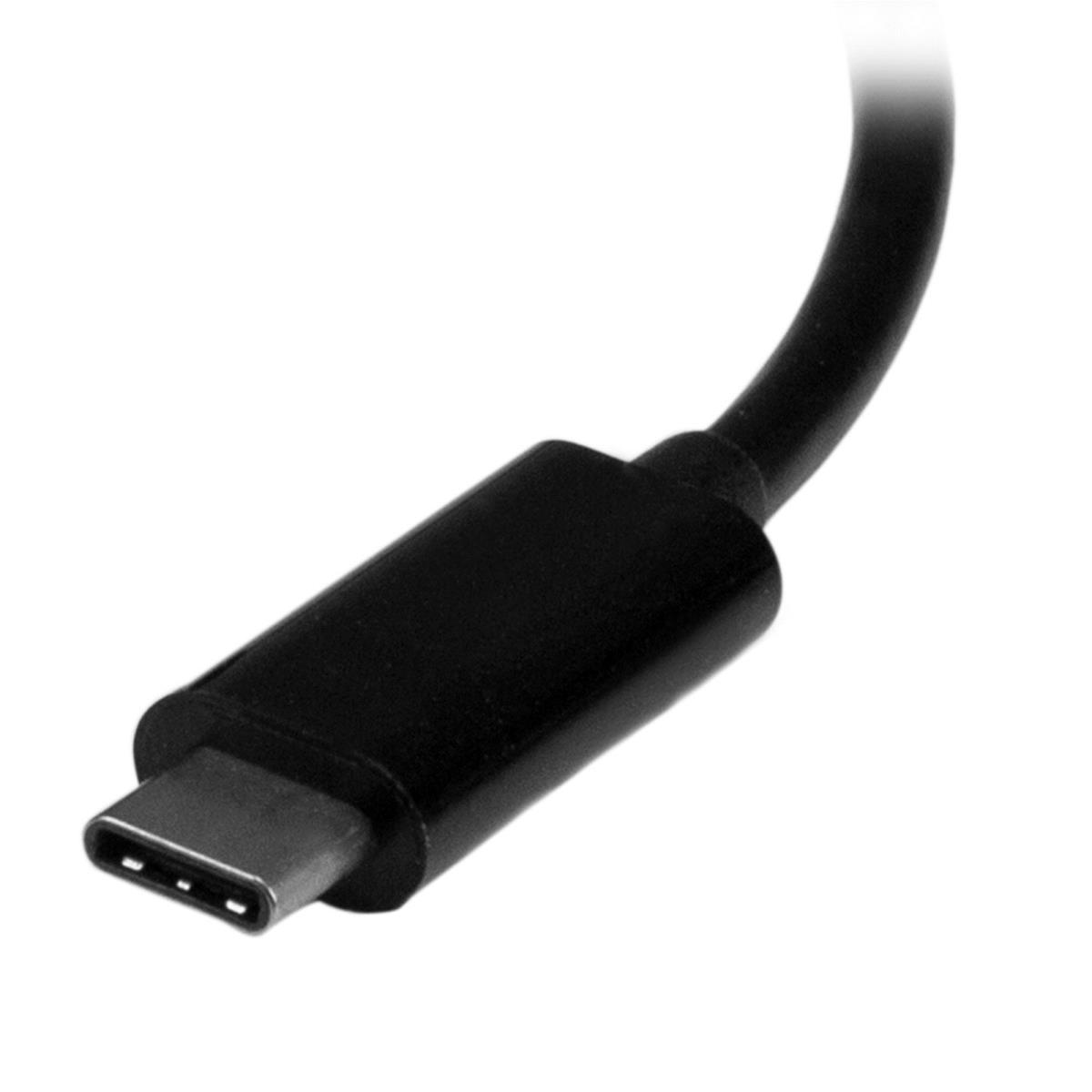

USB C MULTIPORT ADAPTER DONGLE
Introduction
USB Type-C™ to VGA DVI or HDMI Travel Adapter | 3-Year Warranty

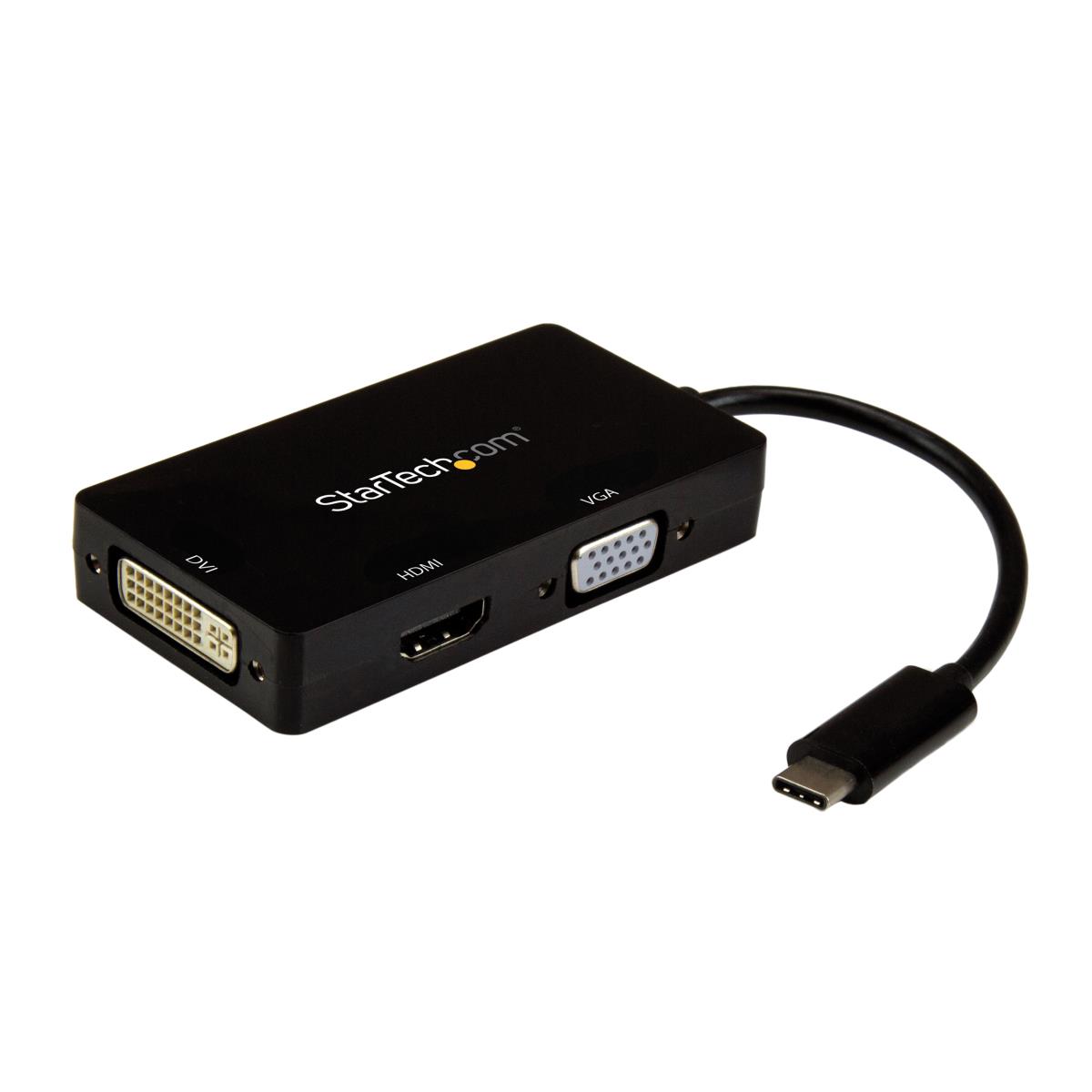

This USB-C™ multiport video adapter offers a portable solution for connecting your USB Type-C laptop to a VGA, DVI or HDMI® display.

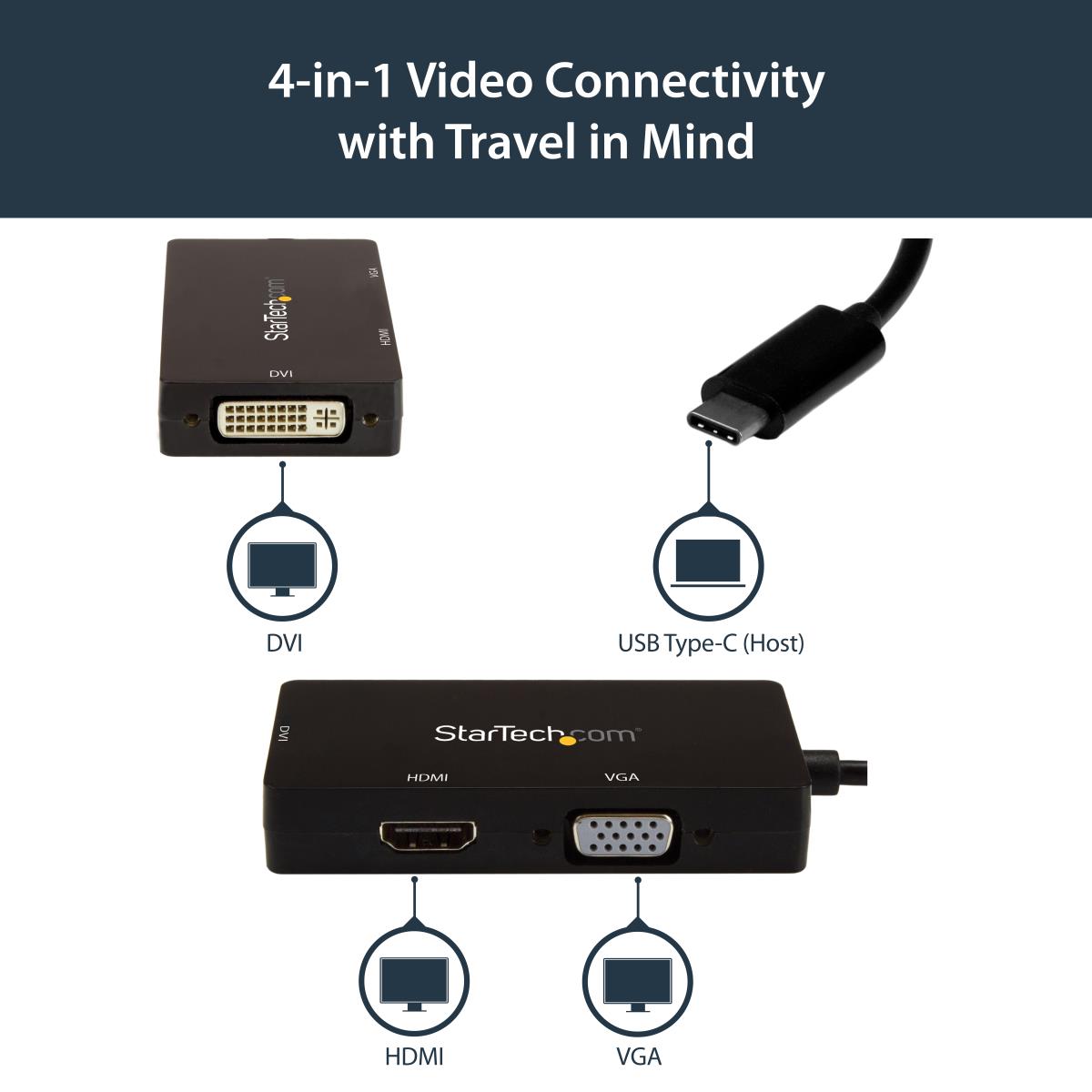

All-in-One Video Connectivity, with Travel in Mind

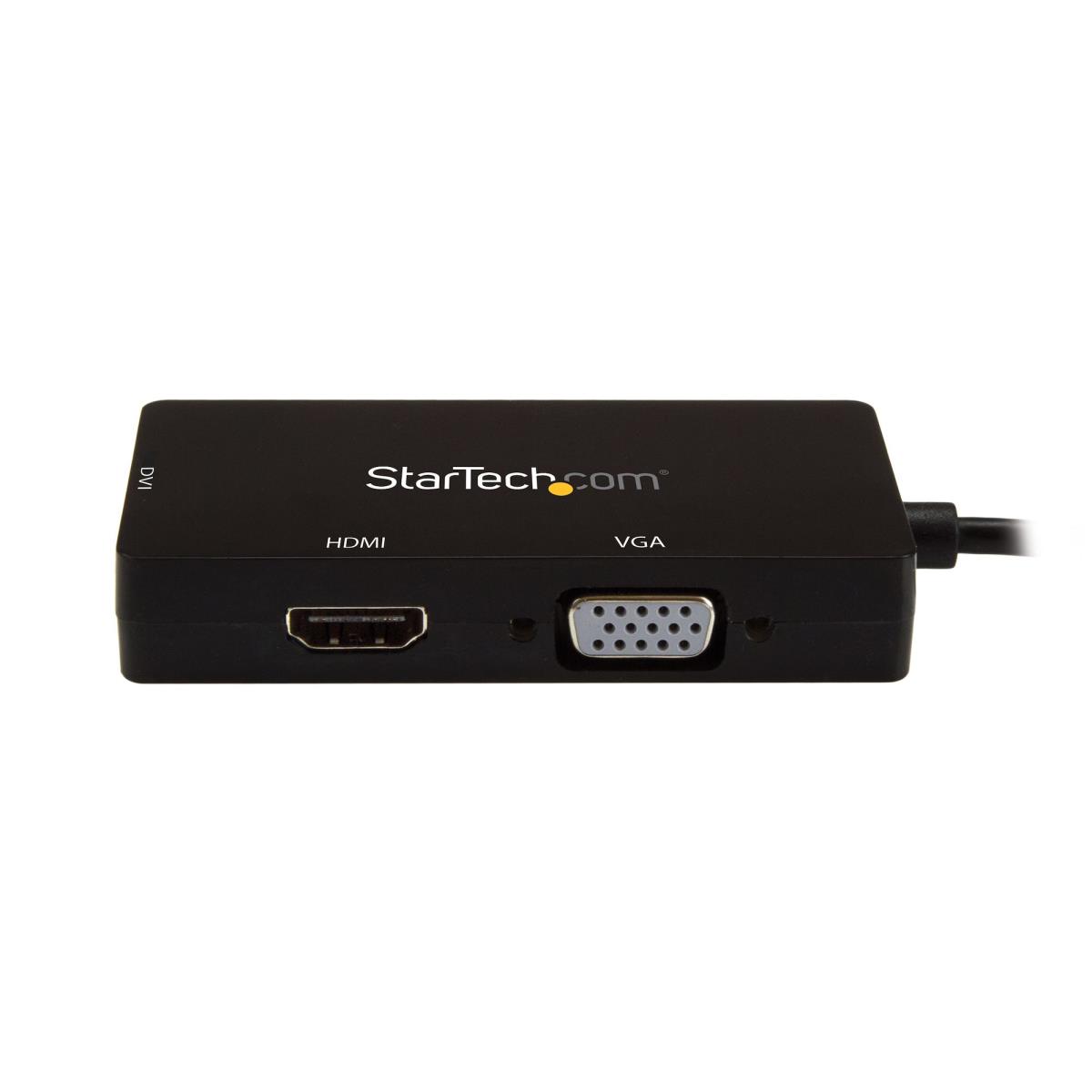

Avoid the hassle of carrying different adapters for different displays with this 3-in-1 USB-C adapter. With VGA, DVI and HDMI output, you can connect your laptop to virtually any display.
Astonishing Picture Quality
The HDMI output on this USB-C video adapter supports UHD 4K resolutions, providing four times the picture quality of high-definition 1080p. All of the outputs (HDMI, VGA, DVI) can support high-definition resolutions of up to 1920 x 1200.
Maximum Portability

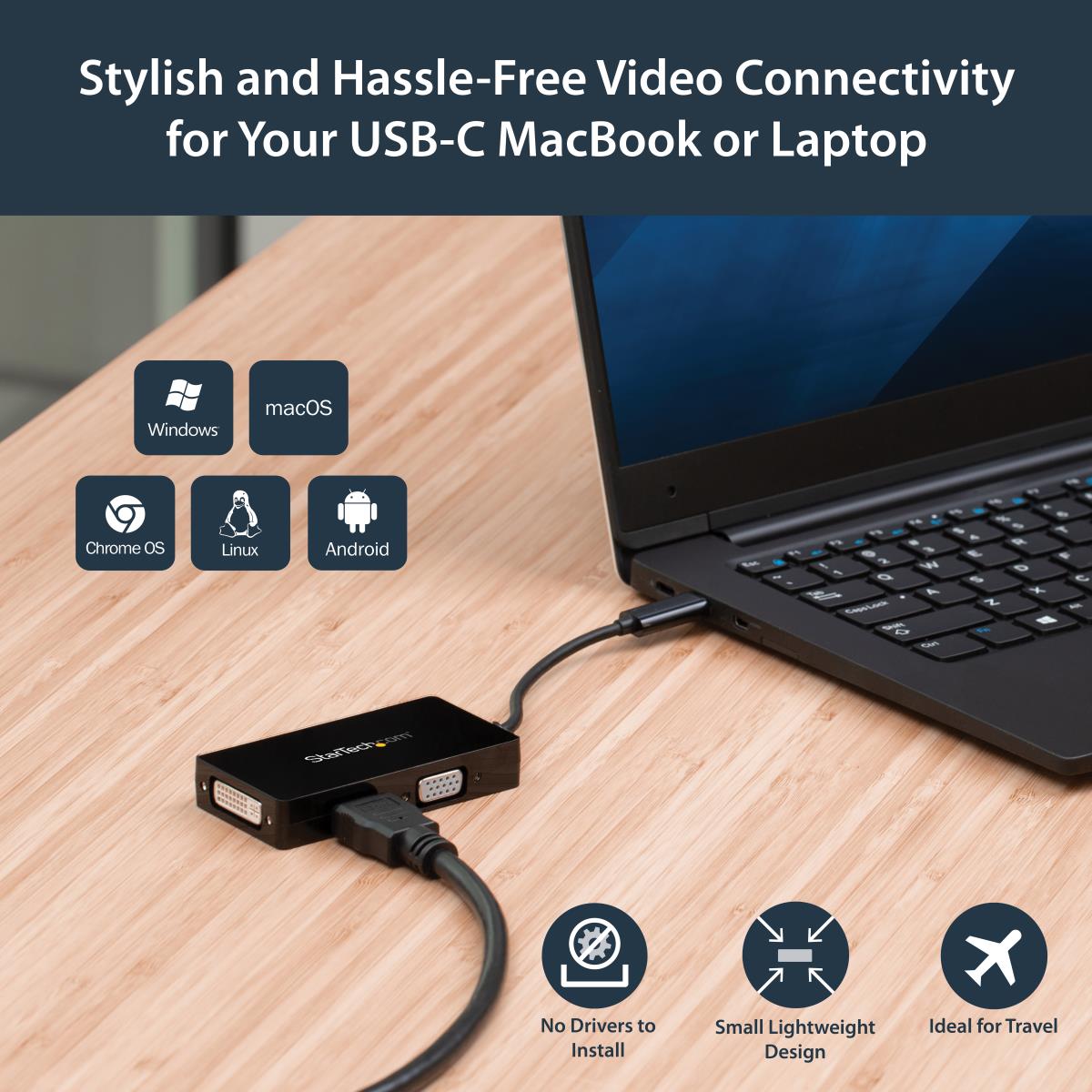

The convenient plug-and-play USB-C dongle is the perfect travel accessory. Fitting easily into your laptop bag, and offering three video output options, the USB-C display adapter is an ideal solution for Bring Your Own Device (BYOD) applications, wherever you go.
The CDPVGDVHDBP is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
| Performance | |
|---|---|
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280, 3840 x 2160 |
| VGA (D-Sub) output | Yes |
| USB connector type | USB Type-C |
| USB connector gender | Male |

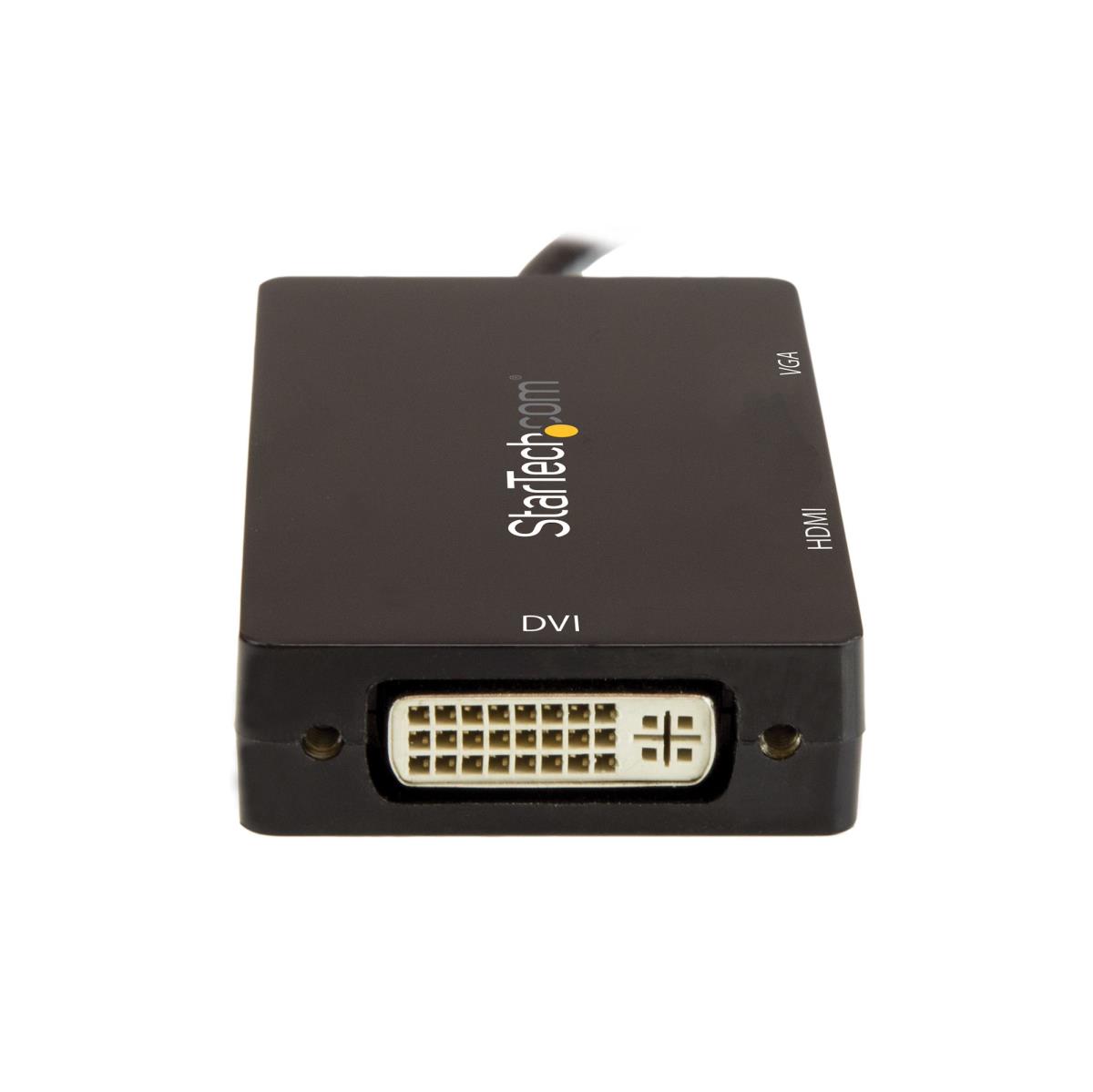

| DVI output | Yes |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 3 |
| DVI connector type | DVI-I |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Maximum resolution (DVI) | 1920 x 1200 pixels |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Audio output channels | 7.1 channels |
| Maximum transfer distance | 15.2 m |
| Design | |
| Product colour | Black |
| Integrated USB cable | Yes |
| USB cable length | 0.15 m |
| Weight & dimensions | |

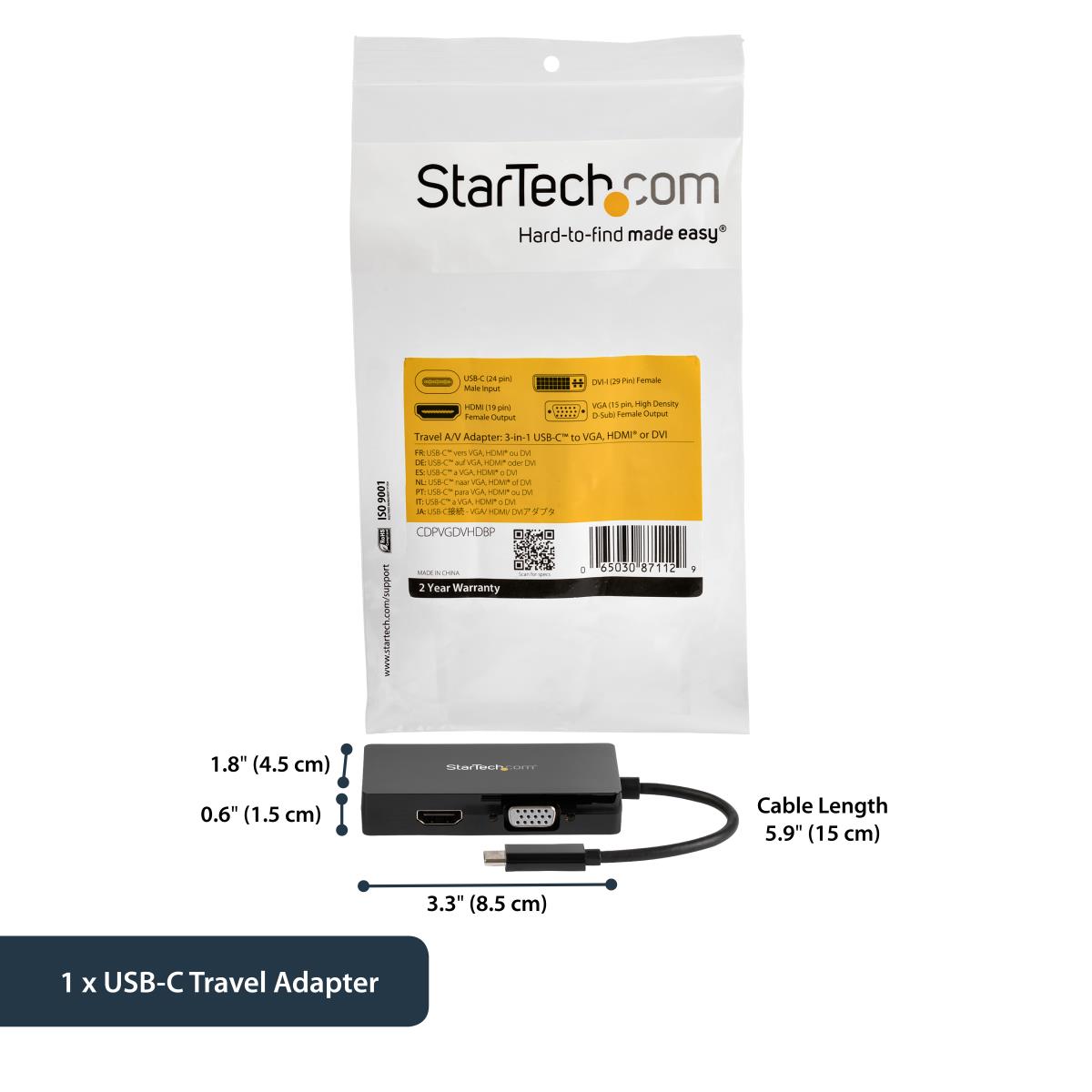

| Width | 45 mm |
| Depth | 85 mm |
| Height | 15 mm |
| Weight | 51 g |
| USB cable length | 0.15 m |
| Package width | 122 mm |
| Package depth | 127 mm |
| Package height | 19 mm |
| Package weight | 55 g |
| Technical details | |
| Products per master (outer) case | 150 pc(s) |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 337 mm |
| Master (outer) case height | 224 mm |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 10 - 85% |
| Packaging data | |
| Package width | 122 mm |
| Package depth | 127 mm |
| Package height | 19 mm |
| Package weight | 55 g |
| Logistics data | |
| Products per master (outer) case | 150 pc(s) |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 337 mm |
| Master (outer) case height | 224 mm |
| Harmonized System (HS) code | 84733020 |
