USB C MULTIPORT VIDEO ADAPTER
Introduction
USB Type-C™ to VGA DVI HDMI or mDP Travel Adapter | Wrap-Around Cable

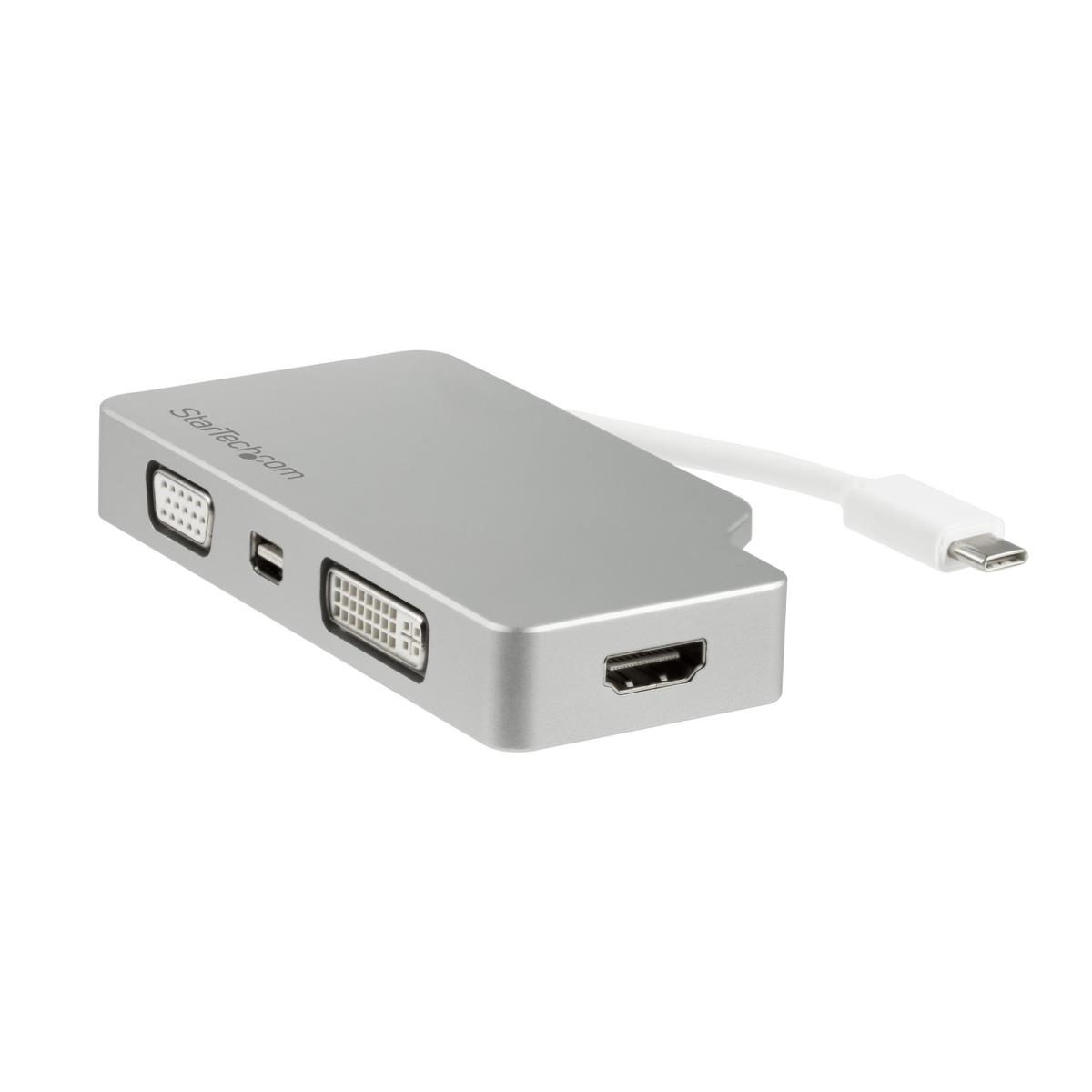

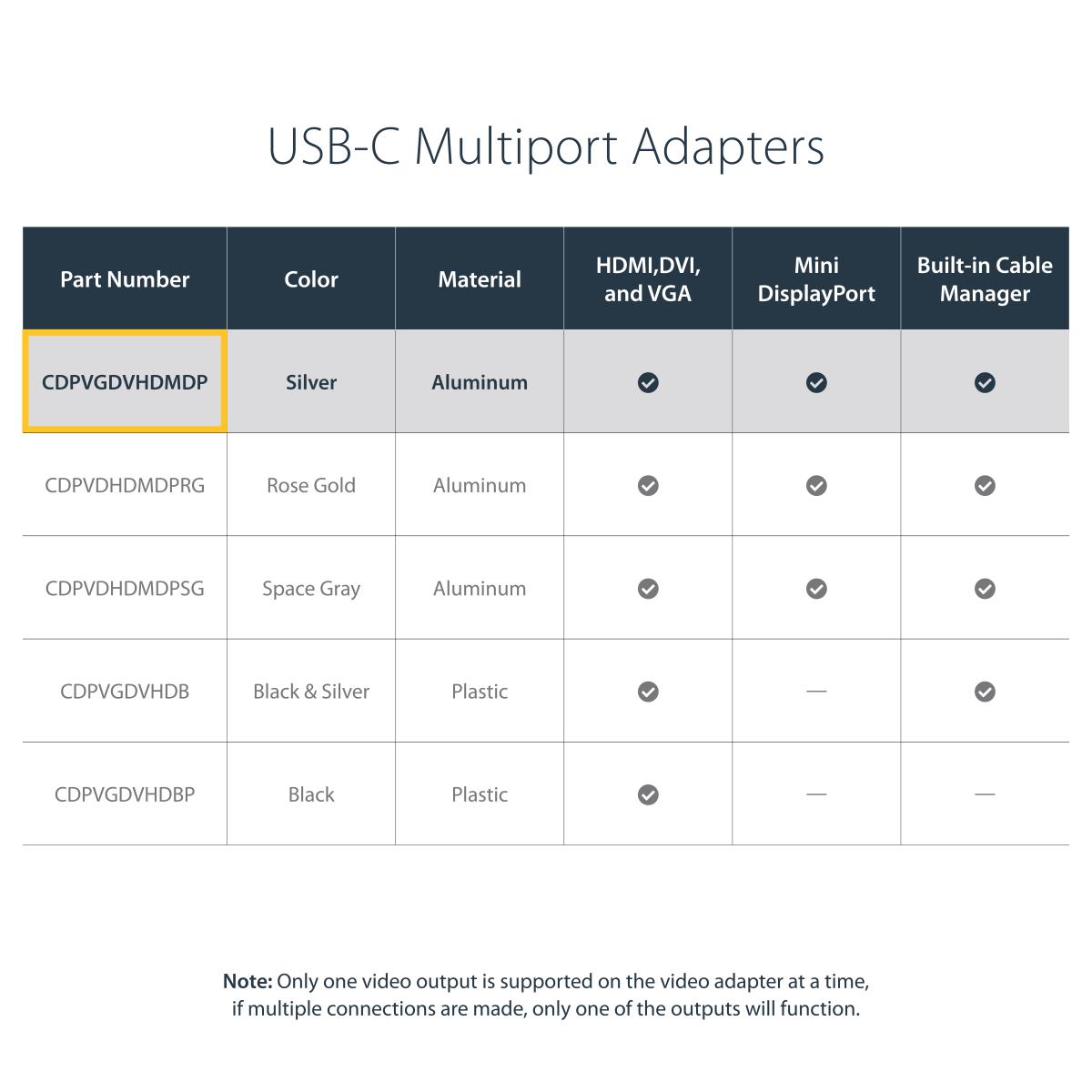

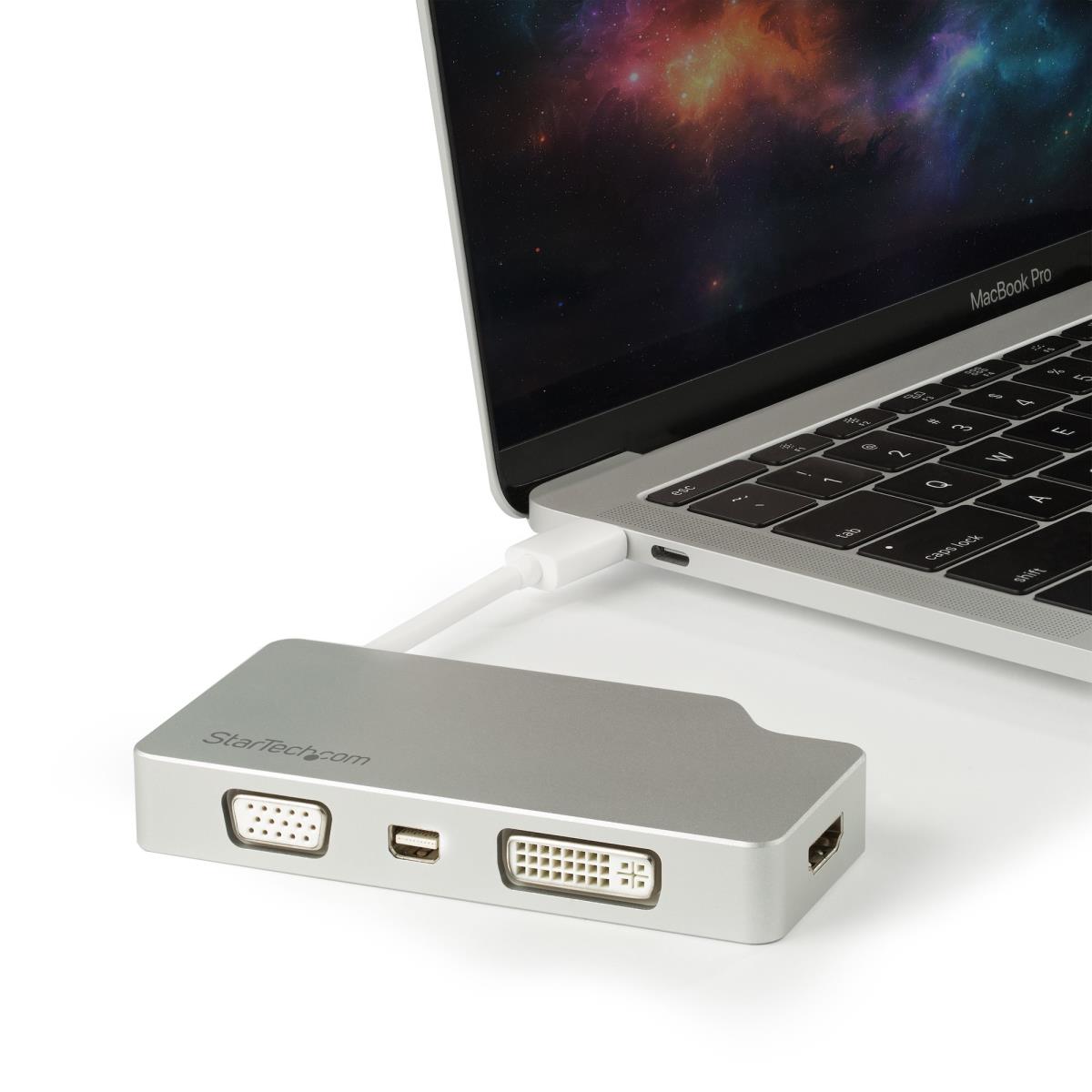

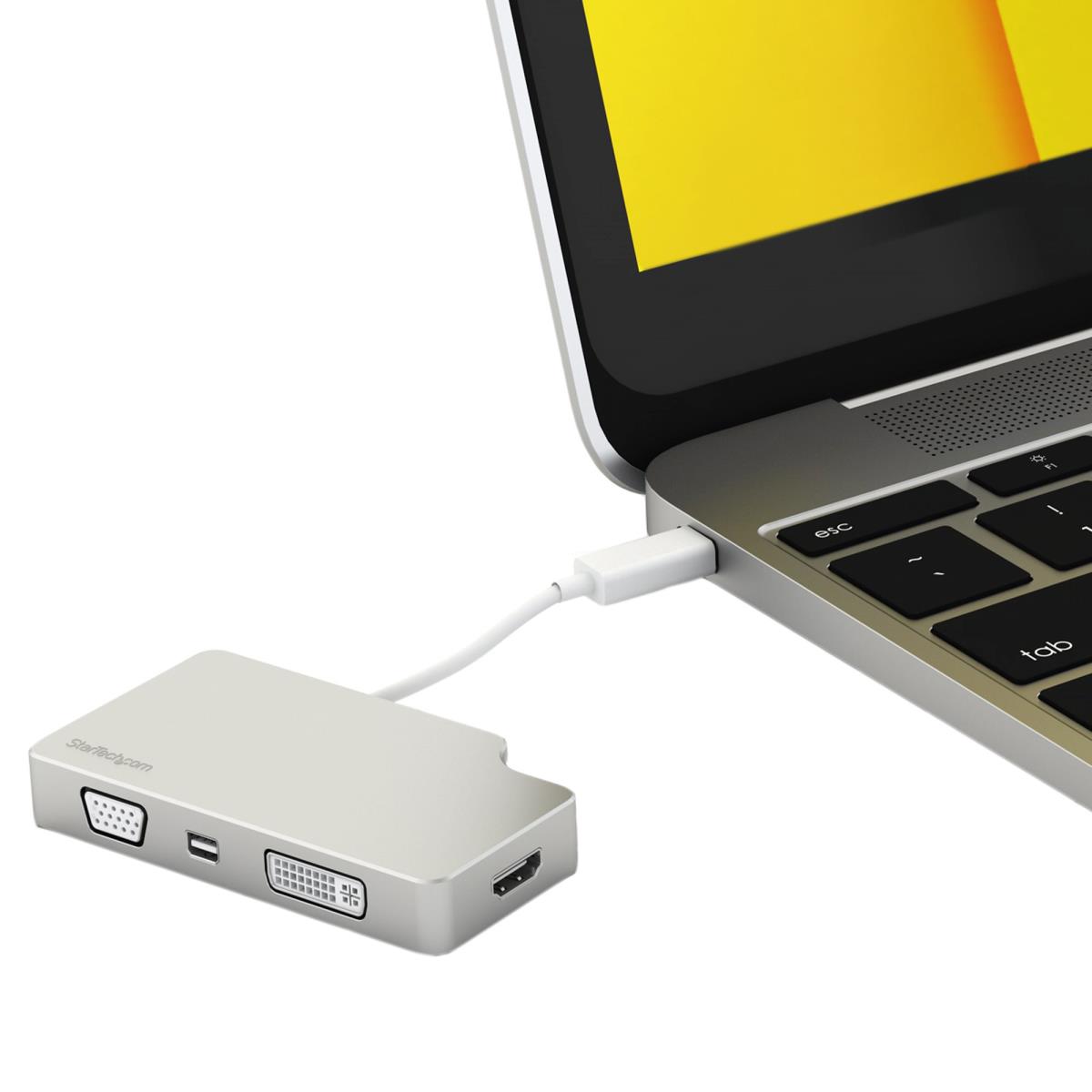

This silver USB-C™ multiport video adapter offers a portable solution for connecting your USB Type-C laptop to a VGA, DVI, HDMI® or Mini DisplayPort display. The adapter is also available in Space Gray (CDPVDHDMDPSG) and Rose Gold (CDPVDHDMDPRG).

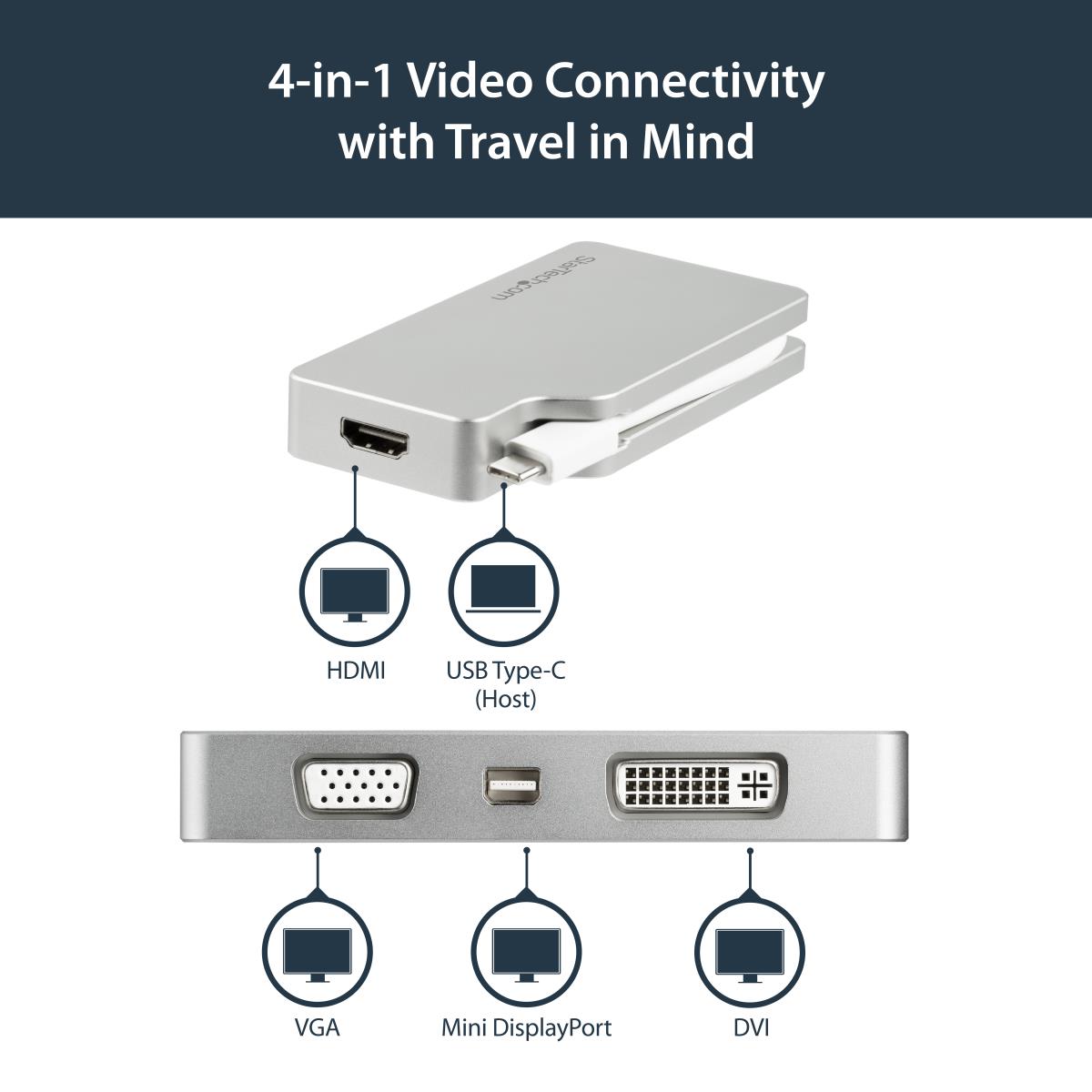

All-in-One Video Connectivity with Travel in Mind

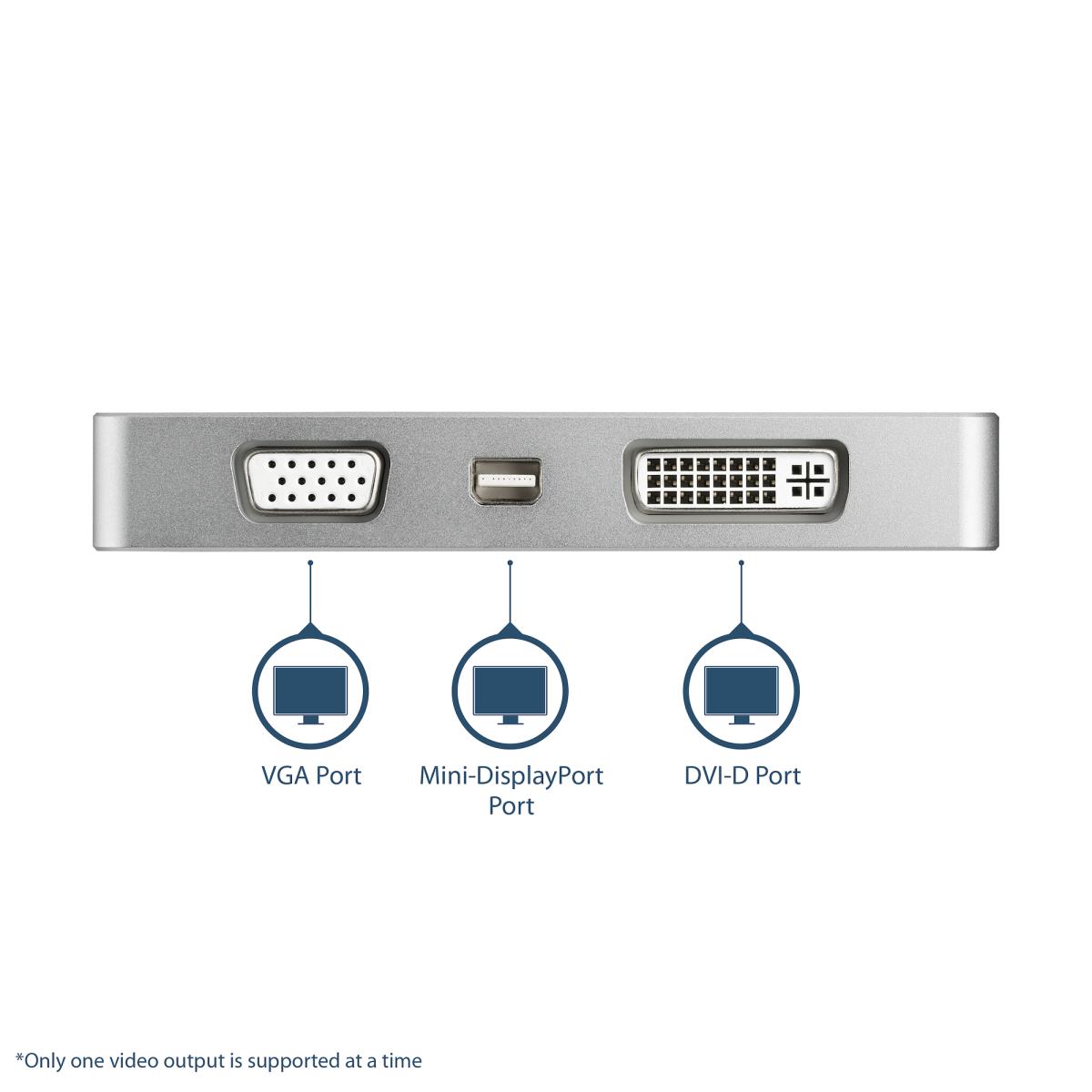

Avoid the hassle of carrying different adapters for different displays with this 4-in-1 USB-C adapter. With VGA, DVI, HDMI and mDP output, you can connect your laptop to virtually any display, a convenient plug-and-play solution for travel or Bring Your Own Device (BYOD) applications.
Astonishing Picture Quality
The HDMI and mDP outputs on this USB-C video adapter support UHD 4K resolutions, providing four times the picture quality of high-definition 1080p. All of the outputs (HDMI, mDP, VGA, DVI) can support high-definition resolutions of up to 1920 x 1200.
Stylish Connectivity

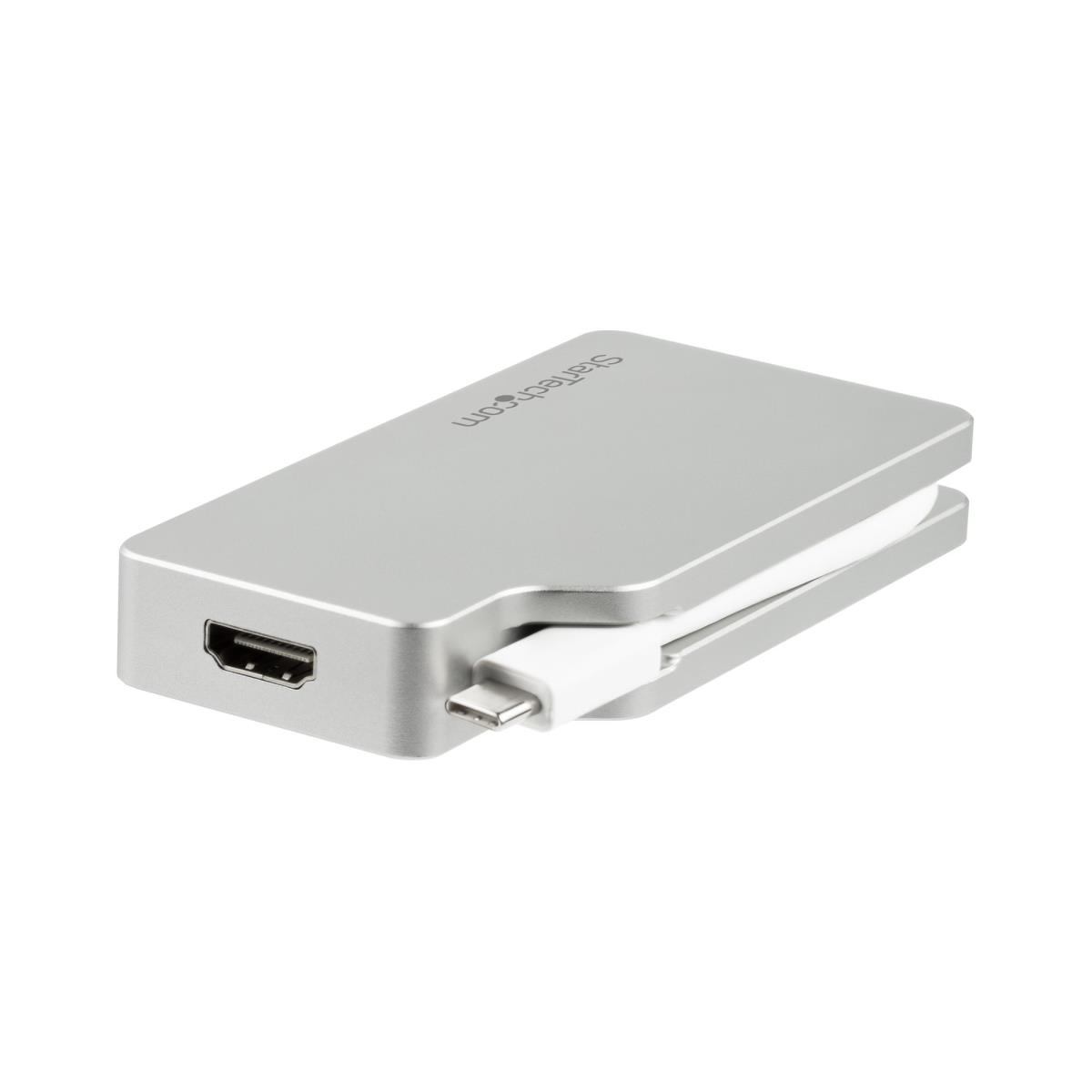

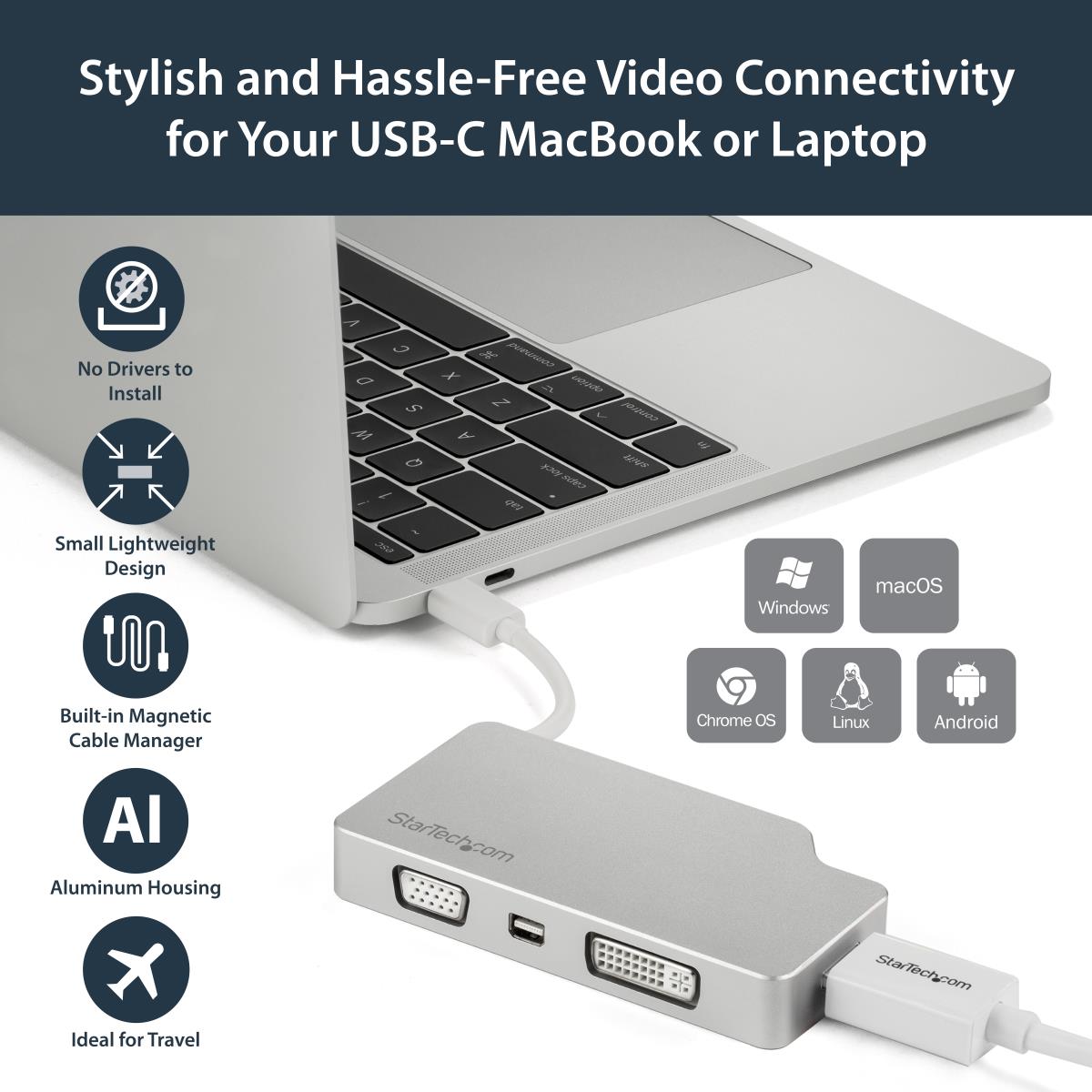

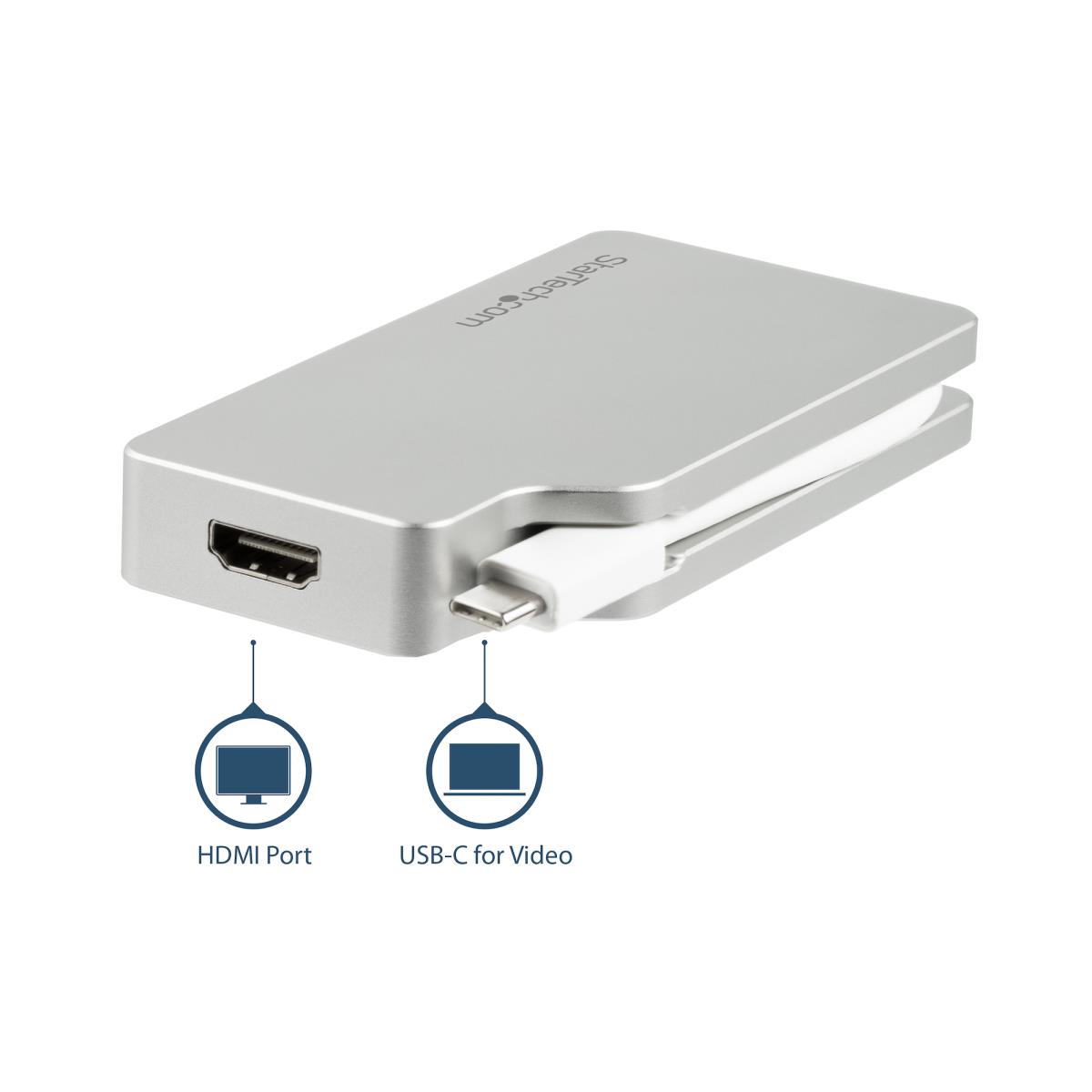

The USB Type-C adapter has an aluminum housing designed to match your silver MacBook and is compatible with any device that supports USB-C DP Alt Mode. Featuring a built-in USB-C cable with magnetic cable manager, the USB-C video adapter conveniently stores away for easy travel.
The CDPVGDVHDMDP is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
| Performance | |
|---|---|
| Chipset | Cypress - CYPD1120, Cypress - CY7C65210, Parade - PS8348B, Parade - PS171 |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| VGA (D-Sub) output | Yes |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | Yes |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| DVI connector type | DVI-D |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution (DVI) | 1920 x 1200 pixels |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Audio output channels | 7.1 channels |
| Certification | CE, FCC, REACH |
| Mini DisplayPorts quantity | 1 |
| Design | |
| Product colour | Silver |
| USB cable length | 0.11 m |

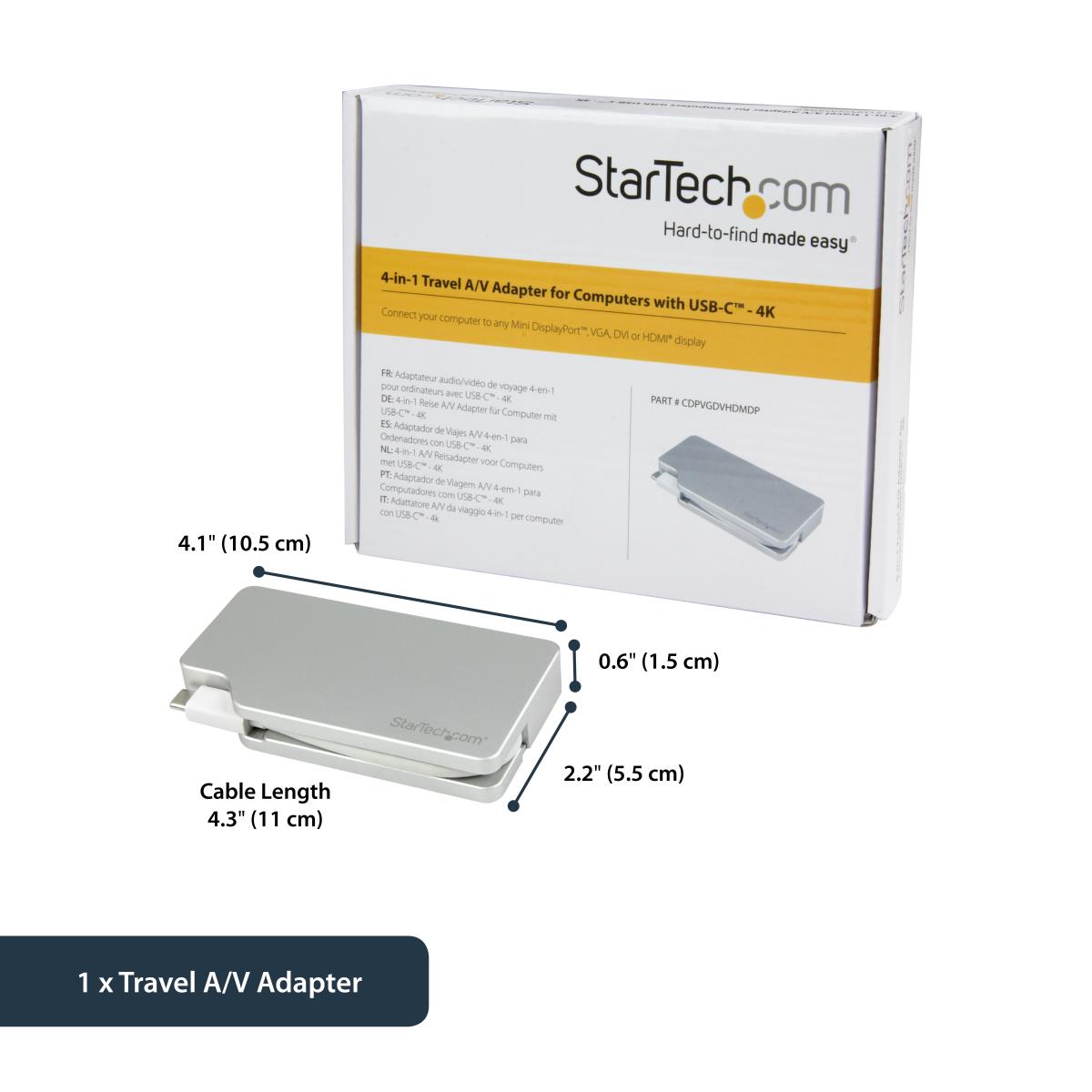

| Weight & dimensions | |
| Width | 55 mm |
| Depth | 105 mm |
| Height | 15 mm |
| Weight | 108 g |
| USB cable length | 0.11 m |
| Package width | 145 mm |
| Package depth | 176 mm |
| Package height | 32 mm |
| Package weight | 184 g |
| Technical details | |
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 481 mm |
| Master (outer) case length | 341 mm |
| Master (outer) case height | 443 mm |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 40 - 50% |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 176 mm |
| Package height | 32 mm |
| Package weight | 184 g |
| Logistics data | |
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 481 mm |
| Master (outer) case length | 341 mm |
| Master (outer) case height | 443 mm |
| Harmonized System (HS) code | 84733020 |
