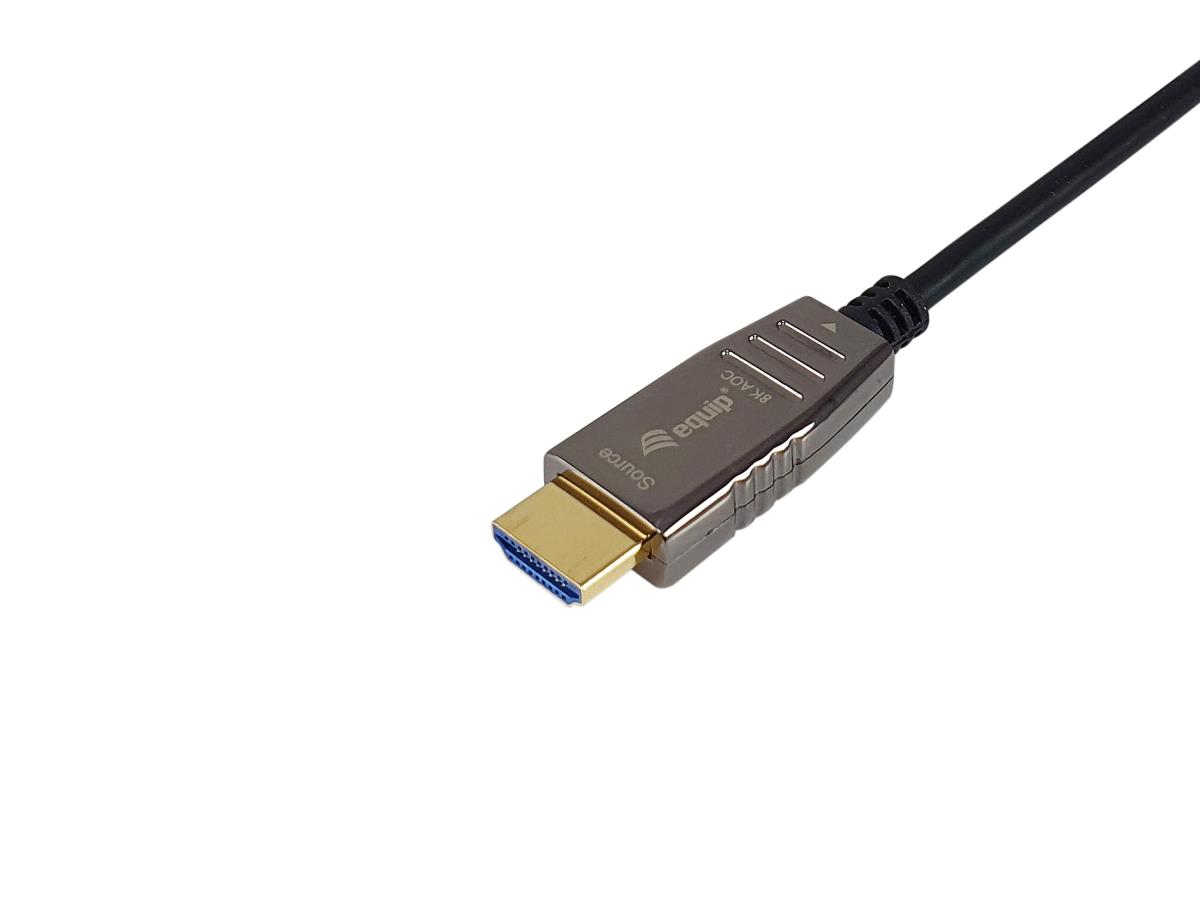

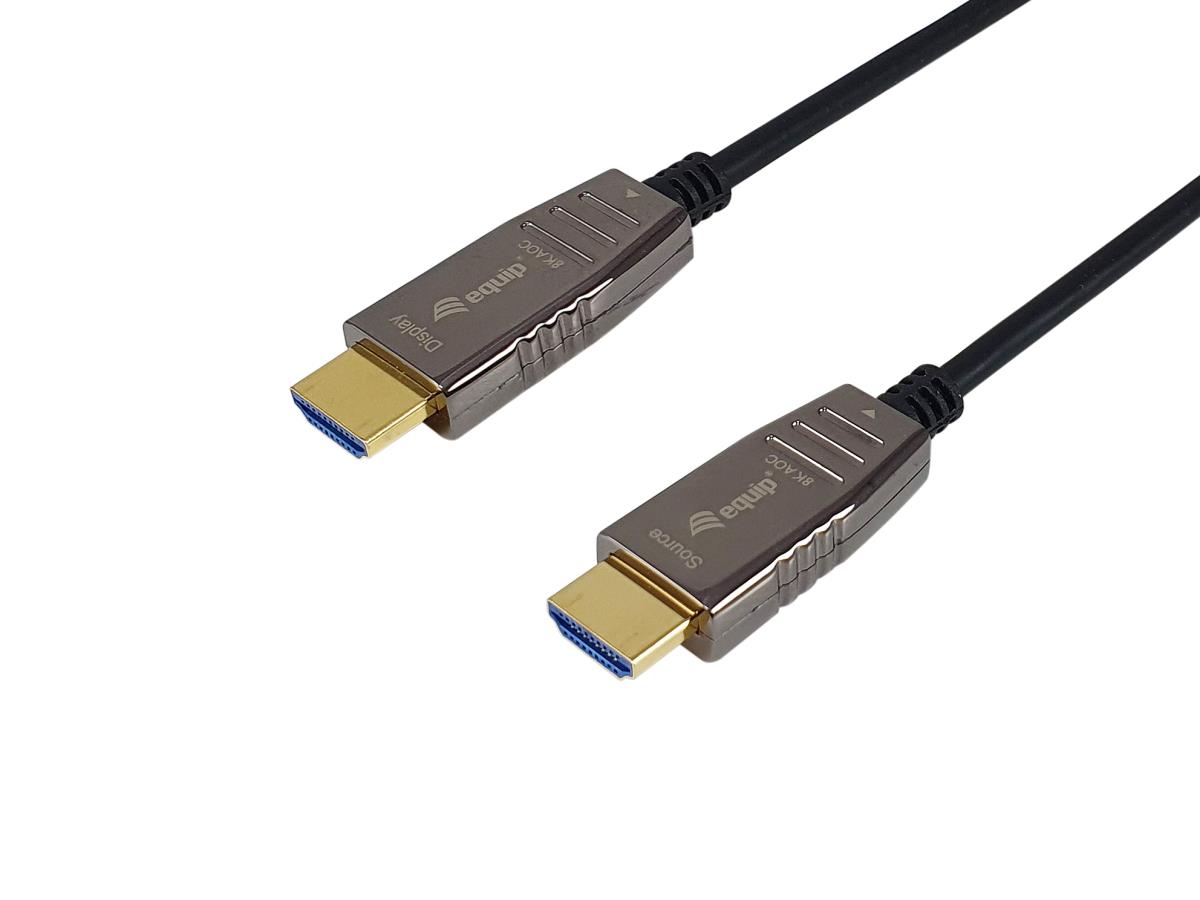

EU Product - Hdmi 2.1 Active Optical Cable - - 8K/60Hz - Cable - Digital/Display/Video
Introduction
The equip 119452 is Active Optical Cables (AOC) are fiber optic cables that use electrical-to-optical conversion circuitry to transmit signals over longer distances with less signal loss and electromagnetic interference compared to traditional copper cables.
HDMI 2.1 Active Optical Cable combines the advantages of both technologies to provide high-speed, high-bandwidth, and reliable connectivity for advanced audio and video applications. These cables use fiber optic technology to transmit signals over longer distances without any signal degradation or loss.
Ideal for applications such as home theaters, conference rooms, classrooms, and digital signage installations where long-distance HDMI connectivity is required. These cables are also thinner, lighter, and more flexible than traditional copper cables, making them easier to install and manage.
By supporting a maximum bandwidth of 48 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be displayed.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 120 Hz |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 20 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| HDMI version | 2.1 |
| Bandwidth | 48000 MB/s |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160, 5120 x 2880, 7680 x 4320 |
| HDCP | Yes |
| High Dynamic Range (HDR) supported | Yes |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 460 g |
| Package weight | 650 g |
| Package width | 205 mm |
| Package depth | 65 mm |
| Package height | 205 mm |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Packaging data | |
| Package weight | 650 g |
| Package width | 205 mm |
| Package depth | 65 mm |
| Package height | 205 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Country of origin | China |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Country of origin | China |
| Master (outer) case gross weight | 6.5 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 230 mm |
| Master (outer) case height | 460 mm |
