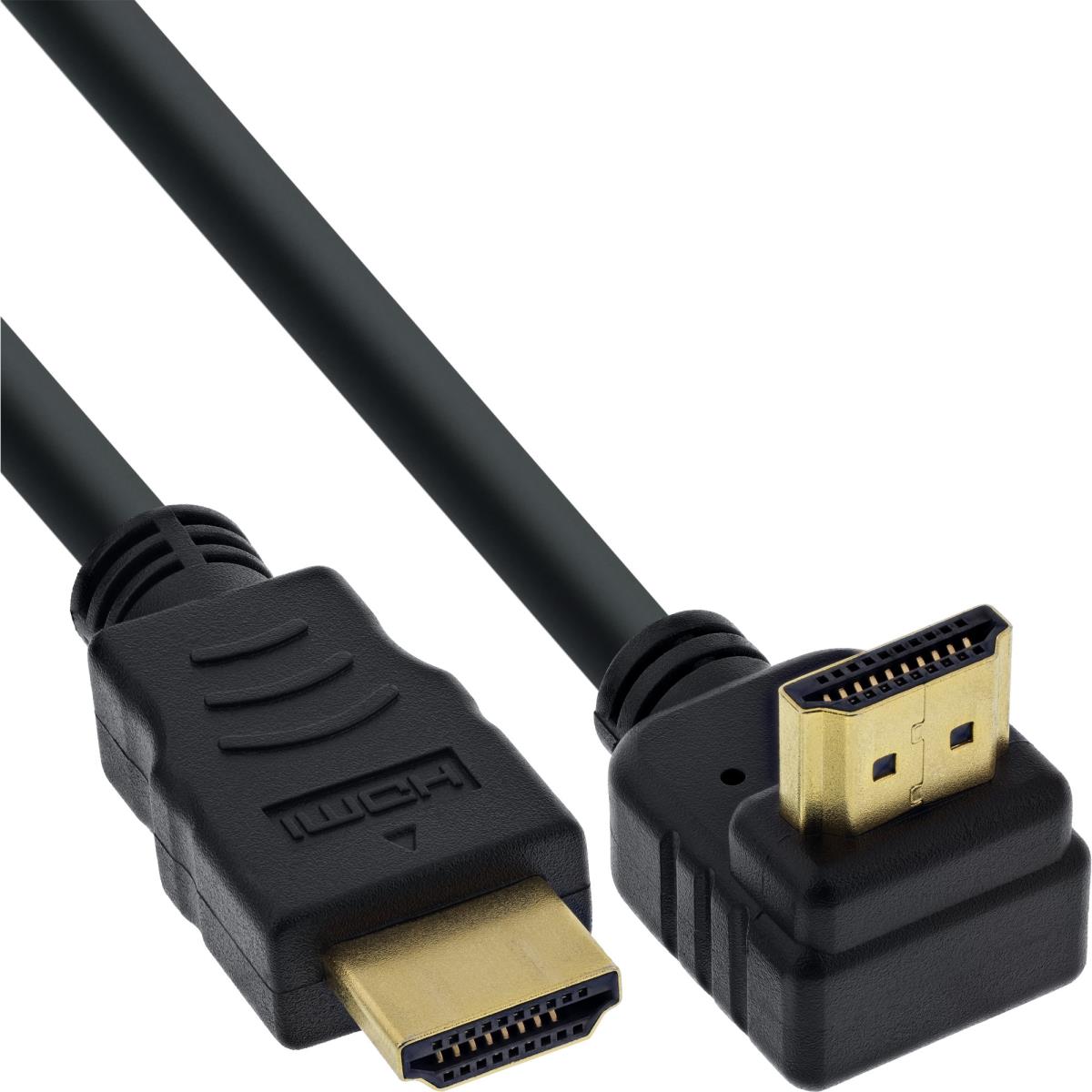

EU Product - - HDMI Kabel, gewinkelt, HDMI-High Speed mit Ethernet, Stecker / Stecker, verg. Kontakte, schwarz, 2m
Introduction
High-speed HDMI cable with Ethernet, ARC and angled connector
Space-saving installation:The angled HDMI connector makes it easier to route the cable in confined spaces and reduces mechanical stress on the connector and cable.
Reliable signal transmission:Gold-plated contacts and the twisted-pair construction ensure stable transmission of video and audio signals, as well as high resistance to corrosion.
Advanced HDMI functions:Supports HDMI Ethernet Channel and Audio Return Channel (ARC), provided the connected devices support these functions.
Versatile:Suitable for connecting televisions, projectors, monitors, AV receivers, laptops and other HDMI devices.
Flexible length options:Available in various cable lengths from 0.3 m to 15 m to suit different installation requirements.
The InLine® HDMI High Speed Cable with Ethernet is suitable for the reliable transmission of digital video and audio signals between HDMI devices. The angled connector facilitates installation, particularly for televisions mounted close to a wall, inside furniture or in other confined spaces. This allows for more flexible cable routing and reduces strain on the cable and connectors.
The cable supports the HDMI Ethernet Channel and Audio Return Channel (ARC) functions, provided these are supported by the connected devices. It also supports 3D content and video resolutions up to 4K x 2K in accordance with the HDMI 1.4 specification. Depending on the cable length, different maximum resolutions and refresh rates are supported.
Gold-plated contacts improve corrosion resistance and ensure a consistently reliable connection. The twisted-pair construction contributes to internal shielding and ensures stable signal transmission. Moulded connectors further enhance durability during regular use.
Thanks to the combination of a space-saving connector design, comprehensive HDMI functionality and a range of available cable lengths, the cable is suitable for numerous audio and video applications.
HDMI High Speed Cable with Ethernet
HDMI 1.4
HDMI male to HDMI male
One angled connector
Gold-plated contacts
Black cable
Moulded connectors
HDMI Ethernet Channel
Audio Return Channel (ARC)
3D support
Support for video resolutions up to 4K x 2K in accordance with the HDMI 1.4 specification
Up to 5 m: Supports up to 4K @30 Hz
From 5 m: Reliable transmission up to 4K @30 Hz and 1080p (60 Hz)
At 15 m: Maximum resolution 4K @24 Hz
4K @60 Hz is not supported for cable lengths of 5 m or more
Backwards compatible with older HDMI versions
Specifications
| Features | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Cable length | 2 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector contacts plating | Gold |
| AWG wire size | 30 |
| HDMI version | 1.4 |
| Supported graphics resolutions | 4096 x 2160 |
| Connector gender | Male/Male |
| Unidirectional | No |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Package volume | 500 cm³ |
| Weight | 99 g |
| Package weight | 99 g |
| Package width | 120 mm |
| Package depth | 150 mm |
| Package height | 25 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package weight | 99 g |
| Package width | 120 mm |
| Package depth | 150 mm |
| Package height | 25 mm |
| Quantity per pack | 1 pc(s) |
