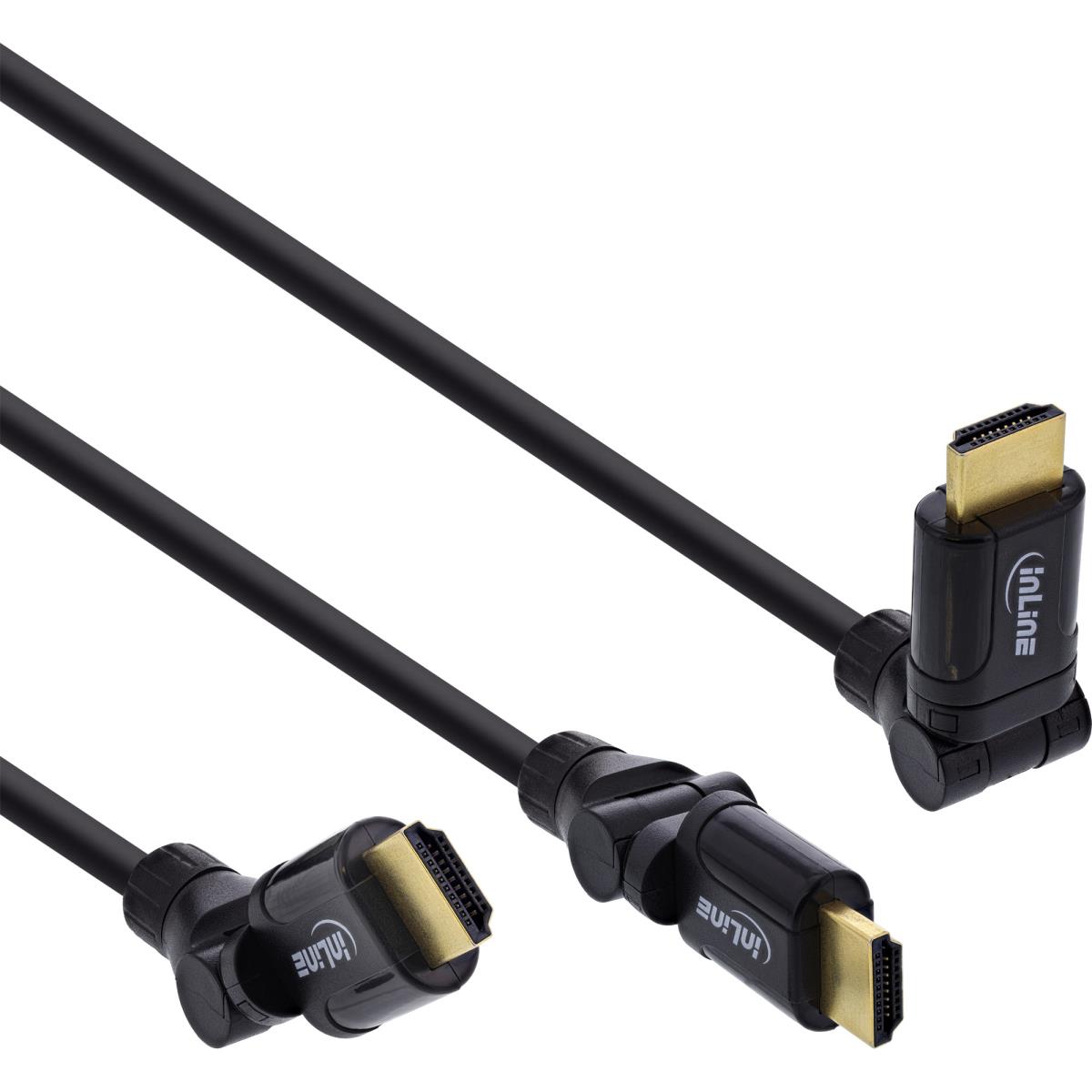

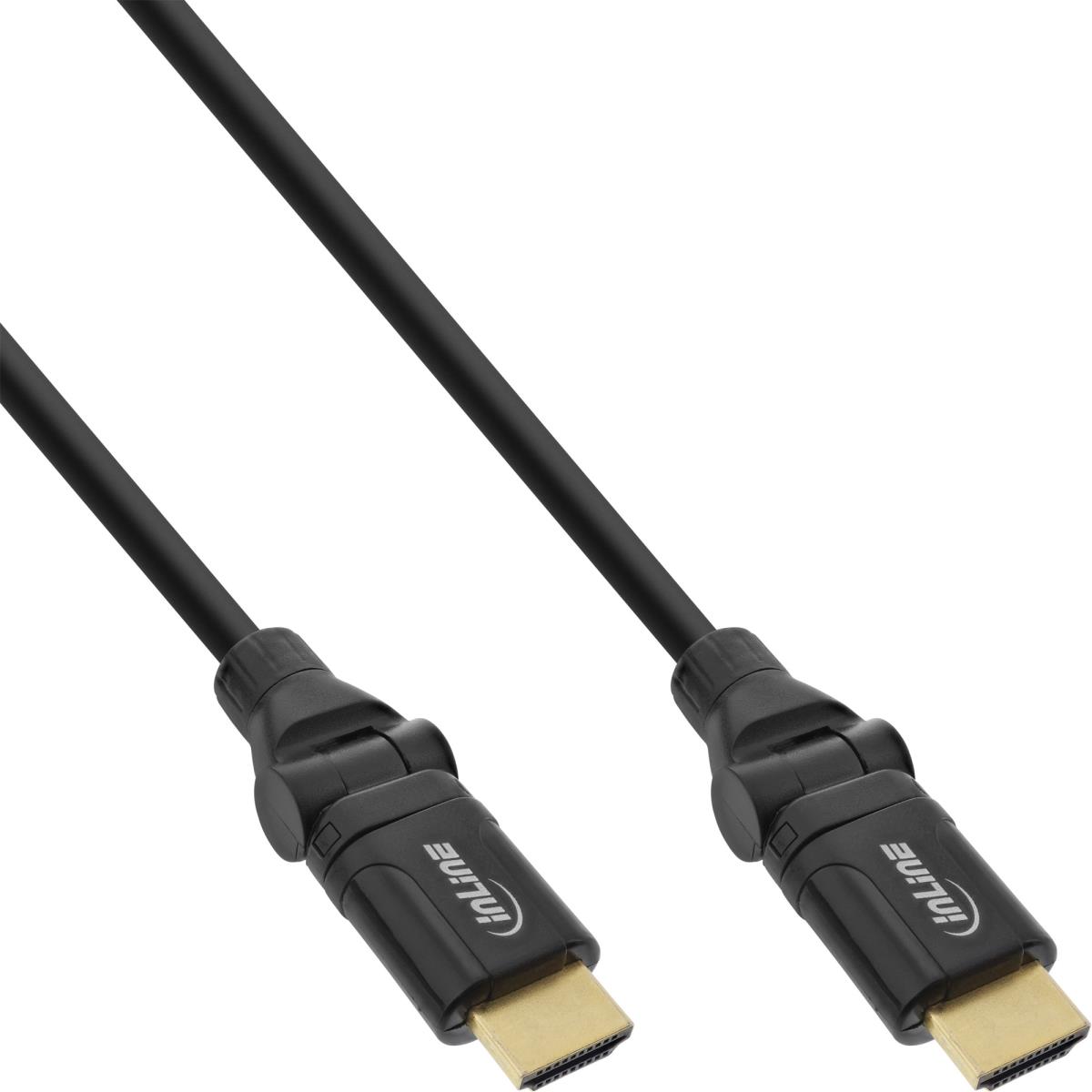

EU Product - - HDMI Kabel, HDMI-High Speed mit Ethernet, Stecker / Stecker, verg. Kontakte, schwarz, flexible Winkelstecker, 2m
Introduction
HDMI High Speed cable with Ethernet, flexible angled plug and gold-plated contacts
Space-saving installation:The flexible angled plug allows for easy connection even with devices mounted close to the wall and reduces mechanical stress on the connection
Reliable signal transmission:Triple shielding and twisted-pair construction minimise interference and ensure stable audio and video signals
Advanced functionality:Supports HDMI Ethernet Channel and Audio Return Channel to reduce the need for additional cabling
Durable connection:Gold-plated contacts improve conductivity and increase resistance to corrosion and wear
Versatile applications:Suitable for home cinema, presentations and connecting AV and IT devices
This HDMI High Speed cable with Ethernet offers a reliable solution for transmitting audio and video signals in modern AV and IT environments. It supports resolutions up to 4K at 30 Hz as well as 3D content and is backwards compatible with existing HDMI standards.
The integrated HDMI Ethernet Channel enables network connections between compatible devices without the need for an additional network cable. At the same time, the Audio Return Channel allows audio signals to be returned, for example from a television to an audio system. This reduces the amount of cabling required and simplifies installations.
A key feature is the flexible angled connector with a flat design. This facilitates installation in confined spaces, for example with displays mounted close to a wall or in equipment racks. Mechanical stress on the connectors is reduced.
The combination of triple shielding and a twisted-pair construction protects signal transmission from external interference. Gold-plated contacts improve conductivity and increase the reliability of the connection, even with frequent use.
The cable is suitable for a wide range of applications, such as connecting televisions, monitors, projectors, AV receivers or computers, and supports typical use cases in video transmission, presentations and multimedia.
HDMI Standard: 1.4 High Speed with Ethernet
Supported resolution: up to 4K x 2K @ 30 Hz
Supported features: 3D, ARC, HEC
Connector type: HDMI Type A male to HDMI Type A male (ST/ST)
Connector: flexibly bendable, flat design
Contacts: gold-plated
Shielding: triple
Internal construction: twisted pair
Conductor material: copper strands
Conductor cross-section: AWG 30
Outer diameter: 6.0 mm
Cable colour: black
Specifications
| Features | |
|---|---|
| Maximum refresh rate | 30 Hz |
| Product colour | Black |
| Cable length | 2 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector contacts plating | Gold |
| AWG wire size | 30 |
| HDMI version | 1.4 |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Connector gender | Male/Male |
| Unidirectional | No |
| Certification | UL |
| Certificates | |
| Certification | UL |
| Weight & dimensions | |
| Package volume | 800 cm³ |
| Weight | 99 g |
| Package weight | 108 g |
| Package width | 155 mm |
| Package depth | 200 mm |
| Package height | 25 mm |
| Packaging data | |
| Package weight | 108 g |
| Package width | 155 mm |
| Package depth | 200 mm |
| Package height | 25 mm |
| Other features | |
| Dimensions (WxDxH) | 22 x 2000 x 15 mm |
| Width | 22 mm |
| Height | 15 mm |
| Depth | 2000 mm |
