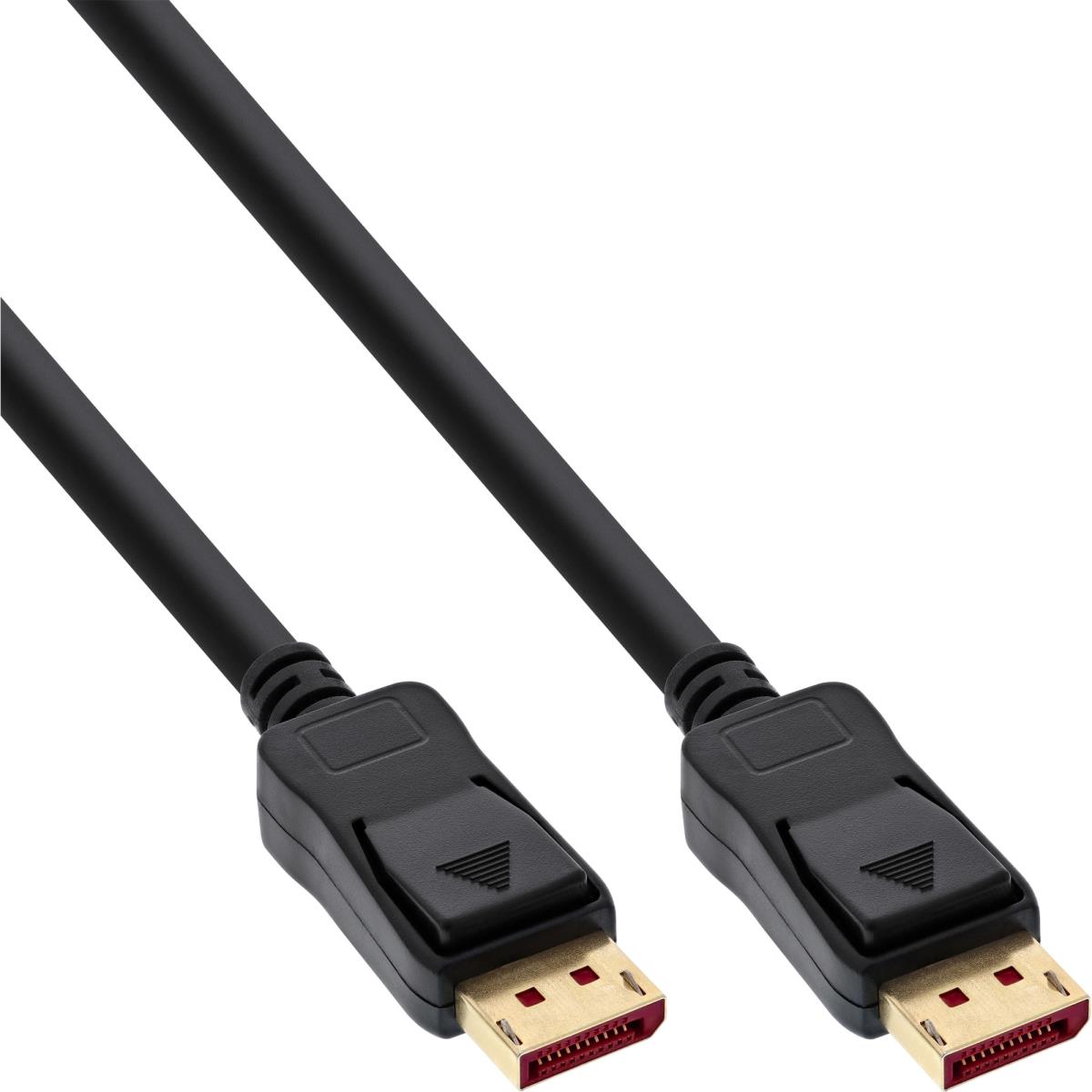

EU Product - - DisplayPort 1.4 Kabel, 8K4K, schwarz, vergoldete Kontakte, 1m
Introduction
High resolution support for modern workplaces:Transmits razor-sharp images with up to 7680x4320 pixels at 60Hz – ideal for CAD, video editing, or presentation technology.
Reliable signal quality thanks to triple shielding:The robust cable construction effectively protects against electromagnetic interference – for a stable and secure connection.
Long-term investment security:With DisplayPort 1.4 specification, HDR support, and 8K compatibility, the cable meets the highest technical standards.
Professional workmanship with gold-plated contacts:Reduces contact resistance and extends service life with frequent reconnection – particularly important in changing system environments.
Universally applicable in IT and digital signage:Reliably connects PCs, workstations, monitors, and large displays in professional applications.
The InLine® DisplayPort 1.4 cable series offers a professional connection solution for demanding AV installations in office, technical, and industrial environments. It supports the transmission of image content in Ultra High Definition with a resolution of up to 7680x4320 (8K@60Hz) as well as 4K content with high refresh rates of up to 120Hz. Thanks to support for HDR, RGB/4:4:4, 4:2:2, and 12-bit color depths, the cable delivers excellent image quality and high compatibility.
The triple-shielded design effectively protects against external interference and enables reliable data transmission—ideal for multi-monitor setups, digital signage solutions, or control rooms. Gold-plated contacts ensure durable, stable connections—even with frequent changes of connected devices. The series is ideal for a wide range of installation scenarios, both stationary and mobile.
DisplayPort connector to DisplayPort connector
DisplayPort version: 1.4
Supported resolutions: FUHD 7680x4320 8K@60Hz, UHD 3840x2160 120HZ RGB/4:4:4 8bit HDR OFF, UHD 3840x2160 120HZ RGB/4:2:2 12bit HDR ON, UHD 3840x2160 60HZ RGB/4:4:4 12bit HDR ON, FullHD 1920x1080
Shielding: triple shielded
Color: Black
Contacts: gold-plated

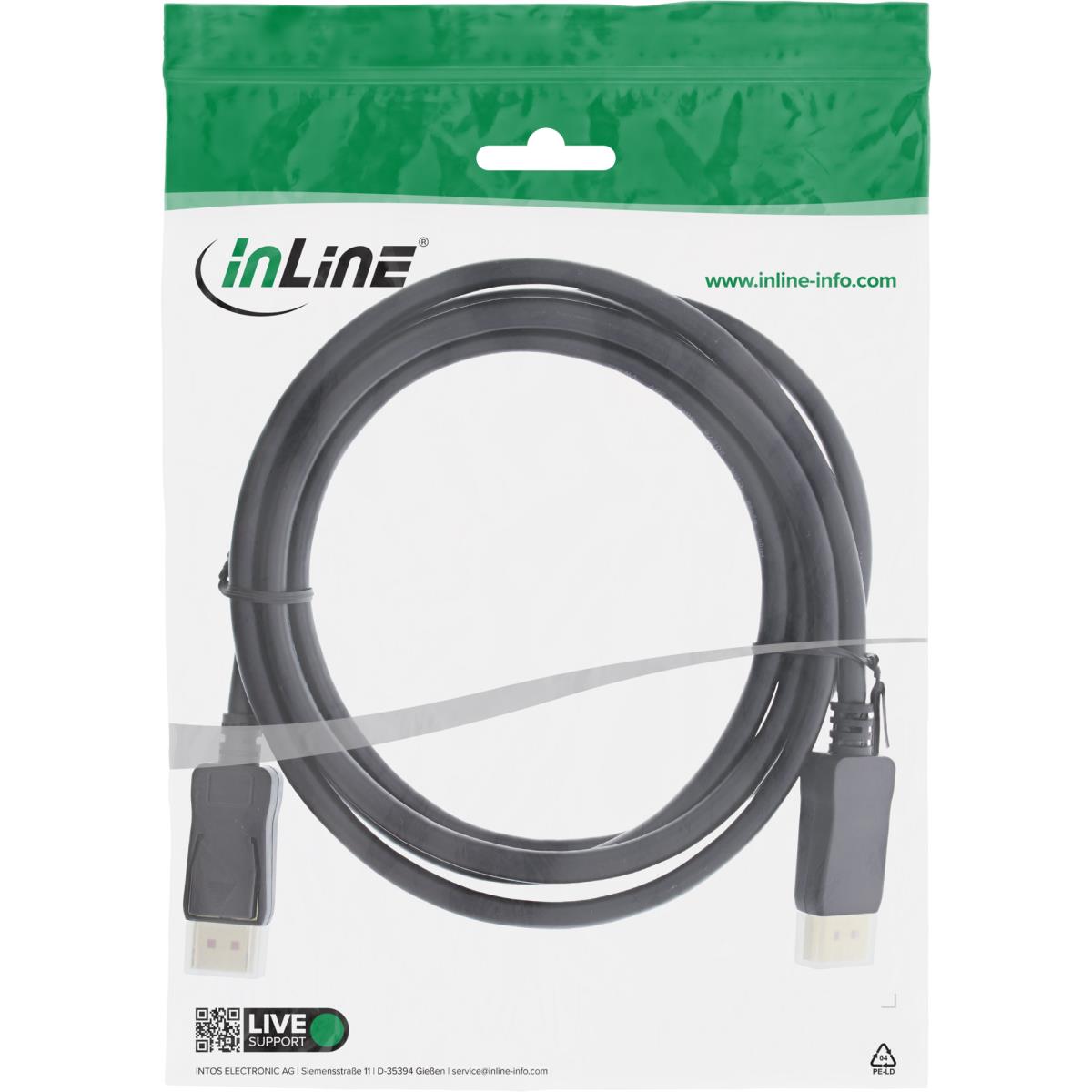

Packaging: PE bag with EAN code
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Number of shielding layers | 3 |
| Cable length | 1 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| AWG wire size | 28 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 7680 x 4320 |
| Certification | UL |
| Certificates | |
| Certification | UL |
| Weight & dimensions | |
| Weight | 70 g |
| Package volume | 500 cm³ |
| Package weight | 77 g |
| Package width | 160 mm |
| Package depth | 160 mm |
| Package height | 20 mm |
| Packaging data | |
| Package volume | 500 cm³ |
| Package weight | 77 g |
| Weight | 70 g |
| Package width | 160 mm |
| Package depth | 160 mm |
| Package height | 20 mm |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Other features | |
| Width | 20 mm |
| Height | 15 mm |
| Depth | 1000 mm |
