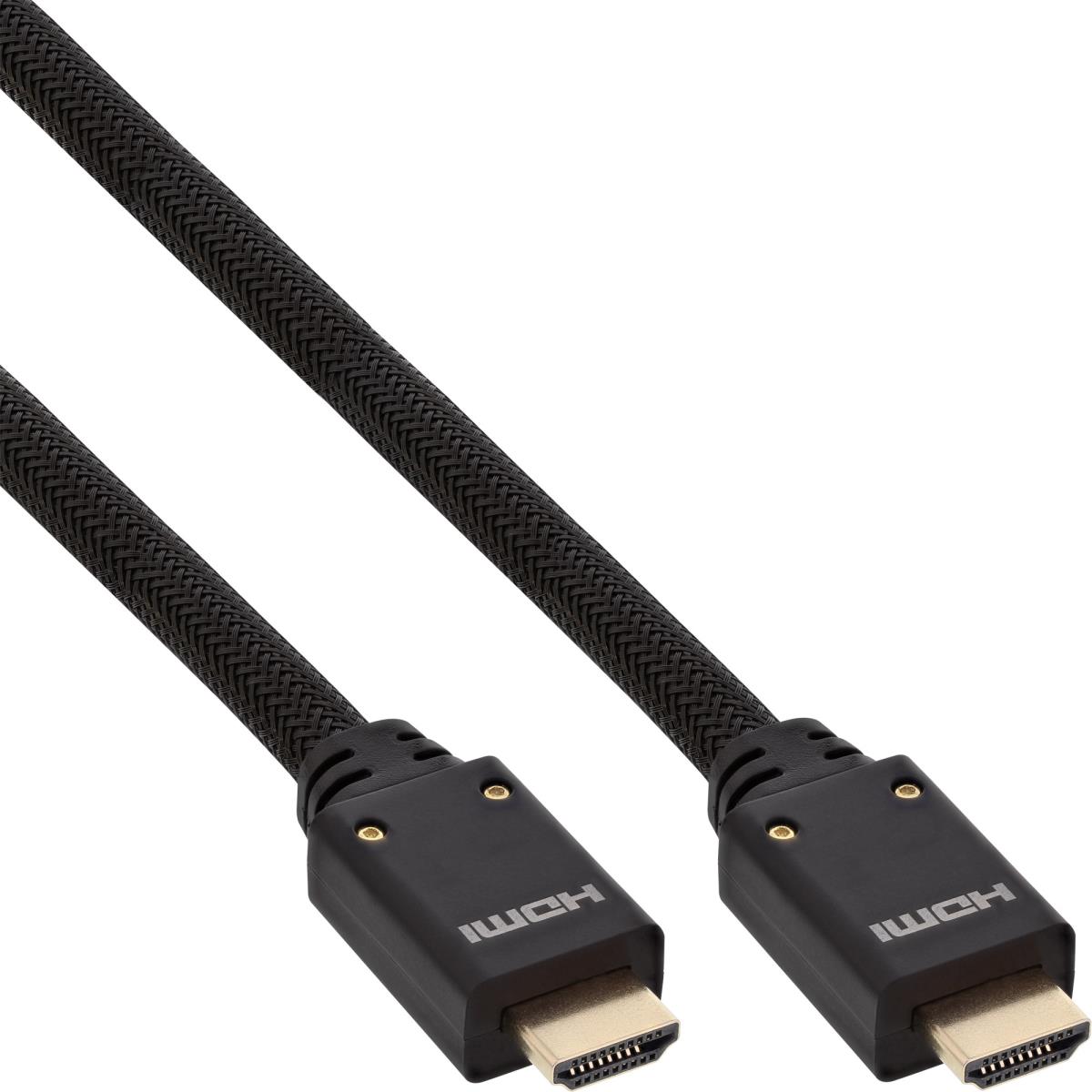

EU Product - - HDMI Aktiv-Kabel, HDMI-High Speed mit Ethernet, 4K2K, Stecker / Stecker, schwarz / gold, Nylon Geflecht Mantel 10m
Introduction
Active HDMI High Speed cable with Ethernet, 4K 60 Hz, for stable signal transmission over long distances
Reliable signal transmission over long distances:Active HDMI cable supports stable transmission even with cable lengths of up to 25 m
4K support with high image quality:Transmits video and audio signals up to 4K @ 60 Hz for detailed and smooth display
Advanced HDMI features:Supports Ethernet Channel, ARC and 3D for versatile applications in modern AV environments
High-quality construction:Gold-plated contacts, moulded connectors and nylon braiding ensure durable and robust connections
Optimised signal quality:Three-layer shielding and twisted-pair construction reduce interference and improve transmission quality
This active HDMI cable enables reliable signal transmission even over longer distances. It is designed for applications requiring high resolutions and stable connections. With support for up to 4K at 60 Hz, the cable is suitable for modern audio and video applications. Thanks to its active design, the signal remains stable throughout the entire length of the cable. This is particularly advantageous over longer distances.
The cable supports the HDMI Ethernet Channel, allowing network connections via HDMI provided the connected devices support this function. The Audio Return Channel is also supported. This enables a television to send audio signals back to an audio system via the same cable. 3D content can also be transmitted, making the cable suitable for such applications.
The high-quality construction with gold-plated contacts and moulded connectors ensures a reliable connection. The nylon braided sheath increases mechanical stability and protects the cable during daily use. The multi-layer shielding and twisted-pair construction help to reduce interference and improve signal quality. The cable is backwards compatible with existing HDMI standards and is suitable for use with televisions, monitors, projectors and various source devices.
Cable type: HDMI active cable
HDMI standard: HDMI 2.0b
Resolution: up to 4K @ 50/60 Hz (2160p)
Connector type: HDMI Type A to HDMI Type A
Configuration: male to male
Features: Ethernet Channel, ARC, 3D, CEC
Audio: up to 32 channels, up to 1536 kHz sample rate
Shielding: three-layer shielding
Construction: twisted pair
Contacts: gold-plated
Connectors: moulded
Sheath: nylon braiding
Colour: black
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 10 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Supported graphics resolutions | 4096 x 2160 |
| Unidirectional | Yes |
| Colour sampling | 4:4:4, 4:2:2 |
| Bending radius (min) | 4.3 cm |
| Weight & dimensions | |
| Weight | 862 g |
| Package weight | 1.05 kg |
| Package width | 260 mm |
| Package depth | 260 mm |
| Package height | 65 mm |
| Packaging data | |
| Package weight | 1.05 kg |
| Package width | 260 mm |
| Package depth | 260 mm |
| Package height | 65 mm |
| Other features | |
| Dimensions (WxDxH) | 21 x 10000 x 15 mm |
| Width | 21 mm |
| Height | 15 mm |
| Depth | 10000 mm |
