1M MDP TO HDMI CABLE 4K60HZ
Introduction
Connect a Mini DisplayPort source to an HDMI display with support for up to 4K 60Hz UHD video

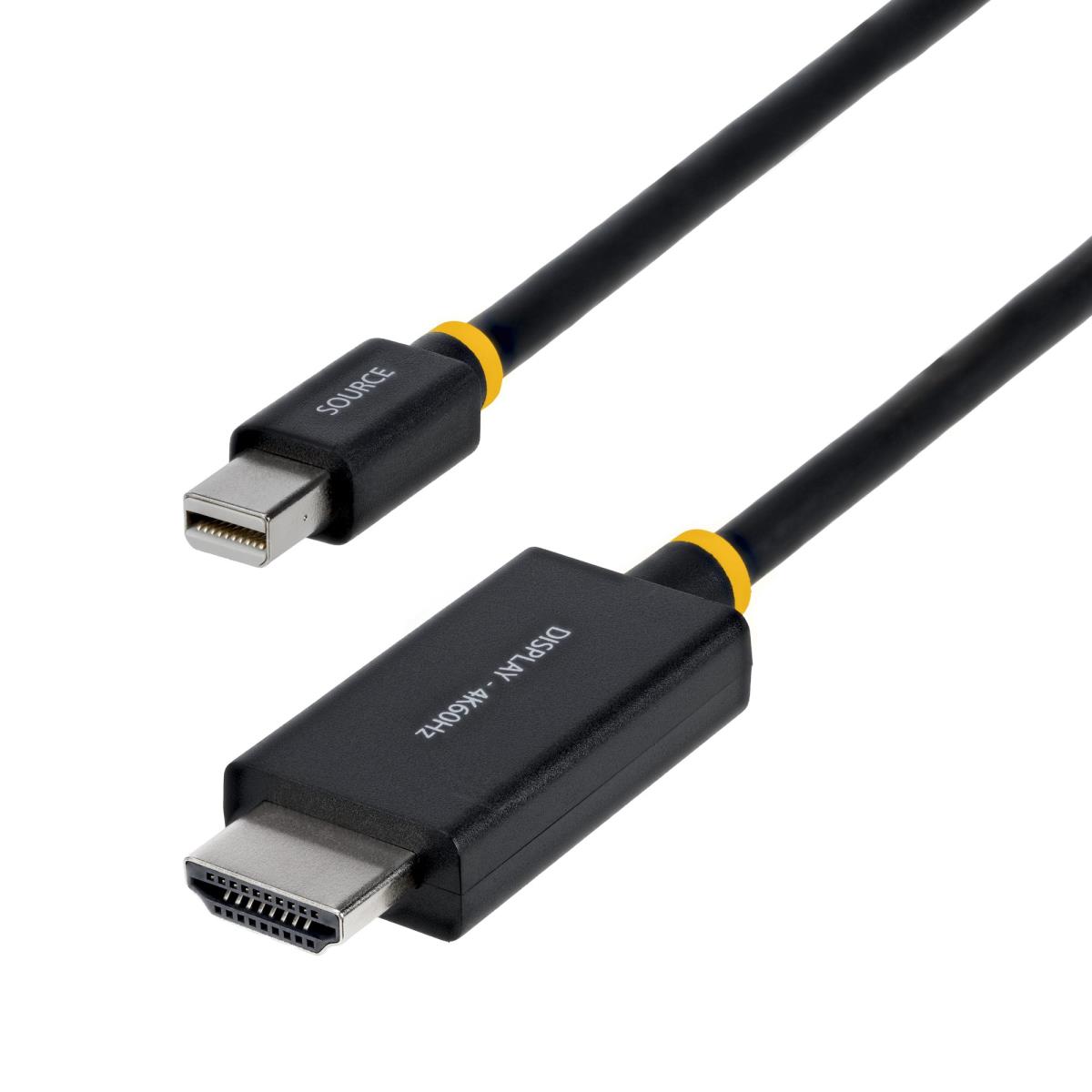

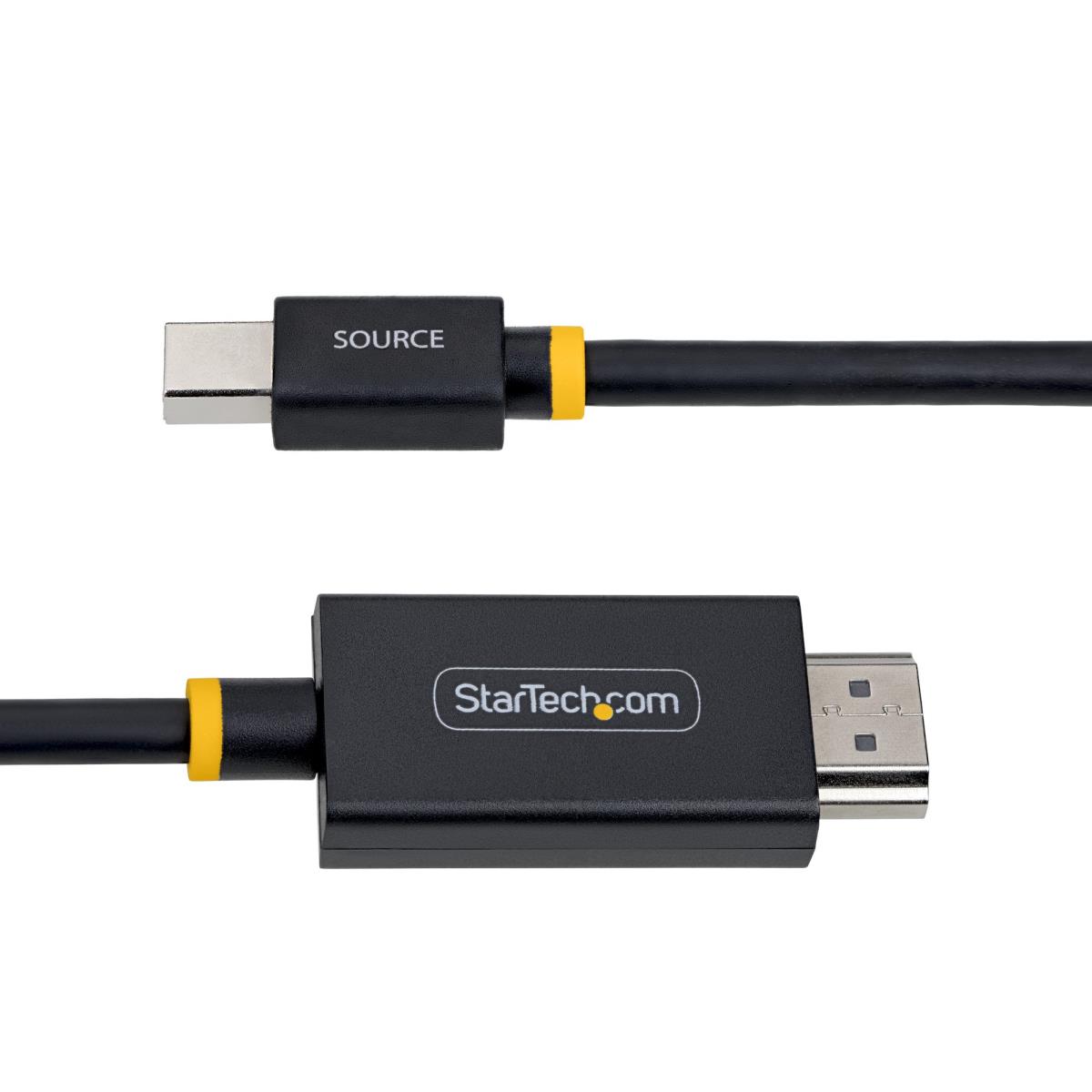

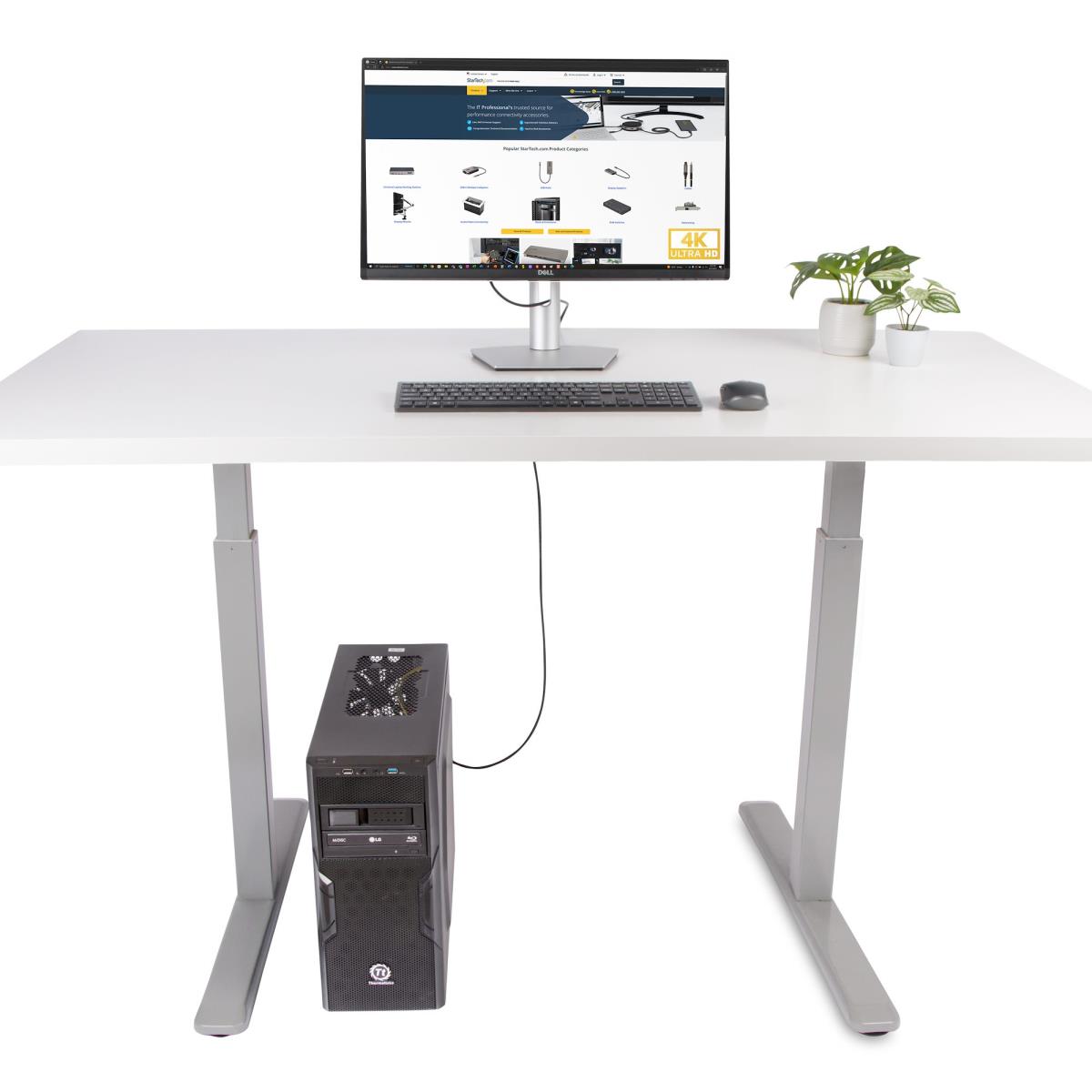

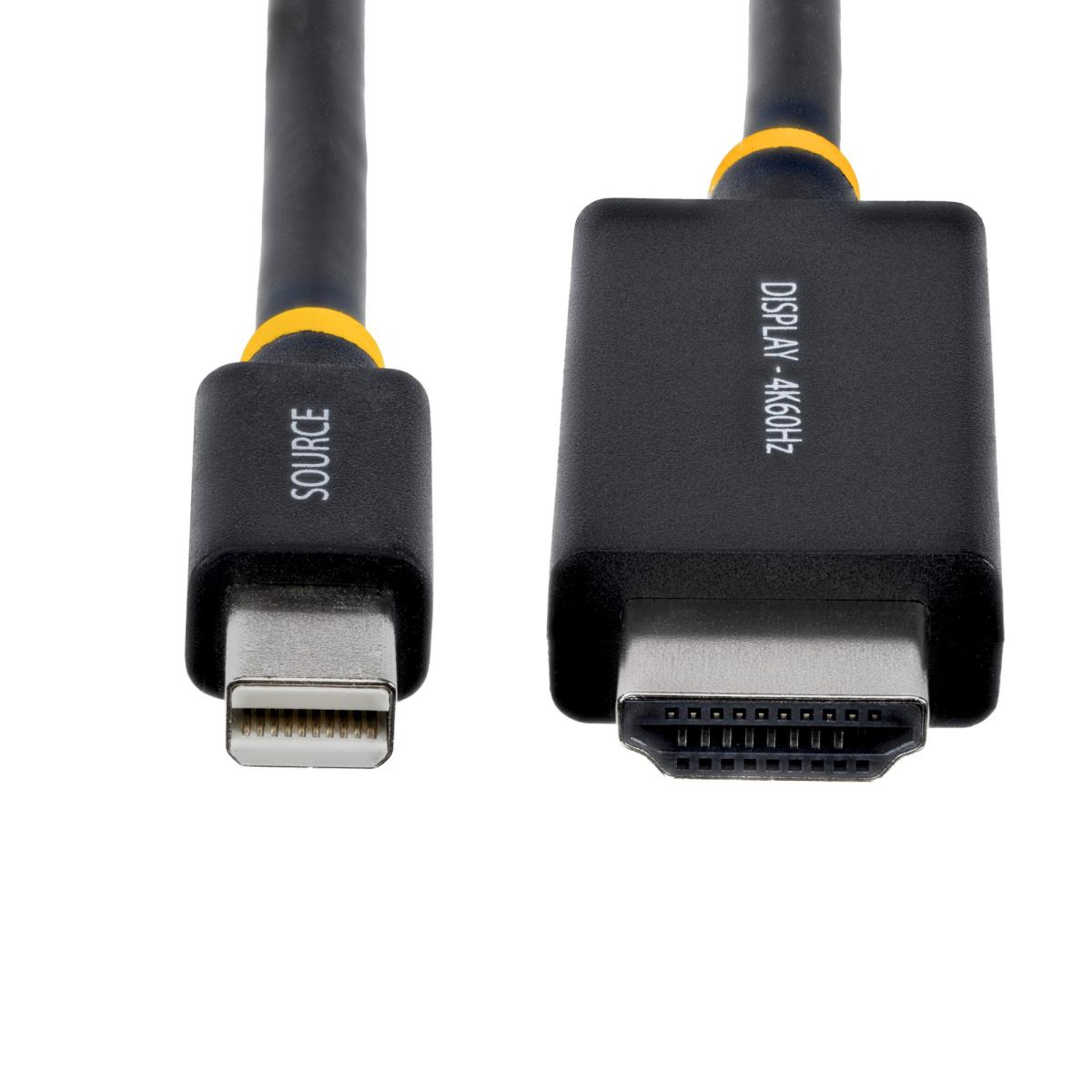

Connect a Mini DisplayPort-enabled desktop to an HDMI UHD monitor, using this 3.3-foot (1-meter) Active Mini DisplayPort to HDMI Adapter Cable.
Seamless 4K 60Hz UHD Video
This active Mini DisplayPort to HDMI adapter cable supports up to 4K 60Hz UHD over HDMI 2.0 with 7.1ch audio, HDCP 2.3 and DPCP content protection. Ensure sharp picture quality with 32Gbps HBR3 bandwidth from the Mini DisplayPort input, delivering full 18Gbps HDMI 2.0 output for consistent UHD video performance.
Universal Compatibility
The mDP To HDMI adapter cord is ideal for workstations and GPUs equipped with a Mini DisplayPort 1.2, 1.4, or 2.1 video ports and HDMI 2.0 displays. An active chipset ensures optimal signaling and universal compatibility across standard mDP and mDP++ ports. Connect a Mini DisplayPort 1.2 source to enable HDMI 2.0 4K 60Hz 4:4:4 chroma, 8-bit color depth output.
Designed and Built for IT Professionals
The integrated adapter cable design minimizes signal loss, reduces clutter, and eliminates the need for external power. This Mini DisplayPort to HDMI cable helps maintain signal integrity and reduce electromagnetic interference (EMI) for reliable long-term performance. Compatible with systems from Dell, HP, Lenovo, and other desktop manufacturers, and backward compatible with 4K 30Hz, 1080p, and lower resolutions.
Specifications
| Features | |
|---|---|
| Chipset | Parade PS176 |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| Product colour | Black |
| Cable length | 1 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Thermoplastic elastomer (TPE) |
| Bandwidth | 32000 MB/s |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1440, 3072 x 1728, 3200 x 1800, 3840 x 2160 |
| HDCP | Yes |
| Plug and Play | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Supported audio channels | 7.1 |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 5 mm |
| Package width | 200 mm |
| Package depth | 128 mm |
| Package height | 15 mm |
| Package weight | 46 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 128 mm |
| Package height | 15 mm |
| Package weight | 46 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 140 pc(s) |
