3FT USB TO SERIAL CABLE -
Introduction
USB to Serial Cable | 921.6 Kbps | For Servers/Printers/Barcode Readers/AV | Prolific Chipset | Windows/Mac/Linux

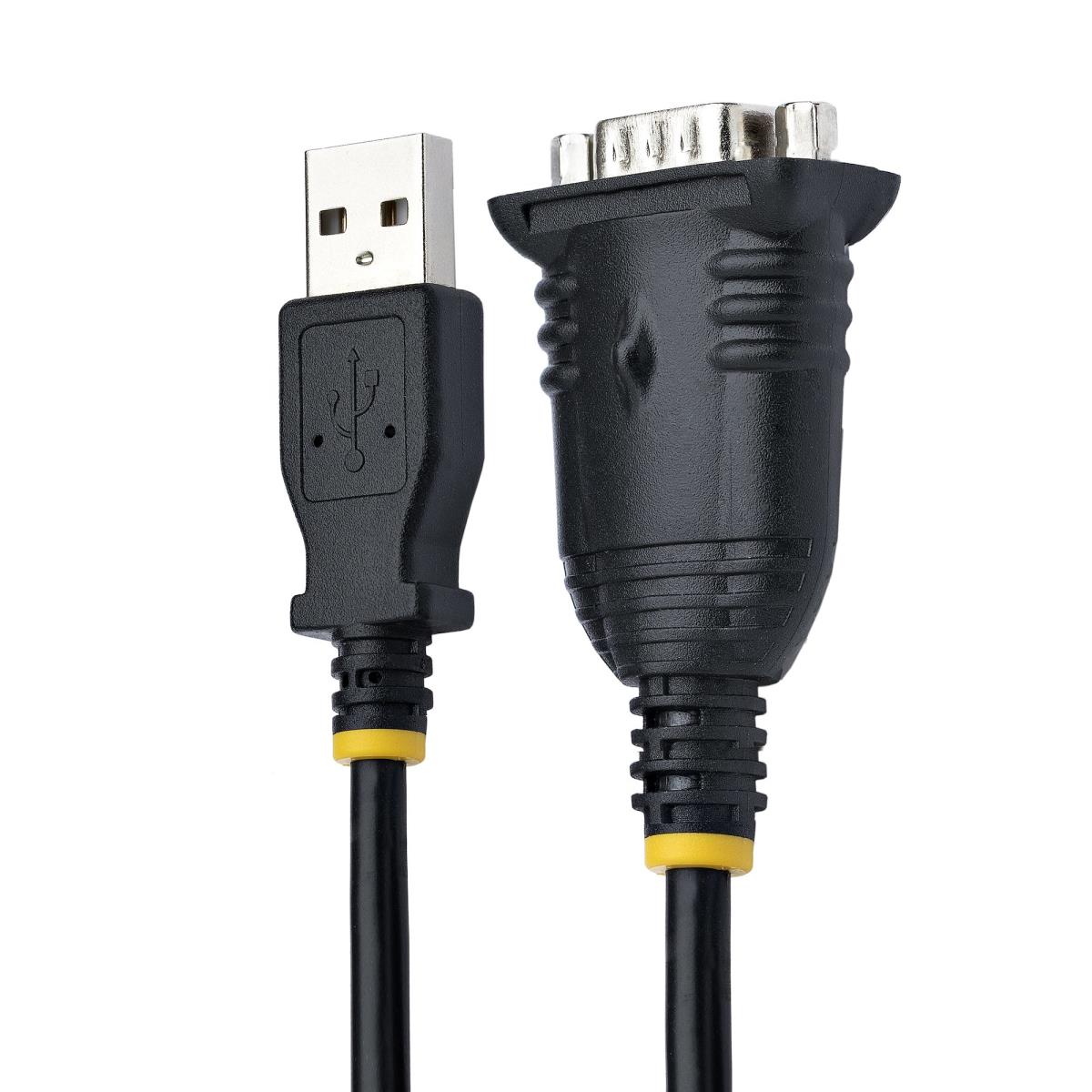

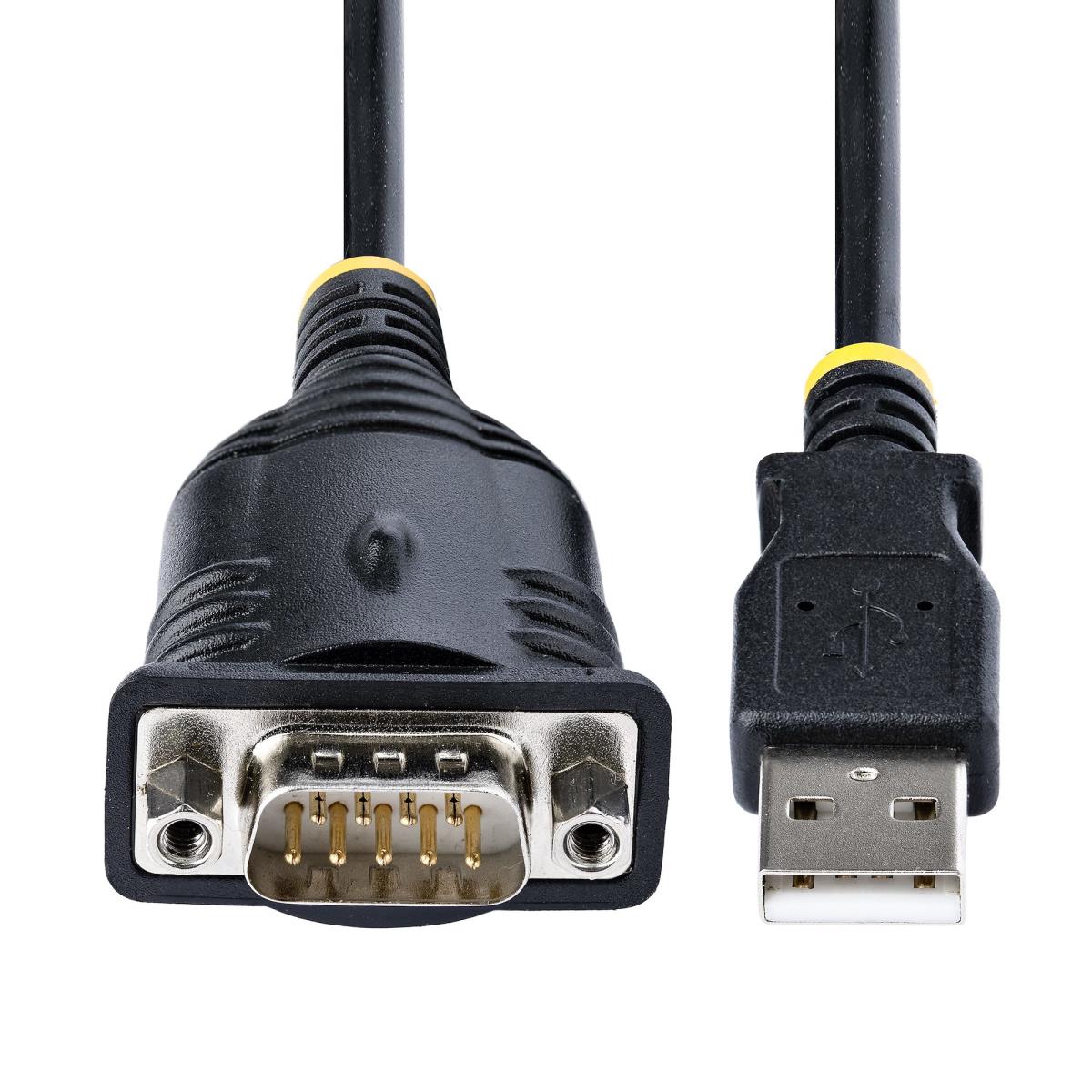

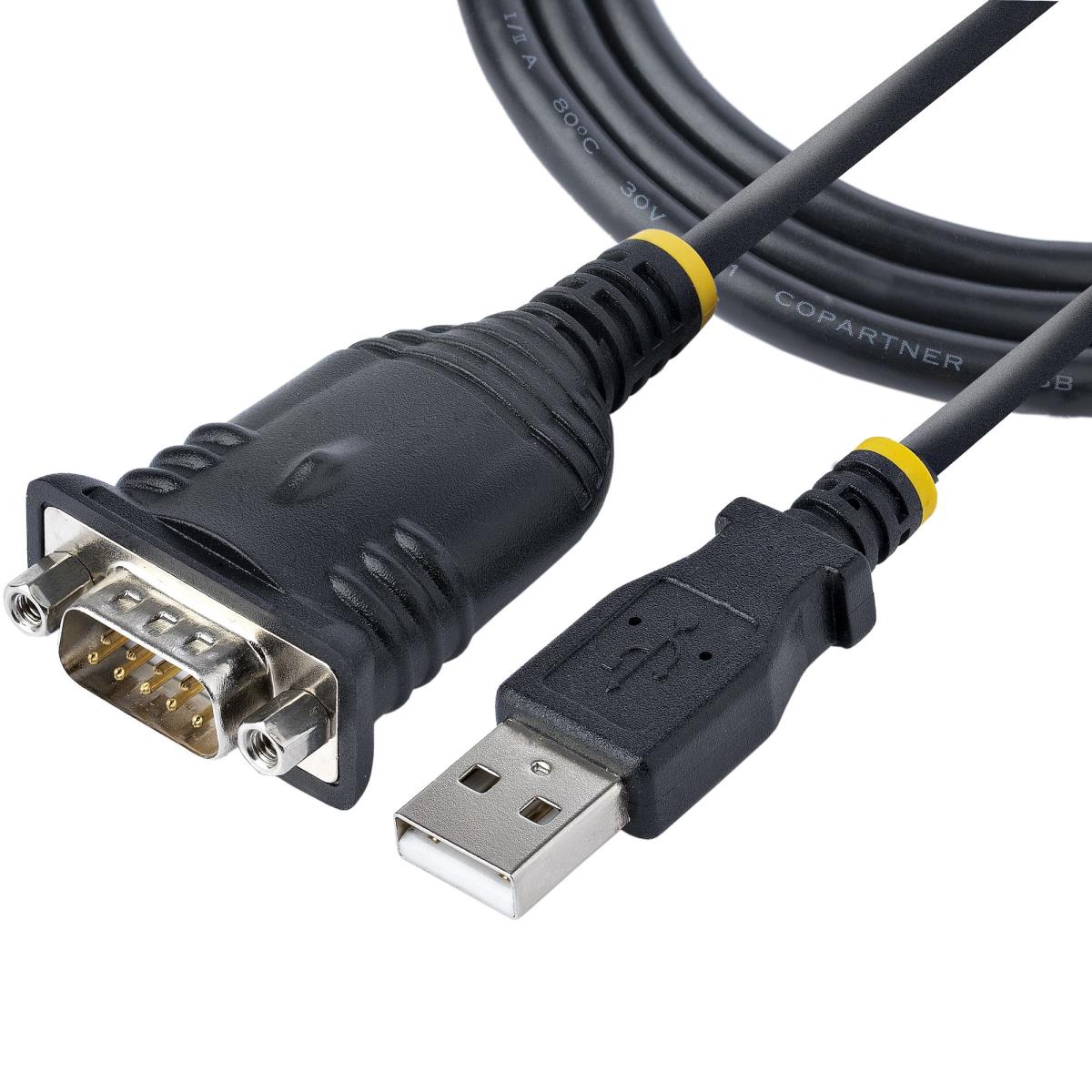

The 1P3FP-USB-SERIAL 1 Port USB to Serial Adapter lets you add an RS-232 DB9 serial COM port to your laptop or desktop computer, allowing it to control and communicate with a serial peripheral device.
Accessible Connectivity
The USB to RS232 cable is a convenient connectivity solution that bridges the gap between current and legacy technologies. The small footprint, data rate of up to 921.6 kbps, and 3 ft (0.91 m) cable length makes it the ideal solution for the IT industry, point of sales (POS), industrial applications, AV, and office setups.
Connect with Ease
This adapter cable allows you to add an RS-232 DB9 COM port by connecting it to the commonly found USB Type-A port, located on your host device. This USB 2.0 converter is compatible with other USB revisions. It supports Windows, macOS, and Linux (including the latest versions) for maximum compatibility.
1P3FP-USB-SERIAL is backed for 3-years by StarTech.com, including free lifetime 24/5 multilingual technical assistance.
Specifications
| Ports & interfaces | |
|---|---|
| Connector 2 | USB Type-A |
| Connector 1 | DB-9 |
| Cable length | 0.91 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| USB version | 2.0 |
| Performance | |
| Chipset | Prolific - PL2303RA |
| Stop bits | 1, 1.5, 2 |
| Flow Control type | DTR/DSR, No, RTS/CTS, XON/XOFF |
| Data bits | 5, 6, 7, 8 |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 512 B |
| Compatible operating systems | Windows 7, 8.1, 10, 11 Windows Server 2016, 2019 macOS 10.11 to 10.15, 11.0, 12.0, Mac OS X 13.0 Ventura Linux 4.15.x LTS Versions Only Chrome OS |
| Product colour | Black |
| Parity bit | Even, Mark, No, Odd, Space |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 100 °C |
| Relative humidity | 20 - 80% |
| Operating temperature (T-T) | 0 - 80 °C |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 45 mm |
| Weight | 39.2 g |
| Height | 16 mm |
| Depth | 34 mm |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package width | 199 mm |
| Package height | 23 mm |
| Package depth | 133 mm |
| Package weight | 102.2 g |
| Technical details | |
| Product colour | Black |
| Cable length | 0.91 m |
| Compliance certificates | CE, RoHS |
| Design | |
| Product colour | Black |
| Cable length | 0.91 m |
| System requirements | |
| Compatible operating systems | Windows 7, 8.1, 10, 11 Windows Server 2016, 2019 macOS 10.11 to 10.15, 11.0, 12.0, Mac OS X 13.0 Ventura Linux 4.15.x LTS Versions Only Chrome OS |
| Logistics data | |
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case width | 578 mm |
| Master (outer) case length | 363 mm |
| Master (outer) case height | 304 mm |
