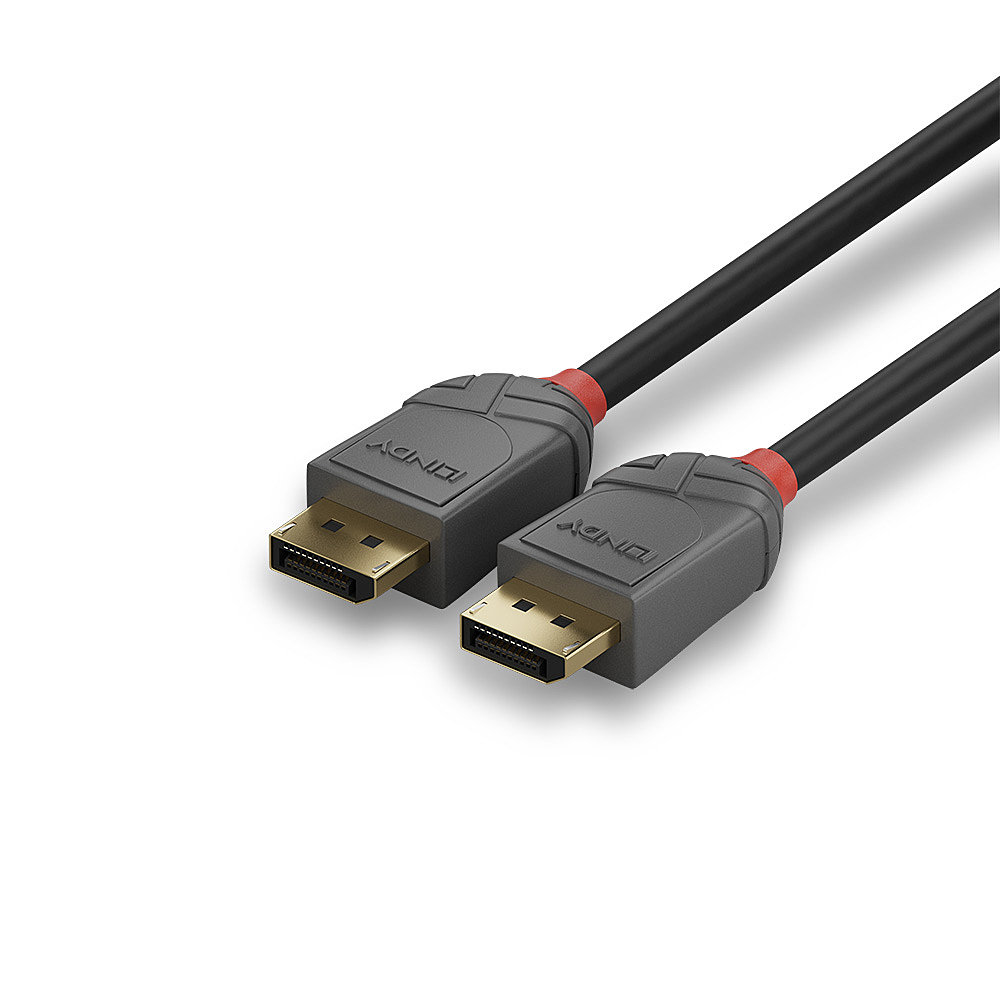

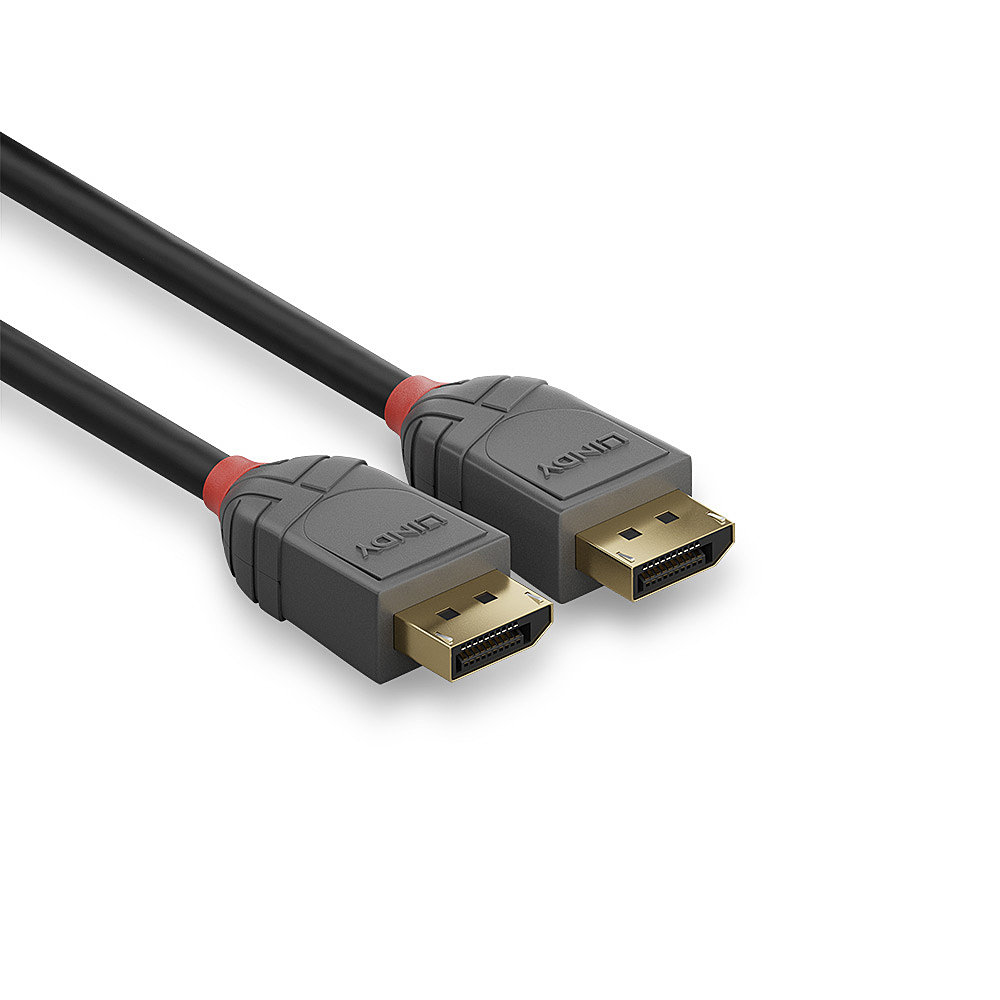

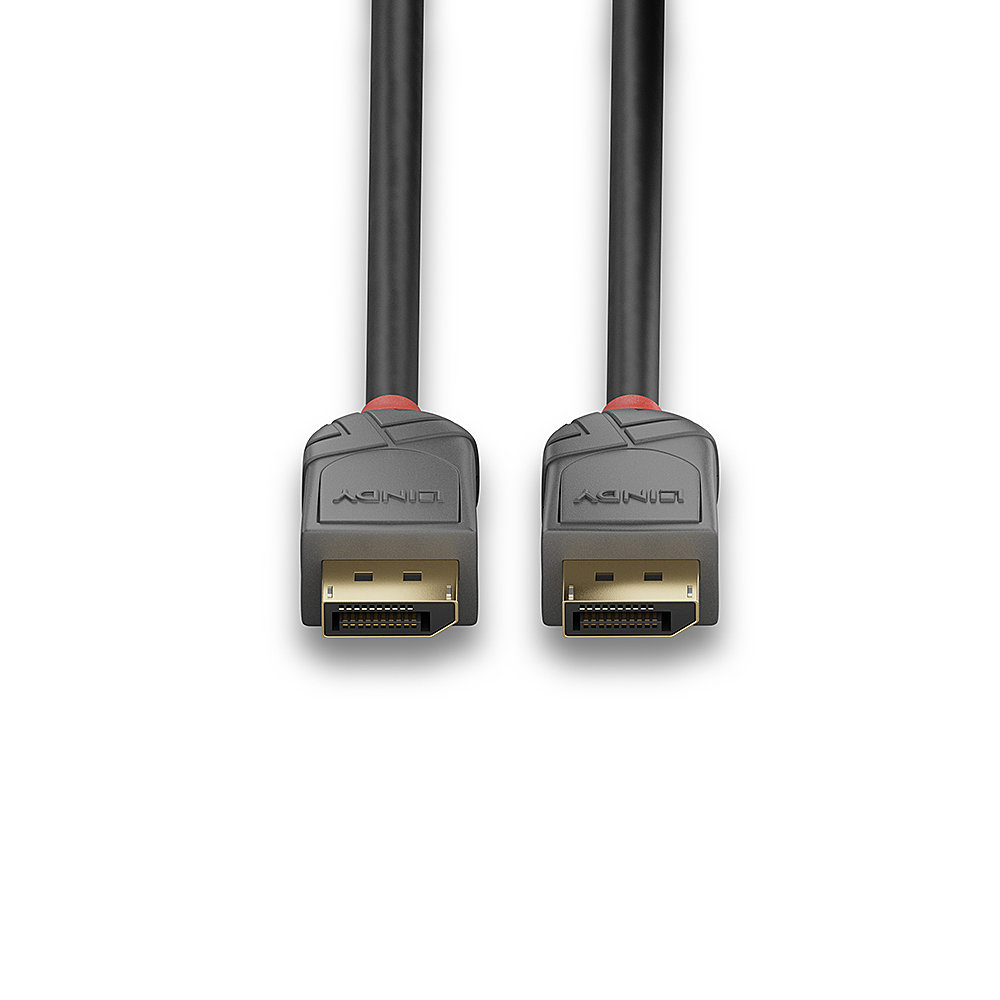

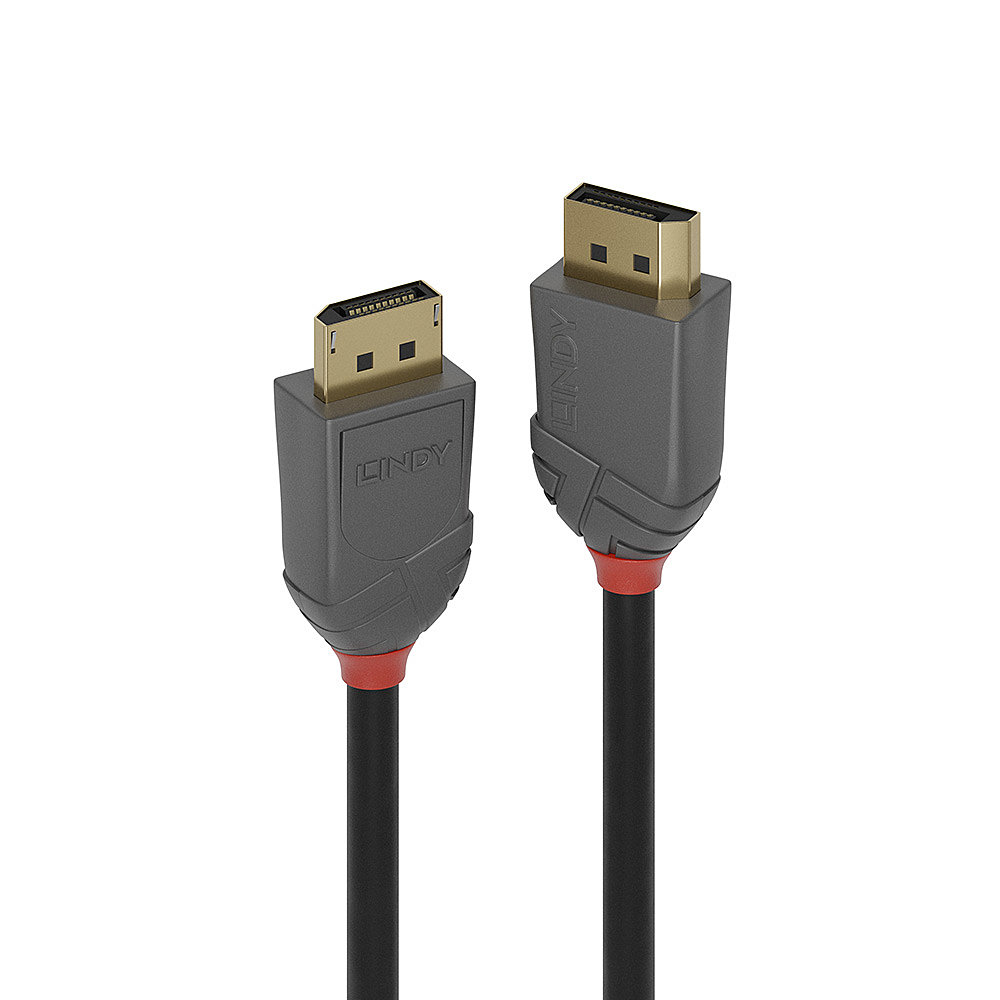

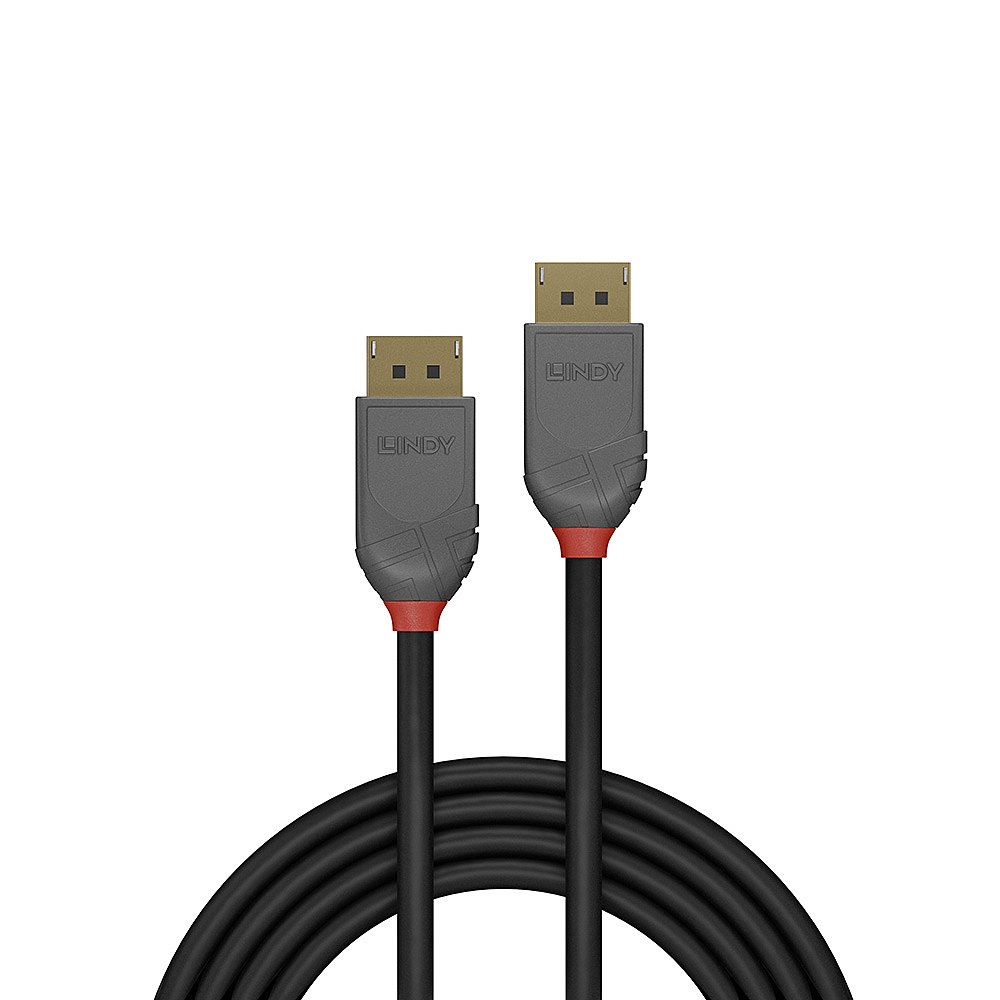

7.5M DISPLAYPORT 1.2 CABLE
Introduction
From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 26AWG tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit, including stereoscopic 3D and HDCP are supported. DisplayPort 1.2 technology ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths: 0.5m, 1m, 2m, 3m, 5m, 7.5m and 10m.
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Cable length | 7.5 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 26 |
| DisplayPort version | 1.2 |
| Data transfer rate | 21.6 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| Certification | REACH, UL |
| Maximum refresh rate | 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Certification | REACH, UL |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 7.5 mm |
| Packaging data | |
| Cable diameter | 7.5 mm |
| Package type | Polybag |
| Packaging content | |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
