7M LATCHING DP CABLE -
Introduction
Connect DisplayPort®-equipped devices over longer distances

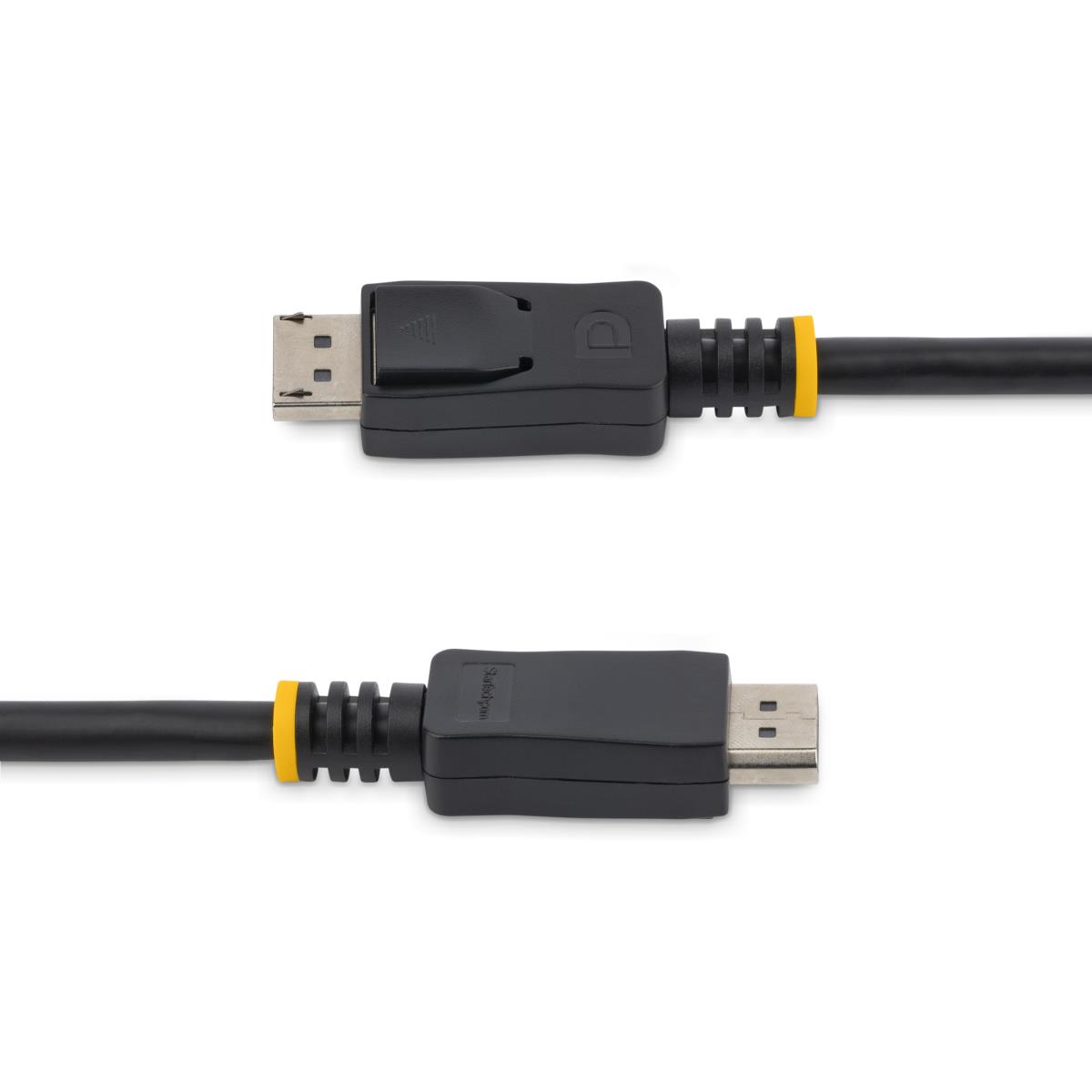

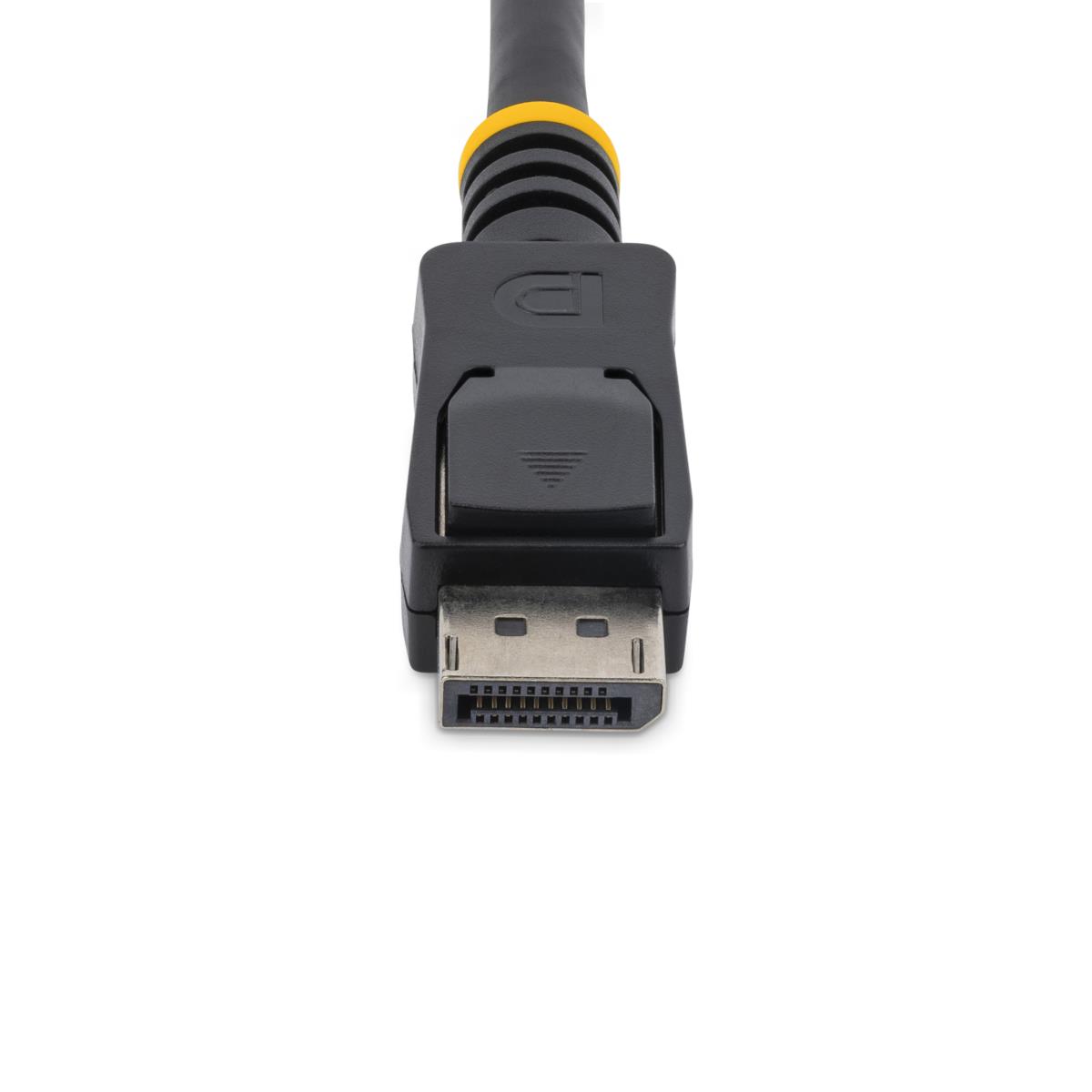

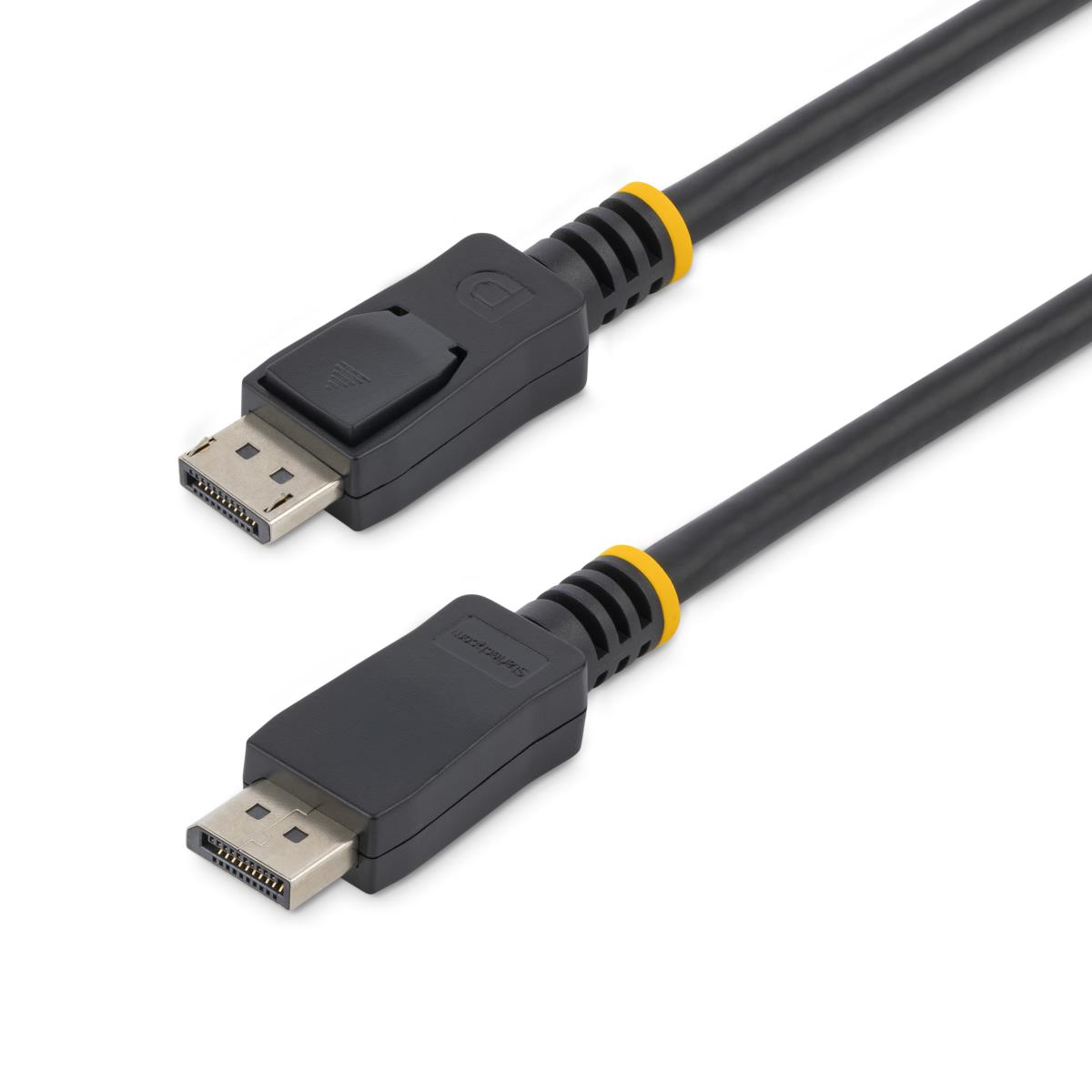

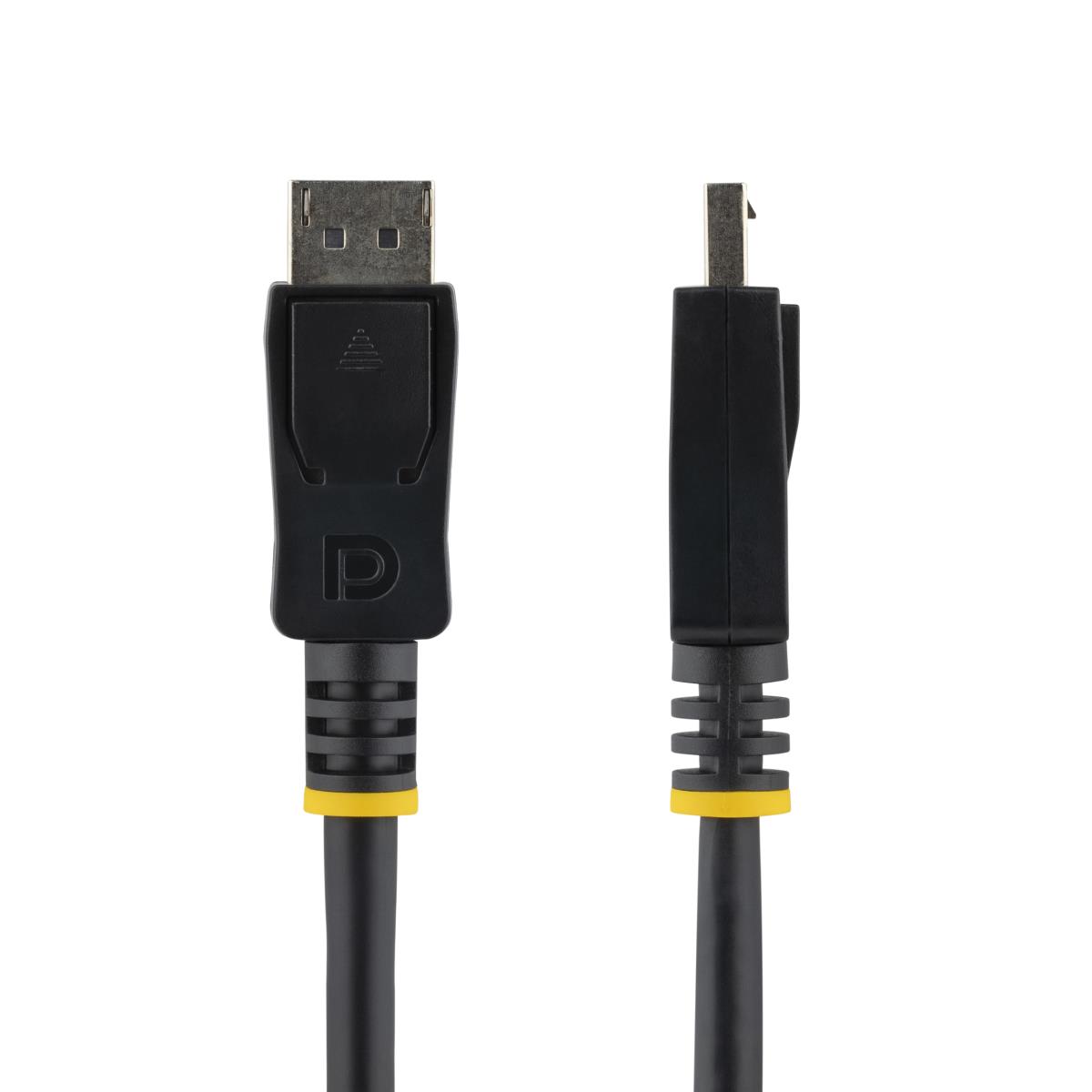

The DISPL7M DisplayPort Cable with latches provides a secure connection between your DisplayPort-enabled devices and allows for a connection distance of up to 7 meters between your source and display.
With a bandwidth of 10.8Gbps and support for maximum resolutions up to 2560x1600 (WQXGA), as well as optional audio support, this 7-meter DisplayPort cable offers impressive video capability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
The DISPL7M is backed by StarTech.com's Lifetime Warranty.
Specifications
| Features | |
|---|---|
| Cable shielding | Aluminum mylar foil |
| Latching connectors | Yes |
| Cable rating | CMG (CM) |
| Number of conductors | 19 |
| DisplayPort Content Protection (DPCP) | Yes |
| Product colour | Black |
| Cable length | 7 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 26 |
| DisplayPort version | 1.2 |
| Bandwidth | 21600 MB/s |
| Maximum resolution | 3840 x 2400 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA) |
| HDCP | Yes |
| Plug and Play | Yes |
| Maximum refresh rate | 60 Hz |
| Multi-Stream Transport (MST) | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Weight & dimensions | |
| Cable diameter | 7.3 mm |
| Weight | 578 g |
| Package weight | 580 g |
| Package width | 250 mm |
| Package depth | 330 mm |
| Package height | 45 mm |
| Packaging data | |
| Cable diameter | 7.3 mm |
| Package weight | 580 g |
| Weight | 578 g |
| Package width | 250 mm |
| Package depth | 330 mm |
| Package height | 45 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS, CE |
| Logistics data | |
| Products per master (outer) case | 16 pc(s) |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 502 mm |
| Master (outer) case height | 210 mm |
| Harmonized System (HS) code | 84733080 |
