EU Product - ColorFlex HDMI Cle 4K
Introduction

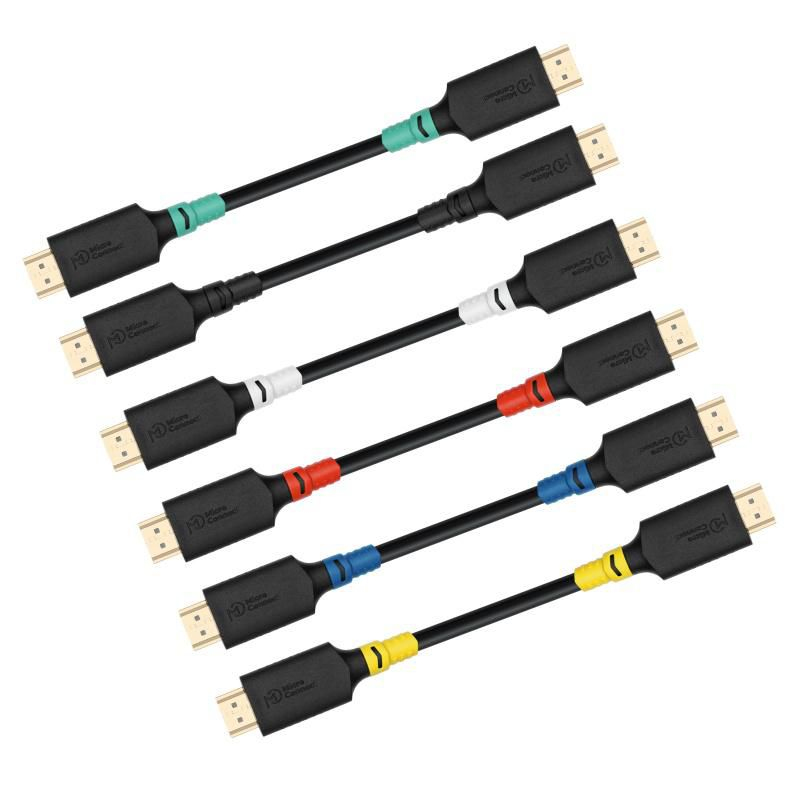

The ColorFlex LSZH series from MicroConnect are designed for safe and organized cable installations. Featuring a durable jacket made from a combination of Thermoplastic Elastomer (TPE) and Low Smoke Zero Halogen (LSZH) materials, these cables are ideal for environments where flexibility, fire safety, and reduced emissions are essential. Each cable comes with a standard black strain relief, while additional detachable strain reliefs are available separately in six vibrant colors—green, red, yellow, blue, and white—making it easy to color-code and customize your setup.
HDMI 2.0 4K60Hz18Gbps with gold plated connector.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Dolby technologies | Dolby TrueHD |
| Colour depth | 16 bit |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Bandwidth | 60 MHz |
| Product colour | Black |
| Cable length | 5 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| Magnetically shielded | Yes |
| AWG wire size | 30 |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| HDCP | Yes |
| Plug and Play | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Pull-resistant connector(s) | No |
| Pull-off force | 1 kg |
| Cable jacket material | Low smoke zero halogen (LSZH) |
| HDCP version | 2.2 |
| RGB support | 4:4:4 |
| Cable colour | Black |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Weight | 80 g |
| Cable diameter | 6 mm |
| Package weight | 90 g |
| Package width | 199 mm |
| Package depth | 173 mm |
| Package height | 29 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package weight | 90 g |
| Package width | 199 mm |
| Package depth | 173 mm |
| Package height | 29 mm |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Cable colour | Black |
| Other features | |
| Cable colour | Black |
| Width | 199 mm |
| Height | 29 mm |
| Depth | 173 mm |
