3M MINI DP TO DP ADAPTER
Introduction
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor

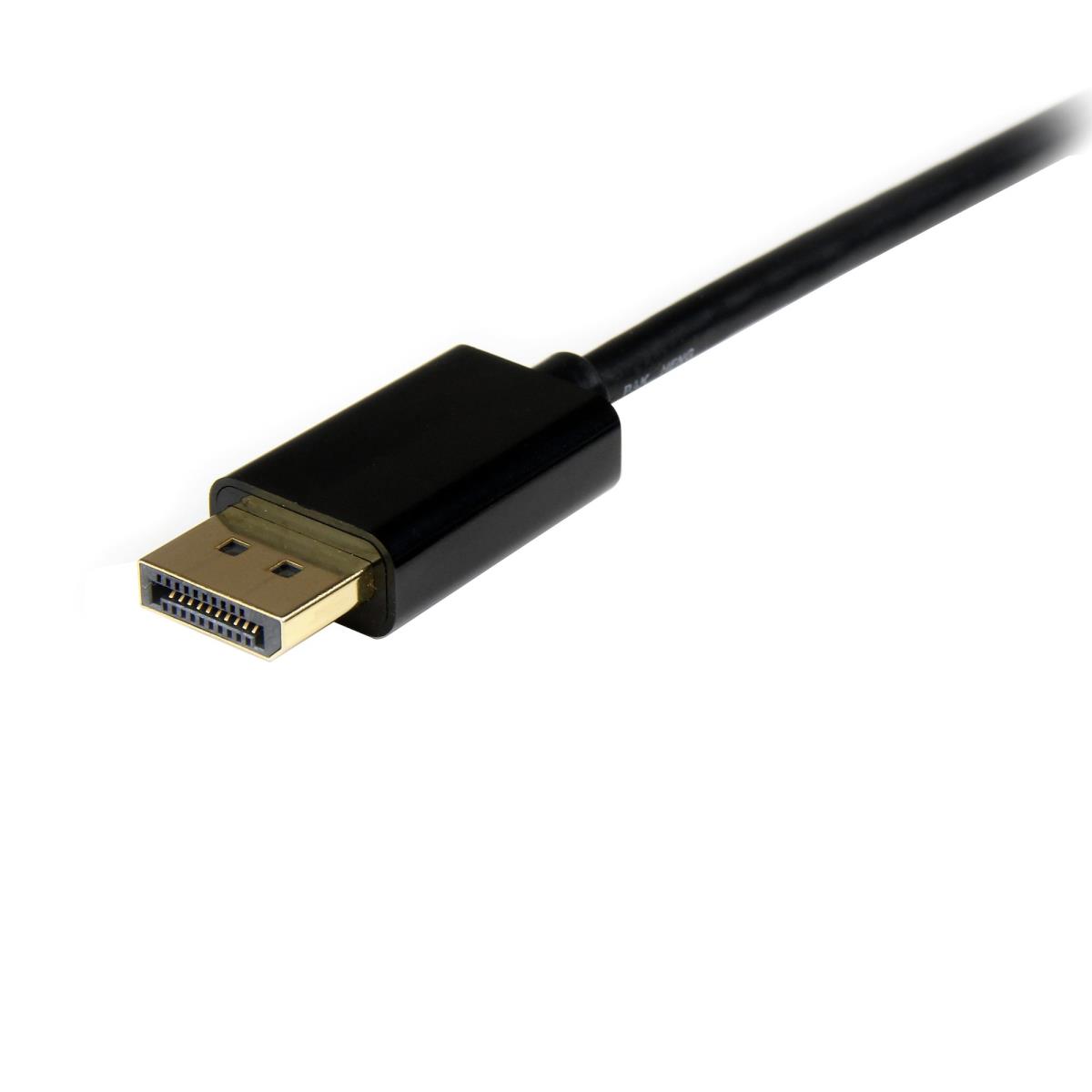

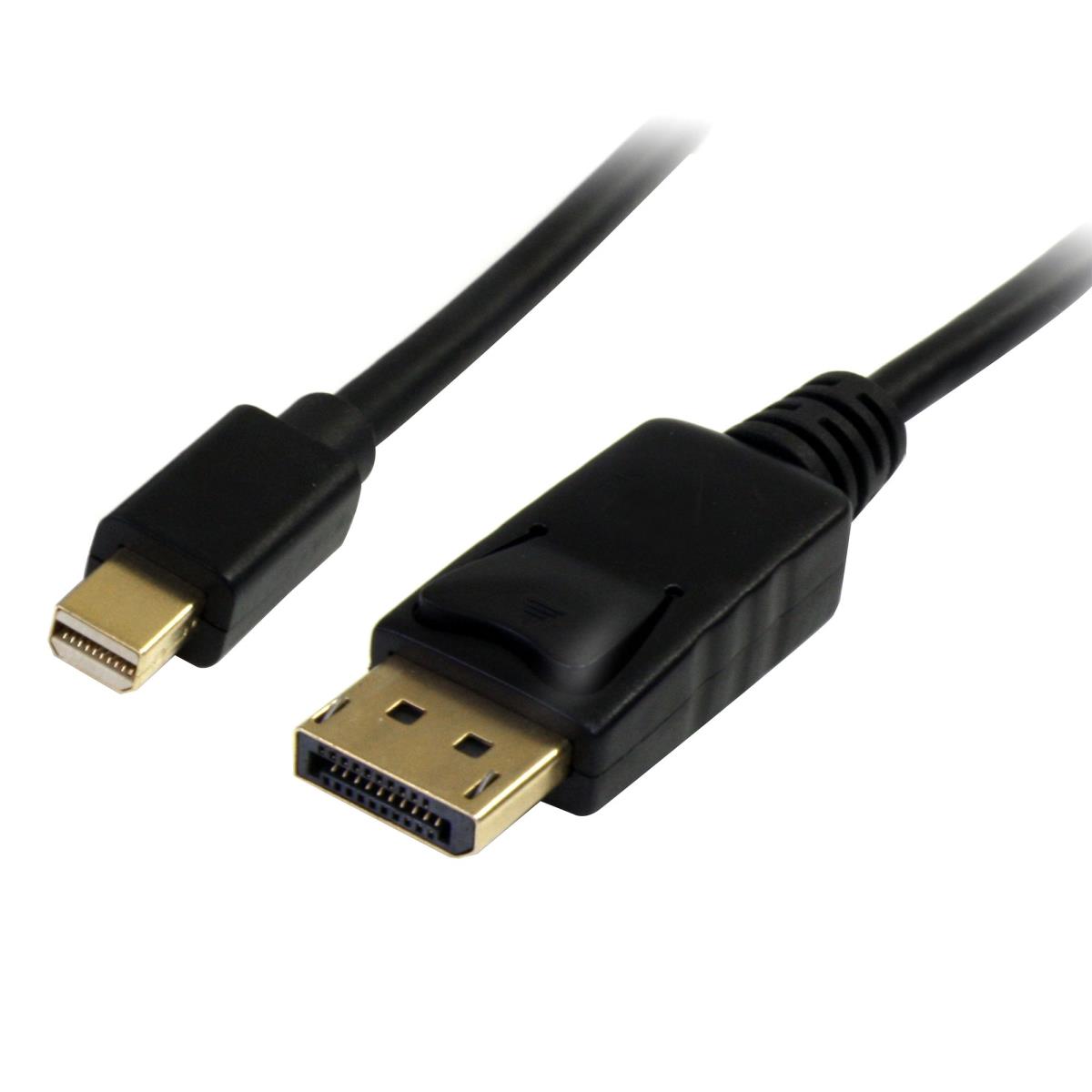

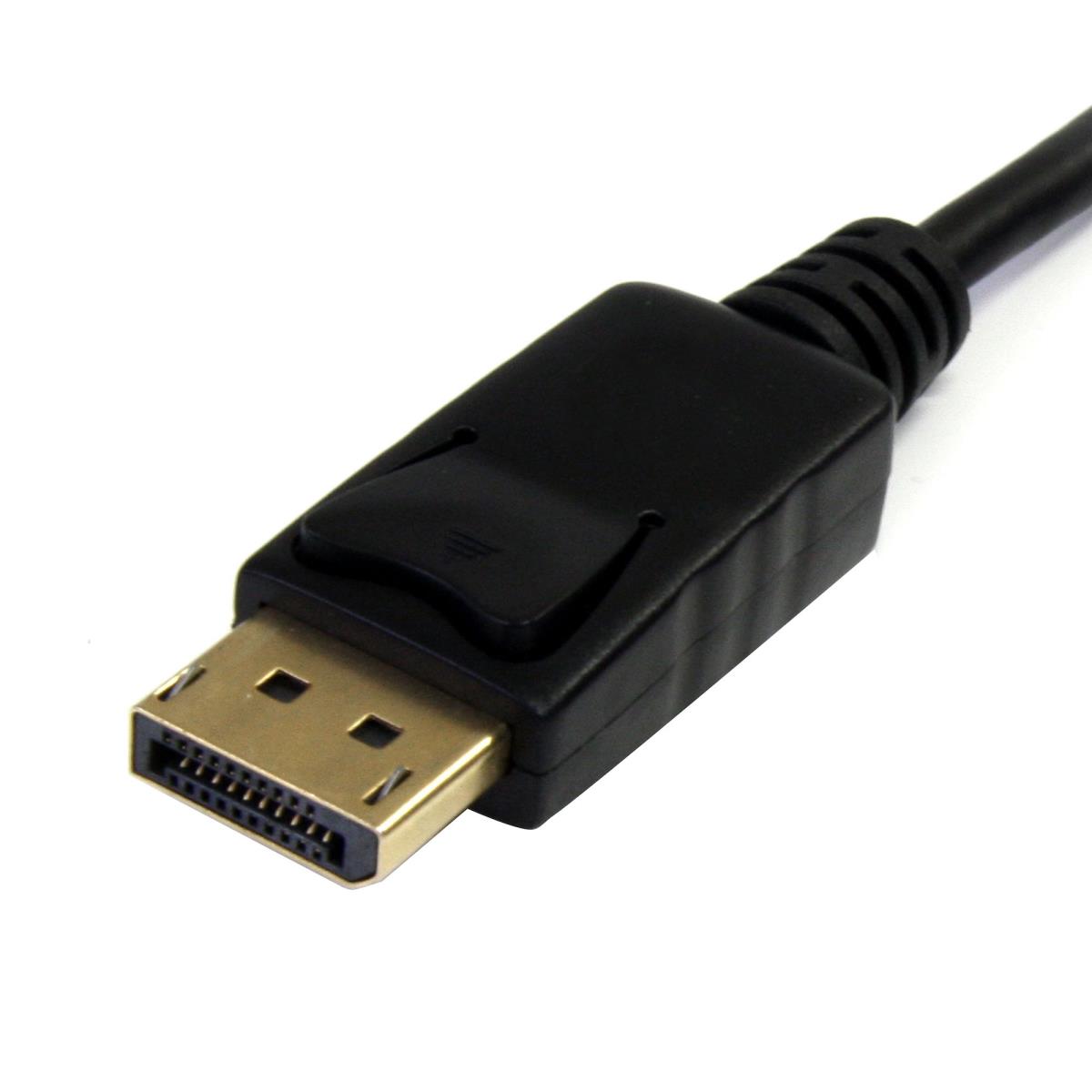

The MDP2DPMM3M 3m Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM3M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
Specifications
| Features | |
|---|---|
| Cable shielding | Aluminum mylar foil |
| Cable rating | CMG (CM) |
| Number of conductors | 19 |
| Product colour | Black |
| Cable length | 3 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| DisplayPort version | 1.2 |
| Bandwidth | 21600 MB/s |
| Maximum resolution | 3840 x 2400 pixels |
| Supported graphics resolutions | 3840 x 2400, 2560 x 1600 (WQXGA) |
| Maximum refresh rate | 120 Hz |
| Multi-Stream Transport (MST) | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Weight & dimensions | |
| Weight | 102 g |
| Package weight | 110 g |
| Package width | 198 mm |
| Package depth | 146 mm |
| Package height | 22 mm |
| Packaging data | |
| Package weight | 110 g |
| Weight | 102 g |
| Package width | 198 mm |
| Package depth | 146 mm |
| Package height | 22 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS, CE |
| Logistics data | |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 210 mm |
| Harmonized System (HS) code | 84733080 |
