12 MINI DISPLAYPORT TO HDMI
Introduction
Extended Cable | 1080p | Thunderbolt 1 & 2 Compatible

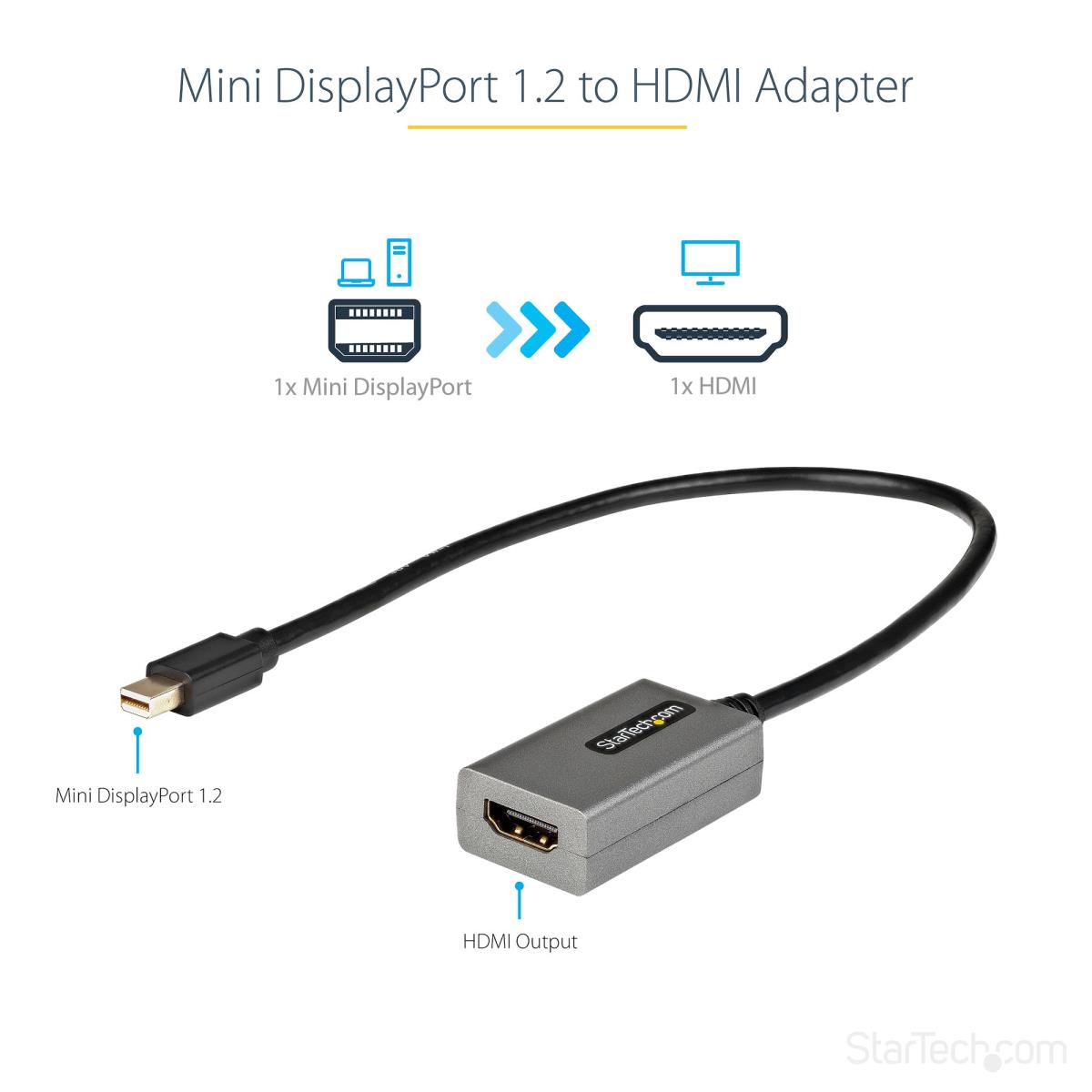

This Mini DisplayPort™ to HDMI® adapter lets you connect your mDP computer to an HDMI, television, projector or monitor.

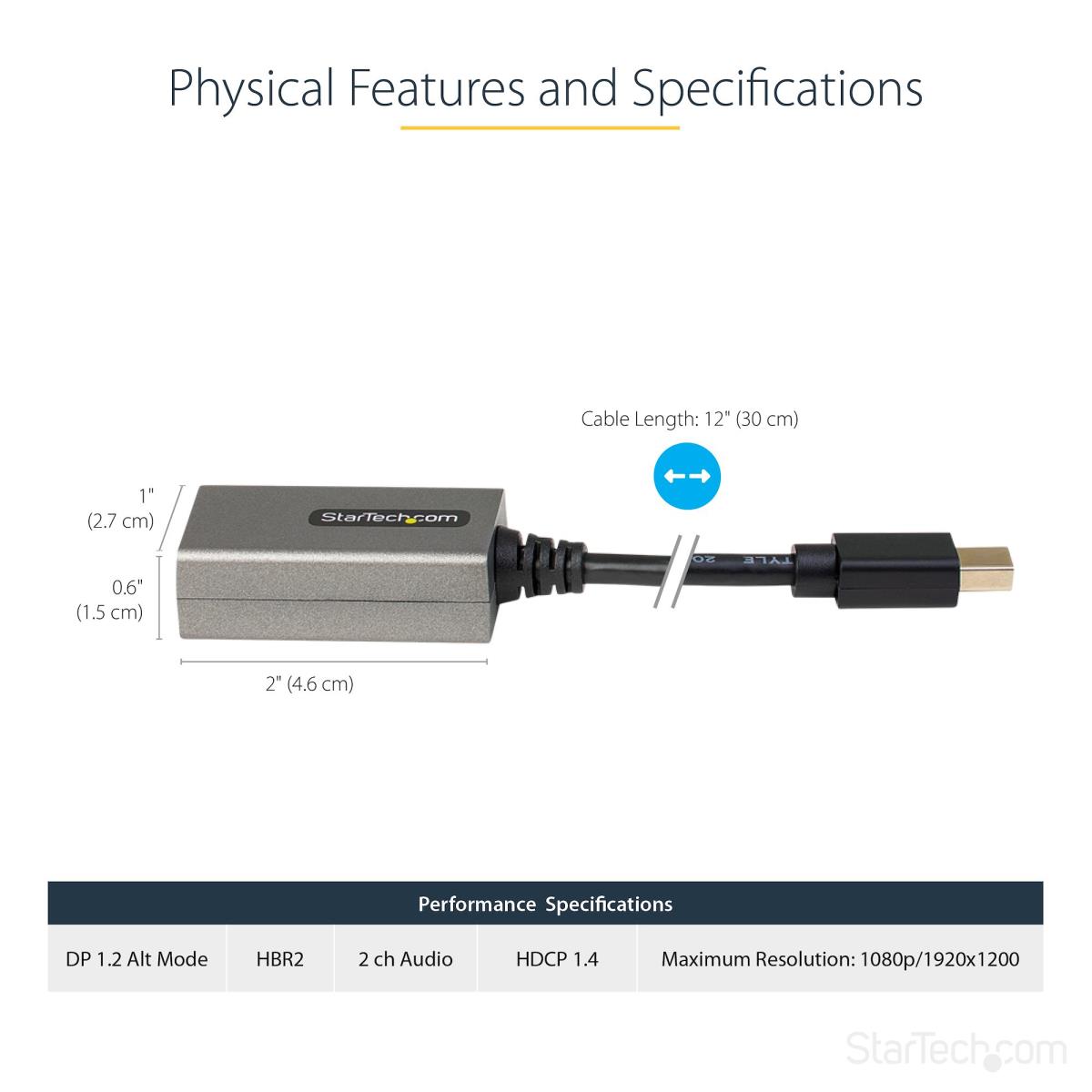

Extended Cable Length

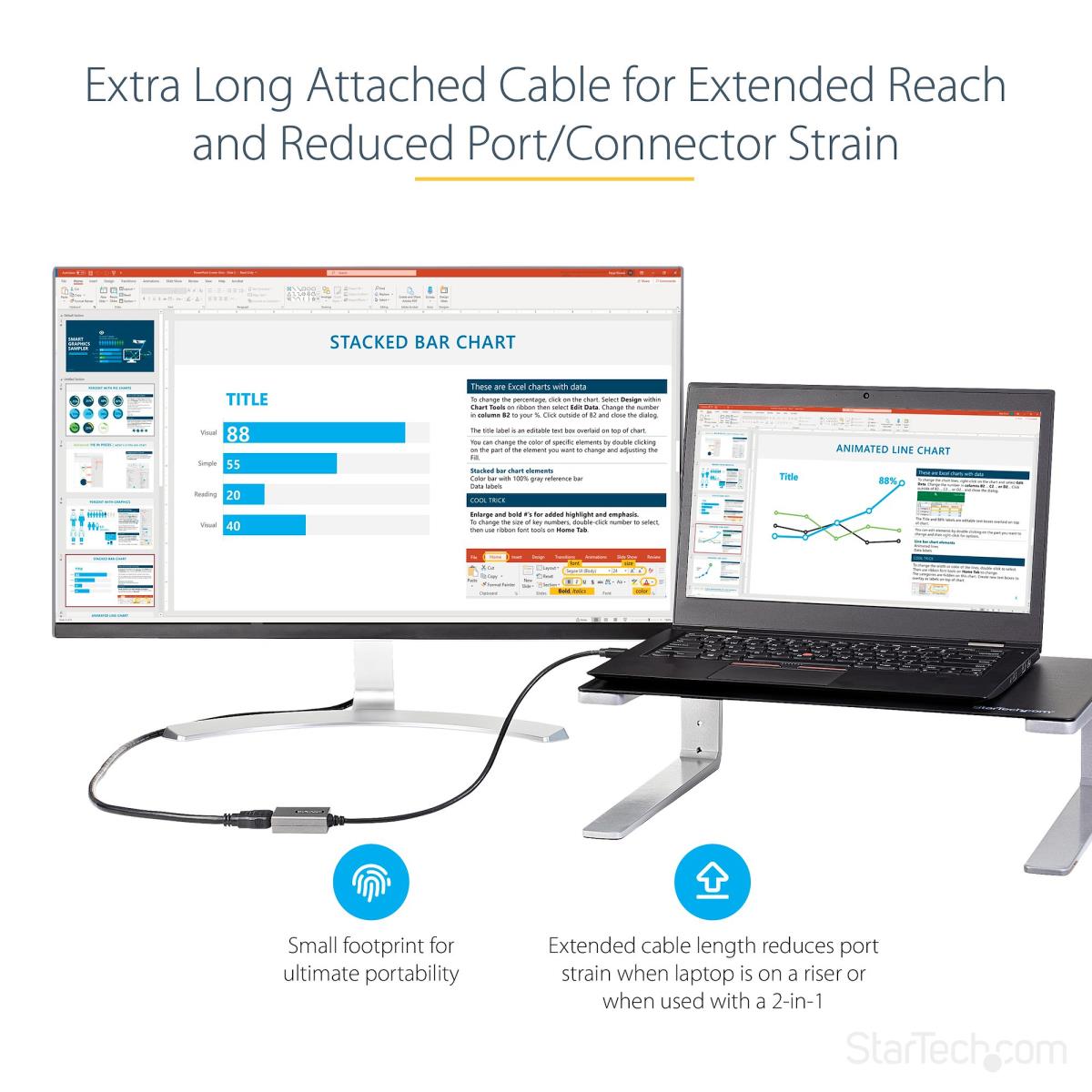

This Mini DP to HDMI adapter is equipped with an extra-long 12" (30cm) attached cable, providing an extended reach to reduce port and connector strain on 2-in-1 devices or laptops on risers stands.
HD Picture Quality
With support for video resolutions up to 1080p, you'll be surprised at the picture spectacular picture quality this adapter provides. The adapter harnesses the video capabilities built into your mDP connection to deliver every detail in stunning high-definition.
Ultimate Portability
This mDP video adapter is highly portable with a small footprint and lightweight design that's easy to tuck into your laptop bag while commuting between your home, office or traveling for business.
The MDP2HDEC is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Specifications
| Features | |
|---|---|
| Chipset | NXP Semiconductors PTN3361B |
| Cable length | 0.331 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.4 |
| Supported audio channels | 7.1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | CE, RoHS |
| Other features | |
| Width | 265 mm |
| Height | 15 mm |
| Depth | 387 mm |
| Material | Plastic |
| Weight & dimensions | |
| Width | 265 mm |
| Height | 15 mm |
| Depth | 387 mm |
| Weight | 24 g |
| Package width | 124 mm |
| Package depth | 172 mm |
| Package height | 22 mm |
| Package weight | 25 g |
| Packaging data | |
| Package width | 124 mm |
| Package depth | 172 mm |
| Package height | 22 mm |
| Package weight | 25 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 200 pc(s) |
| Harmonized System (HS) code | 84733080 |
