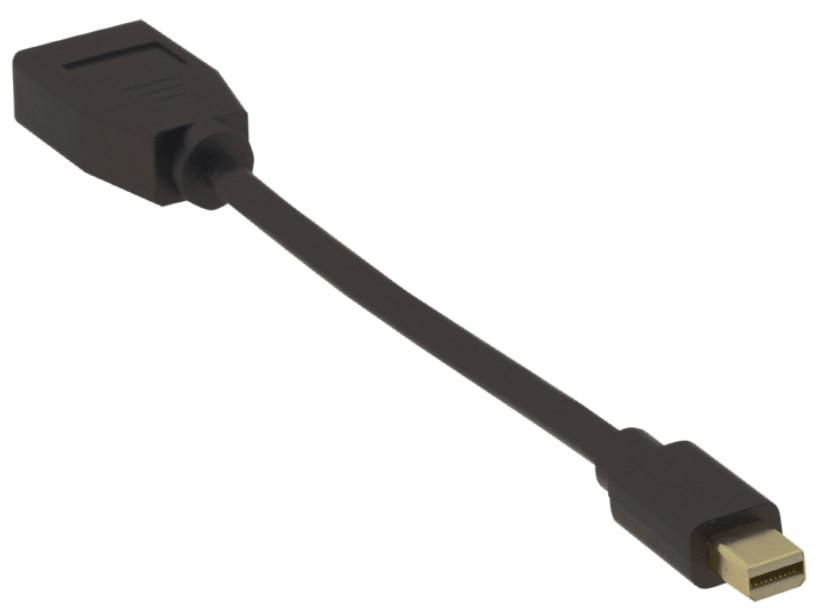

EU Product - 4K Mini Displypor - DP M-F
Introduction
This DisplayPort adapter enables you to easily connect a Mini DisplayPort device to a DisplayPort device
Specifications
| Features | |
|---|---|
| DisplayPort Content Protection (DPCP) | Yes |
| Product colour | Black |
| Cable length | 0.15 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Copper |
| Cable material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| DisplayPort version | 1.2 |
| Data transfer rate | 21.6 Gbit/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| HDCP | Yes |
| Plug and Play | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 60 Hz |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| HDCP version | 1.4/2.2 |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Weight | 10 g |
| Package weight | 20 g |
| Package width | 159 mm |
| Package depth | 119 mm |
| Package height | 24 mm |
| Packaging data | |
| Cable diameter | 4.8 mm |
| Package weight | 20 g |
| Weight | 10 g |
| Package width | 159 mm |
| Package depth | 119 mm |
| Package height | 24 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Width | 159 mm |
| Height | 24 mm |
| Depth | 119 mm |
