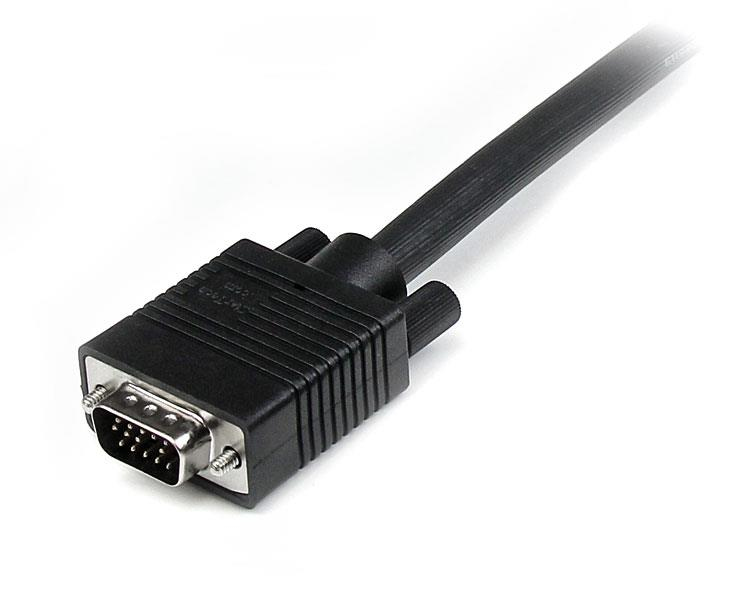

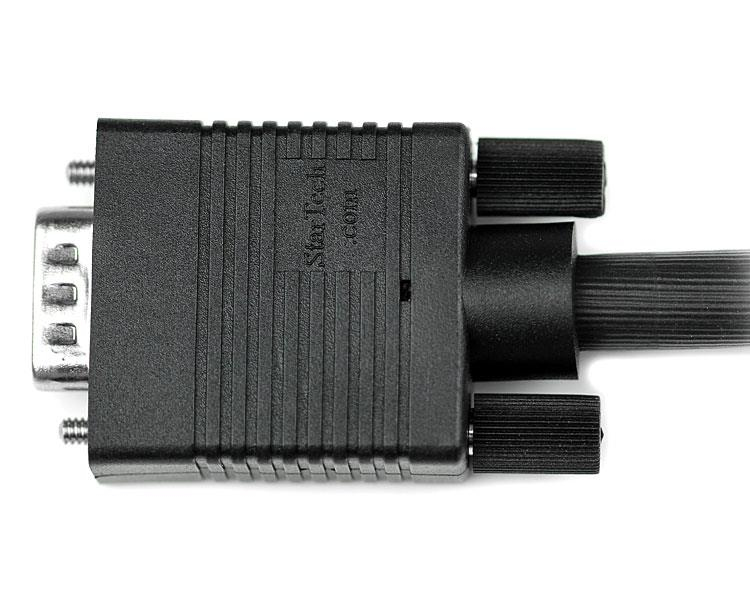

2M VGA VIDEO CABLE HD15 TO HD15
Introduction
Connect your VGA monitor with the highest quality connection available
The MXTMMHQ2M High Resolution VGA Cable (2-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.

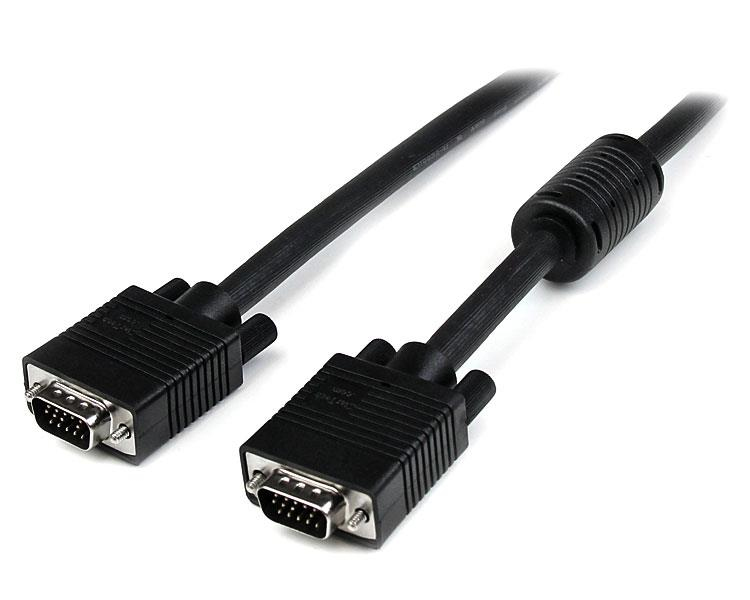

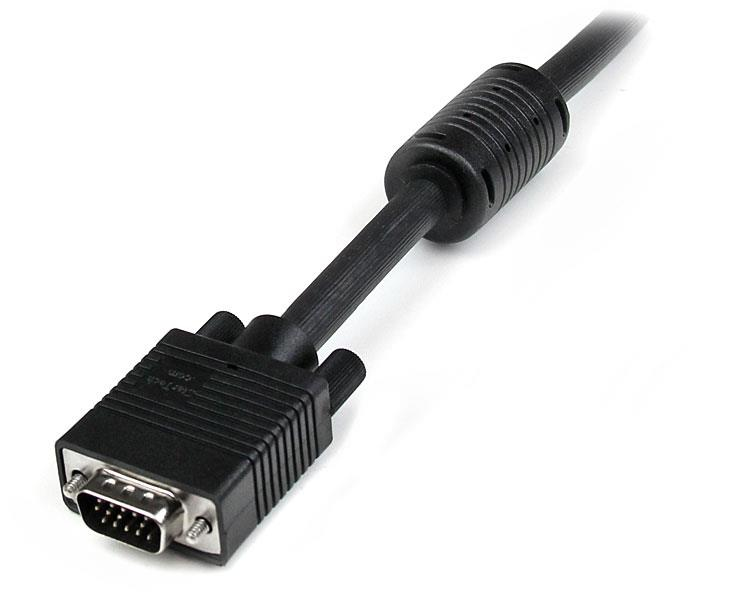

This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable shielding | Aluminum mylar foil |
| Cable rating | CMG (CM) |
| Number of conductors | 14 |
| Impedance | 75 O |
| Product colour | Black |
| Cable length | 2 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| AWG wire size | 28 |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Plug and Play | Yes |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Certification | CE, REACH |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Certificates | |
| Certification | CE, REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 275 g |
| Package weight | 300 g |
| Package width | 199 mm |
| Package depth | 155 mm |
| Package height | 47 mm |
| Packaging data | |
| Package weight | 300 g |
| Package width | 199 mm |
| Package depth | 155 mm |
| Package height | 47 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 372 mm |
| Master (outer) case length | 422 mm |
| Master (outer) case height | 272 mm |
| Harmonized System (HS) code | 84733080 |
