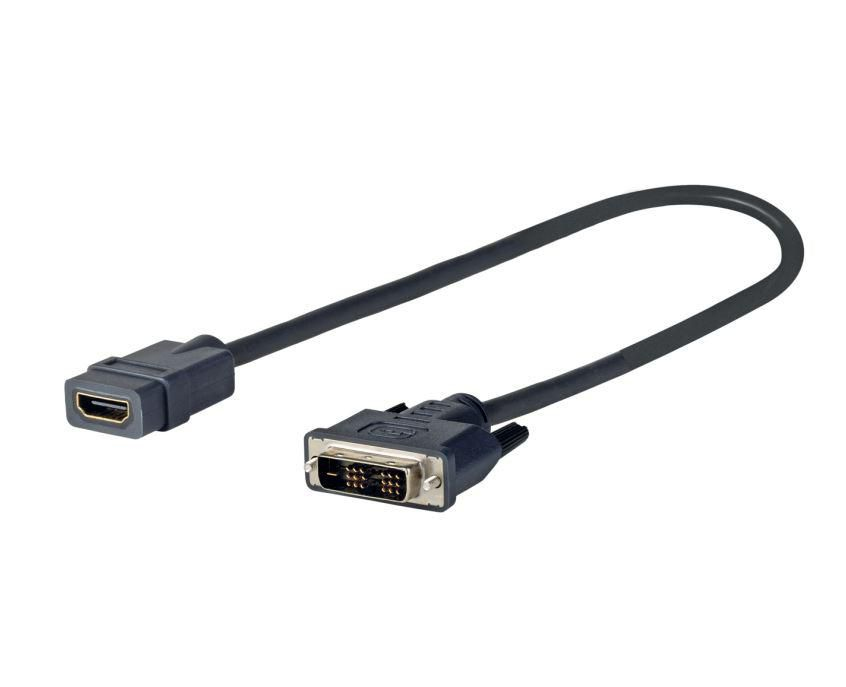

EU Product - PRO DVI -M - HDMI-F 0.2m
Introduction
DVI Male to HDMI Male, Adapter Cable. Resolutions up to 1920x1080p@60Hz. Ultra flexible cable.
Note:
PRODVIADAPHDMI, do actually support 4K.
The conditions for the application is:
1. it shall be 4K independent graphics card at the DVI source. Only some of 4K integrated graphics card can work for 4K, some can't.
2. DVI shall be 24+1 dual link, not 18+1.
Specifications
| Features | |
|---|---|
| Converter type | Passive video converter |
| Audio connector | No |
| HDMI version | 1.4 |
| Product colour | Black |
| Cable length | 0.2 m |
| Connector 1 | DVI-D |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| Cable material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 30 |
| 3D | Yes |
| Maximum resolution | 2560 x 1600 pixels |
| Supported graphics resolutions | 2560 x 1600 (WQXGA) |
| Supported video modes | 1080p |
| HDCP | Yes |
| Plug and Play | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dual Link DVI | Yes |
| Linux operating systems supported | Yes |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) supported | No |
| Cable colour | Black |
| Technical details | |
| Cable colour | Black |
| Weight & dimensions | |
| Cable diameter | 6 mm |
| Weight | 10 g |
| Package width | 188 mm |
| Package depth | 89 mm |
| Package height | 61 mm |
| Package weight | 54 g |
| Packaging data | |
| Package width | 188 mm |
| Package depth | 89 mm |
| Package height | 61 mm |
| Package weight | 54 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Supported resolutions | 1080P@60Hz |
| Cable colour | Black |
