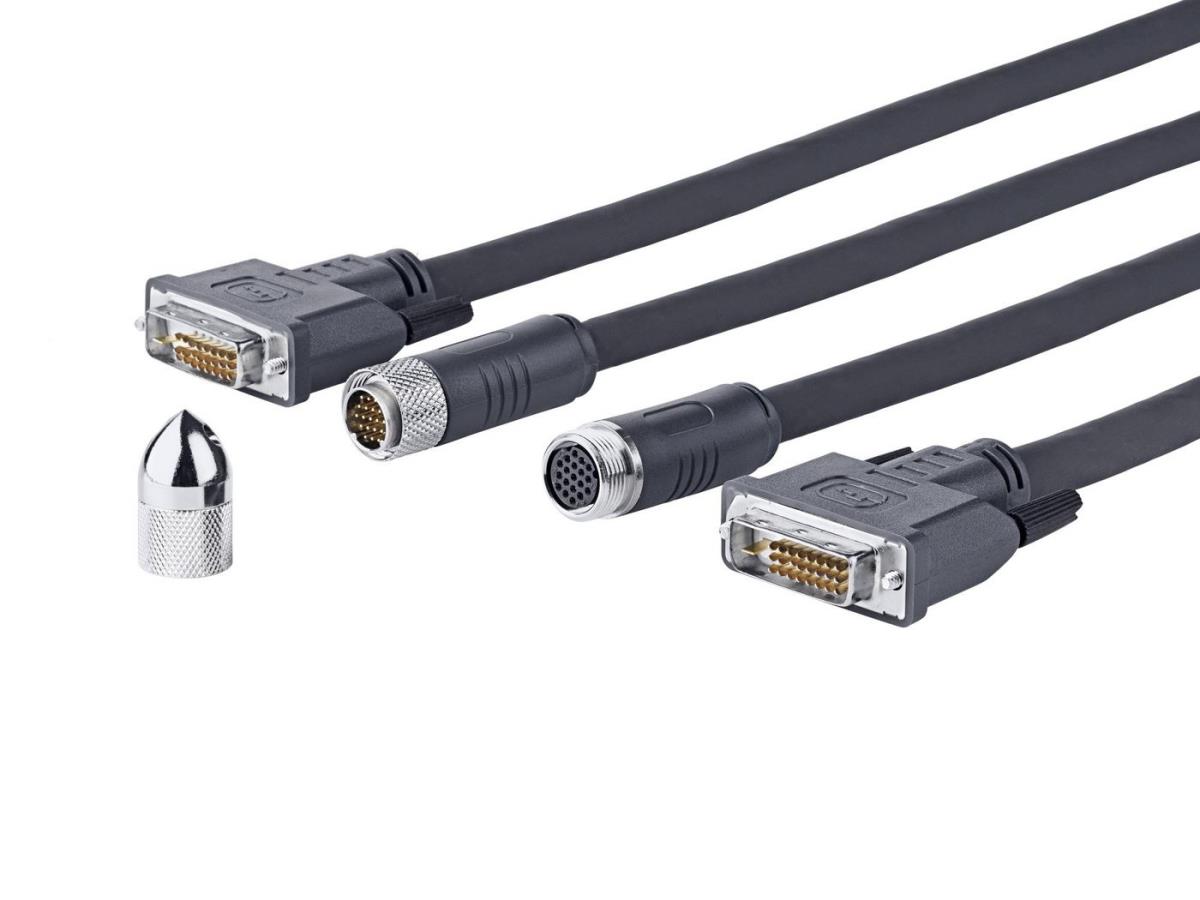

EU Product - PRO DVI-D CROSS WLL CLE
Introduction
Crosswall DVICable.
Supports high resolutions of up to full HD 1080p.
Triple shielded cable and extra shielding in the connector.
Pure copper conductor. High quality DVI connector, gold 15um min.
High flexibility, ensuring small bending radius.
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Cable length | 20 m |
| Connector 1 | DVI-D |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Magnetically shielded | Yes |
| AWG wire size | 26 |
| Dual Link DVI | No |
| Data transfer rate | 4.95 Gbit/s |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| HDCP | Yes |
| Plug and Play | Yes |
| Connector 1 pinout | 24+1 |
| Connector 2 pinout | 24+1 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Weight | 1.98 kg |
| Cable diameter | 9.5 mm |
| Package weight | 1.98 kg |
| Package width | 266 mm |
| Package depth | 250 mm |
| Package height | 103 mm |
| Packaging data | |
| Package weight | 1.98 kg |
| Package width | 266 mm |
| Package depth | 250 mm |
| Package height | 103 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
