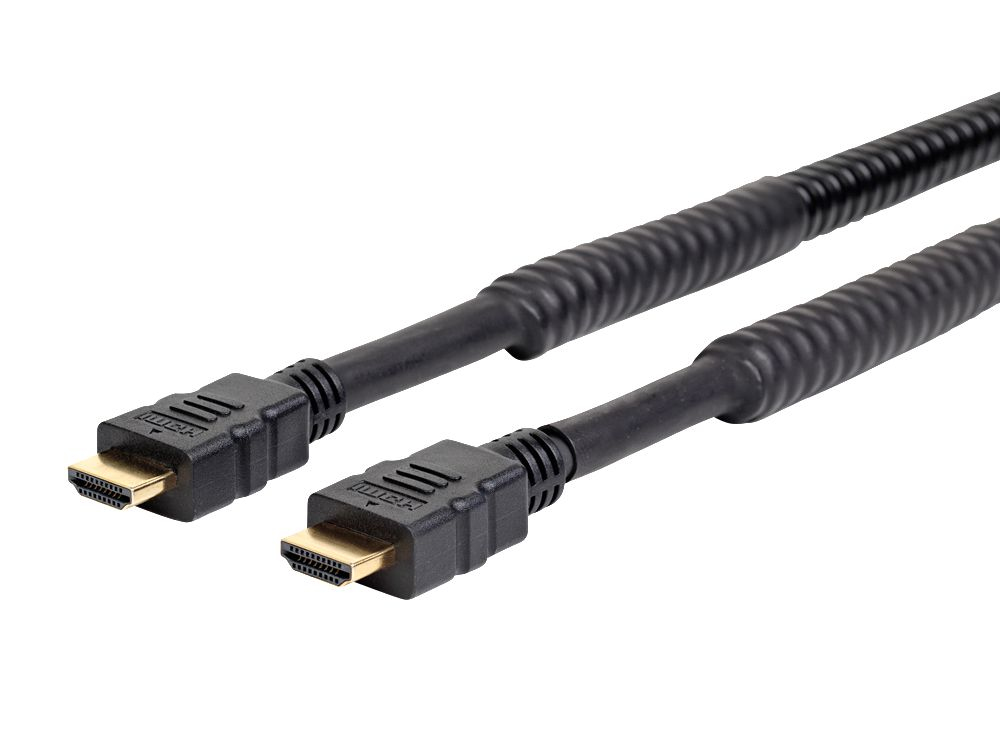

EU Product - PRO HDMI RMOURED CLE 5m
Introduction
High Performance Armoured HDMI Cables are designed specifically for rough environments. The external
armouring can withstand high pressure and protects the cable from damage. Furthermore, the
cables are humidity-proof, corrosion-proof, and perfect for outdoor installations and applications.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Dolby technologies | DTS-HD Master Audio |
| Colour depth | 16 bit |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 5 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| AWG wire size | 26 |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 2160p |
| HDCP | Yes |
| Plug and Play | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| HDCP version | 2.2 |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Weight | 920 g |
| Cable diameter | 8 mm |
| Package weight | 850 g |
| Package width | 267 mm |
| Package depth | 259 mm |
| Package height | 66 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package weight | 850 g |
| Package width | 267 mm |
| Package depth | 259 mm |
| Package height | 66 mm |
| Quantity per pack | 1 pc(s) |
