EU Product - PRO HDMI CLE MEL HED

Introduction

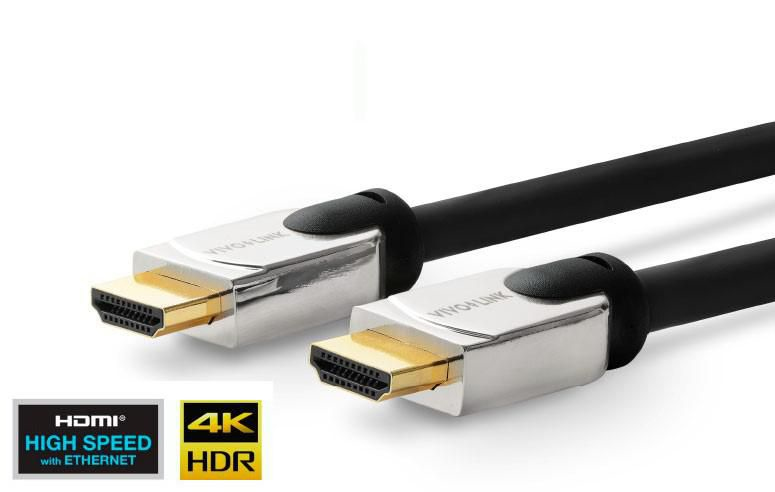

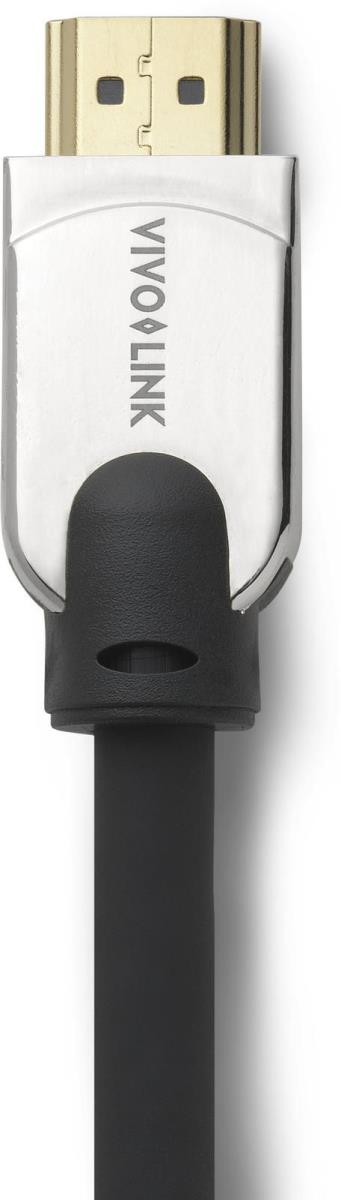

High Performance and High Speed HDMI 2.0 18Gbit Cable with Ethernet and Metal Housing.

Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC
Ultra flexible and with Lock Spike.


Note: This cable is with HDMI lock. This is to ensures a stable and secure connection between AV equipment (e.g. AV splitters, switches or other AV distribution equipment) in fixed installations. Please add the PROHDMIHDMFM2 cable when using this cable connection with a laptop or other portable devices. This cable protects the interface in your portable device so it will not get damaged when plugging in and out several times.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
Dolby technologies	DTS-HD Master Audio
Colour depth	16 bit
HDMI Ethernet channel	Yes
Audio Return Channel (ARC)	Yes
Product colour	Black
Cable length	10 m
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Cable material	Copper
AWG wire size	24
HDMI version	2.0
Data transfer rate	18 Gbit/s
3D	Yes
Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	4096 x 2160
Supported video modes	2160p
HDCP	Yes
Plug and Play	Yes
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Pull-off force	2 kg
Cable jacket material	Polyvinyl chloride (PVC)
HDCP version	2.2
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Weight & dimensions
Weight	1 kg
Cable diameter	7.7 mm
Package weight	1.03 kg
Package width	200 mm
Package depth	185 mm
Package height	77 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package weight	1.03 kg
Package width	200 mm
Package depth	185 mm
Package height	77 mm
Quantity per pack	1 pc(s)
