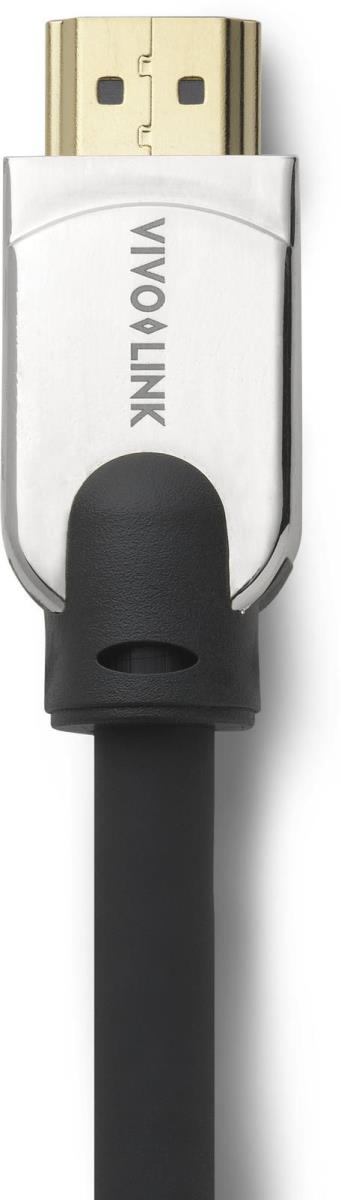

EU Product - PRO HDMI MLE - FEMLE HDMI
Introduction
High Performance and High Speed HDMI 2.0 18Gbit Cable with Ethernet and Metal Housing.
Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC
Ultra flexible.
Unique design features made for Professional AV environments.
USB cable for power injection (fiber cables).

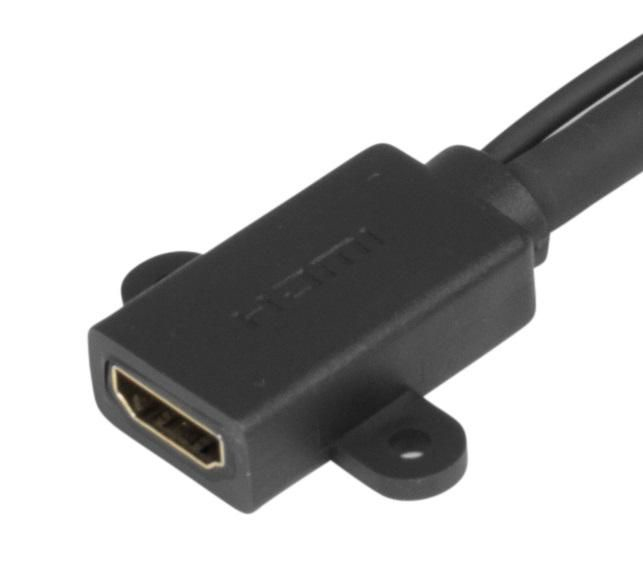

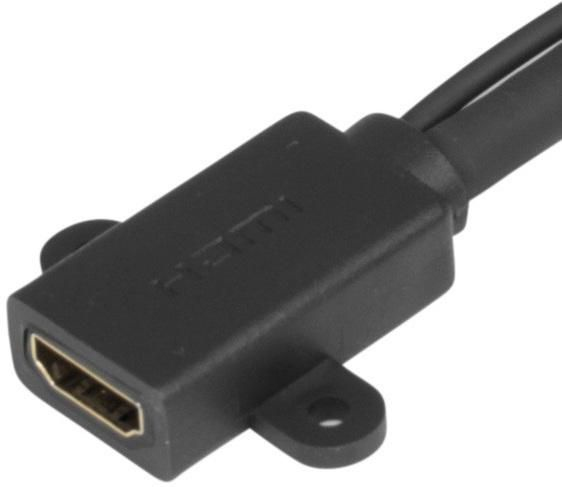

HDMI female end has ears for securing and mounting the cable e.g under a table.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Dolby technologies | DTS-HD Master Audio |
| Colour depth | 16 bit |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 2 m |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| Cable material | Copper |
| AWG wire size | 28 |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| HDCP | Yes |
| Plug and Play | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Cable jacket material | Polyvinyl chloride (PVC) |
| HDCP version | 2.2 |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Weight | 70 g |
| Cable diameter | 7.3 mm |
| Package weight | 170 g |
| Package width | 165 mm |
| Package depth | 160 mm |
| Package height | 45 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package weight | 170 g |
| Package width | 165 mm |
| Package depth | 160 mm |
| Package height | 45 mm |
| Quantity per pack | 1 pc(s) |
