EU Product - Pro VG + udio Cross Wll 15M
Introduction

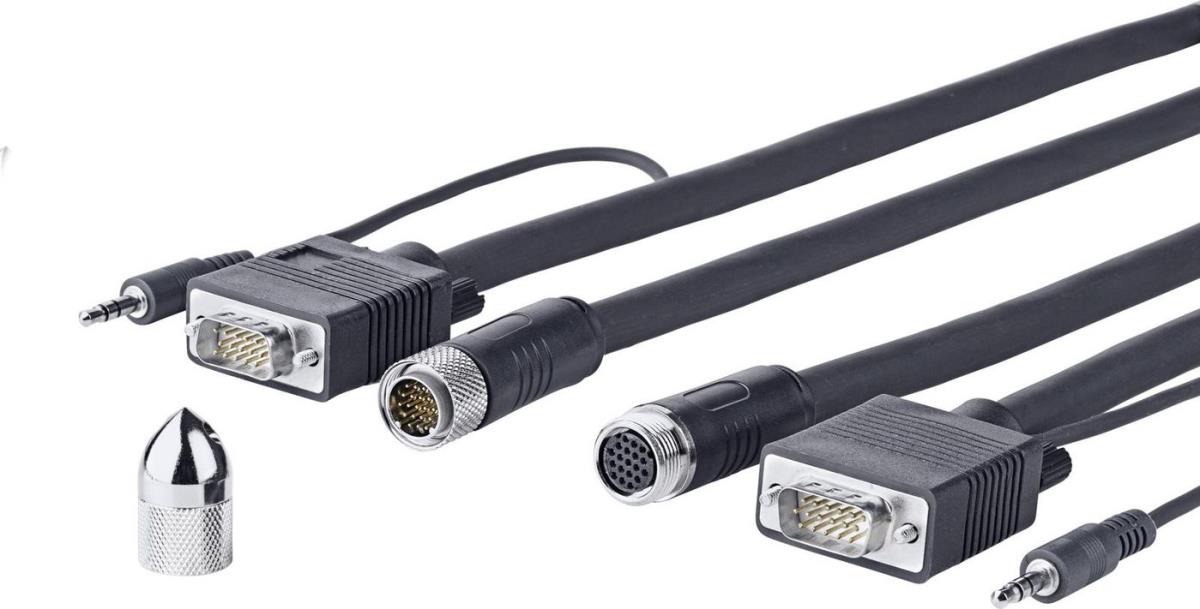

Crosswall VGA Cable with Audio. Required hole in wall: 16mm.
Triple shielded cable and extra shielding in the connector. Pure copper conductor. High quality VGA connector with 15pins pass-through.
High flexibility, ensuring small bending radius. Required hole in wall: 16mm. Distance to connector 95 cm. Resolutions up to 1920*1200.
Specifications
| Features | |
|---|---|
| Audio connector | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| Number of shielding layers | 3 |
| Cable length | 15 m |
| Connector 1 | VGA (D-Sub) + 3.5mm |
| Connector 2 | VGA (D-Sub) + 3.5mm |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| AWG wire size | 26 |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Plug and Play | Yes |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 9 mm |
| Weight | 1.4 kg |
| Package weight | 1.5 kg |
| Packaging data | |
| Package weight | 1.5 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
