12IN SATA POWER EXTENSION CABLE
Introduction
Extend a SATA Power Connection by up to 12in

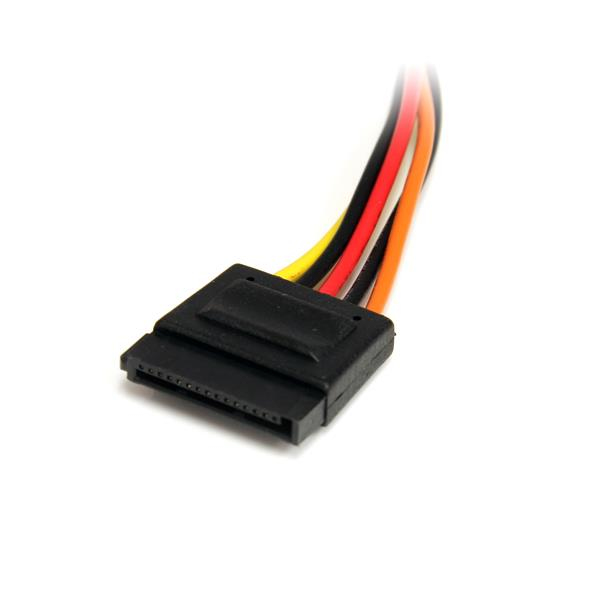

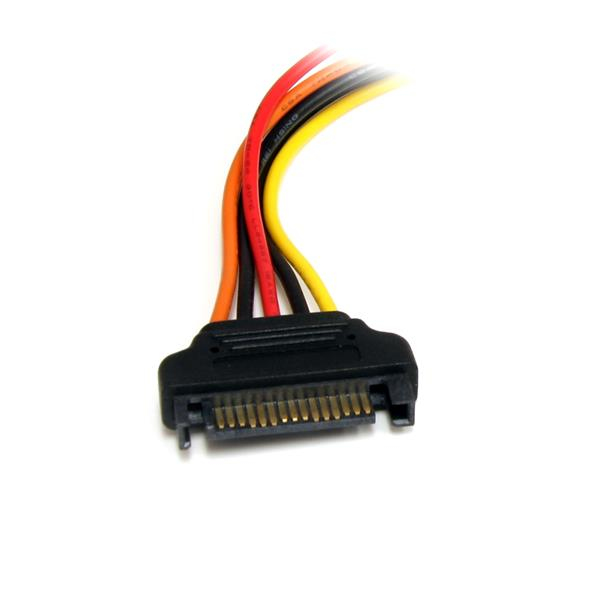

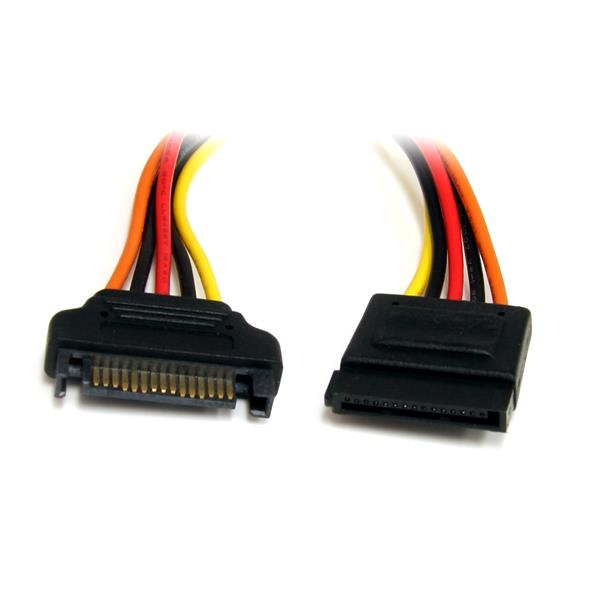

The SATAPOWEXT12 SATA Power Extension Cable (15-pin, 12-inch) enables you to extend the reach between internal SATA power and drive connections by up to 12 inches.
The extension cable helps to simplify drive installation by overcoming typical connection limitations and reduces the risk of damage to the drive or motherboard SATA connectors by eliminating the need to strain or stretch the cable in order to make the necessary connection.
This SATA Power Extension Cord is backed by StarTech.com’s lifetime warranty.
Specifications
| Features | |
|---|---|
| Connector 1 | SATA 15-pin |
| Connector 2 | SATA 15-pin |
| Cable length | 0.3048 m |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Multicolour |
| AWG wire size | 18 |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Certification | CE, REACH |
| Certificates | |
| Certification | CE, REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 23 g |
| Package width | 127 mm |
| Package depth | 135 mm |
| Package height | 9 mm |
| Package weight | 28 g |
| Packaging data | |
| Package width | 127 mm |
| Package depth | 135 mm |
| Package height | 9 mm |
| Package weight | 28 g |
| Other features | |
| Products per master (outer) case | 200 pc(s) |
| AWG wire size | 18 |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 338 mm |
| Master (outer) case length | 488 mm |
| Master (outer) case height | 210 mm |
| Harmonized System (HS) code | 84733080 |
