30M TRUE 4K HDMI 2.0 AOC
Introduction

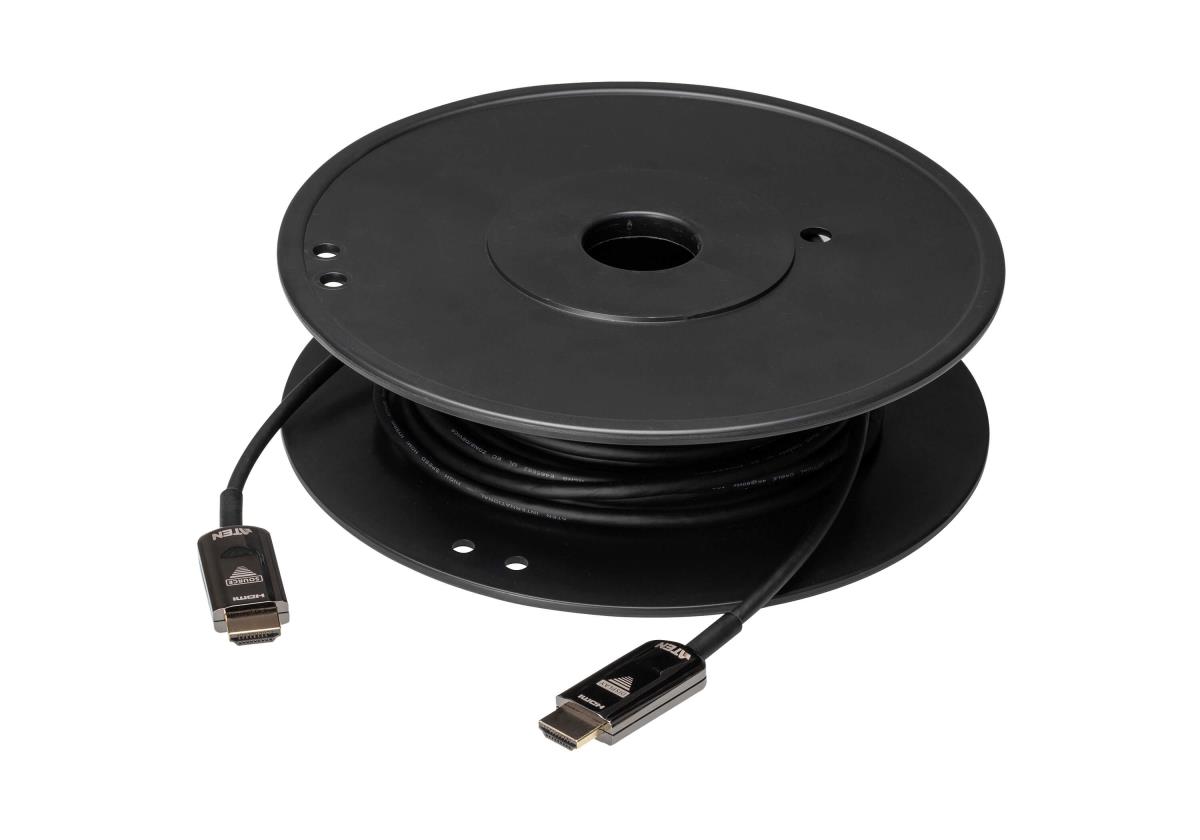

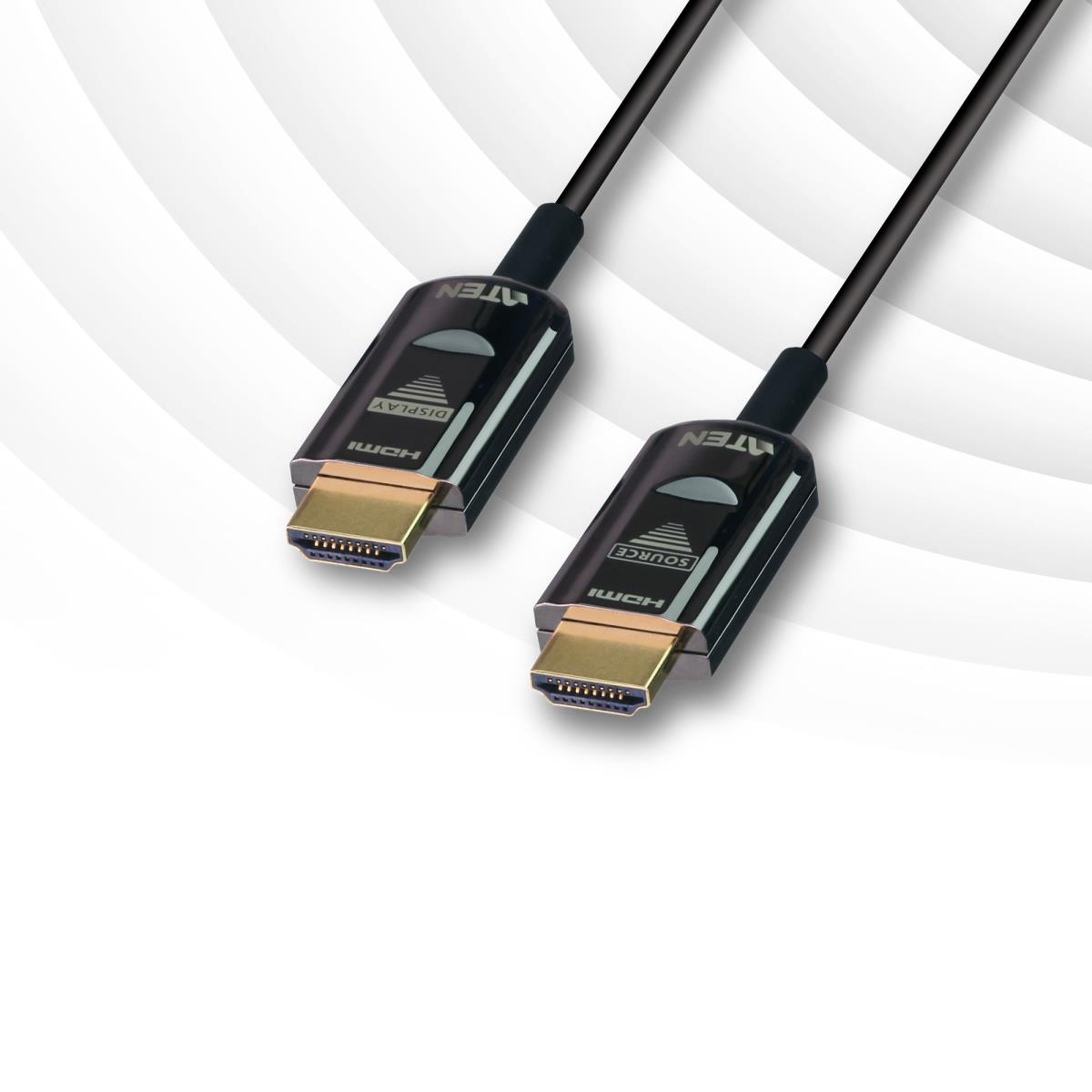

ATEN VE781030 True 4K HDMI Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 30m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781030 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Audio Return Channel (ARC) | Yes |
| Bandwidth | 600 MHz |
| Product colour | Black |
| Cable length | 30 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| HDCP | Yes |
| Plug and Play | Yes |
| Certification | CE / FCC / RoHS / REACH / UL VW-1 |
| High Dynamic Range (HDR) supported | Yes |
| Quantity per pack | 1 pc(s) |
| Cable jacket material | Polyvinyl chloride (PVC) |
| HDCP version | 2.2 |
| Supported digital audio channels (uncompressed) | 8 |
| Colour sampling | 4:4:4, 4:2:0, 4:2:2 |
| Extended display identification data (EDID) | Yes |
| Bending radius (min) | 2 cm |
| Connector material | Zinc alloy |
| Cable type | Round cable |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Weight | 900 g |
| Cable diameter | 4.5 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
