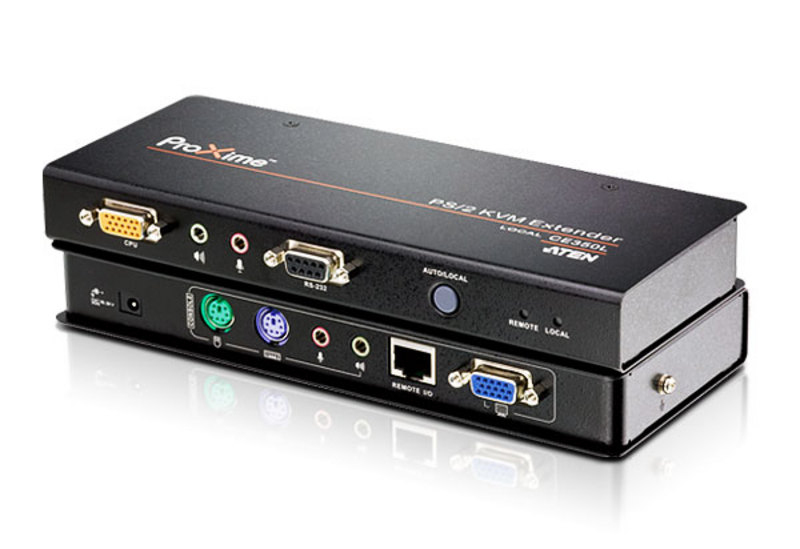

Proxime CE350 - KVM / audio / serial extender - PS/2 - up to 150 m
Introduction
Features

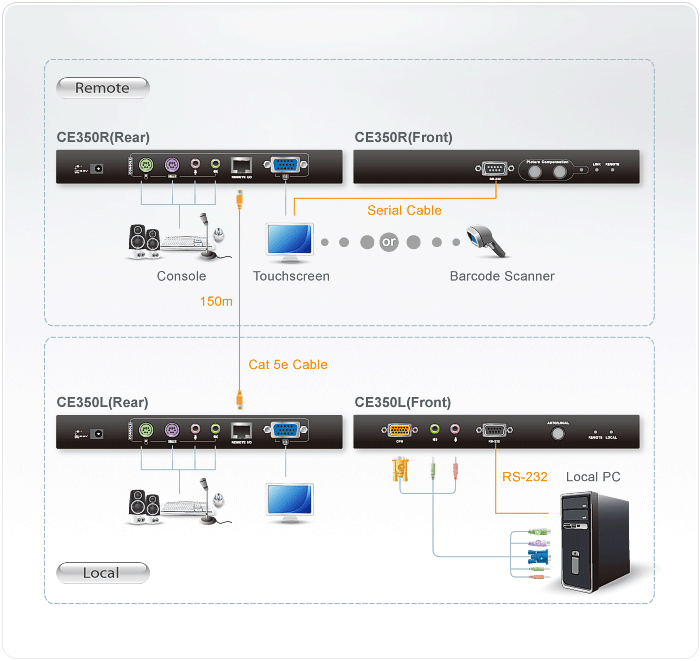

- Local and Remote Units connect at distances up to 150 m using Cat 5e cable
- Adjustable gain control - automatically and manually adjust signal strength to compensate for distance
- Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC) and storage of settings
- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
- Audio Enabled - supports stereo speakers and microphone
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Superior video quality - 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(150 m)
- Superior Audio - no loss in audio quality at 150 m
- Supports Wide Screen formats
- Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
- Hot pluggable
- Rack mountable
- Easy to install - no software required - connecting cables to the devices is all it takes
Package Contents
- 1x CE350L PS/2 KVM Extender (Local Unit)
- 1x CE350R PS/2 KVM Extender (Remote Unit)
- 1x 2L-5302P PS/2 KVM Cable Set (1.8 m)
- 2x 0AD6-1605-24EG Power Adapters
- 1x Mounting Kit
- 1x User Instructions
Specifications
| Technical details | |
|---|---|
| Product colour | Black |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| RS-232 ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Colour | |
| Product colour | Black |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Cables included | PS/2 |
