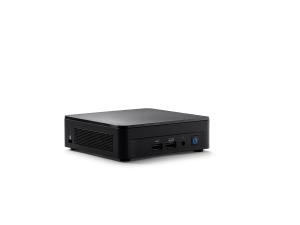

INTEL RNUC12WSKV50002 INTEL NUC 12 Pro Kit NUC12WSKv5 - UCFF - Mini PC barebone - DDR4-SDRAM - M.2 - Wi-Fi 6E (802.11ax) - 120 W

*Image accuracy is not guaranteed.Please do not rely on the image for your purchase..** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

RNUC12WSKV50002 INTEL NUC 12 Pro Kit NUC12WSKv5 - UCFF - Mini PC barebone - DDR4-SDRAM - M.2 - Wi-Fi 6E (802.11ax) - 120 W

Part No:RNUC12WSKV50002

Stock:3 In Stock

EAN Code:5032037247665

£463.56 Excl. VAT

£556.27 Incl. VAT

Delivery7-12 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

NUC 12 Pro Kit NUC12WSKv5 - UCFF - Mini PC barebone - DDR4-SDRAM - M.2 - Wi-Fi 6E (802.11ax) - 120 W

Introduction

Intel Trusted Execution Technology
Intel Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel Virtualization Technology for Directed I/O (VT-d)
Intel Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel Virtualization Technology (VT-x)
Intel Virtualization Technology (VT-x) allows one hardware platform to function as multiple virtual platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel AES New Instructions
Intel AES New Instructions (Intel AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

TPM Version
TPM (Trusted Platform Module) is a component that provides hardware level security upon system boot-up via stored security keys, passwords, encryption and hash functions.

Intel ME Firmware Version
Intel Management Engine Firmware (Intel ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.

Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel Turbo Boost Technology and, if present, Intel Turbo Boost Max Technology 3.0 and Intel Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.

Intel vPro Platform Eligibility
The Intel vPro platform is a set of hardware and technologies used to build business computing endpoints with premium performance, built-in security, modern manageability and platform stability.


Intel HD Audio Technology
Intel High Definition Audio (Intel HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel HD Audio has the technology needed to support the latest and greatest audio content.

Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

Intel Optane Memory Supported
Intel Optane memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel Optane memory requires specific hardware and software configuration.

TPM
Trusted Platform Module (TPM) is a component on the desktop board that is specifically designed to enhance platform security above-and-beyond the capabilities of today's software by providing a protected space for key operations and other security critical tasks. Using both hardware and software, the TPM protects encryption and signature keys at their most vulnerable stages - operations when the keys are being used unencrypted in plain-text form.

Specifications

Motherboard
Motherboard form factorUCFF
Number of processors supported1
Processor
Thermal Design Power (TDP)35 W
Built-in processorYes
Processor modeli5-1250P
Processor boost frequency4.4 GHz
Processor threads16
Processor cores12
Processor familyIntel Core i5
Number of processors supported1
Processor manufacturerIntel
CPU configuration (max)1
Processor cache12 MB
Processor generation12th gen Intel Core i5
Memory
Memory voltage1.2 V
Memory slots typeSO-DIMM
Number of memory slots2
Memory channelsDual-channel
ECCNo
Supported memory typesDDR4-SDRAM
Supported memory clock speeds3200 MHz
Maximum internal memory64 GB
Number of DIMM slots2
Video
On-board graphics cardNo
Graphics card familyIntel
Storage
Supported storage drive typesSSD
Storage drive sizes supportedM.2
Storage drive interfaceM.2
Number of storage drives supported2
Card reader integratedNo
SSD form factorM.2
NVMeYes
Graphics
Maximum resolution7680 x 4320 pixels
Number of displays supported4
On-board graphics cardNo
Graphics card familyIntel
On-board graphics card modelIntel Iris Xe Graphics
Discrete graphics card modelNot available
Audio
Intel High Definition Audio (Intel HD Audio)Yes
Audio output channels7.1 channels
Built-in speaker(s)No
Network
Wi-Fi standardsWi-Fi 6E (802.11ax)
Bluetooth version5.3
BluetoothYes
Ethernet LANYes
Wi-FiYes
LAN controllerIntel I225-LM
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
Ports & interfaces
Serial port via internal headerNo
Combo headphone/mic portYes
DC-in jackYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI version2.0b
DisplayPorts quantity1
USB 2.0 ports quantity1
HDMI ports quantity2
Ethernet LAN (RJ-45) ports1
M.2 card slot (wireless)2230 (E-key) (E)
USB ports quantity4
M.2 card slot (storage)2280 NVMe (M); 2242 SATA (B)
Thunderbolt 4 ports quantity2
Expansion slots
PCI Express slots version4.0
Design
Motherboard form factorUCFF
Product typeMini PC barebone
Cable lock slot typeKensington
Cable lock slotYes
ARK ID121630
On/off switchYes
LED indicatorsYes
Cooling typeActive
Product colourBlack
Chassis typeUCFF
StatusLaunched
Performance
Motherboard form factorUCFF
Maximum resolution7680 x 4320 pixels
Windows operating systems supportedWindows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64
Linux operating systems supportedYes
BIOS typeEEPROM
Number of displays supported4
Trusted Platform Module (TPM) version2.0
Trusted Platform Module (TPM)Yes
Operating system installedNo
Number of processors supported1
Compatible operating systemsWindows 10 IoT Enterprise*|Linux*
Audio output channels7.1 channels
Commodity Classification Automated Tracking System (CCATS)G157815L2
Harmonized System (HS) code8471500150
Export Control Classification Number (ECCN)5A992C
Software
Operating system installedNo
Compatible operating systemsWindows 10 IoT Enterprise*|Linux*
Processor special features
Intel ME Firmware Version16
Intel Stable Image Platform Program (SIPP)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Trusted Execution TechnologyYes
Intel Flex Memory AccessYes
Execute Disable BitYes
Intel AES New Instructions (Intel AES-NI)Yes
Intel Optane Memory ReadyNo
Intel High Definition Audio (Intel HD Audio)Yes
Embedded options availableNo
Intel Virtualization Technology (VT-x)Yes
Intel vPro Platform EligibilityYes
Colour
Product colourBlack
Power
DC input voltage12 - 20 V
Power supply typeExternal AC adapter
Power supply120 W
Technical details
BIOS typeEEPROM
Intel AES New Instructions (Intel AES-NI)Yes
Cable lock slot typeKensington
Cable lock slotYes
Intel High Definition Audio (Intel HD Audio)Yes
Embedded options availableNo
Trusted Platform Module (TPM) version2.0
Trusted Platform Module (TPM)Yes
Processor cores12
Cooling typeActive
Chassis typeUCFF
Sustainability certificatesChina Energy Label (CEL), ENERGY STAR, ErP, REACH, RoHS
ARK ID121630
Packaging data
Power cord includedYes
Indication
LED indicatorsYes
Management features
On/off switchYes
Features
Number of displays supported4
Logistics data
Harmonized System (HS) code8471500150
Operational conditions
Storage temperature (T-T)-20 - 60 C
Operating temperature (T-T)0 - 40 C
Weight & dimensions
Width117 mm
Depth112 mm
Height37 mm
Packaging content
Power cord includedYes
Other features
DC input voltage12 - 20 V
Embedded options availableNo
Chassis typeUCFF
Additional headersFront_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Launch dateQ3'22
