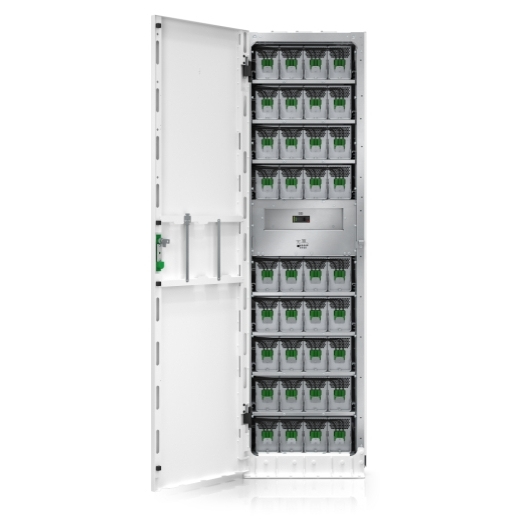

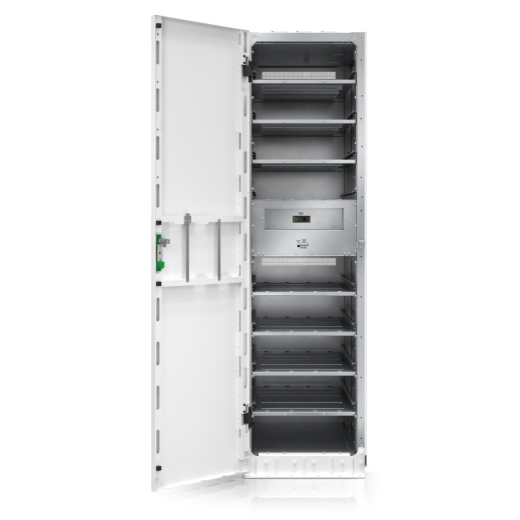

GALAXY VS MODULAR BATTERY

Introduction

Modular battery cabinet for extended runtime for UPSs with internal batteries. The cabinet is supplied without batteries, so modular battery strings must be purchased separately. Up to 9 battery strings can be installed and monitored in the cabinet.

Specifications

Design
Form factor	Tower
Product colour	White
Battery
Battery technology	Sealed Lead Acid (VRLA)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3048 m
Certificates
Certification	FCC part 15 class A
Weight & dimensions
Width	550 mm
Depth	847 mm
Height	1970 mm
Weight	410 kg
Package width	755 mm
Package depth	1010 mm
Package height	2082 mm
Package weight	206 kg
Packaging content
Manual	Yes
Packaging data
Package width	755 mm
Package depth	1010 mm
Package height	2082 mm
Package weight	206 kg
