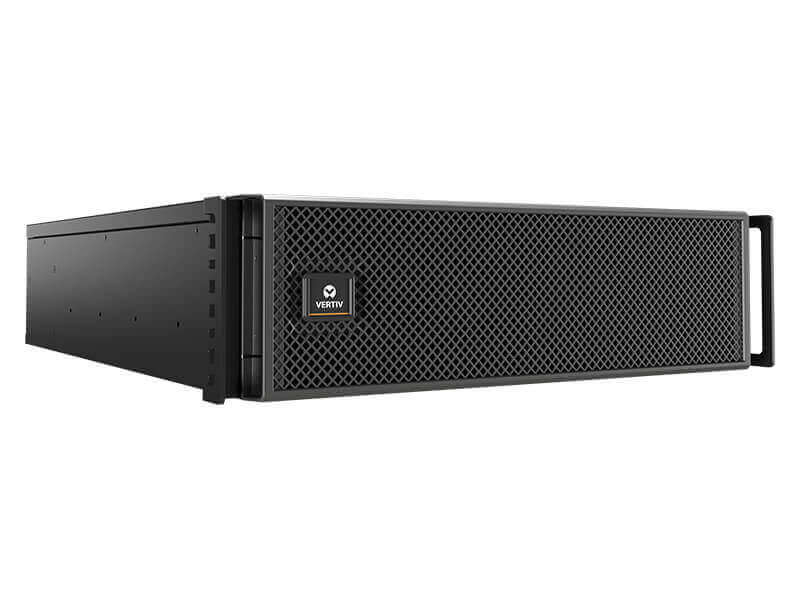

Liebert GXT5 external battery cabinet for 5kVA - 10kVA product variants
Introduction
The Vertiv Liebert GXT5-EBC192VRT3U is an external hot-swappable, lead-acid UPS battery cabinet designed for use with these UPS models: Liebert GXT5-5000IRT5UXLE , Liebert GXT5-6000IRT5UXLE, Liebert GXT5-8000IRT5UXLE, and Liebert GXT5-10KIRT5UXLE. Its new auto detection feature makes installation easy and fast ensuring the UPS configuration is complete and accurate. Users can connect to up to 10 external battery cabinets to a single UPS for extended runtime
Specifications
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 16 |
| Battery capacity | 9 Ah |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 430 mm |
| Depth | 581 mm |
| Height | 173 mm |
| Weight | 65 kg |
| Package width | 670 mm |
| Package depth | 840 mm |
| Package height | 465 mm |
| Packaging data | |
| Package width | 670 mm |
| Package depth | 840 mm |
| Package height | 465 mm |
| Certificates | |
| Safety | IEC62040-1:2008 |
| Safety regulation & standards | |
| Safety | IEC62040-1:2008 |
