SRT192BP
Introduction

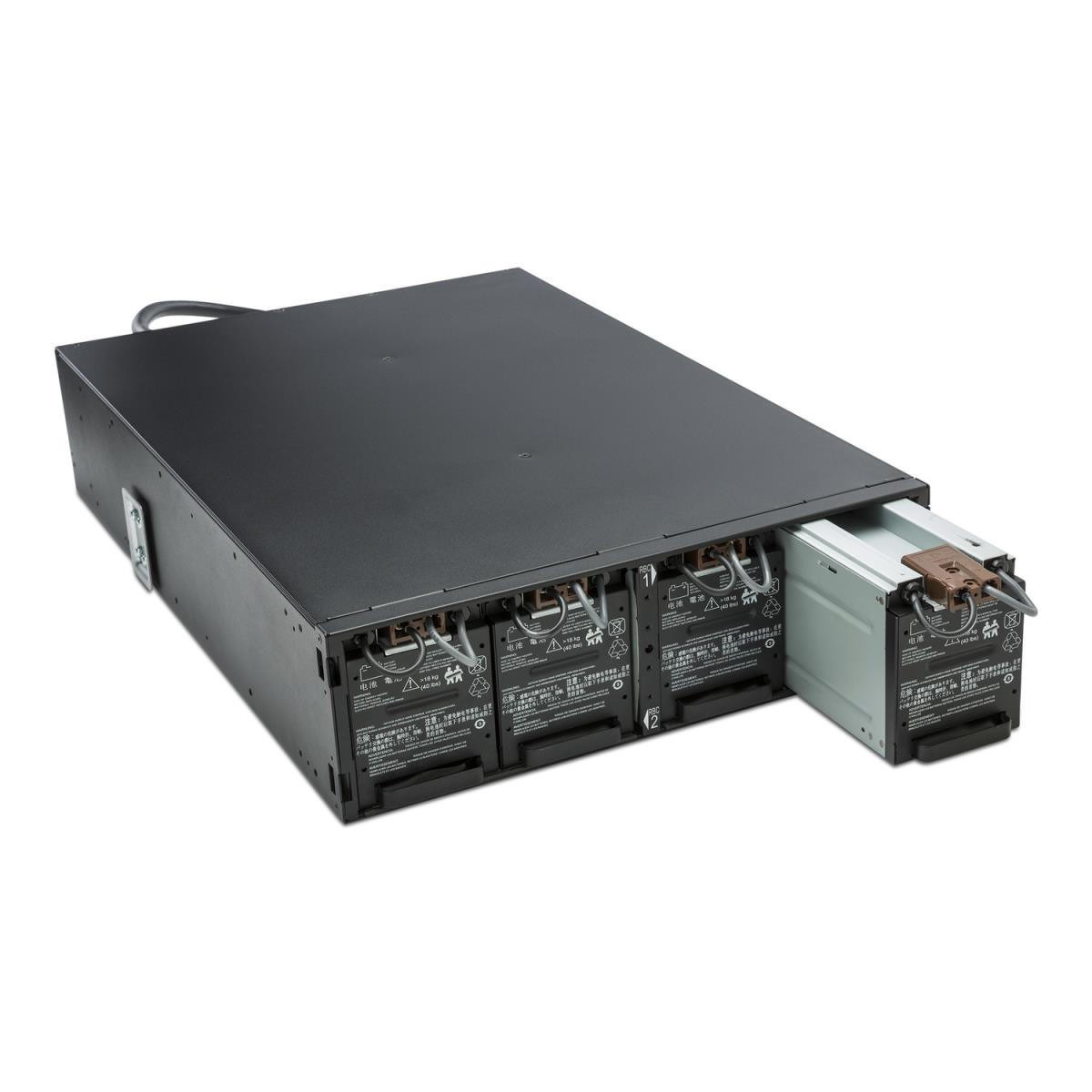

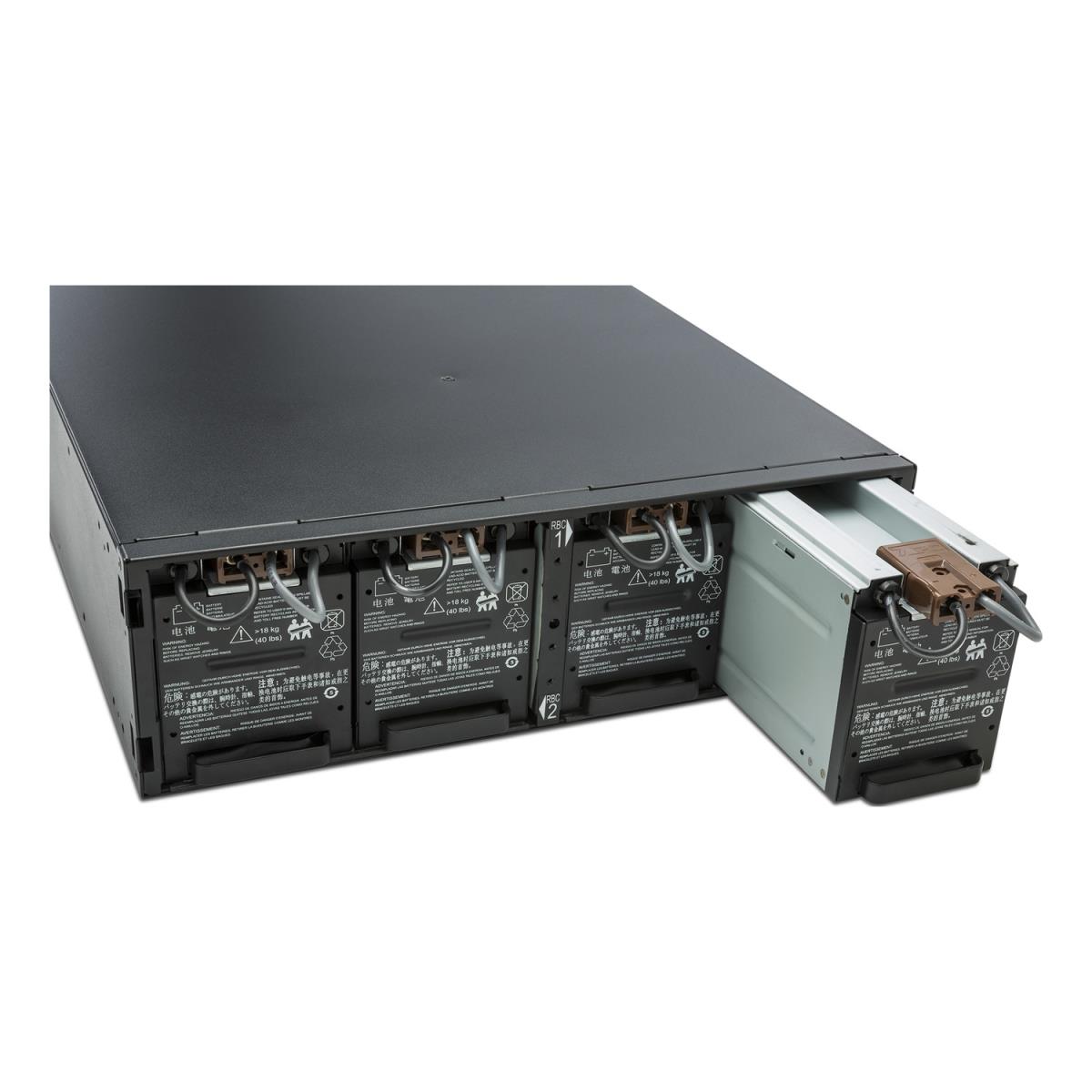

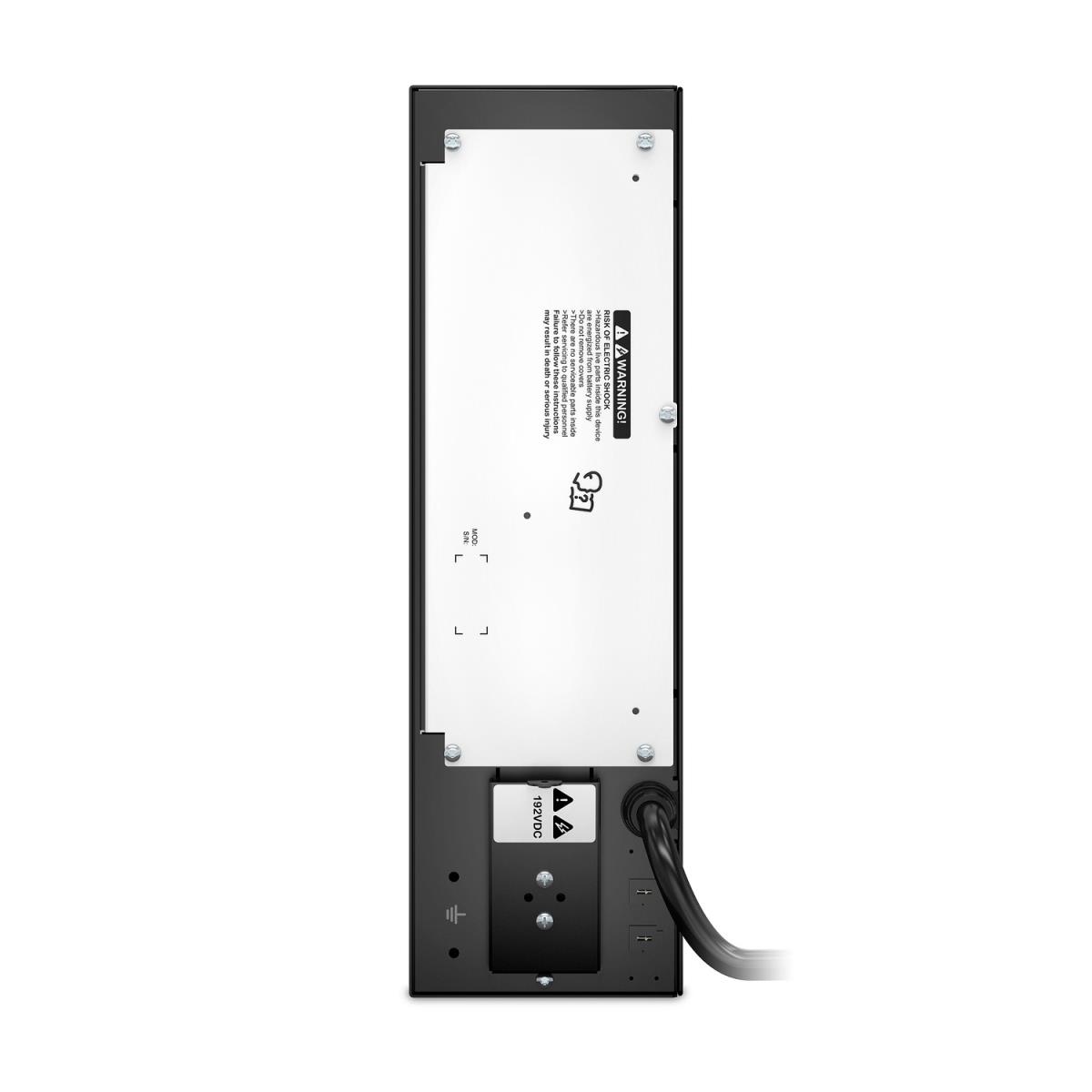

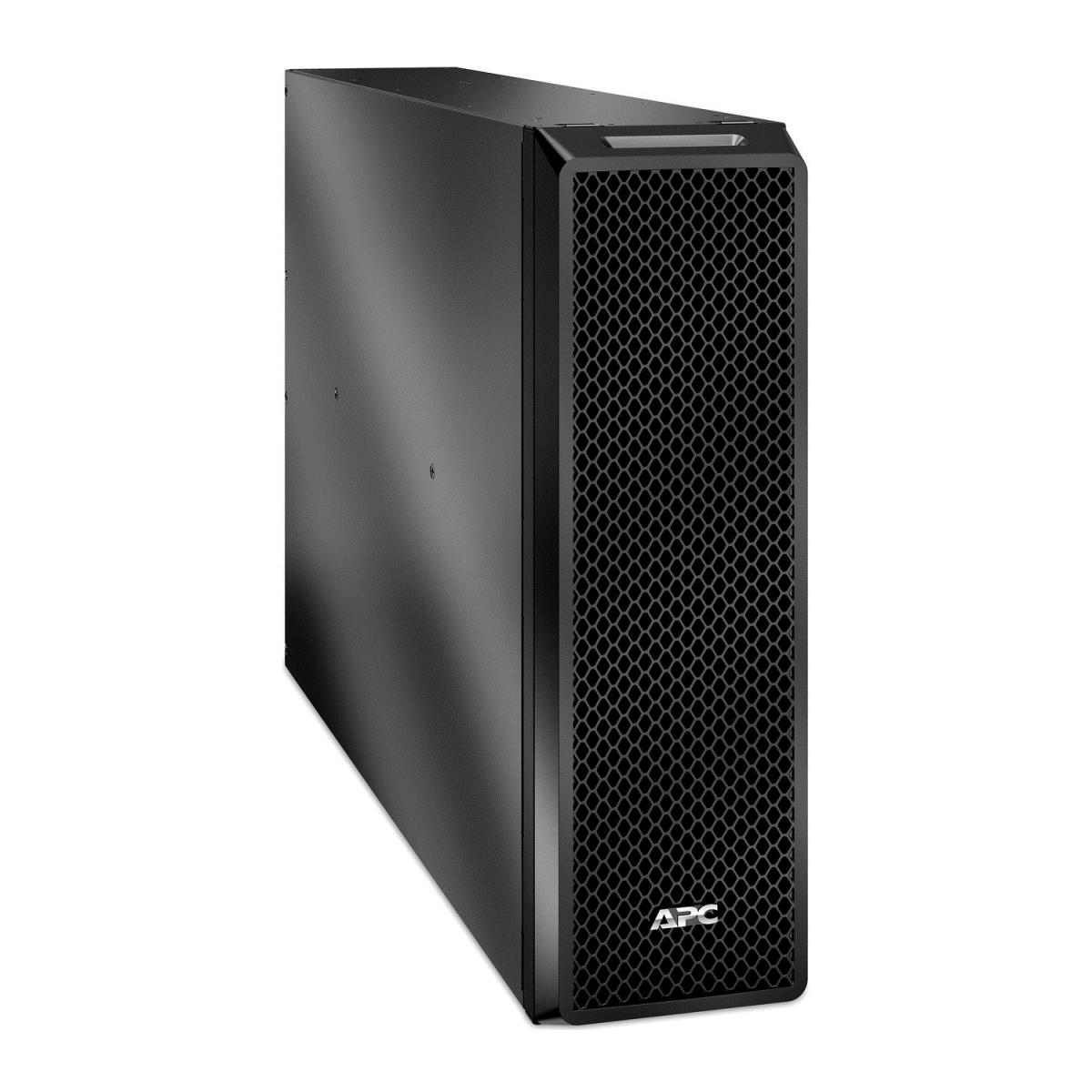

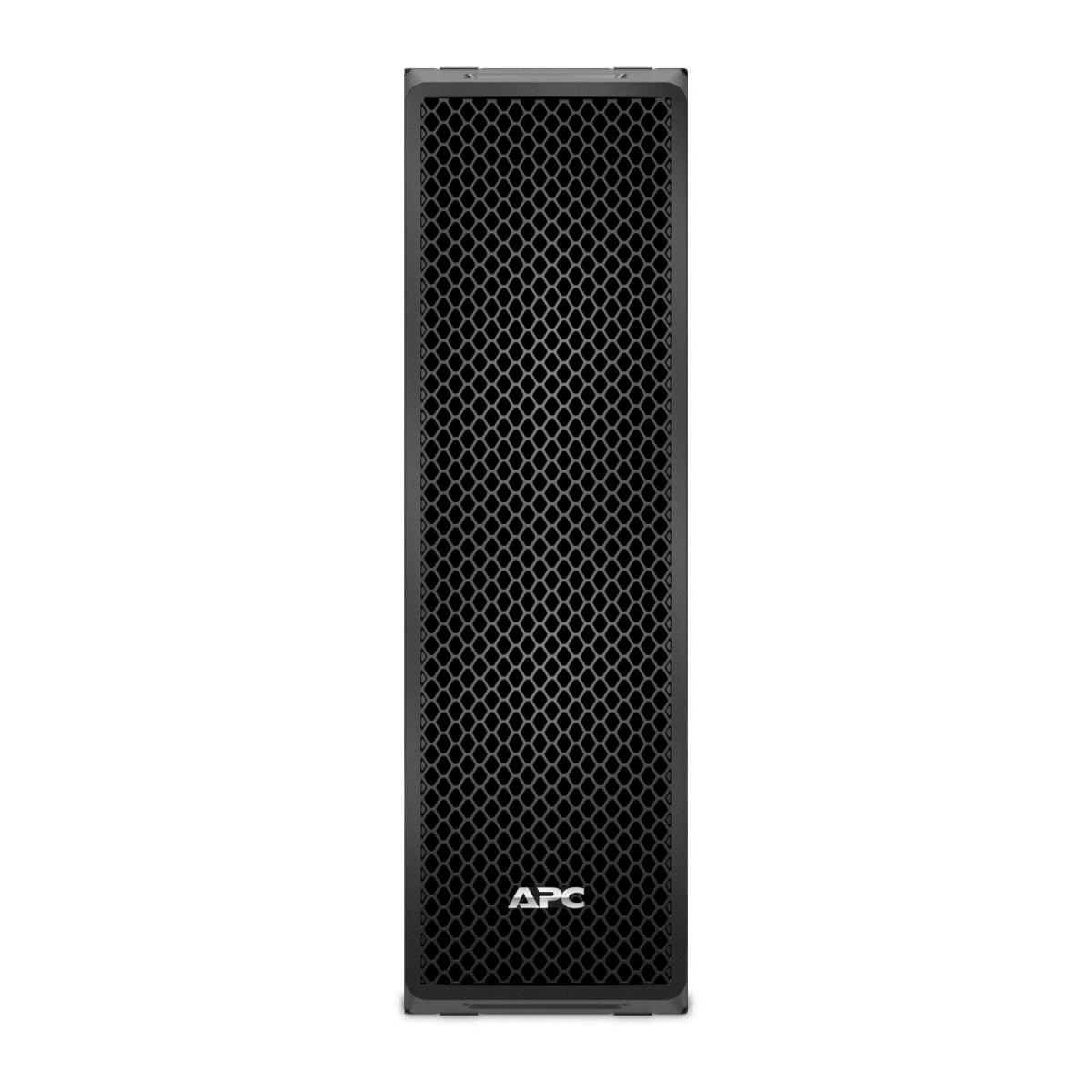

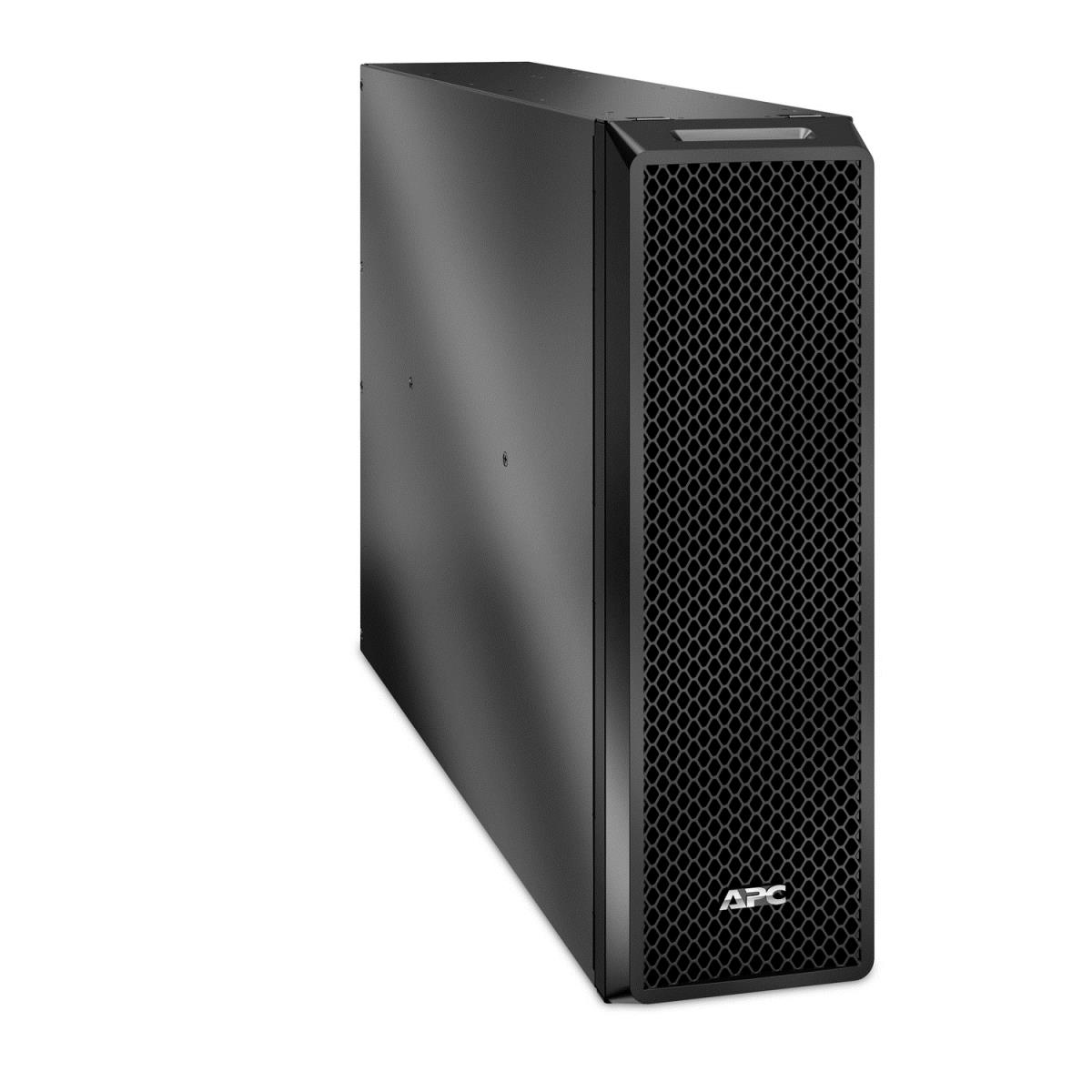

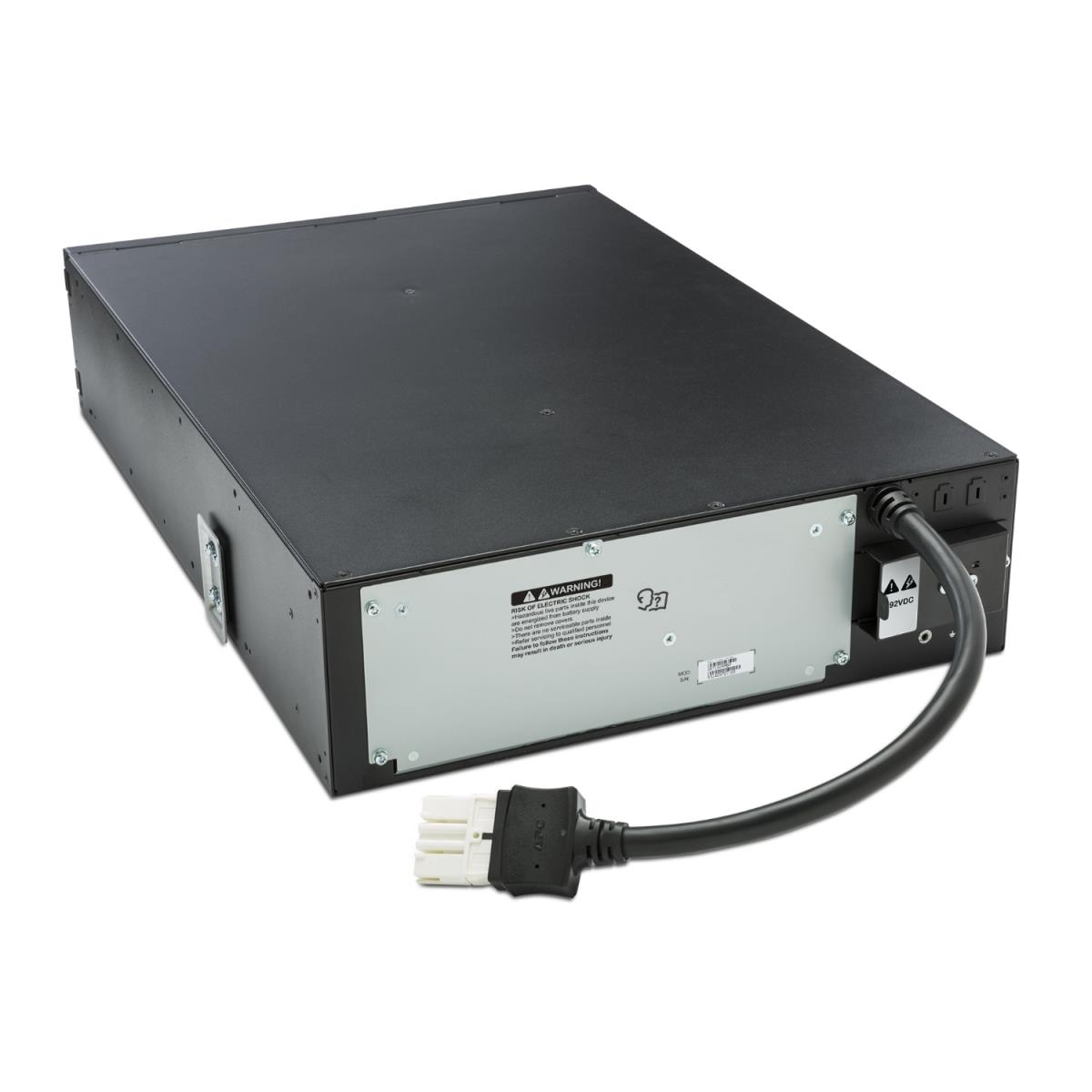

This APC Smart-UPS battery pack connected with SRT On-Line UPS, provides extended runtime to SRT mission critical applications. This 192V SRT extendable runtime battery pack is compatible with 5kVA/6kVA SRT Smart-UPS extended runtime models. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. It is a lead-acid battery with a 2-year warranty. Its dimensions are 683mm (depth) x 432mm (height) x 130mm (width) and weighs 91.0kg. Ideal for Smart-UPS on-line mission critical applications.
Specifications
| Design | |
|---|---|
| Form factor | Rackmount |
| Rack mounting | Yes |
| Product colour | Black |
| Rack capacity | 3U |
| Battery | |
| Battery technology | Lead acid |
| Battery voltage | 192 V |
| Battery replacement accessibility | End-user |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 900 m |
| Non-operating altitude | 0 - 4500 m |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 682.7 mm |
| Height | 432 mm |
| Weight | 91 kg |
| Package width | 600 mm |
| Package depth | 1000 mm |
| Package height | 420 mm |
| Package weight | 101.5 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Packaging data | |
| Package width | 600 mm |
| Package depth | 1000 mm |
| Package height | 420 mm |
| Package weight | 101.5 kg |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 749.39 |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Logistics data | |
| Country of origin | Vietnam |
| Customs product code (TARIC) | 8507208090 |
| Total carbon footprint (kg of CO2e) | 749.39 |
