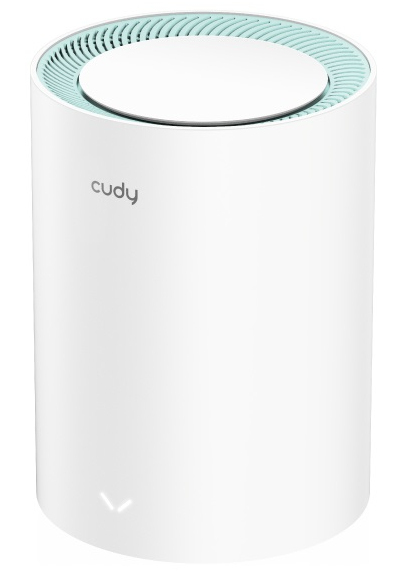

EU Product - AC1200 Wi-Fi Mesh Solution M1300 1-Pack - Router - WLAN
Introduction
Fast and Reliable AC1200 Mesh Wi-Fi
Enjoy speeds up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, ideal for streaming, gaming, and browsing. Dual-band connectivity ensures a stable and reliable connection for all your devices.
Always Connected to the Best Signal
Move freely throughout your home. Cudy seamless roaming auto-switches your device to the strongest Wi-Fi signal in milliseconds – ensuring buffer-free streaming, smooth calls, and lagless gaming everywhere.
Wired Power Meets Whole-Home Performance
Experience low-latency gameplay, smooth 4K streaming, and reliable data transfers. With up to 1000 Mbps per port, M1300 delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.
Parental Controls
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.
Specifications
| Design | |
|---|---|
| Product colour | White |
| LED indicators | System, Status |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Reset button | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certification | FCC, CE |
| Antenna direction type | Omni-directional |
| Number of devices supported | 100 |
| Maximum coverage | 70 m² |
| Product type | Mesh system |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms | WPA, WPA2, WPA3 |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Static IP | Yes |
| Dynamic IP | Yes |
| Guest access | Yes |
| VPN support | PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| WLAN data transfer rate (max) | 1167 Mbit/s |
| Features | |
| DHCP client | Yes |
| DHCP server | Yes |
| Processor cores | 2 |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI Firewall, DoS Protection, Block PING |
| BeamForming | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Firmware upgradeable via | Network, USB |
| Universal Plug and Play (UPnP) | Yes |
| Built-in processor | Yes |
| Internal memory | 16 MB |
| Flash memory | 128 MB |
| MIMO | Yes |
| Processor frequency | 0.8 GHz |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Certificates | |
| Certification | FCC, CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 110 mm |
| Depth | 110 mm |
| Height | 154.5 mm |
| Weight | 298 g |
| Package width | 145 mm |
| Package depth | 130 mm |
| Package height | 265 mm |
| Package weight | 675.6 g |
| Packaging content | |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 1 pc(s) |
| Quick installation guide | Yes |
| Number of units included | 1 pc(s) |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 130 mm |
| Package height | 265 mm |
| Package weight | 675.6 g |
