NETWORK CABINET WALL MOUNT 9U-
Introduction

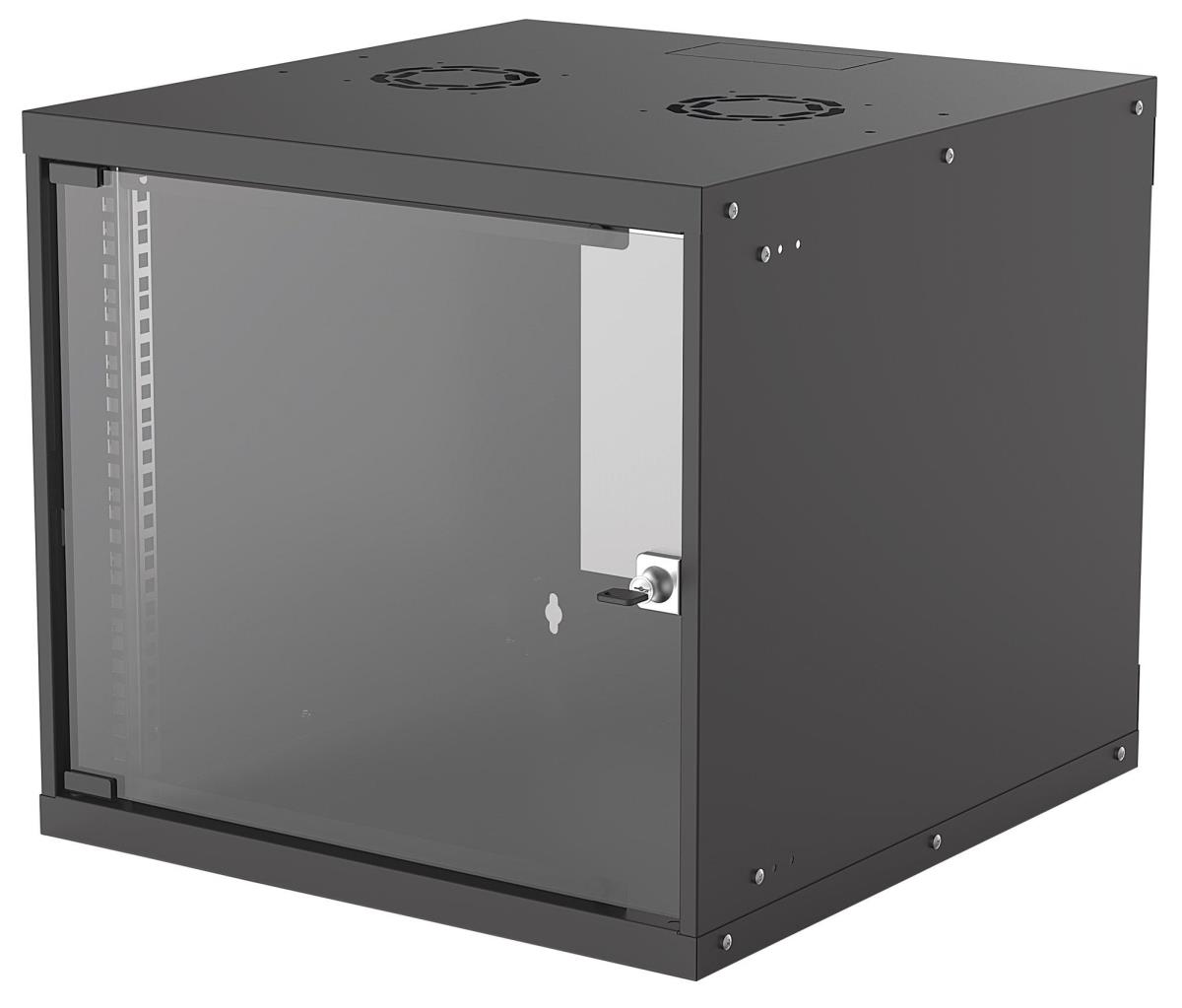

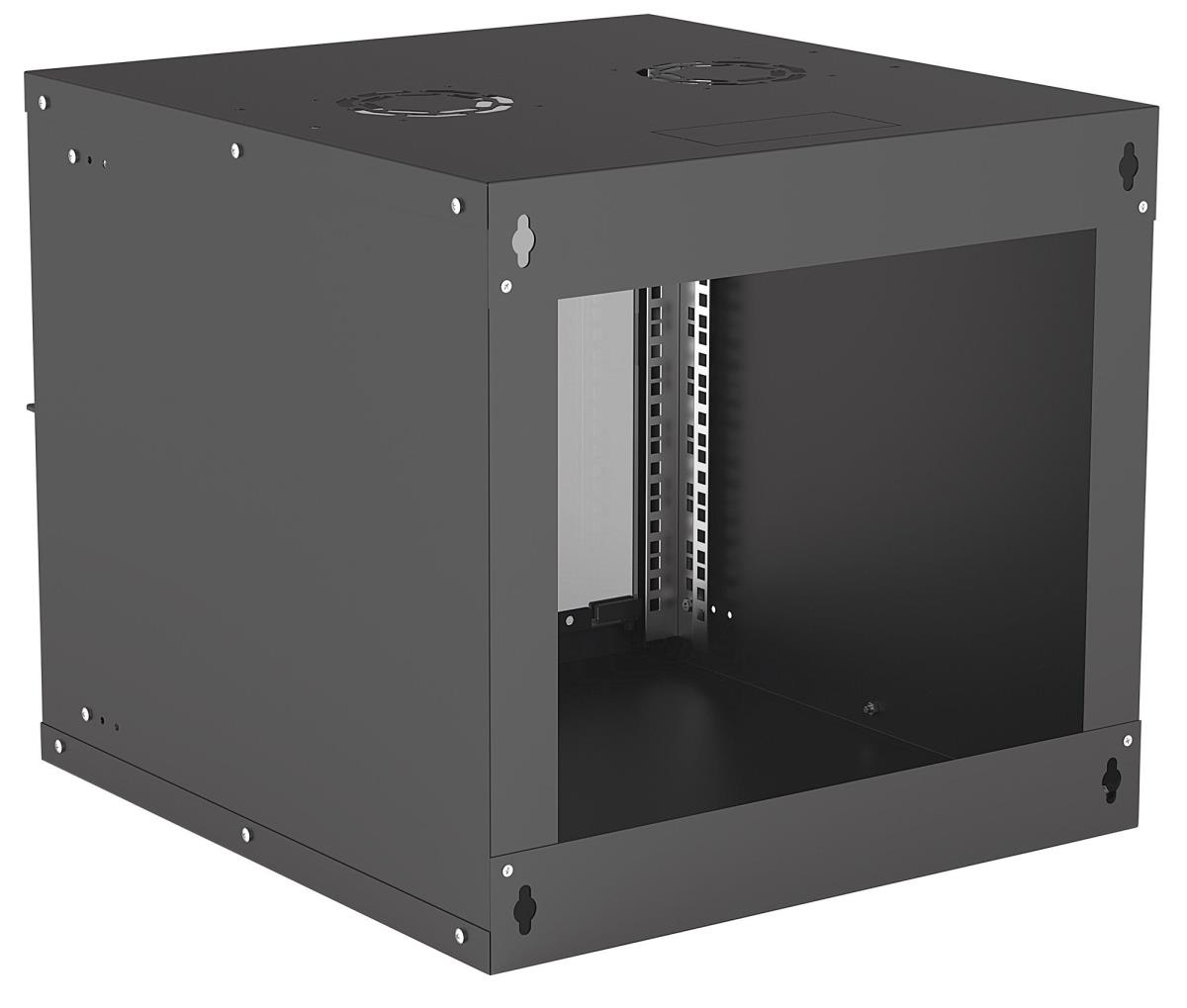

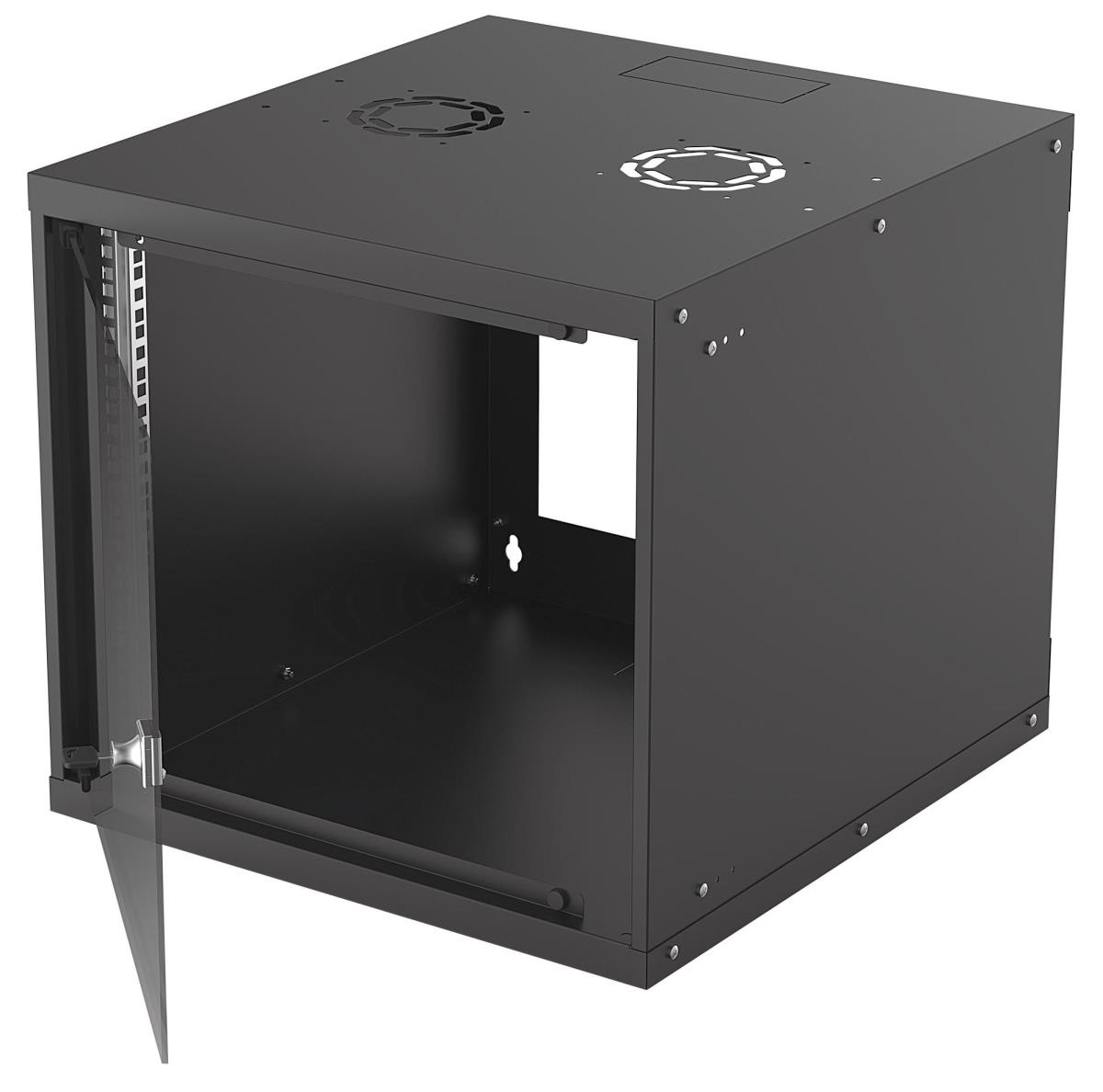

The Intellinet Network Solutions Basic Wallmount Cabinet provides a low-cost yet highly effective solution for protecting network equipment and securing its installation. An IP20 rating is achieved with cold-rolled, galvanized steel and a reversible, tempered-glass door that allows for easy access in limited-space environments.
Available in black or grey at 6U or 9U heights and common, device-friendly depths, the Intellinet Network Solutions Basic Wallmount Cabinet is sure to accommodate and protect network equipment while complementing the network space and its surrounding environment.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Frame type | Closed |
| Rack capacity | 9U |
| International Protection (IP) code | IP20 |
| Front door construction | Glass |
| Type | Wall mounted rack |
| Maximum weight capacity | 50 kg |
| Material | Galvanized steel |
| Product colour | Black |
| Certification | ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7 |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Width | 540 mm |
| Depth | 560 mm |
| Height | 487 mm |
| Weight | 13.2 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 50 kg |
| Packaging data | |
| Manual | Yes |
| Technical details | |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 9U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7 |
| Material | |
| Material | Galvanized steel |
