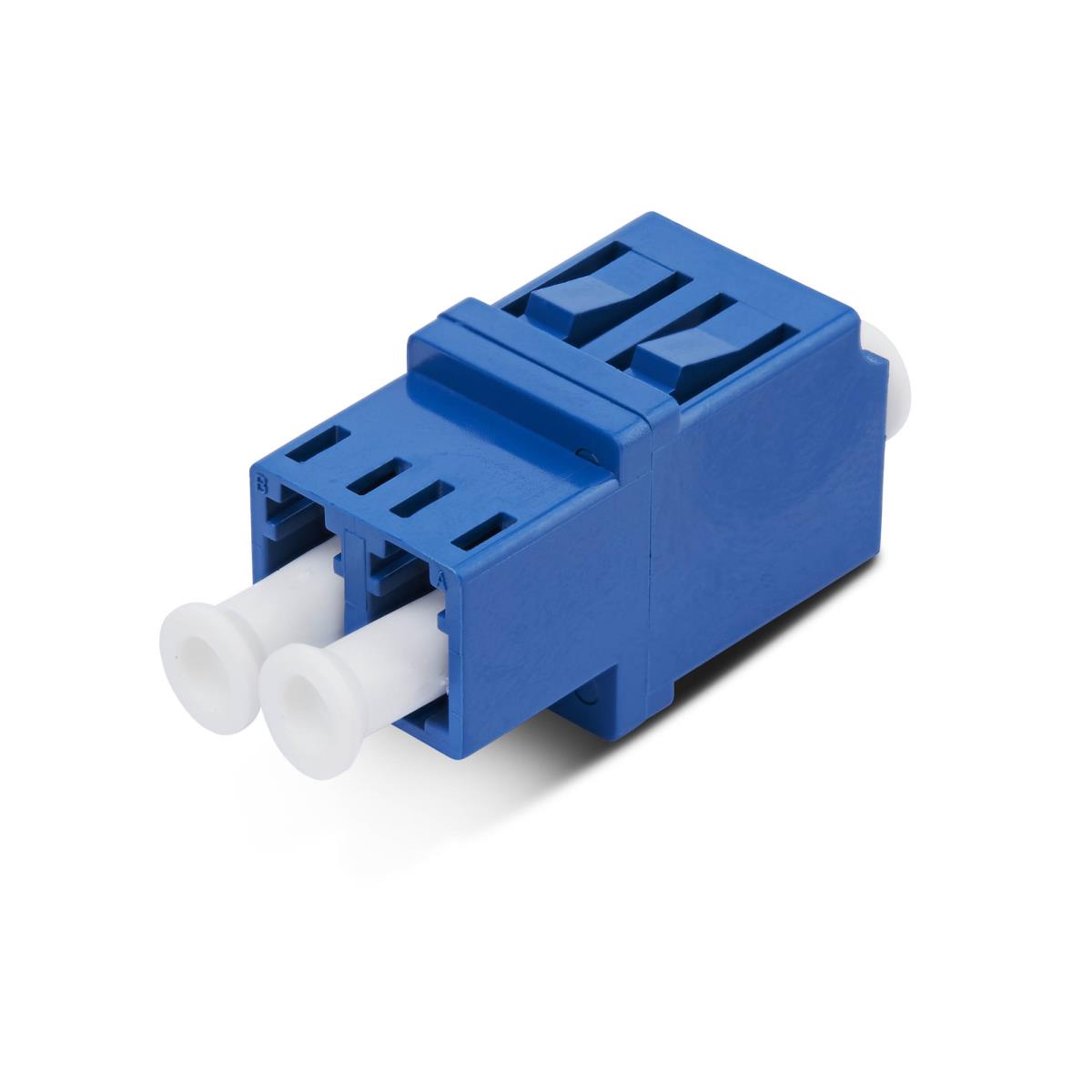

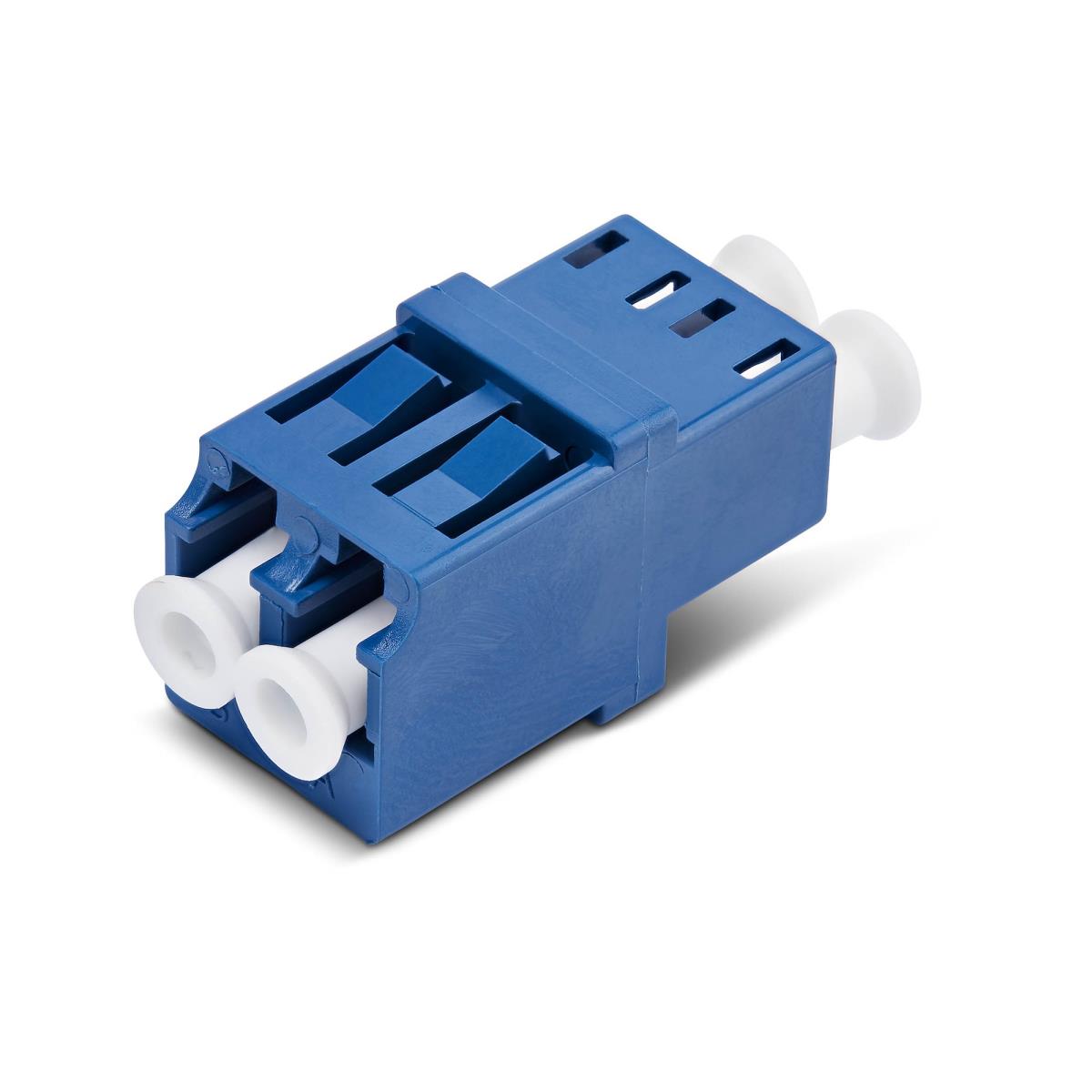

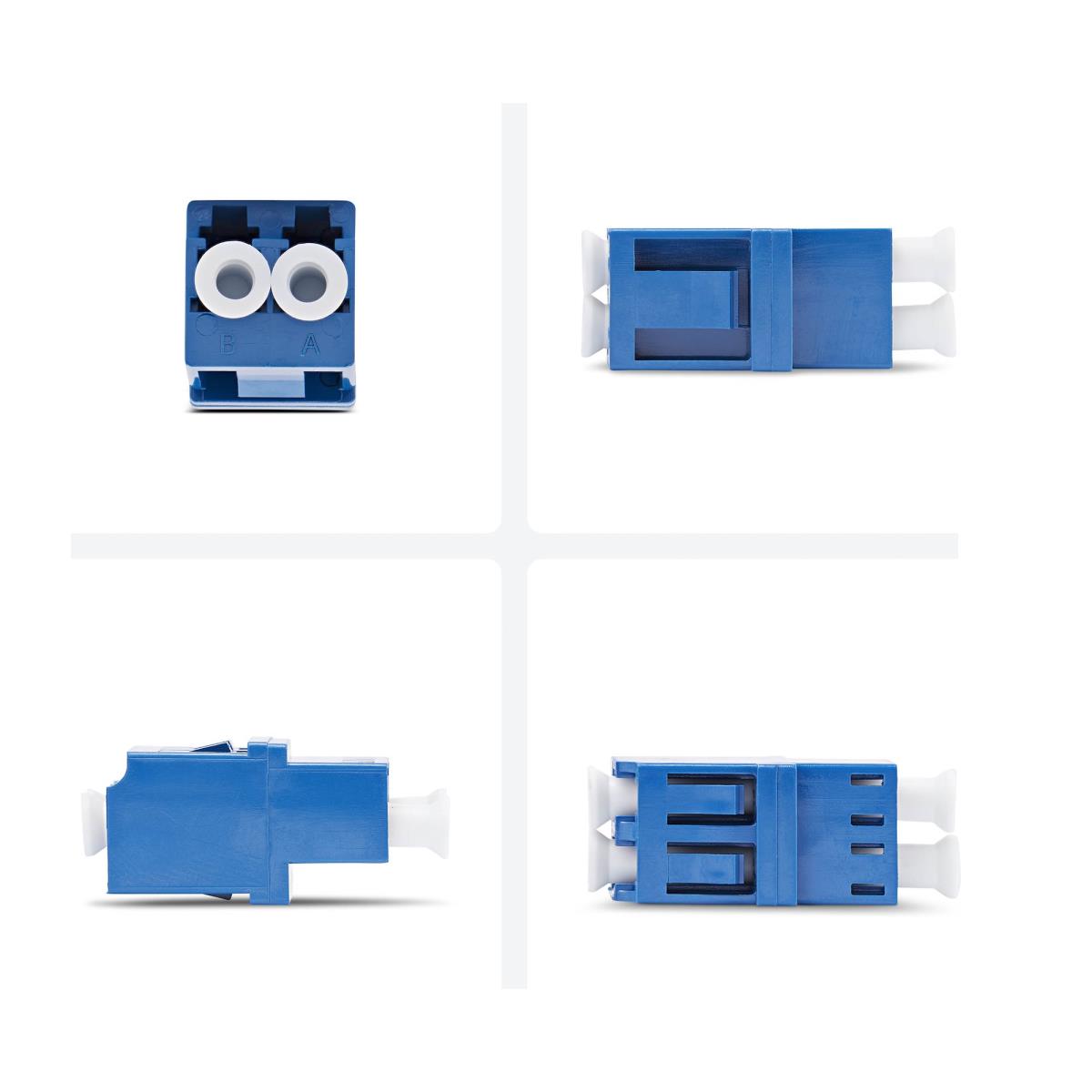

LC TO LC COUPLER LC/UPC DUPLEX
Introduction
Connect two Single Mode LC fiber cables or establish fiber connectivity on a rackmount patch panel
Extend a Single Mode fiber connection by connecting two LC Duplex cables with this LC to LC Coupler. The female to female fiber coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Toolless Installation for Quick Setup
The LC Fiber Coupler supports Single Mode LC/LC fiber cables. It is compatible with OS1/OS2 (9/125µm) fiber core/cladding. The coupler features toolless setup to simplify installation into fiber patch panels and rackmount/wall enclosure. Ideal for fast deployment in data centers, enterprise networks, and telecom applications.
Built for Reliable Performance
The LC/LC Keystone Coupler features a durable ABS housing and ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
Specifications
| Features | |
|---|---|
| Duplex | Yes |
| Number of connectors | 2 |
| Connector type | LC/UPC |
| Fiber mode structure | Single-mode |
| Product colour | Blue, White |
| Certificates | |
| Compliance certificates | Trade Agreements Act (TAA), CE |
| Weight & dimensions | |
| Width | 12.9 mm |
| Weight | 3 g |
| Height | 15.2 mm |
| Depth | 25.7 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 120 mm |
| Package depth | 90 mm |
| Package height | 13 mm |
| Package weight | 5 g |
| Technical details | |
| Duplex | Yes |
| Number of connectors | 2 |
| Connector type | LC/UPC |
| Fiber mode structure | Single-mode |
| Product colour | Blue, White |
| Compliance certificates | Trade Agreements Act (TAA), CE |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 335 mm |
| Master (outer) case height | 400 mm |
| Products per master (outer) case | 1000 pc(s) |
