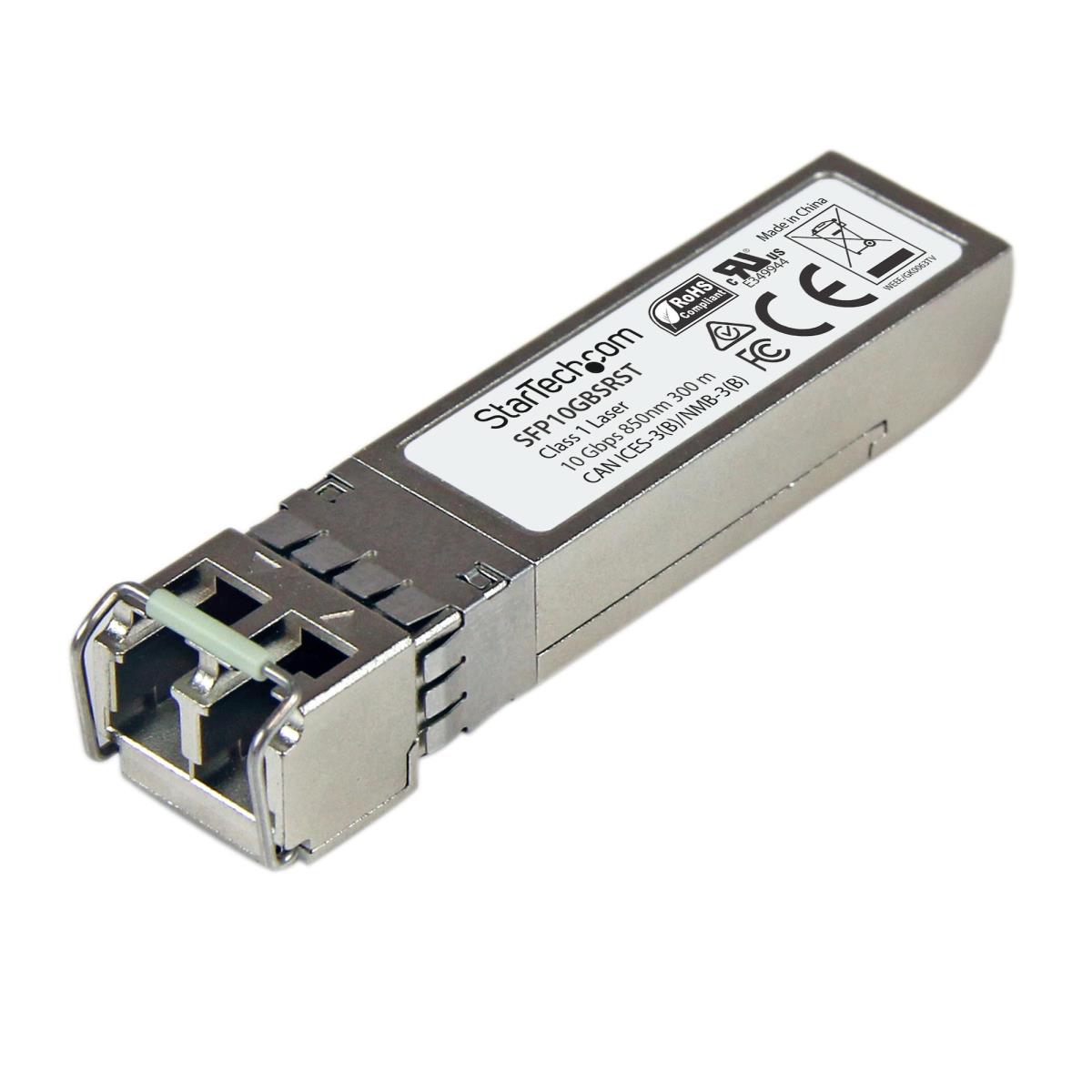

MSA COMPLIANT 10GBASE-SR SFP+
Introduction
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The SFP10GBSRST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 10GBASE-SR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 300 m (984 ft) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft)
• Power Consumption: Less than 1.6 Watts
• DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Wavelength-division multiplexing (WDM) | No |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Duplex system | Full |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR |
| Country of origin | China |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Country of origin | China |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1.3 W |
| Certificates | |
| Certification | CE, FCC, UR |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Weight & dimensions | |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 20 g |
| Package depth | 113 mm |
| Package width | 92 mm |
| Package height | 33 mm |
| Package weight | 50 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 92 mm |
| Package height | 33 mm |
| Hot-Plug support | Yes |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Duplex system | Full |
| Compliance certificates | RoHS |
| Packaging data | |
| Package depth | 113 mm |
| Package width | 92 mm |
| Package height | 33 mm |
| Package weight | 50 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Master (outer) case width | 345 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 355 mm |
| Products per master (outer) case | 36 pc(s) |
| Harmonized System (HS) code | 85369010 |
