Introduction

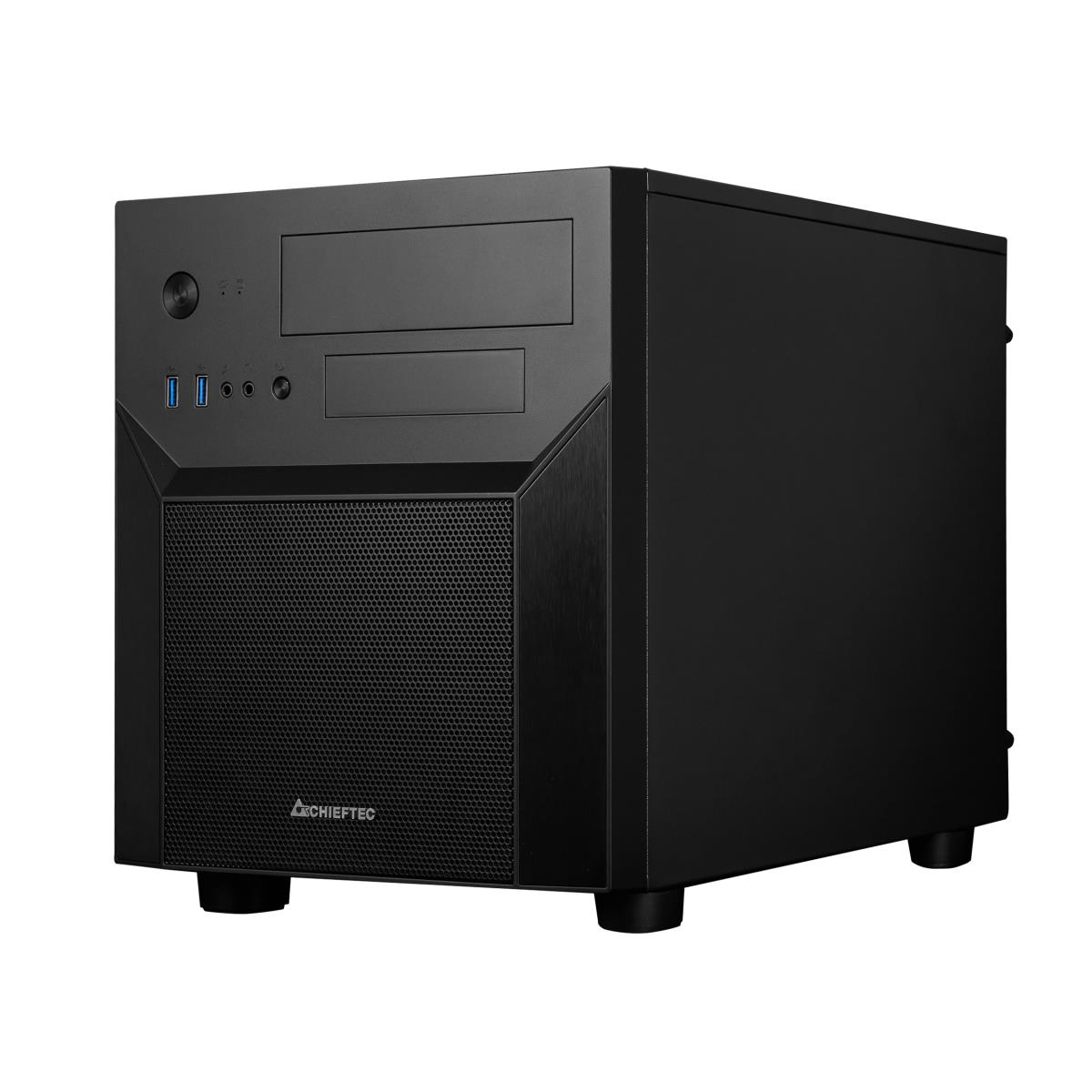

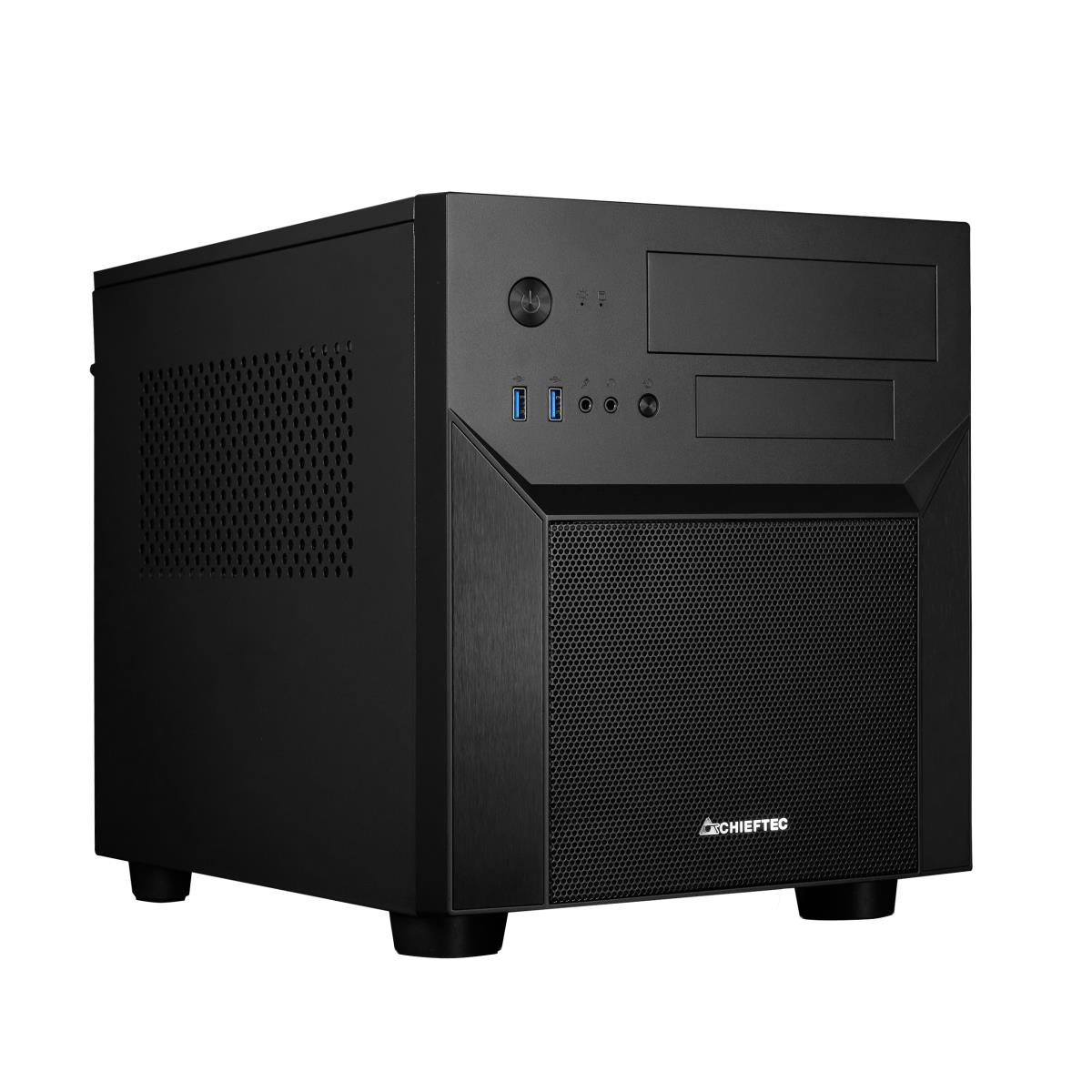

The CI-02B-OP joins CHIEFTEC’s Mesh Series in a compact m-ATX cube format. Despite its very compact dimensions, this case is extremely flexible in terms of hardware compatibility, supporting ATX PSU’s up to 16cm in length, graphics cards up to 320mm in length and CPU coolers up to 160mm in height.

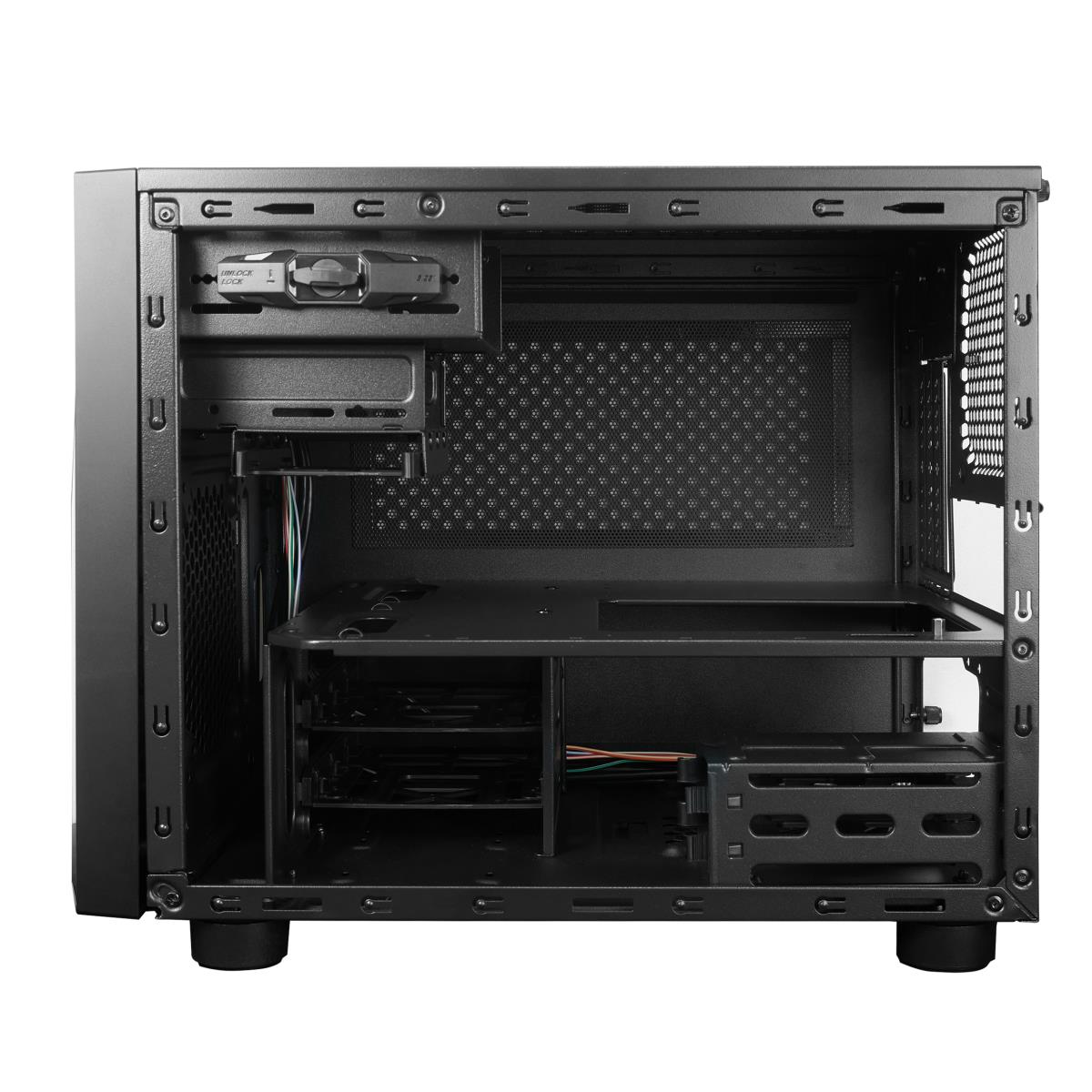

Additionally, with lots of flexibility on the internal and external drives, supporting 5.25” and 3.5” optical drives, 2x 3.5” HDD”s and 3x 2.5” SSD’s, the CI-02B-OP is also very suitable for home entertainment purposes or as a mini server.
Featuring an elegant design combining brushed aluminium and airflow-friendly mesh, this is a case has a timeless look that will it in easily in the workplace or at home and is therefore truly multi-functional.
Specifications
| Design | |
|---|---|
| Material thickness | 0.6 mm |

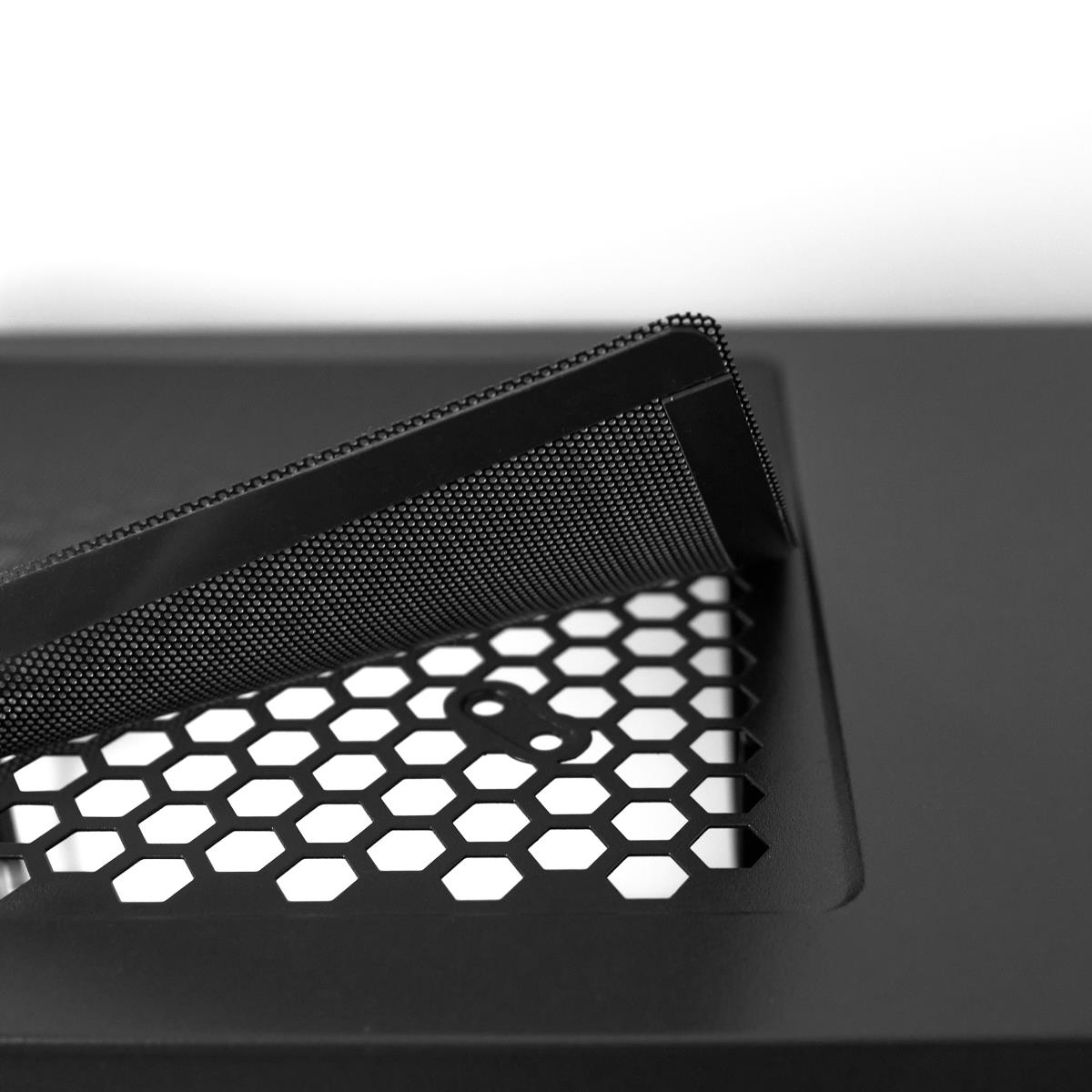

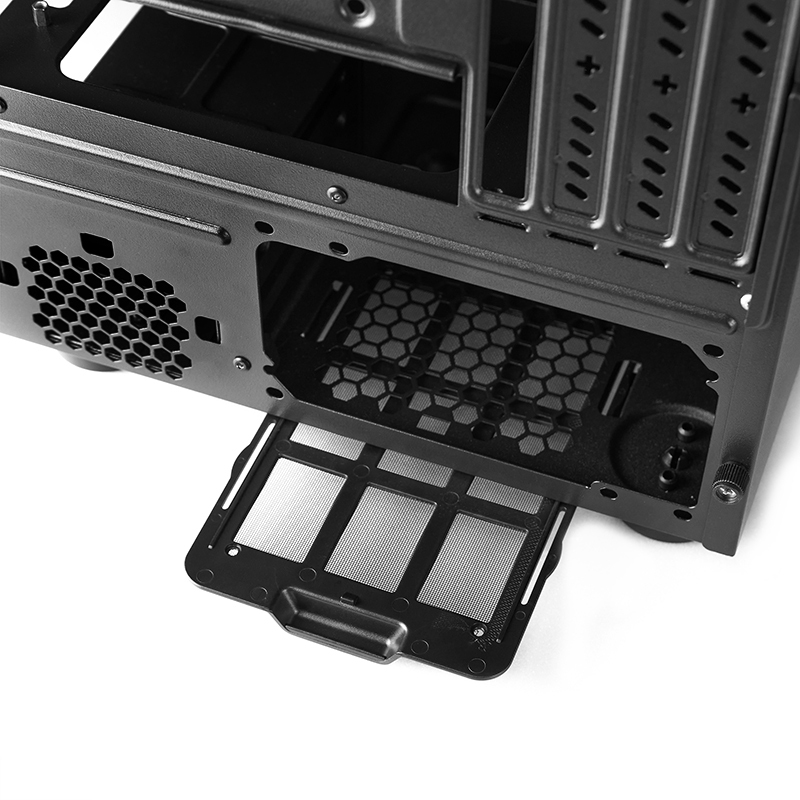

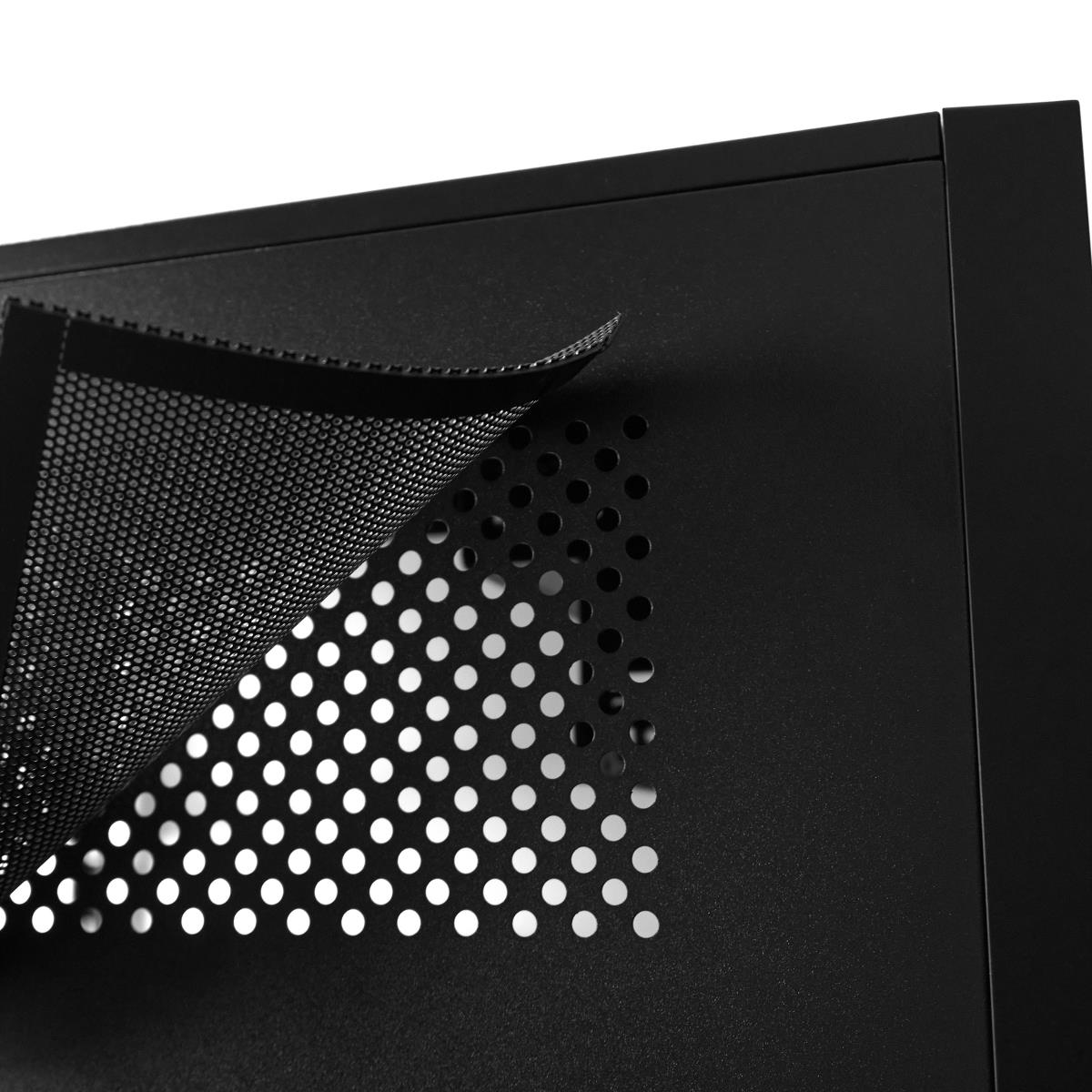

| Anti-dust filter | Yes |
| Number of external 5.25" bays | 1 |
| Material | SPCC |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 3 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 2 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Suitable for | Home/Office |
| Side window | No |
| Reset button | Yes |
| Product colour | Black |
| Number of expansion slots | 4 |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 32 cm |
| Maximum PSU length | 16 cm |
| Type | PC |
| Form factor | Cube |
| On/off button | Yes |
| Full-Height expansion slots | 4 |
| Technical details | |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 3 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 2 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Supported HDD sizes | 3.5" |
| Suitable for | Home/Office |
| Side window | No |
| Reset button | Yes |
| Product colour | Black |
| Number of expansion slots | 4 |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 32 cm |
| Maximum PSU length | 16 cm |
| Type | PC |
| Form factor | Cube |
| Harmonized System (HS) code | 84733080 |
| Material | |
| Material | SPCC |
| Material thickness | 0.6 mm |
| Ergonomics | |
| Reset button | Yes |
| On/off button | Yes |
| Power supply | |
| Supported power supply form factors | ATX |
| Power supply included | No |
| Power supply location | Bottom |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
| Top radiator sizes supported | 120,140 mm |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 1 |
| Top fans diameters supported | 120,140 mm |
| Storage | |
| Supported HDD sizes | 3.5" |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 265 mm |
| Depth | 390 mm |
| Height | 295 mm |
| Weight | 4.3 kg |
| Material thickness | 0.6 mm |
| Packaging data | |
| Package weight | 5.2 kg |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Harmonized System (HS) code | 84733080 |
