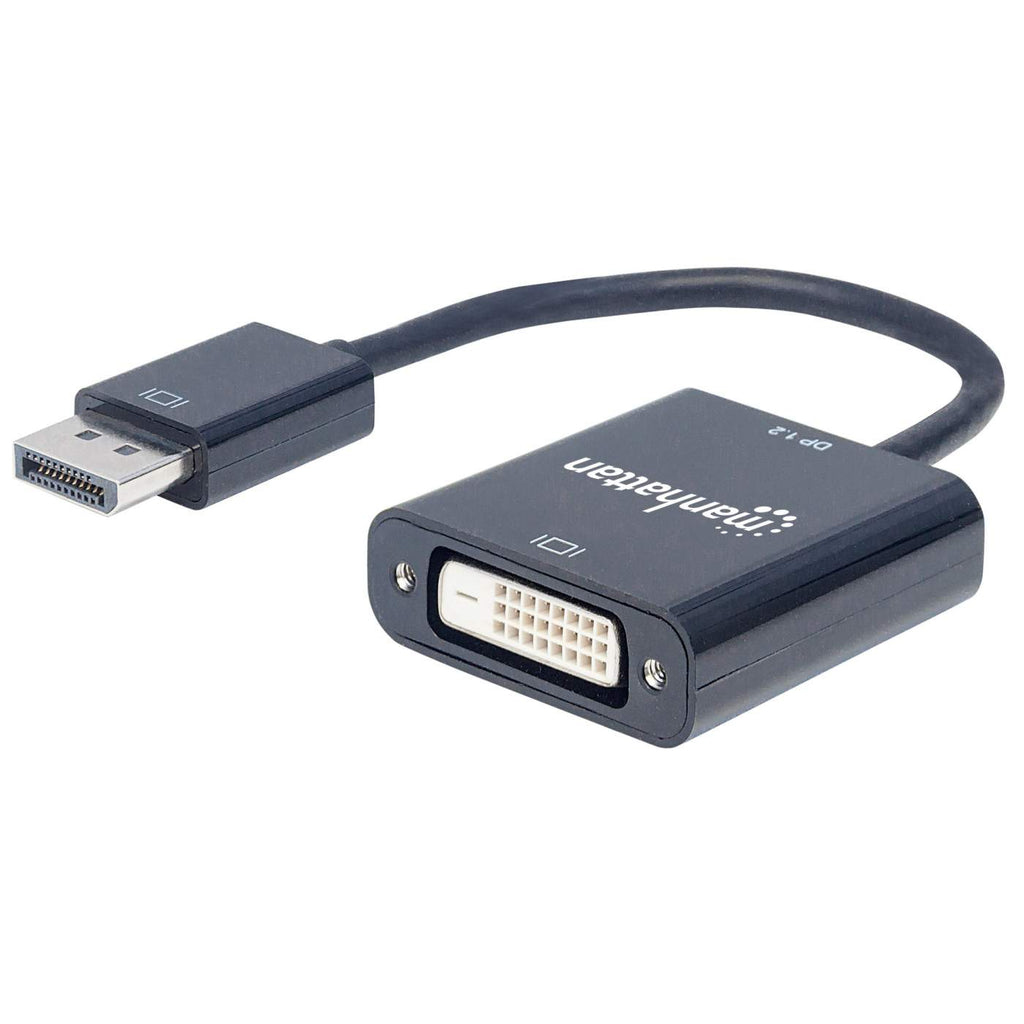

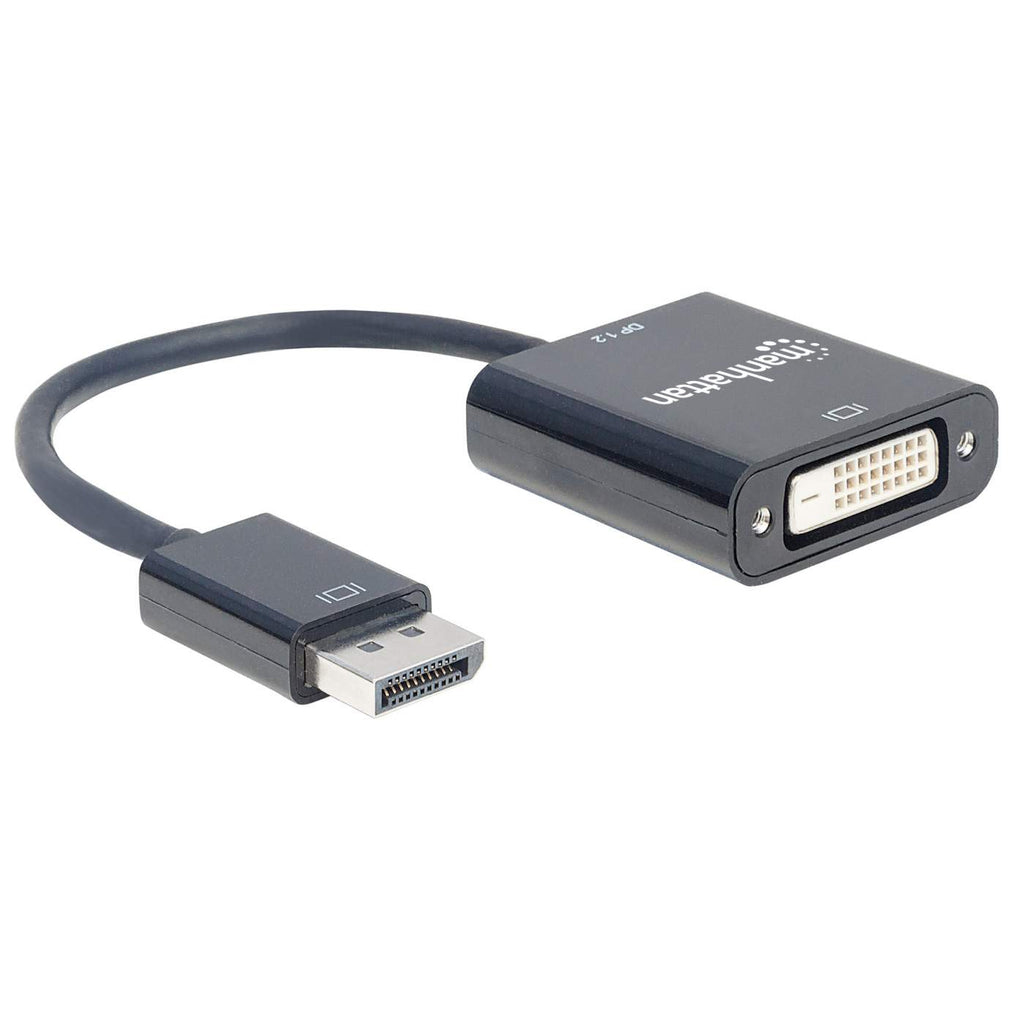

DISPLAYPORT 1.2A TO DVI-D CABLE
Introduction
Easily connect a DisplayPort source to an DVI-D display.
The Manhattan DisplayPort Adapter helps establish a fast, simple and convenient link between newer DisplayPort-equipped sources and existing DVI-D displays. The Manhattan DisplayPort Adapter is easy and quick to install. No complicated configuration or setup is required, which helps fully realise the investment, value and service life of DVI-D displays. Its all-in-one design is a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces neat and orderly.
Specifications
| Features | |
|---|---|
| Converter type | Active video converter |
| DisplayPort version | 1.2a |
| Product colour | Black |
| Cable length | 0.23 m |
| Connector 1 | DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| Data transfer rate | 10.8 Gbit/s |
| Maximum resolution | 1920 x 1080 pixels |
| Certification | HDCP |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dual Link DVI | Yes |
| Connector gender | Male/Female |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Certificates | |
| Certification | HDCP |
| Other features | |
| Width | 42 mm |
| Height | 15 mm |
| Depth | 230 mm |
| Weight & dimensions | |
| Width | 42 mm |
| Height | 15 mm |
| Depth | 230 mm |
| Weight | 40 g |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
