MINI DISPLAYPORT CABLE 1M-

Introduction

High-definition performance for personal computing.

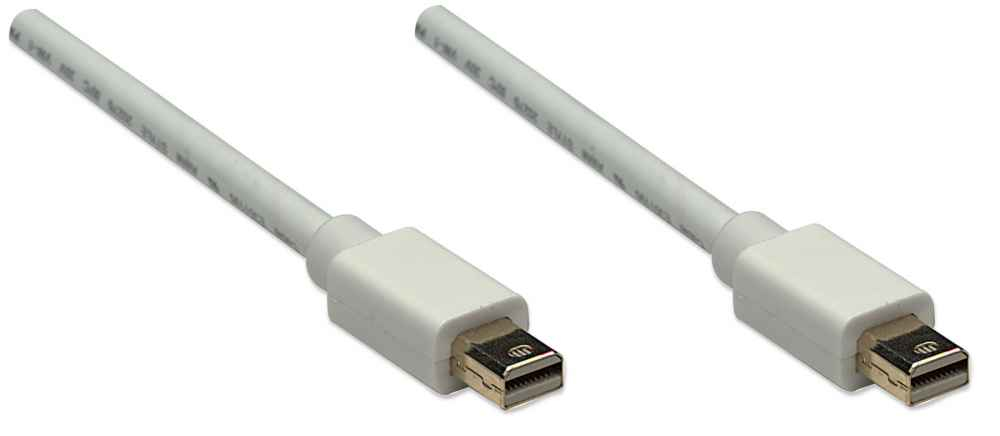

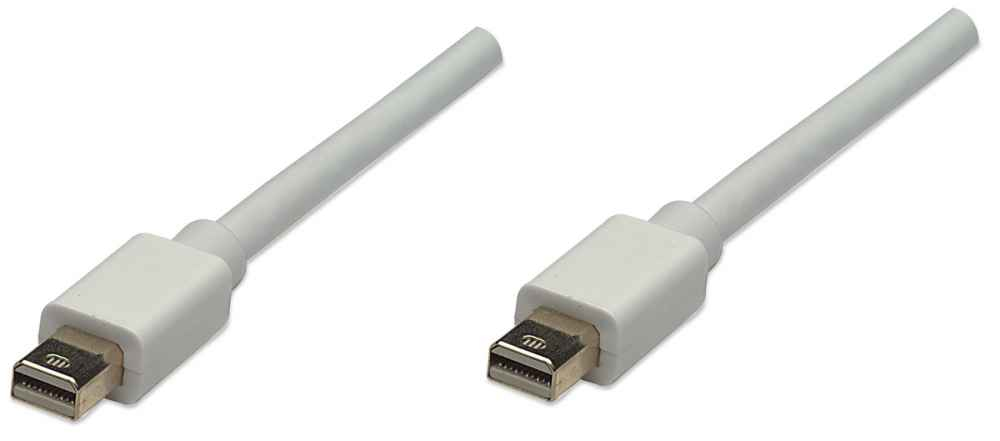

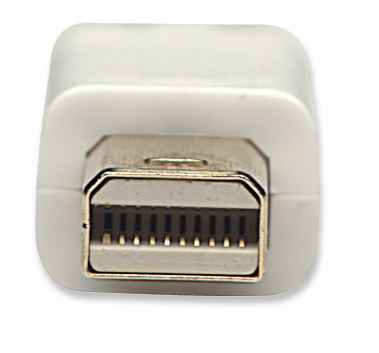

Manhattan Mini DisplayPort cables deliver both high-definition digital audio and video signals between desktop or notebook computers and an output device. The 20-pin connector is small and compact but offers 14.8 Gbps bandwidth, Deep colour and 24-bit, 8-channel uncompressed audio capability. It's ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, moulded boots with strain relief, protective PVC jackets and gold-plated connections ensure that Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

Specifications

Features
Cable shielding	Aluminum mylar foil
Product colour	White
Cable length	1 m
Connector 1	Mini DisplayPort
Connector 2	Mini DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Magnetically shielded	Yes
Jacket material	Acrylonitrile butadiene styrene (ABS)
AWG wire size	32
DisplayPort version	1.2
Data transfer rate	14.8 Gbit/s
Maximum resolution	4096 x 2160 pixels
Certification	UL 20276 ISO 9002
Maximum refresh rate	60 Hz
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	0 - 96%
Certificates
Certification	UL 20276 ISO 9002
Weight & dimensions
Weight	44 g
Packaging data
Weight	44 g
Package type	Polybag
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Package type	Polybag
Technical details
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
