HDMI TO DVI-D CABLE 2M-
Introduction

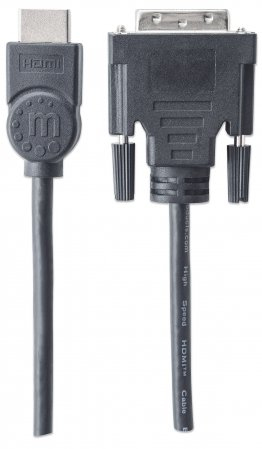

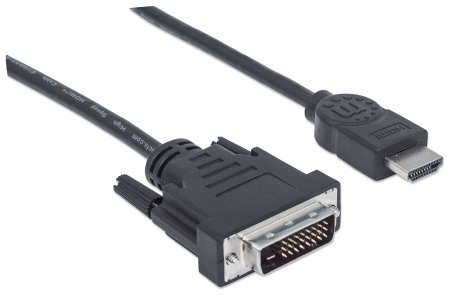

HDMI to DVI Adapter Cable – Connect HDMI sources to DVI monitors and more
The Manhattan HDMI to DVI Cable is engineered and constructed of quality materials to deliver dependable transmissions in digital video applications. Full foil and braided shielding, molded boots with strain relief and a protective PVC jacket help provide maximum conductivity and clear, crisp signal transmissions without EMI problems.
Specifications
| Features | |
|---|---|
| Cable shielding | Aluminium mylar foil |
| Product colour | Black |
| Cable length | 2 m |

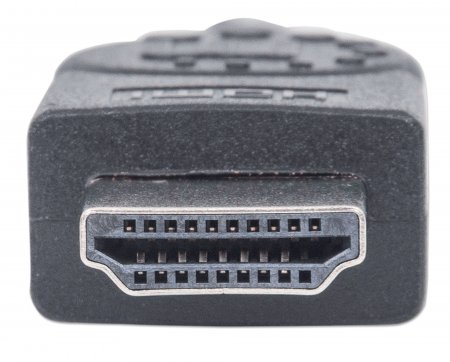

| Connector 1 | HDMI Type A (Standard) |

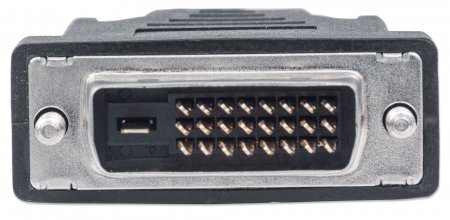

| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| AWG wire size | 30 |
| Supported video modes | 480p, 720p, 1080i, 1080p |
| HDCP | Yes |
| Certification | CE RoHS UL |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.2 |
| Insulation resistance | 10 MO |
| Conductor resistance | 1 O |
| Certificates | |
| Certification | CE RoHS UL |
