EU Product - Hdmi o Vg & udio Converer
Introduction

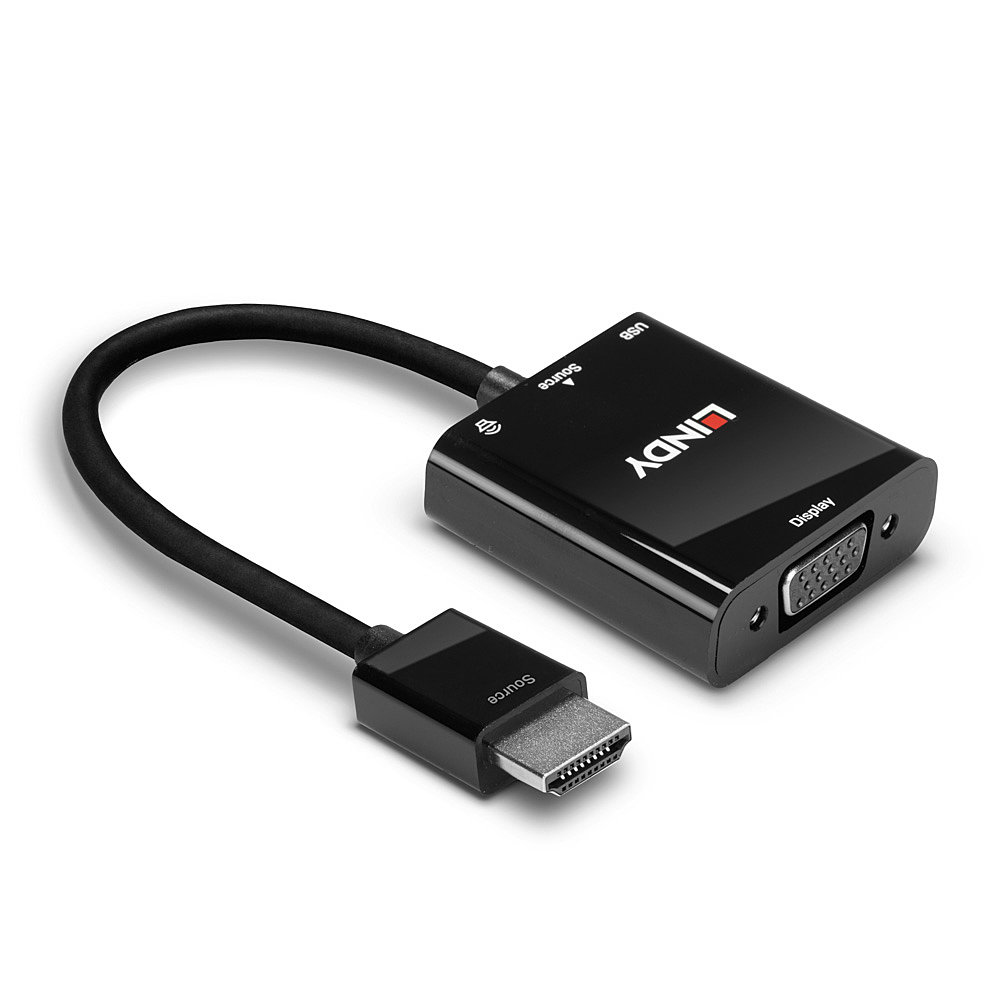

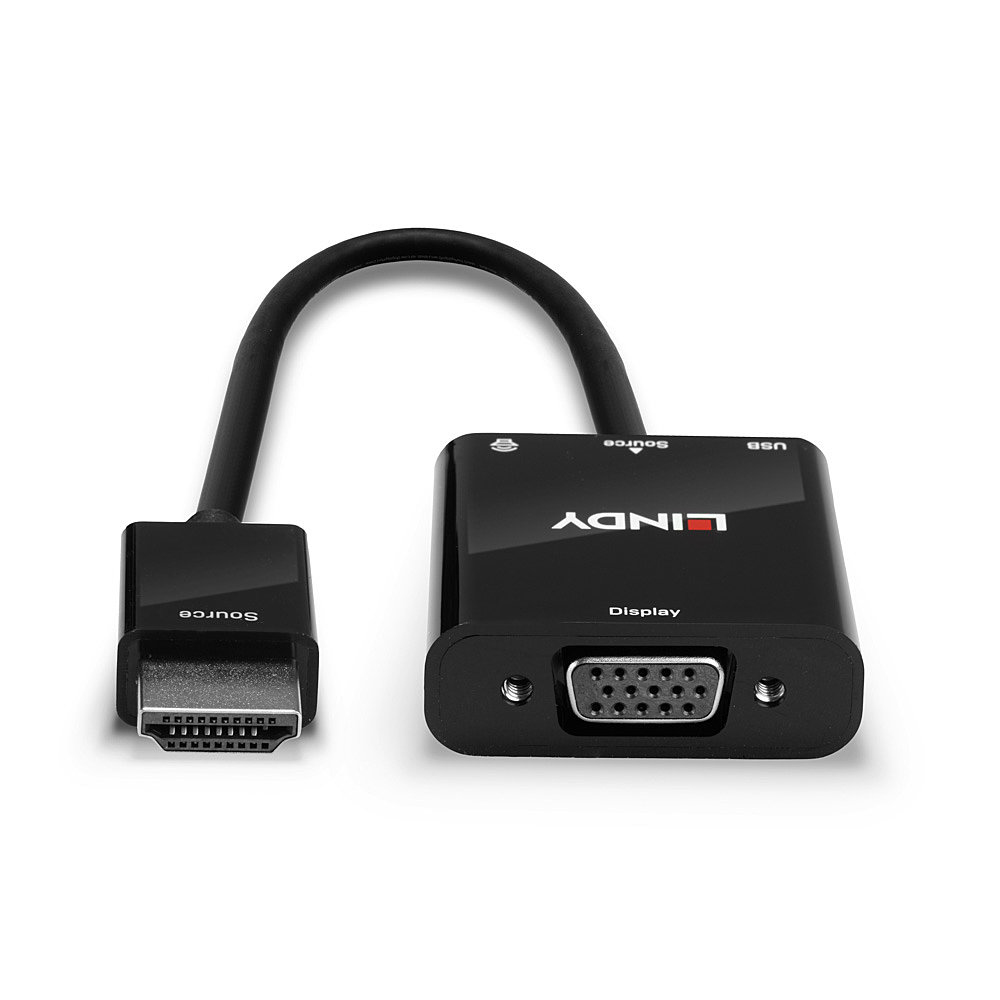

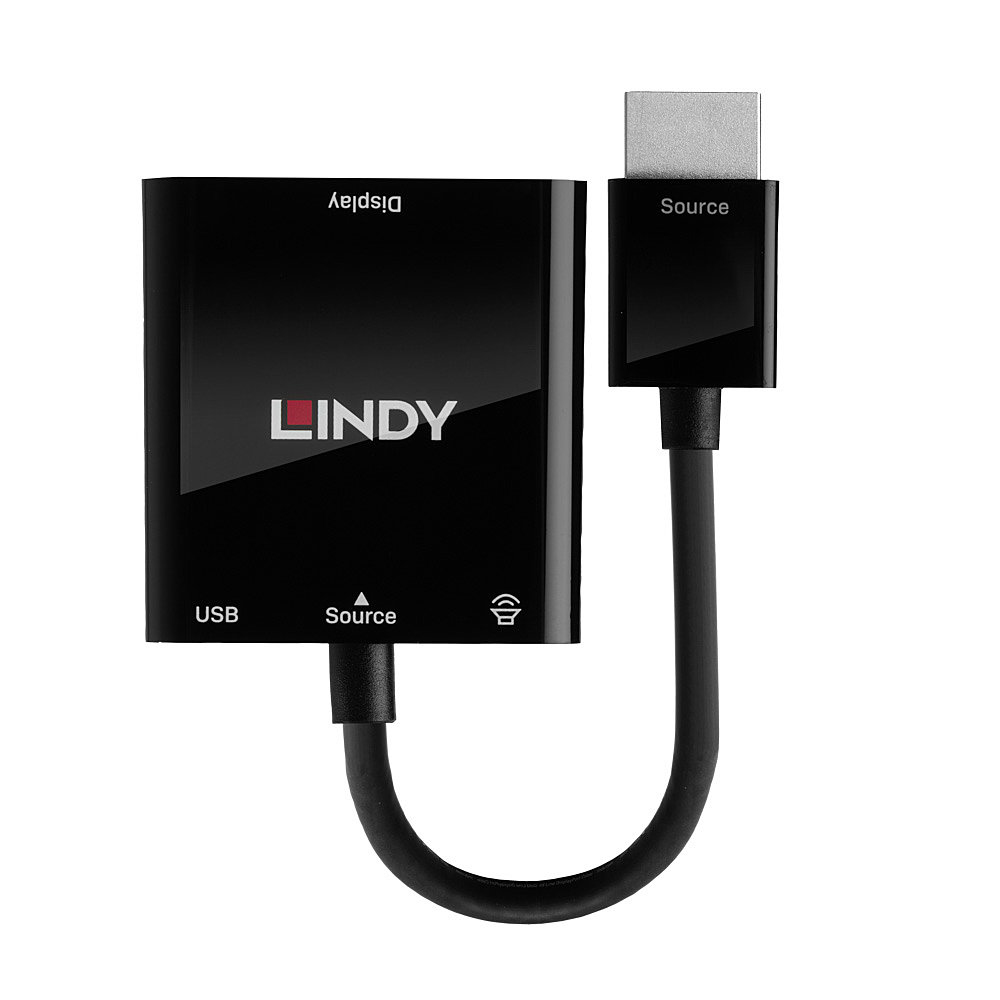

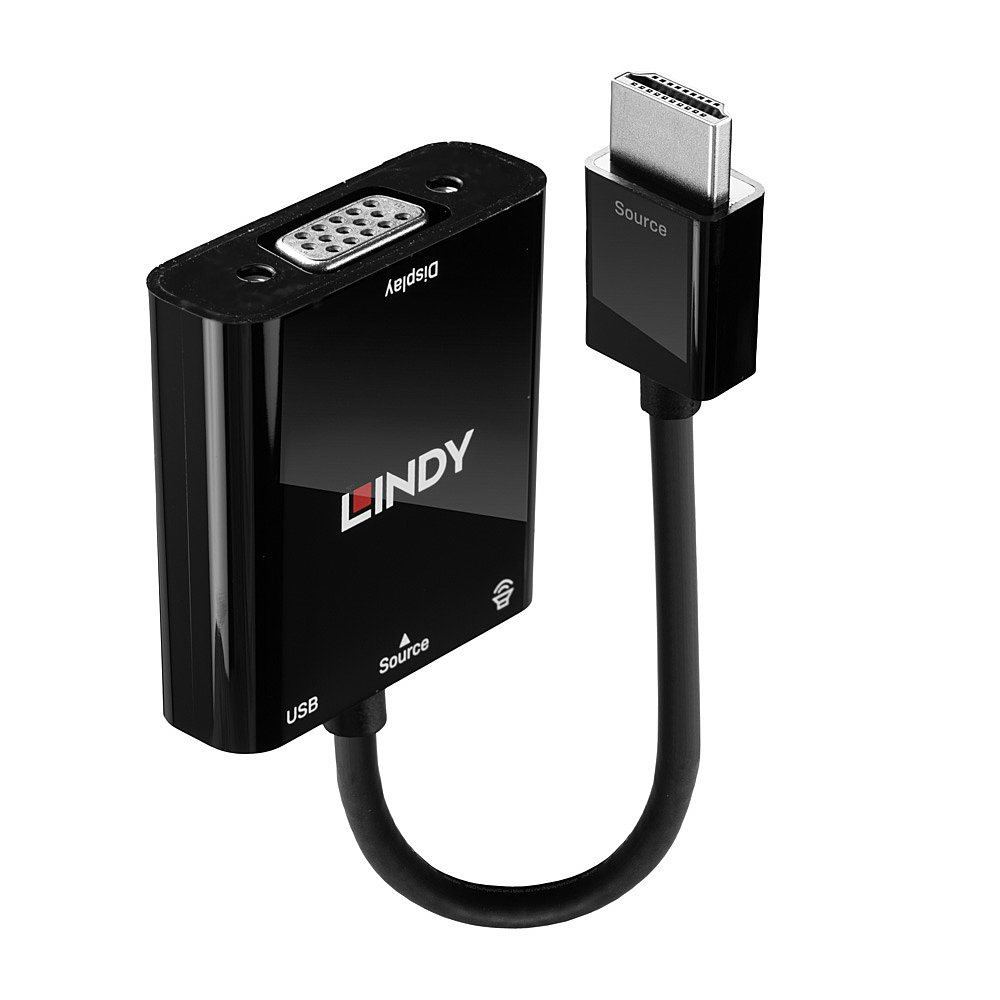

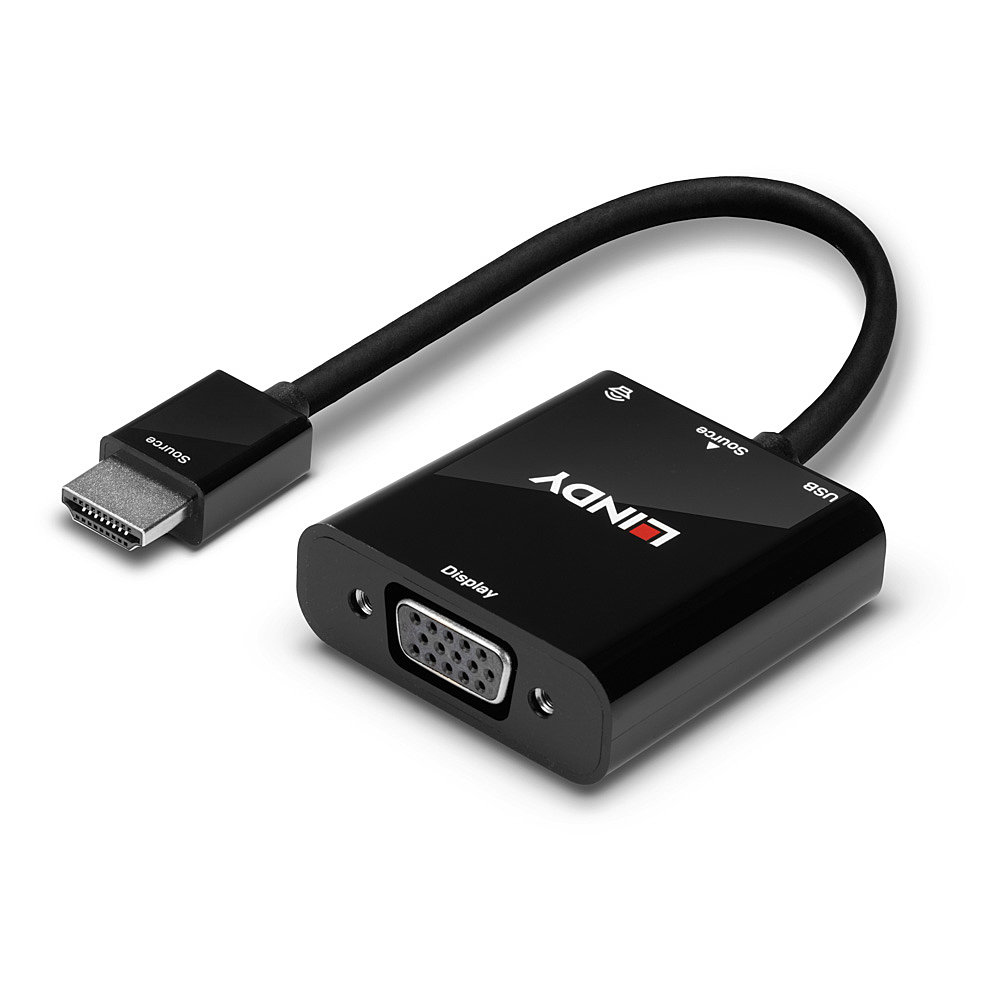

The Lindy HDMI 1.3 to VGA and Audio Converter is ideal for connecting HDMI equipped sources such as laptops, ultrabooks and PCs to VGA displays. It converts the HDMI signal (along with the associated digital audio stream) into an analogue VGA signal.
Full HD signals are supported, including 1080p for HDTV connections and up to 1920x1080 for PC VGA monitors.
No external power source is required, which makes this converter the perfect tool for flexible working in different environments, whether it's in the office, traveling to hold presentations or at home, as it also permits the use of older VGA monitors or projectors to display content.
Specifications
| Features | |
|---|---|
| Cable shielding | Aluminium mylar foil |
| Audio connector type | 3.5 mm (1/8") |
| Audio connector | Yes |
| Colour depth | 12 bit |
| HDMI version | 1.3 |
| Product colour | Black |
| Cable length | 0.1 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Nickel |
| Cable material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 30 |
| Data transfer rate | 4.95 Gbit/s |
| Maximum resolution | 1920 x 1200 pixels |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Power source | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Packaging data | |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Packaging content | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
