STARTECH.COM 450FBLCLC20 STARTECH.COM 20M OM4 FIBER OPTIC PATCH CORD

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

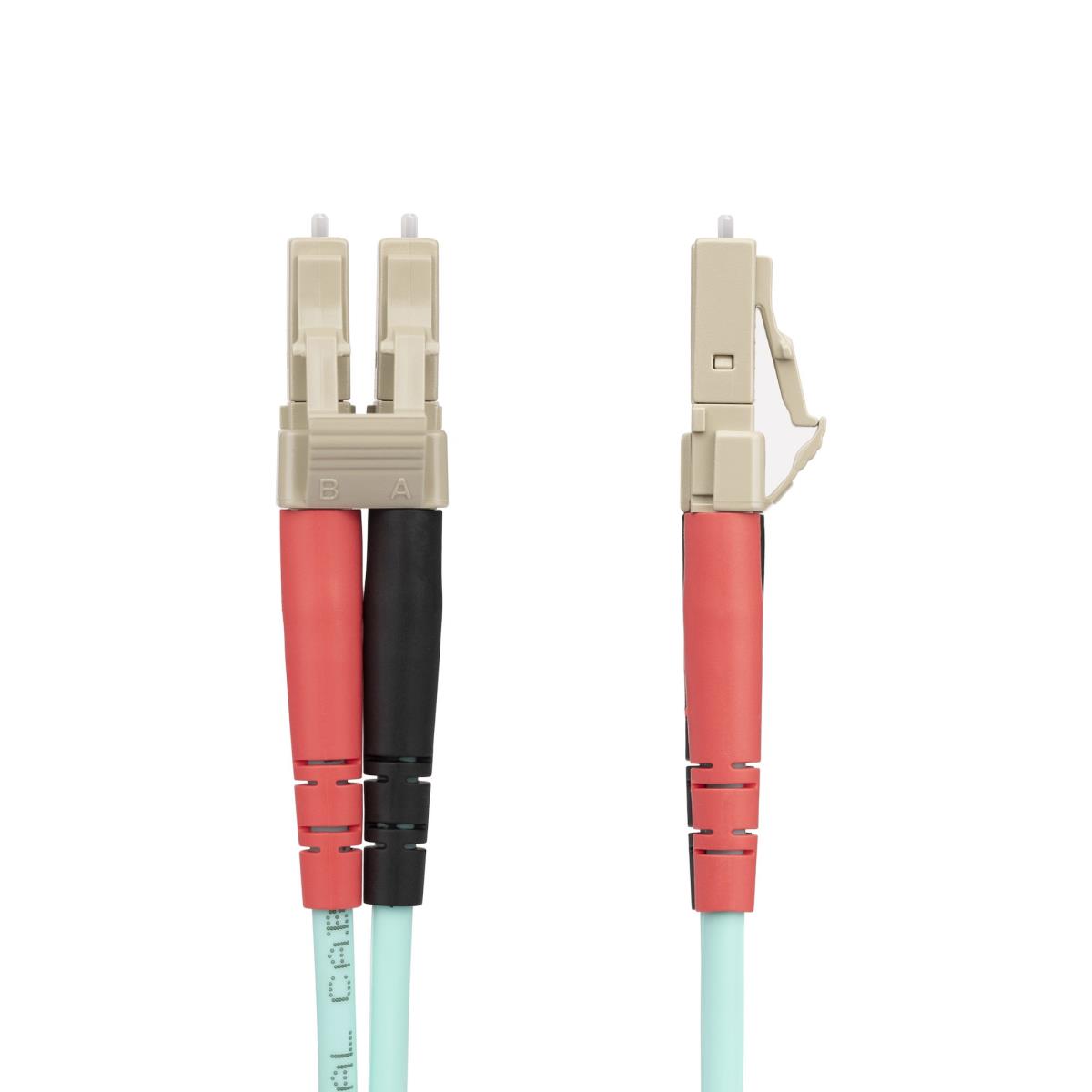

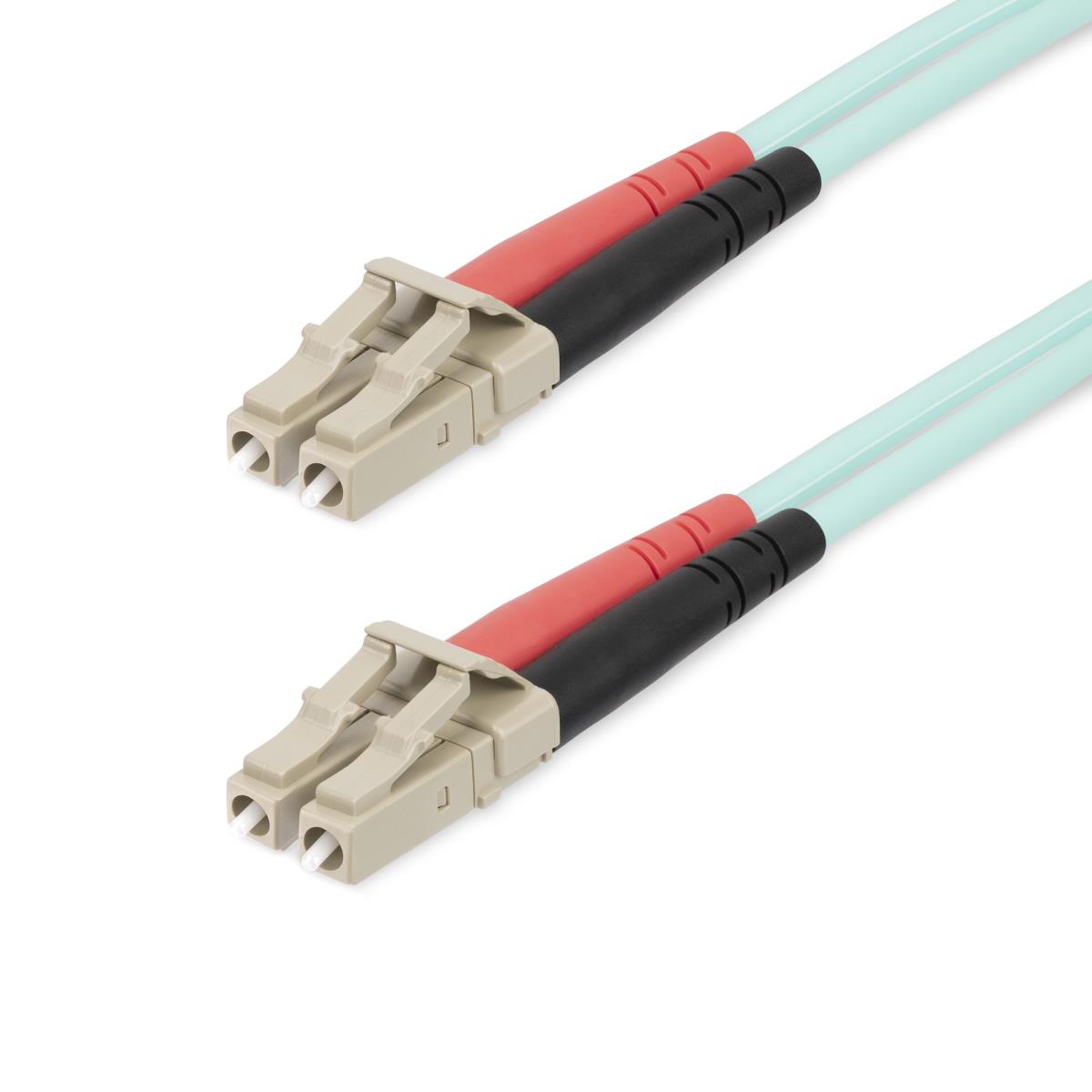

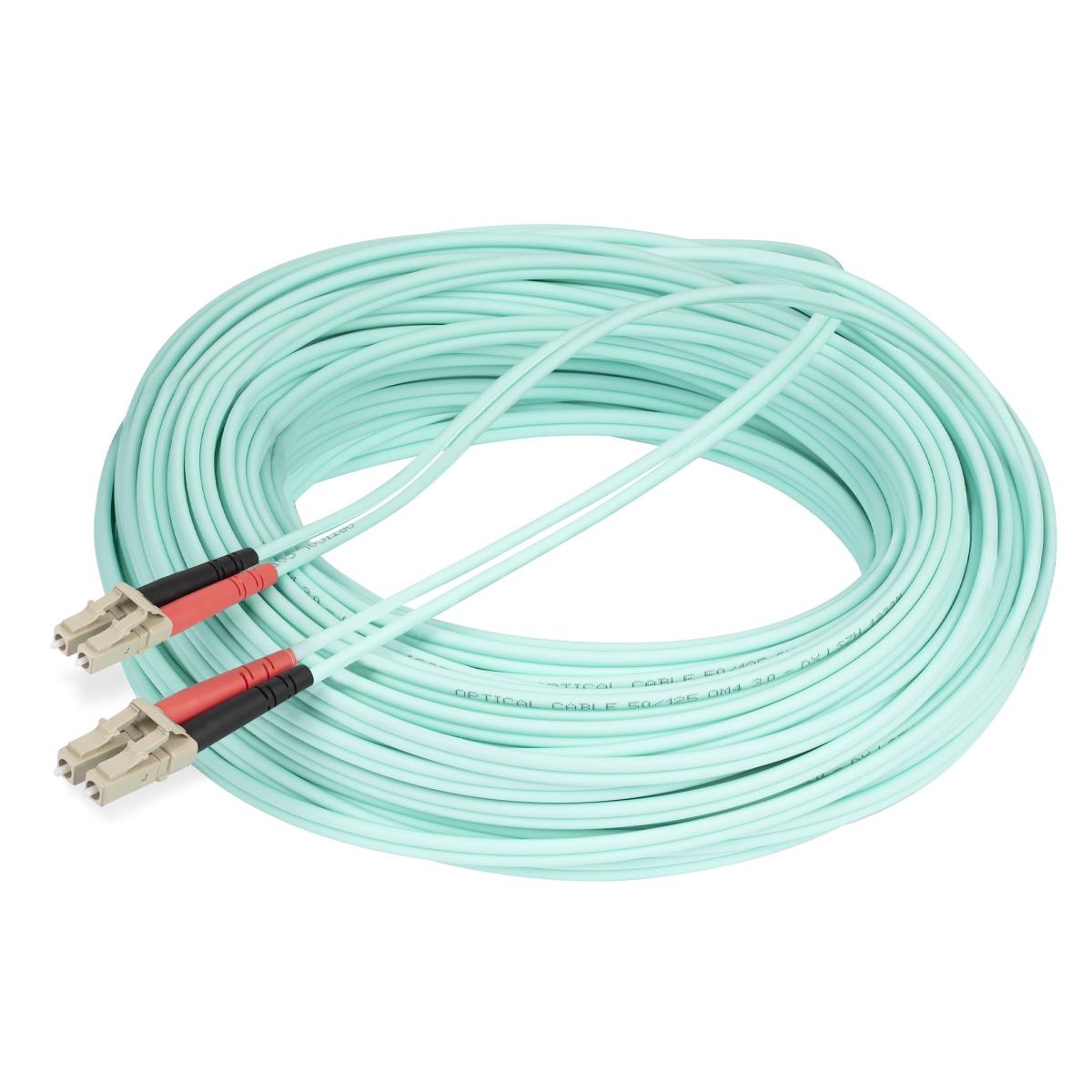

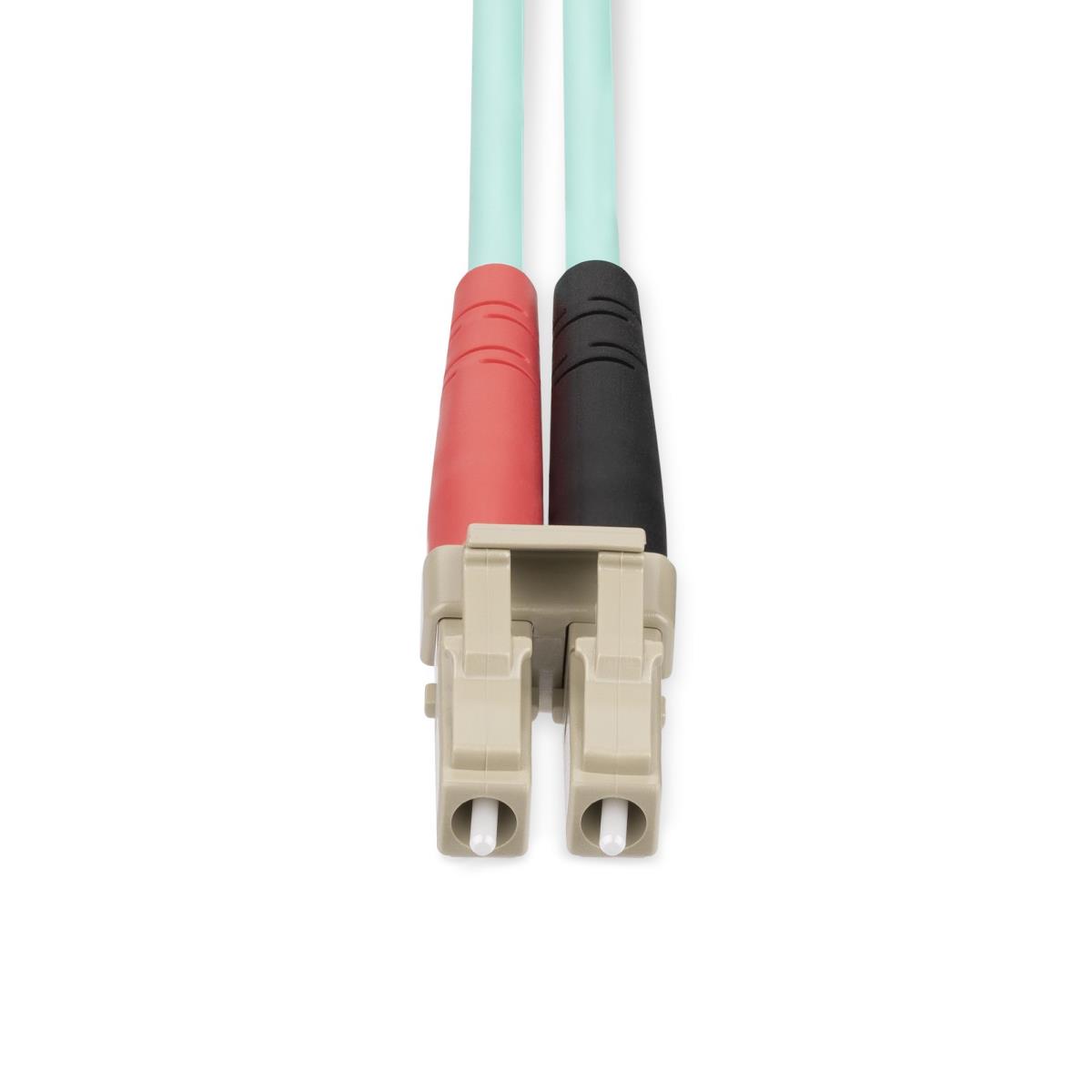

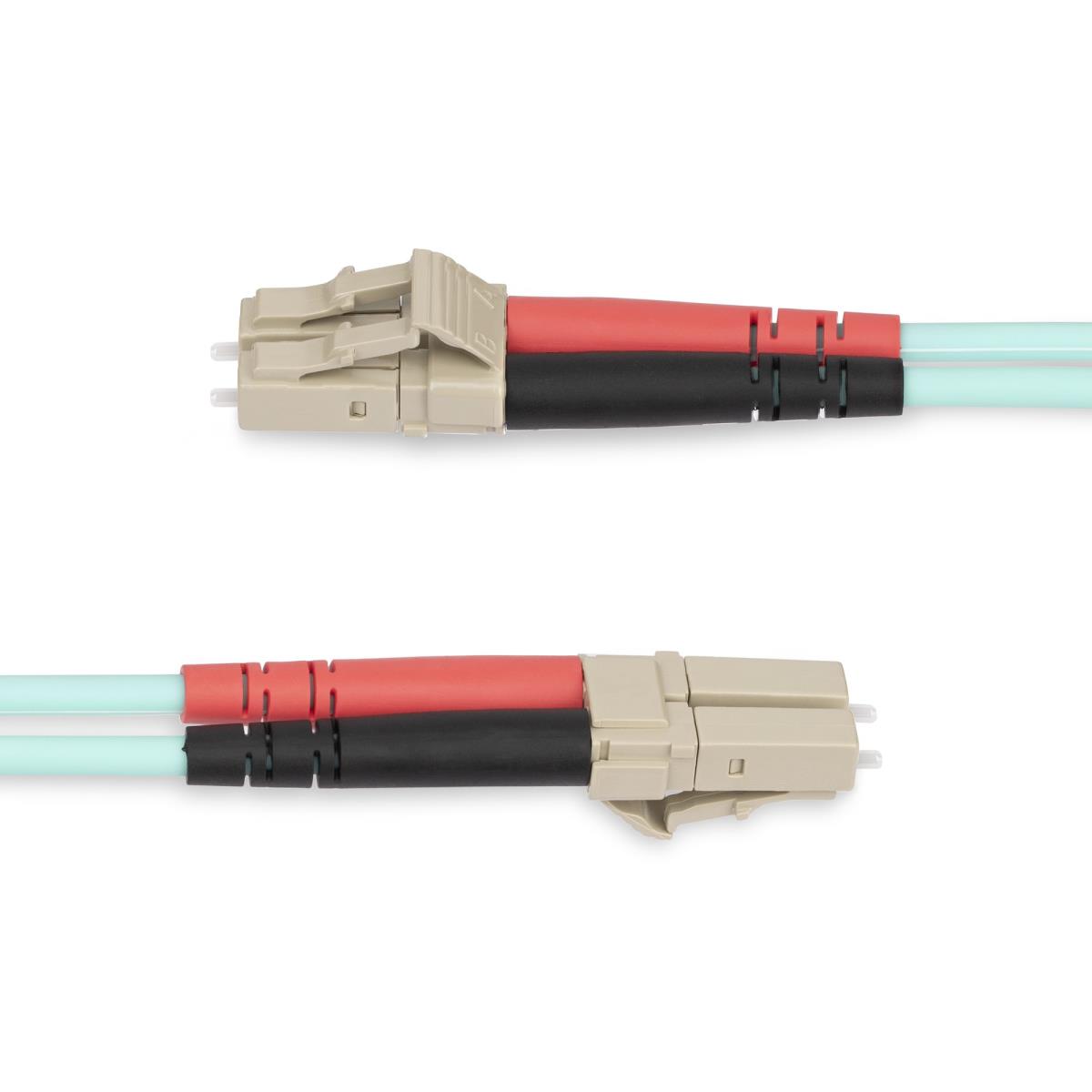

450FBLCLC20 STARTECH.COM 20M OM4 FIBER OPTIC PATCH CORD

Part No:450FBLCLC20

Stock:23 In Stock

EAN Code:0065030900690

£41.20 Excl. VAT

£49.44 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

20M OM4 FIBER OPTIC PATCH CORD

Introduction

LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+The LC to LC Multimode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 40 and 100 Gigabit networks.Engineered for Optimal PerformanceWith laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.Wide CompatibilityThis multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, ensuring a reliable connection with legacy fiber environments.Flame ResistantHoused in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to high heat or in the event of a fire. It enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where building codes are a consideration.Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.The StarTech.com Advantage

Specifications

Technical details
Jacket materialLow smoke zero halogen (LSZH)
Fiber mode structureMulti-mode
Connector 1LC
Connector 2LC
Cable length20 m
Full duplexYes
Core diameter50 µm
Cladding diameter125 µm
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Features
Bending radius6 cm
Fibre optic typeOM4
Jacket materialLow smoke zero halogen (LSZH)
Fiber mode structureMulti-mode
Connector 1LC
Connector 2LC
Cable length20 m
Full duplexYes
Core diameter50 µm
Cladding diameter125 µm
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Data transfer rate100 Gbit/s
Wavelengths supported850 nm
Product colourAqua colour
Connector 2 genderMale
Connector 1 genderMale
Data transmission
Data transfer rate100 Gbit/s
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Bending radius6 cm
Cable length20 m
Package width330 mm
Package depth255 mm
Package height40 mm
Cable diameter2.9 mm
Package weight280 g
Packaging data
Package width330 mm
Package depth255 mm
Package height40 mm
Package weight280 g
Quantity per pack1 pc(s)
Logistics data
Master (outer) case width410 mm
Master (outer) case length410 mm
Master (outer) case height450 mm
Products per master (outer) case40 pc(s)
Quantity per pack1 pc(s)
