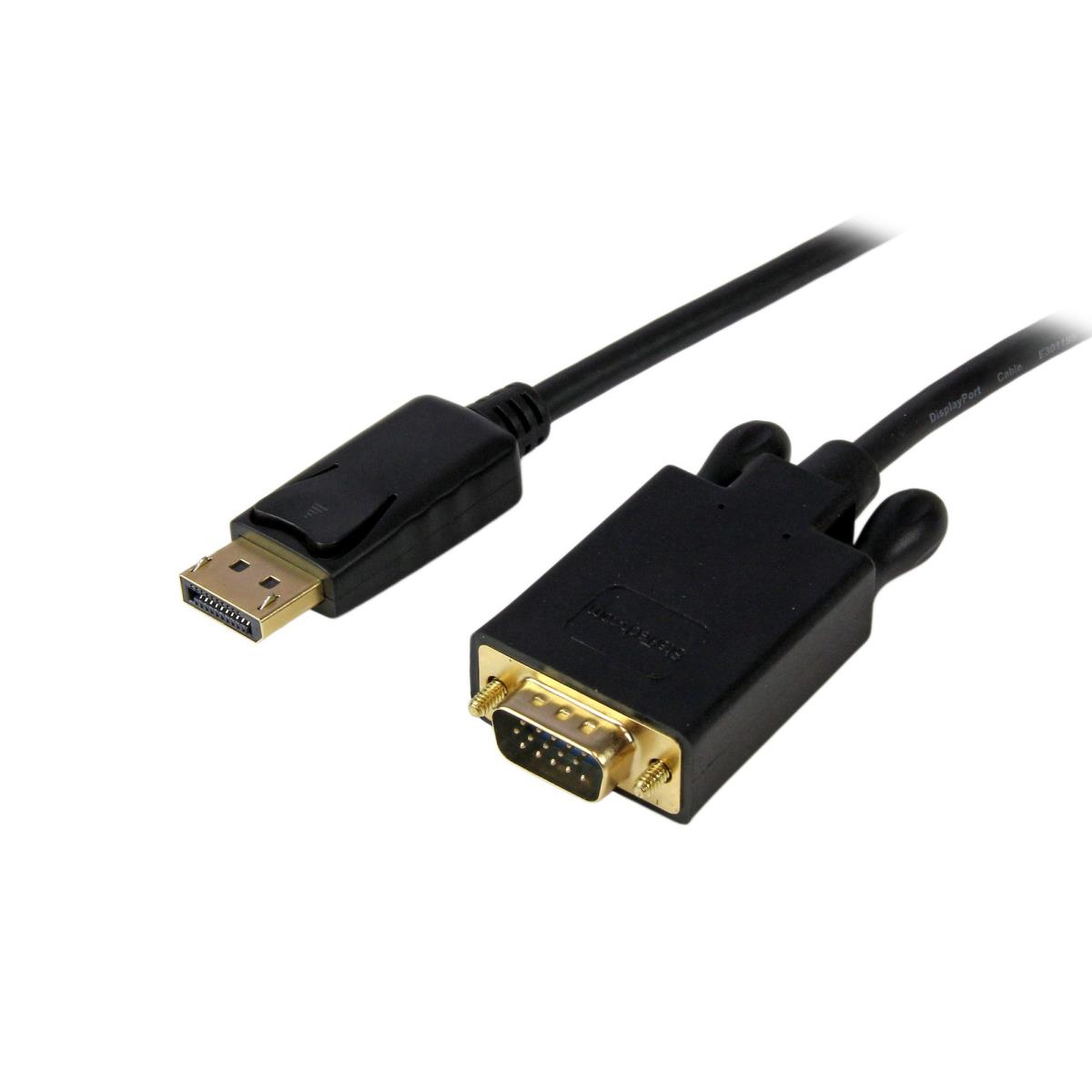

3M DISPLAYPORT TO VGA CABLE
Introduction
Connect a DisplayPort-equipped PC to a VGA monitor/projector, with a 10ft long cable
The DP2VGAMM10B 10ft active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a VGA monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new Mini DisplayPort computer to work with an older VGA monitor or projector.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The DP2VGAMM10B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Specifications
| Features | |
|---|---|
| Converter type | Active video converter |
| Chipset | Analogix - 9832 |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Cable length | 3 m |
| Connector 1 | DisplayPort |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 2048 x 1280 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280 |
| Supported video modes | 1080p |
| Plug and Play | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| HBR2 support | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 148.5 g |
| Package width | 194 mm |
| Package depth | 176 mm |
| Package height | 31 mm |
| Package weight | 150 g |
| Packaging data | |
| Package width | 194 mm |
| Package depth | 176 mm |
| Package height | 31 mm |
| Package weight | 150 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 442 mm |
| Master (outer) case length | 423 mm |
| Master (outer) case height | 432 mm |
| Products per master (outer) case | 100 pc(s) |
| Harmonized System (HS) code | 84733080 |
