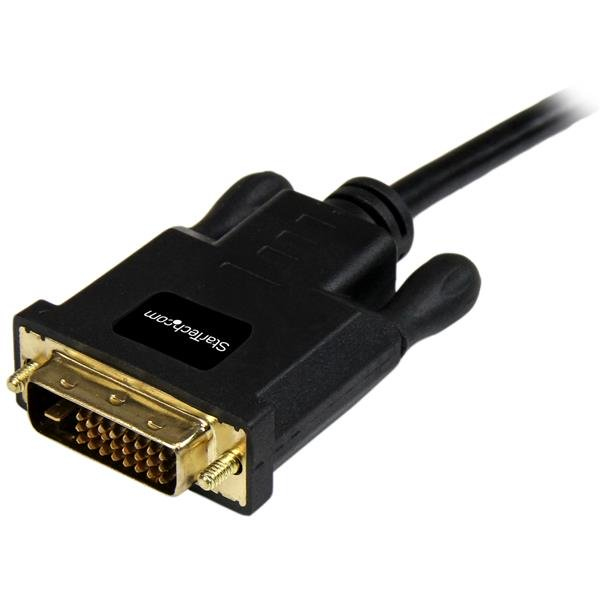

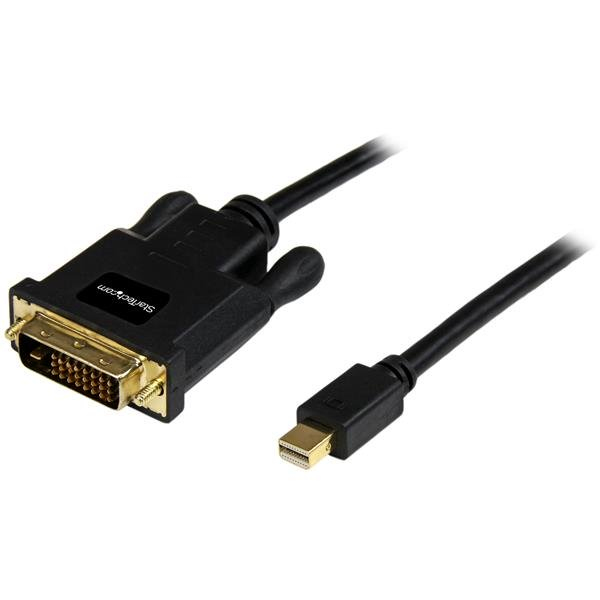

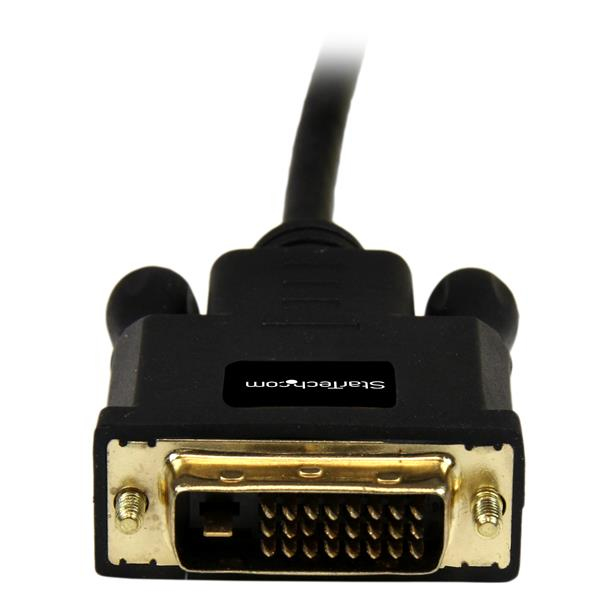

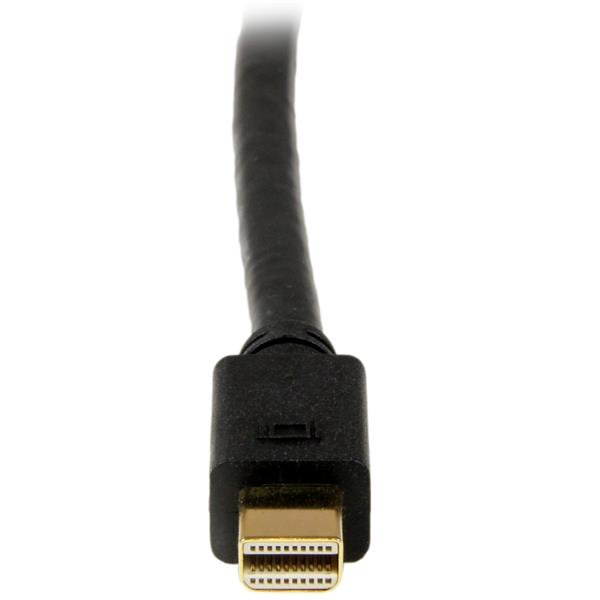

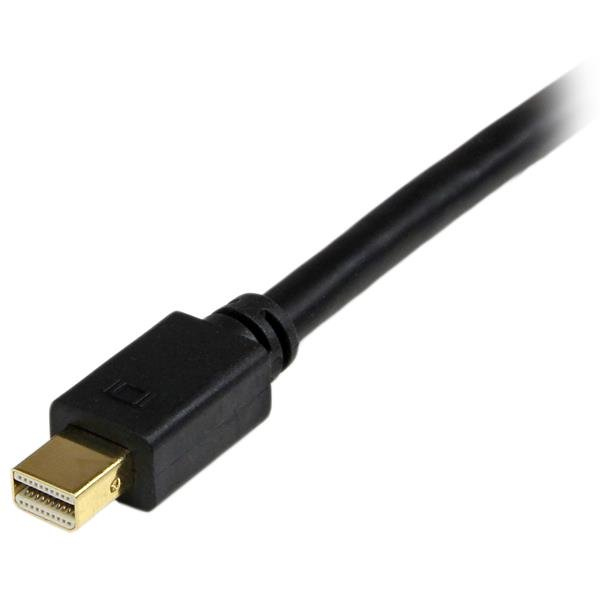

1M MINI DISPLAYPORT TO DVI
Introduction
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a short 3 foot distance, with a tidy installation – BlackThe StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Converter type | Passive |
| Chipset | NXP - 3361 |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Cable length | 0.9 m |
| Connector 1 | mini DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Plug and Play | Yes |
| Certification | CE, FCC, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dual Link DVI | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Other features | |
| Width | 38 mm |
| Height | 15 mm |
| Depth | 920 mm |
| Weight & dimensions | |
| Width | 38 mm |
| Height | 15 mm |
| Depth | 920 mm |
| Weight | 69.4 g |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 17 mm |
| Package weight | 86 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 17 mm |
| Package weight | 86 g |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 430 mm |
| Products per master (outer) case | 220 pc(s) |
| Harmonized System (HS) code | 84733080 |
