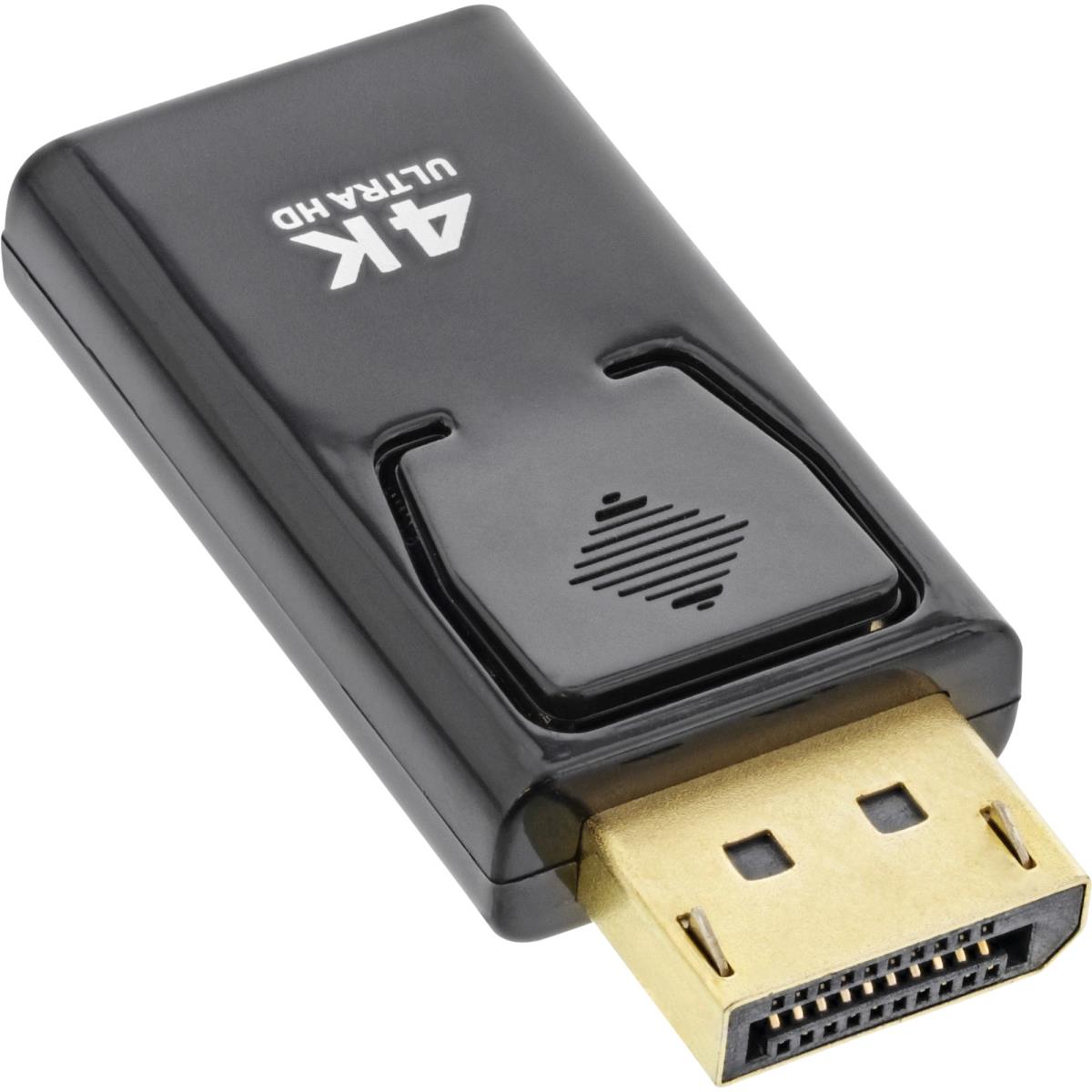

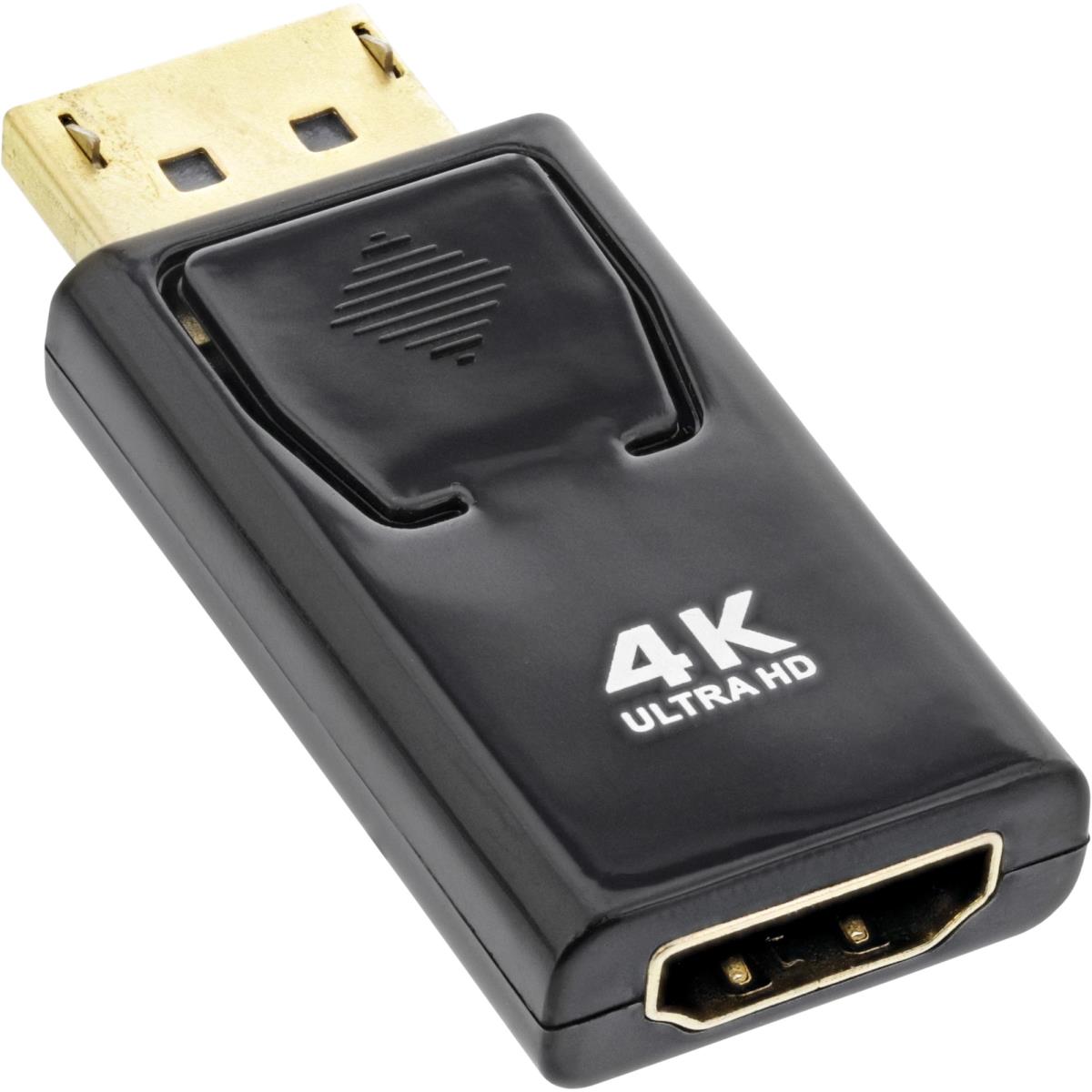

EU Product - - DisplayPort Adapter, DisplayPort Stecker auf HDMI Buchse, 4K/60Hz, mit Audio, schwarz
Introduction
4K transmission from DisplayPort to HDMI with audio
UHD image at 60 Hz:Supports 3840 x 2160 at 60 Hz with RGB and YCbCr 4:4:4.
Direct connection to HDMI displays:Connects DisplayPort sources to a monitor or projector.
Active signal conversion:Compatible with DP and DP++ outputs for a reliable connection.
Video and audio over one cable:Transmits video and audio to the HDMI input.
High bandwidth and robust contacts:Up to 18 Gb/s, gold-plated contacts.
With this active DisplayPort-to-HDMI converter you connect HDMI monitors or projectors to a DisplayPort interface. Compatibility with DisplayPort 1.2a and HDMI 2.0 enables Ultra HD up to 3840 x 2160 at 60 Hz, including RGB and YCbCr 4:4:4. Audio signals are transmitted at the same time. The defined signal direction from the DisplayPort output to the HDMI input ensures clear, practical use.
In professional IT environments, for on-site installations and in service deployments, the converter facilitates integrating existing HDMI displays into existing infrastructures of companies and public institutions.
Connector:1x DisplayPort plug to 1x HDMI A socket
Standard:DisplayPort 1.2a, HDMI 2.0
Converter type:Active
Chipset:IT6563
Signal direction:DisplayPort output to HDMI input
Data rate:Up to 18 Gb/s
Resolution:Up to 3840 x 2160 at 60 Hz
Color space:RGB, YCbCr 4:4:4
Contacts:Gold-plated
Color:Black

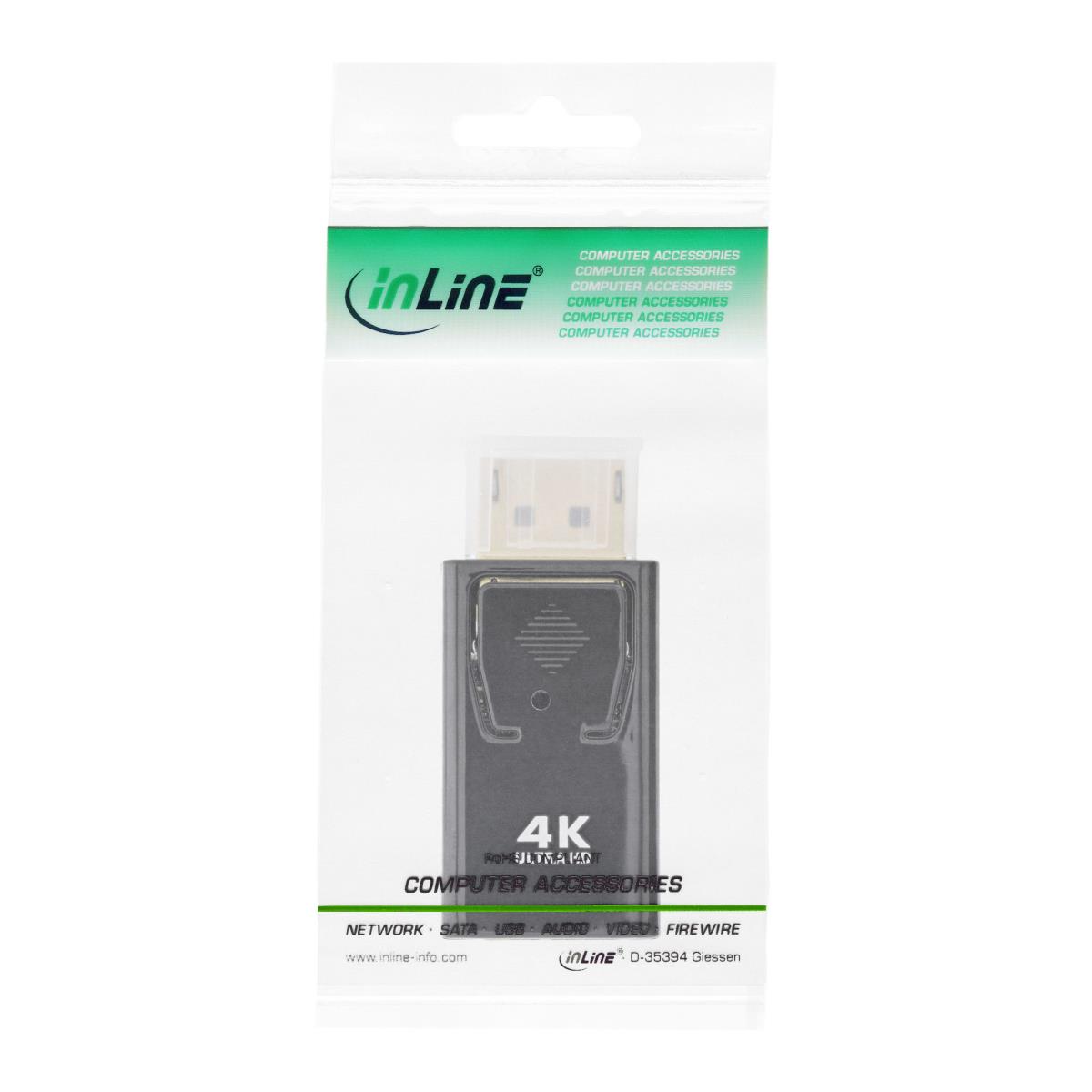

Packaging:PE bag with EAN code
Specifications
| Features | |
|---|---|
| DisplayPort version | 1.2a |
| Product colour | Black |
| Connector 1 | DisplayPort male |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Other features | |
| Width | 23 mm |
| Height | 10 mm |
| Depth | 50 mm |
| Dimensions (WxDxH) | 23 x 50 x 10 mm |
| Weight & dimensions | |
| Width | 23 mm |
| Height | 10 mm |
| Depth | 50 mm |
| Weight | 10 g |
| Package width | 70 mm |
| Package depth | 120 mm |
| Package height | 10 mm |
| Package weight | 13 g |
| Packaging data | |
| Package width | 70 mm |
| Package depth | 120 mm |
| Package height | 10 mm |
| Package weight | 13 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
