EU Product - - DisplayPort Adapter, DisplayPort Stecker auf DVI-D 24+1 Buchse, schwarz

Introduction

Easily connect DVI displays to DisplayPort

Direct connection of existing DVI displays:Connect the DisplayPort output of a graphics card to a DVI-D monitor.
Digital image transmission without analog component:Transmits DVI-D signals only.
Supports common resolutions up to 1080p/60 and beyond:Including 2560x1600/30 for special applications.
Standards-compliant connection:Compatible with DisplayPort 1.1 and DVI 1.1.

This adapter connects the DisplayPort output of a graphics card to a DVI-D monitor, allowing continued use of existing displays. It uses a purely digital signal path and supports typical PC and HDTV resolutions up to 1080p/60 as well as selected higher formats when the source and the display support this.
Particularly practical for on-site installations, service deployments, and in professional IT environments when a quick connection to existing DVI displays in the infrastructures of companies and public institutions is required.

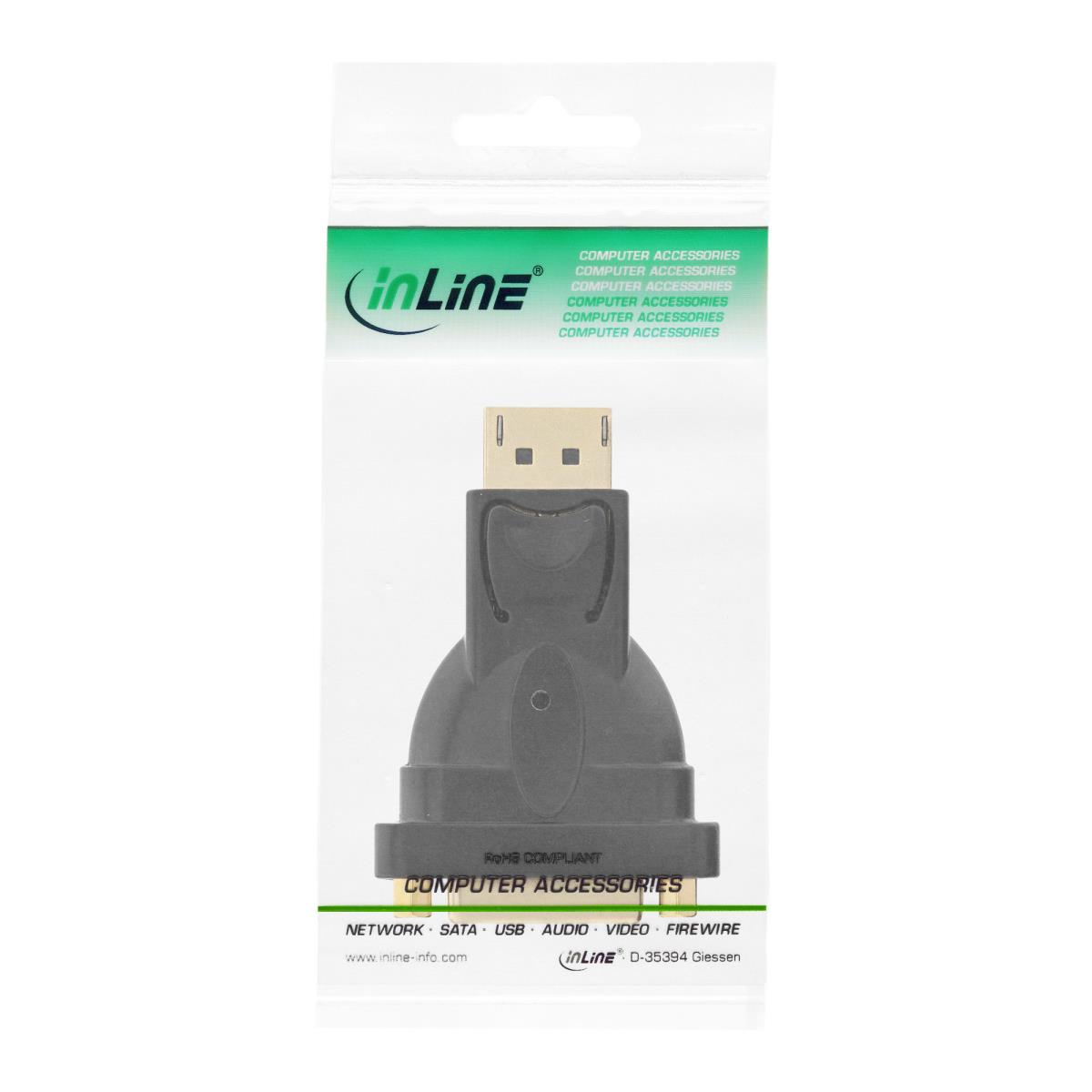

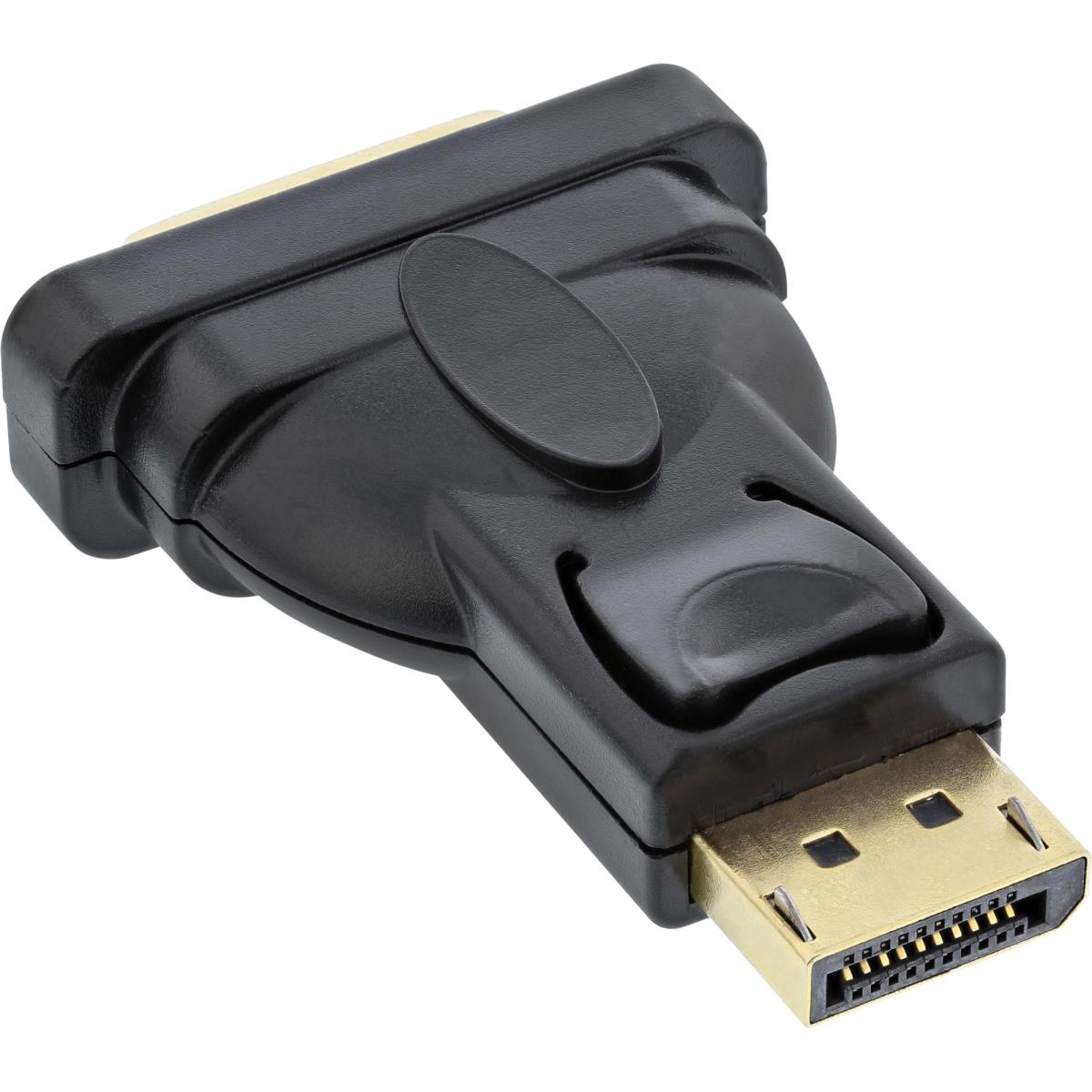

Connector:DisplayPort plug (20-pin) to DVI-D 24+1 socket
Standard:DisplayPort 1.1, DVI 1.1
Supported PC resolutions:VGA, SVGA, XGA, SXGA, UXGA
Supported HDTV resolutions:480p, 576p, 720p, 1080p
Supported display resolutions:720x480@60 Hz, 720x576@60 Hz, 1280x720@60 Hz, 1920x1080@60 Hz, 1280x720@30 Hz, 1768x992@30 Hz, 1920x1080@30 Hz, 2048x1536@30 Hz, 2560x1600@30 Hz
Signal:DVI-D digital (DVI-D only)
Color:Black

Specifications

Features
Product colour	Black
Connector 1	DisplayPort male
Connector 2	DVI-D
Connector 1 gender	Male
Connector 2 gender	Female
Plug and Play	Yes
Weight & dimensions
Weight	20 g
Package width	75 mm
Package depth	130 mm
Package height	15 mm
Package weight	22 g
Package volume	100 cm³
Packaging data
Package width	75 mm
Package depth	130 mm
Package height	15 mm
Package weight	22 g
Package volume	100 cm³
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
