EU Product - - HDMI 4K2K Adapterkabel zum Einbau, HDMI A Stecker/Buchse, 0,6m
Introduction
Clean HDMI panel feed-through with 4K/60 support
Front panel mounting in minutes:Panel-mount socket with included #4-40 screws for a clean finish.
Protects device ports:Fixed feed-through reduces strain and mating cycles directly on the TV, monitor, or source device.
4K/60 transmission:Supports 4096x2160@60 Hz at 4:2:0, 8-bit for high-resolution video signals.
Simple cable management:0.6 m lead simplifies routing inside the enclosure.
The adapter cable brings an HDMI connection to the front or rear of a chassis or panel. Internally, the HDMI A plug connects to the source, externally an HDMI A panel-mount socket is available. The 1:1 pinout enables transparent signal routing up to 4K at 60 Hz (4:2:0, 8-bit) without additional active components.
In professional IT environments, AV racks, and conference rooms, the fixed feed-through facilitates on-site installations and service work. Ports remain easily accessible, mechanically relieved, and integrate reliably into existing infrastructures of companies and public institutions.

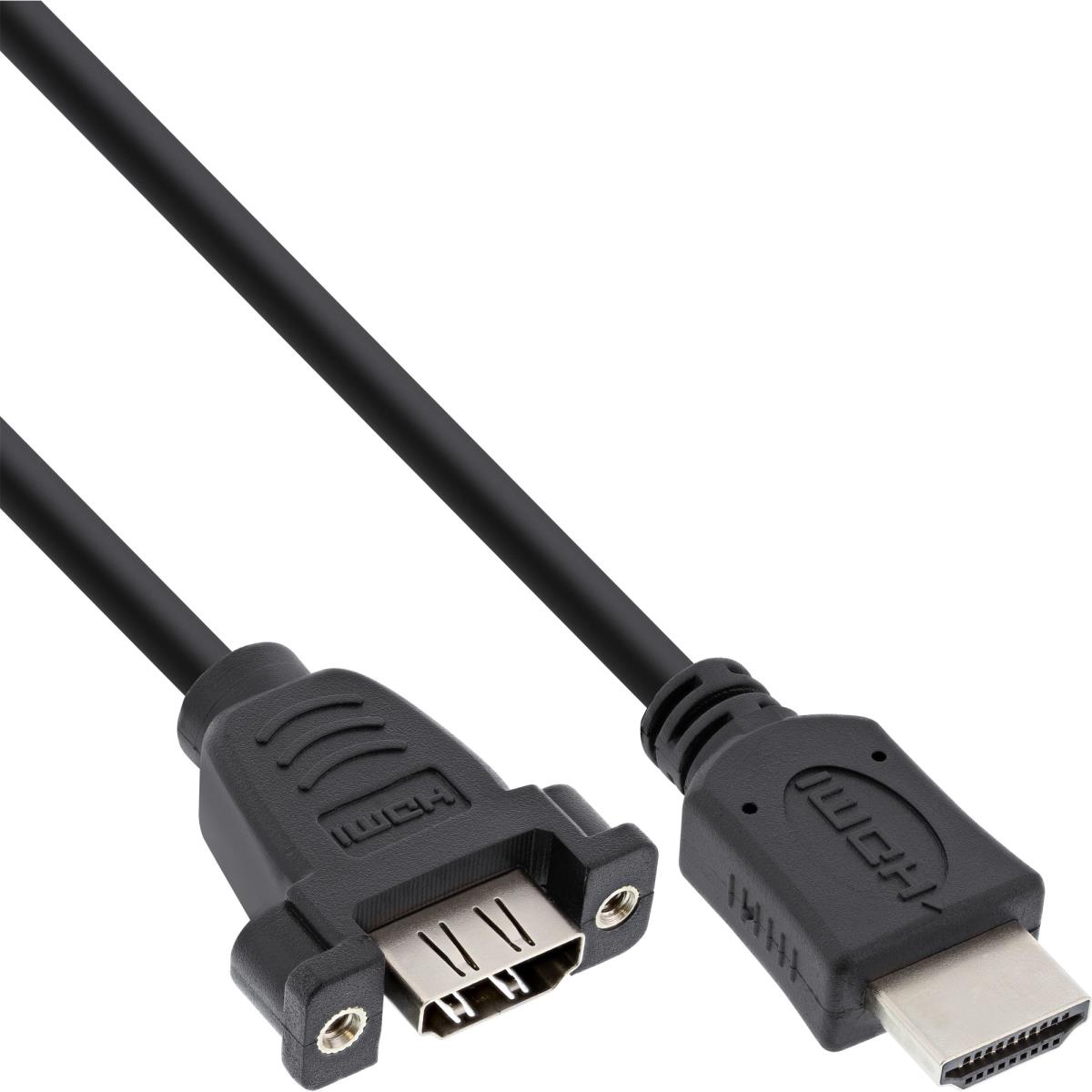

Connection:HDMI A plug to HDMI A panel-mount socket
Length:0.6 m
Supported resolution:4096x2160@60 Hz, 4:2:0, 8-bit
Pinout:1:1
Mounting cutout:approx. 8 x 18 mm
Hole spacing:approx. 25 mm
Screws:#4-40, thread length approx. 15 mm
Specifications
| Features | |
|---|---|
| Colour depth | 8 bit |
| Product colour | Black |
| Cable length | 0.6 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Maximum resolution | 4096 x 2160 pixels |
| Supported video modes | 1080p, 2160p |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Ferrite bead | No |
| Maximum refresh rate | 60 Hz |
| Cable colour | Black |
| Technical details | |
| Cable colour | Black |
| Weight & dimensions | |
| Weight | 52 g |
| Package width | 90 mm |
| Package depth | 95 mm |
| Package height | 25 mm |
| Package weight | 55 g |
| Package volume | 100 cm³ |
| Packaging data | |
| Package width | 90 mm |
| Package depth | 95 mm |
| Package height | 25 mm |
| Package weight | 55 g |
| Package volume | 100 cm³ |
| Other features | |
| Cable colour | Black |
