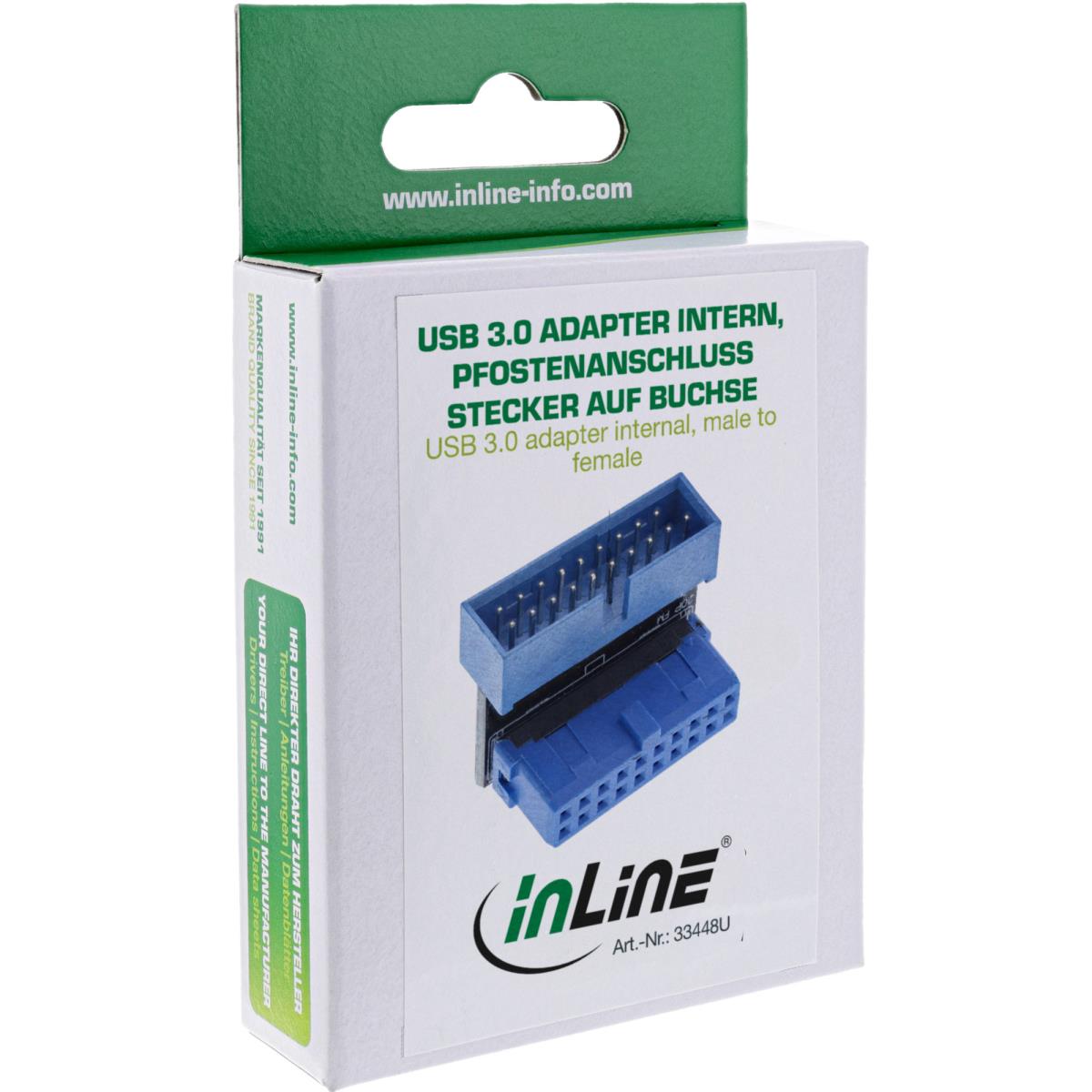

EU Product - USB 3.0 adapter internal - male / female post connection - angled down

Introduction

Space-saving angling of the internal USB 3.2 Gen.1 header

More space in the case:The downward-angled orientation routes the internal header away from the mainboard to save space.
Tool-free adaptation:19pin header plug to 19pin header socket directly changes the mounting orientation.
Clean cable routing:Reduced bending stress on the internal USB cable for neat routing.
Compatible with internal connectors:Supports USB 3.2 Gen.1 for front ports and modules.

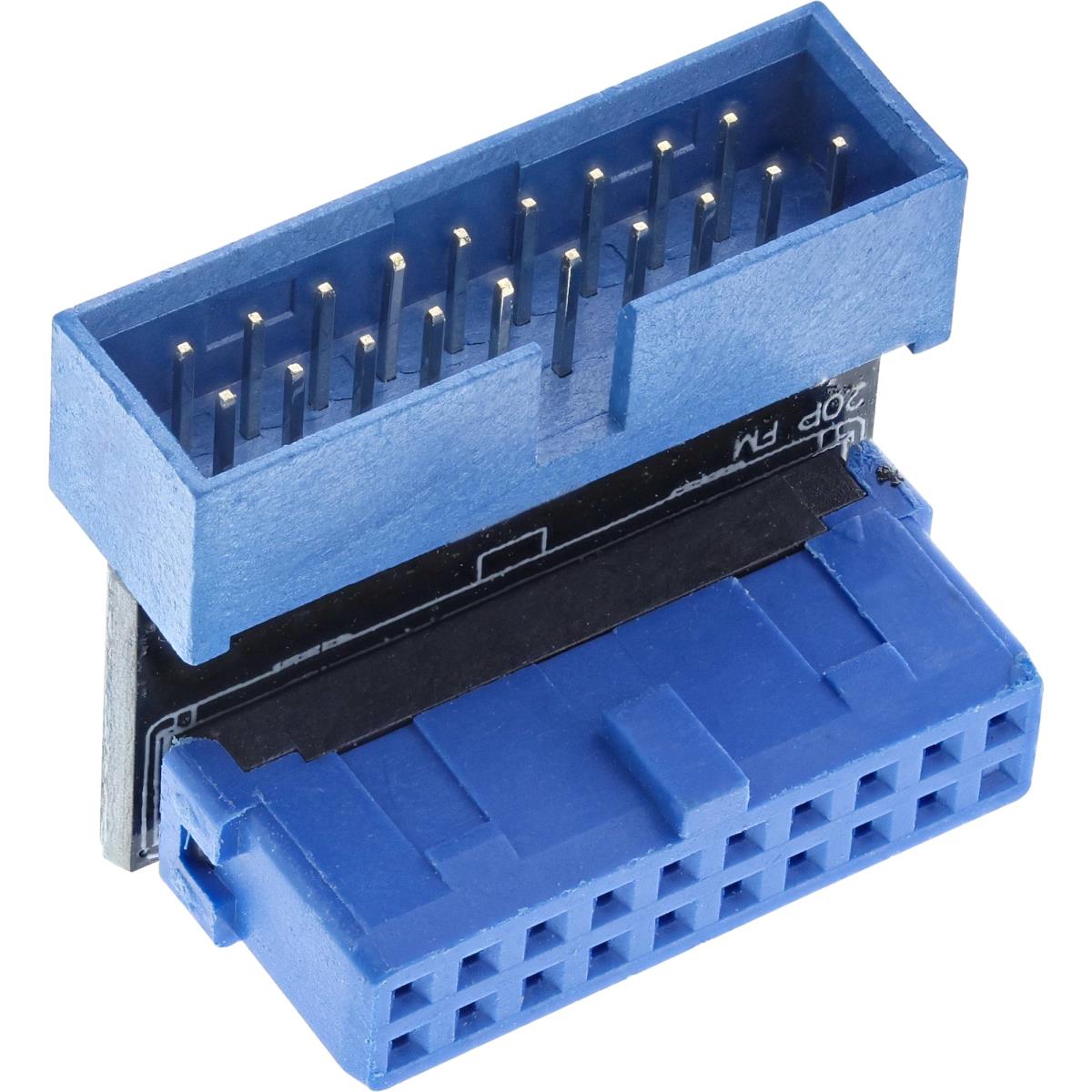

The internal USB adapter with 19pin header plug to 19pin header socket angles the mainboard header downward and thus creates clearance in tight cases. It plugs directly onto the existing connector and continues the connection without re-cabling, which simplifies installation and aligns the cable with low strain.
In professional IT environments, during on-site installations and in service deployments, the angled solution supports tidy, reliable cable routing. In existing infrastructures of companies and public institutions, it also facilitates connecting internal front panels and expansion modules when space is limited.

Connector 1:19pin USB header plug
Connector 2:19pin USB header socket
Standard:USB 3.2 Gen.1
Form factor:angled downward
Application:internal mainboard header

Specifications

Ports & interfaces
Connector 2 gender	Male
Connector 1 gender	Female
Connector 2 form factor	Straight
Connector 1 form factor	Top
Performance
Product colour	Multicolour
Power
USB powered	Yes
Weight & dimensions
Width	24 mm
Weight	3 g
Height	15 mm
Depth	18 mm
Packaging data
Package width	65 mm
Package height	20 mm
Package depth	106 mm
Package weight	12 g
Package volume	400 cm³
Technical details
Dimensions (WxDxH)	24 x 18 x 15 mm
Product colour	Multicolour
Host interface	USB Type-A
Design
Product colour	Multicolour
Other features
Dimensions (WxDxH)	24 x 18 x 15 mm
Logistics data
Package volume	400 cm³
