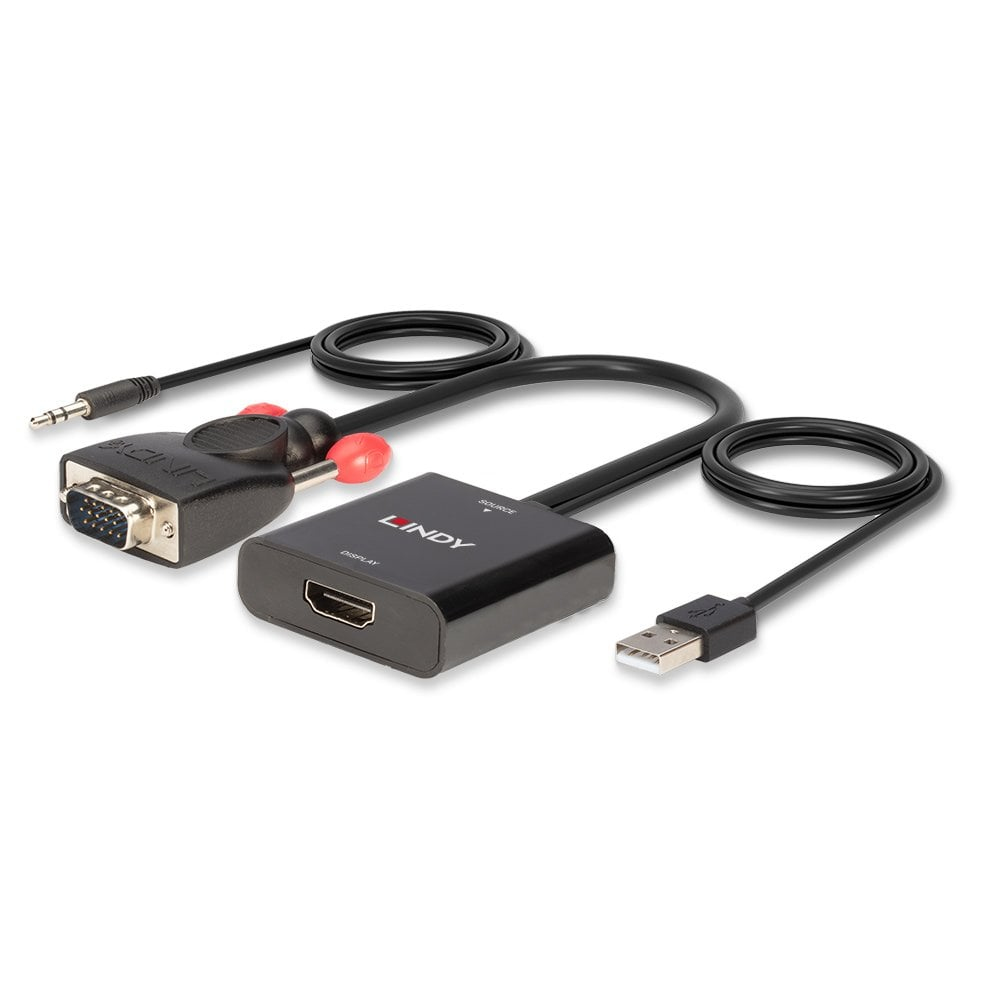

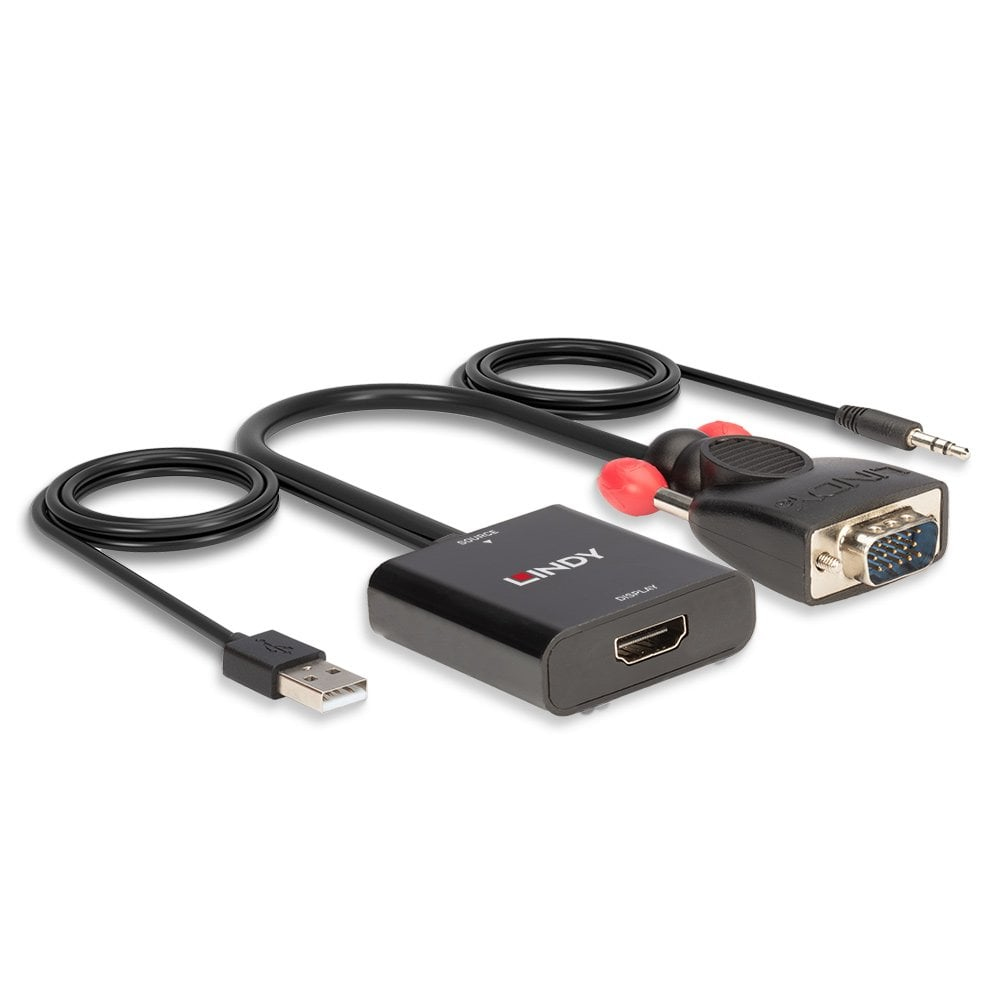

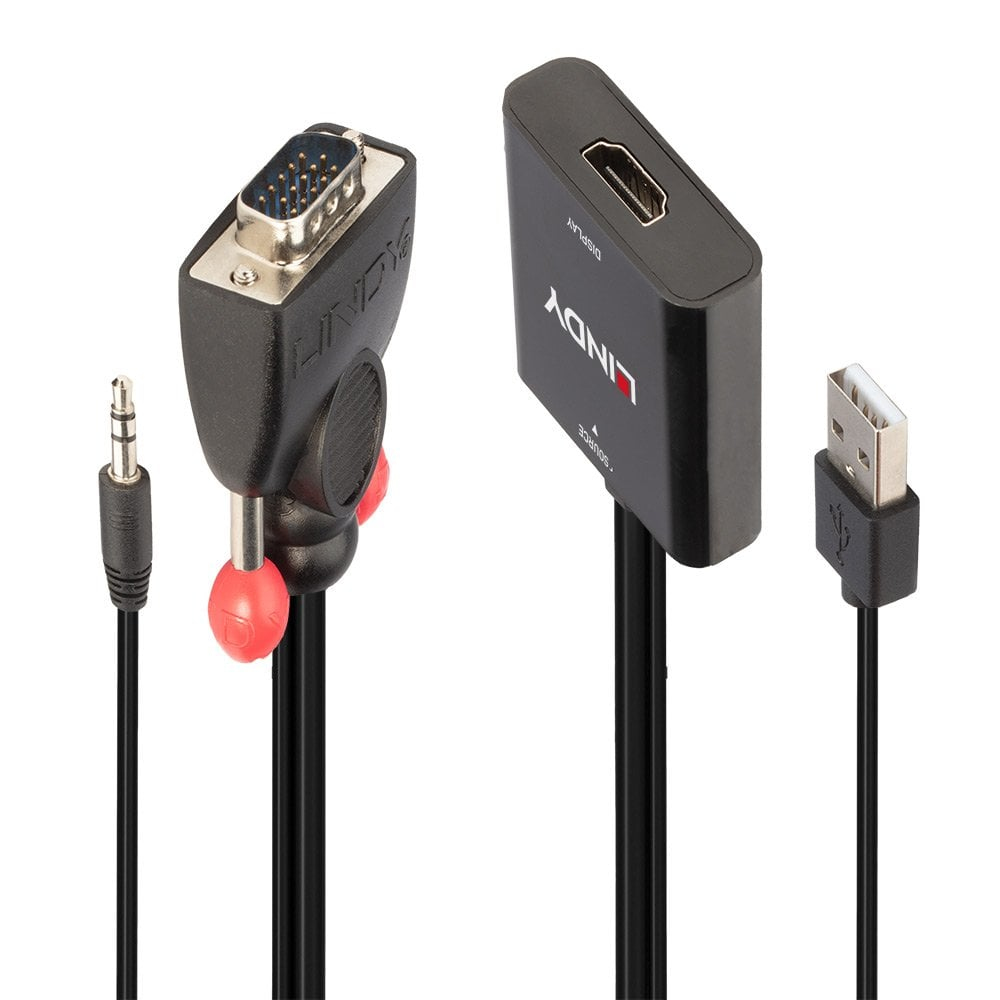

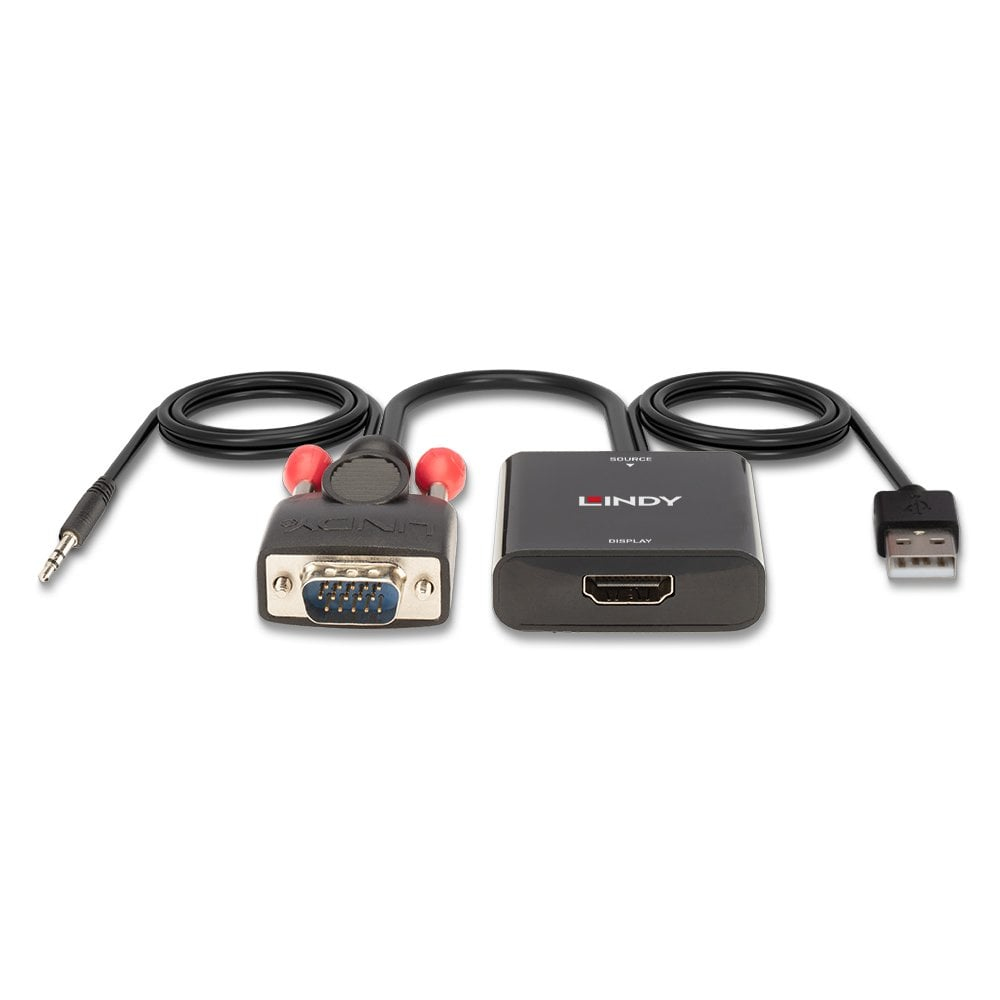

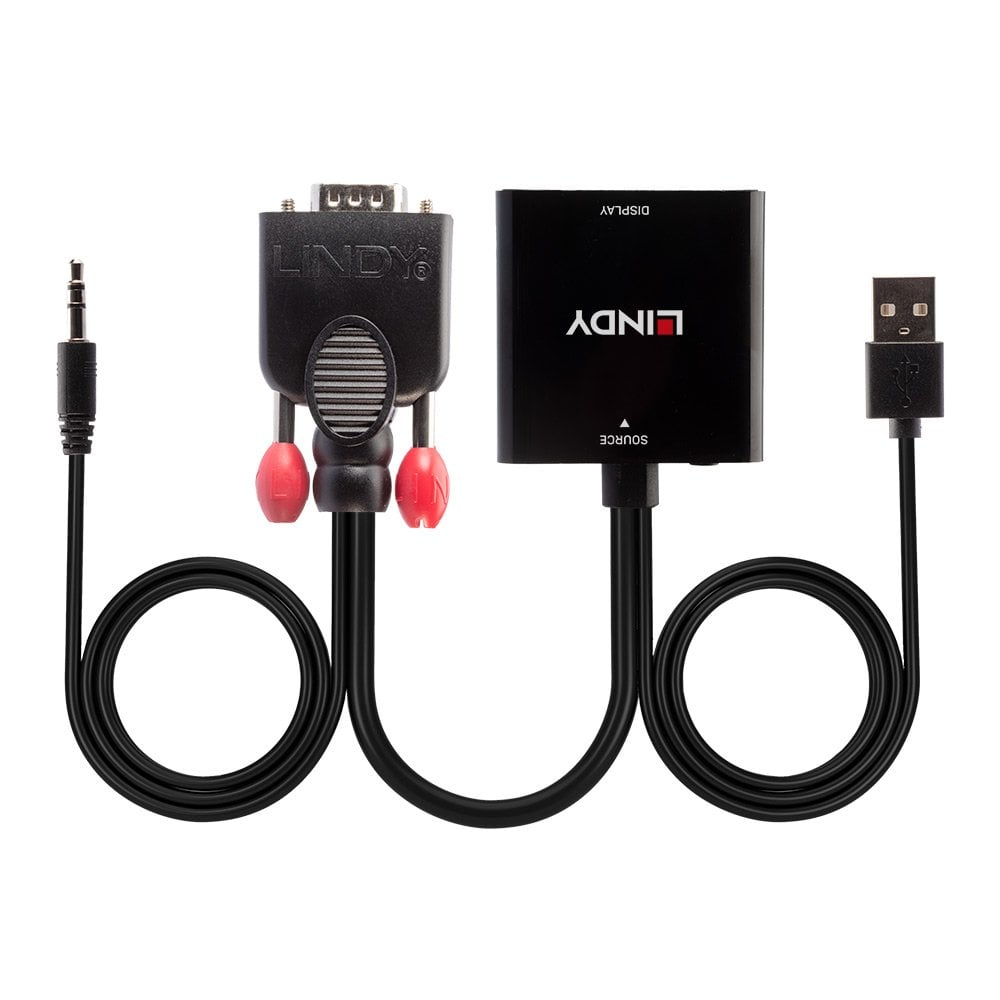

VGA / AUDIO TO HDMI CONVERTER
Introduction
The Lindy VGA and Audio to HDMI Converter combines analogue video and stereo audio signals and converts them into a HDMI signal, perfect for using legacy PC and AV equipment with HDMI displays. It supports resolutions up to 1920x1080. The integrated USB cable can be connected to a USB port or USB power supply to power the converter.
The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug and Play installation.
Specifications
| Features | |
|---|---|
| Converter type | Active video converter |
| Chipset | AG02EX |
| HDMI version | 1.3 |
| Product colour | Black |
| Connector 1 | VGA (D-Sub) + 3.5mm |
| Connector 2 | HDMI + USB |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Jacket material | Polyvinyl chloride (PVC) |
| Data transfer rate | 4.95 Gbit/s |
| Maximum resolution | 1920 x 1080 pixels |
| Plug and Play | Yes |
| Certification | CE, FCC, RoHS & REACH, CP65 |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Power source | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Certificates | |
| Certification | CE, FCC, RoHS & REACH, CP65 |
| Other features | |
| Width | 45 mm |
| Height | 16 mm |
| Depth | 45 mm |
| Weight & dimensions | |
| Width | 45 mm |
| Height | 16 mm |
| Depth | 45 mm |
| Weight | 81 g |
| Package width | 176 mm |
| Package height | 194 mm |
| Package weight | 120 g |
| Packaging data | |
| Manual | Yes |
| Package width | 176 mm |
| Package height | 194 mm |
| Package type | Polybag |
| Package weight | 120 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
